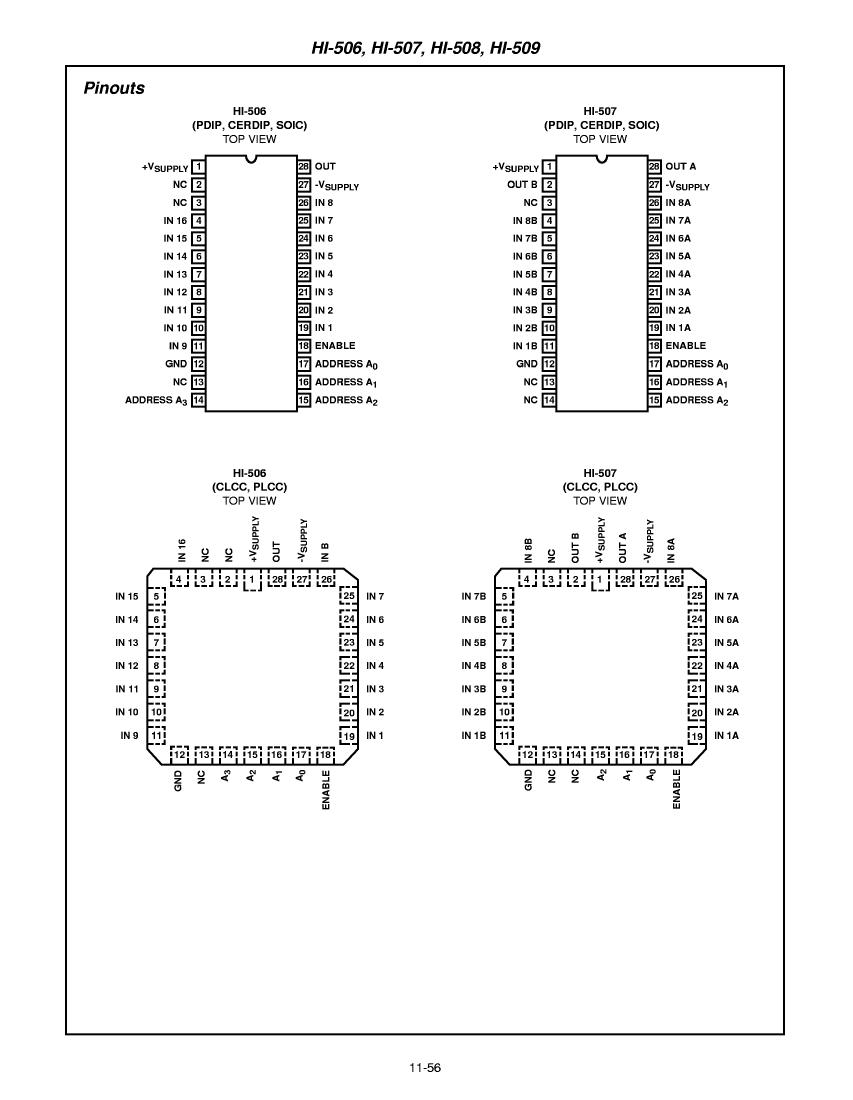

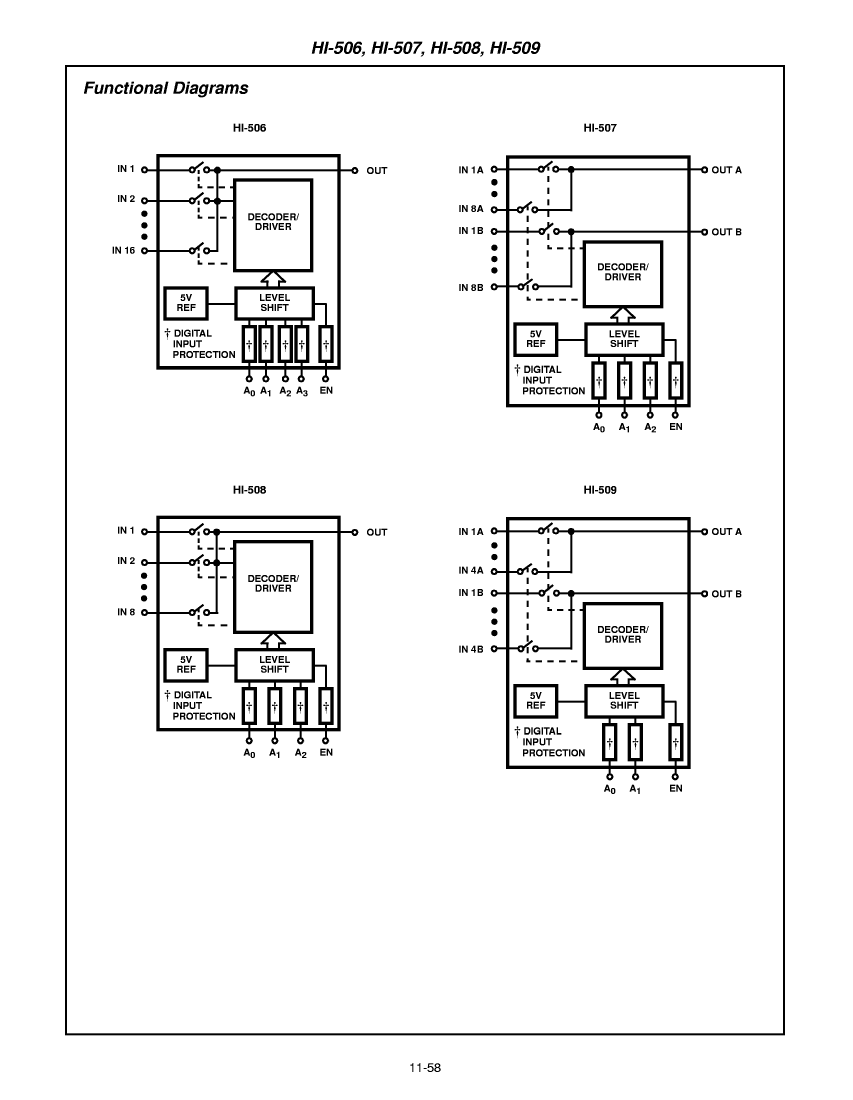

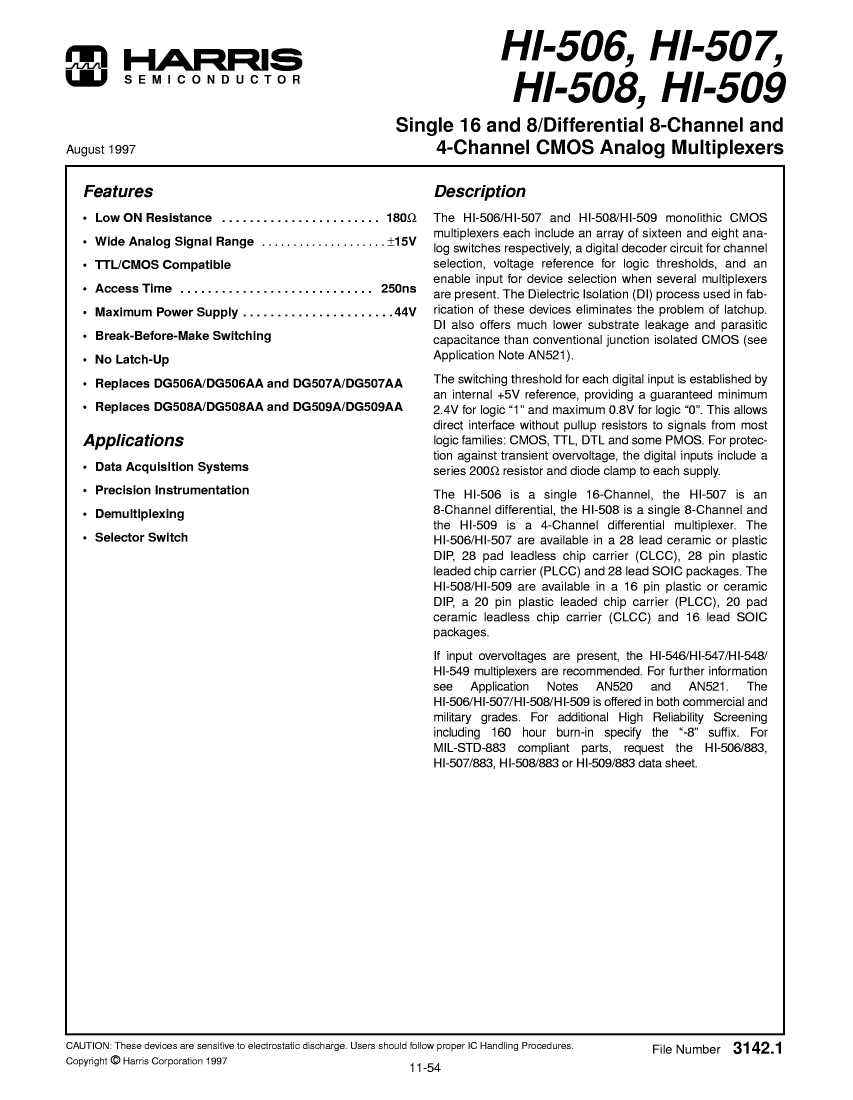

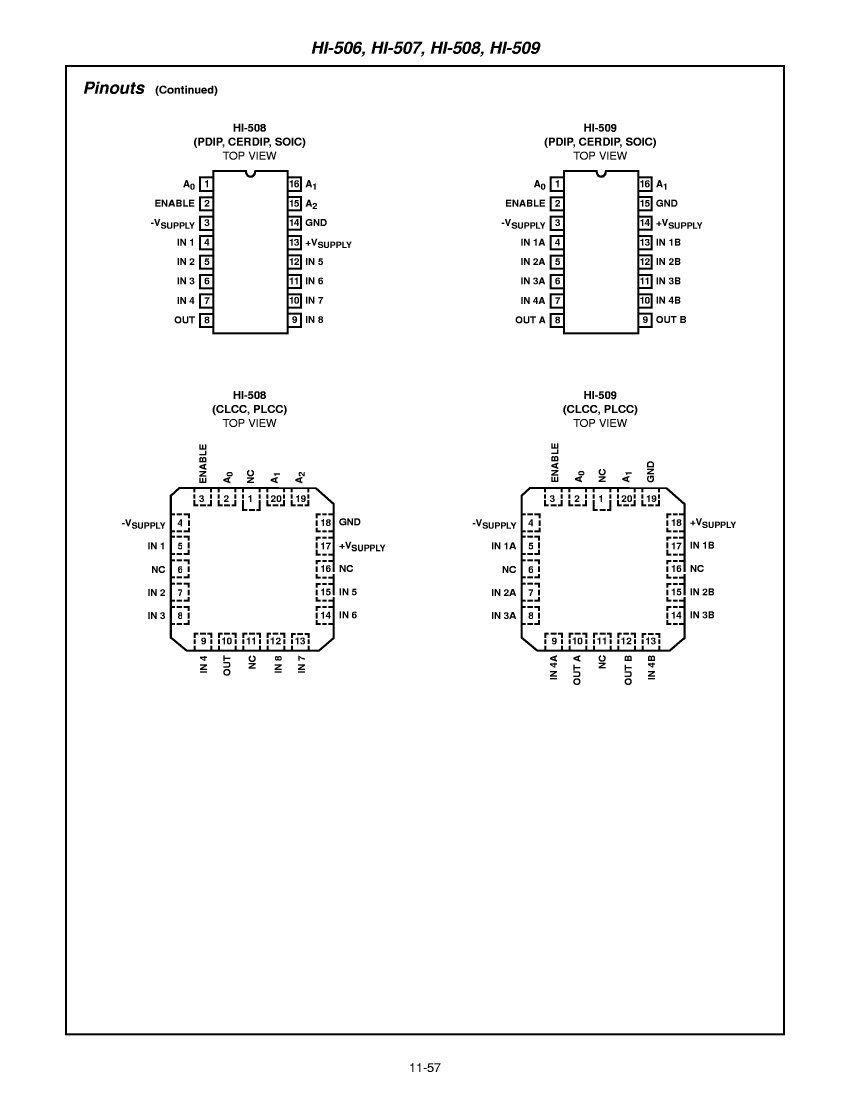

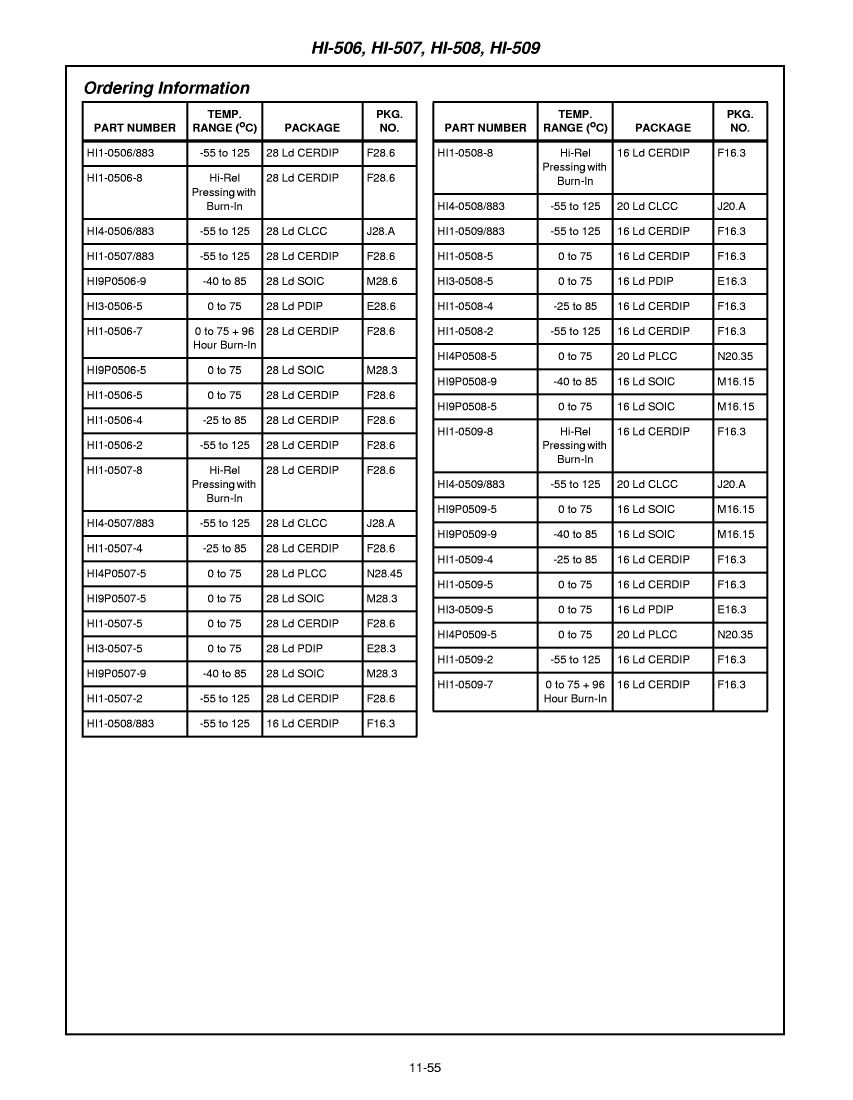

HI4P0508-5: Descriptionsingle 16 and 8/ differential 8 channel and 4 channel cmos analog multiplexers; CategoryAnalog mixed-signal IC The signal circuit; File Size852KB，16 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

HI4P0508-5 Overview

single 16 and 8/ differential 8 channel and 4 channel cmos analog multiplexers

HI4P0508-5 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	QCCJ, LDCC20,.4SQ
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	S-PQCC-J20
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1
Number of terminals	20
Nominal off-state isolation	68 dB
On-state resistance matching specifications	9 Ω
Maximum on-state resistance (Ron)	400 Ω
Maximum operating temperature	75 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC20,.4SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.02 A
Maximum supply current (Isup)	2.4 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	1000 ns
Maximum connection time	1000 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD

Preview

Download Datasheet

View All

HI4P0508-5 Related Products

	HI4P0508-5	HI9P0509-9	HI4P0509-5	HI9P0509-5
Description	single 16 and 8/ differential 8 channel and 4 channel cmos analog multiplexers	single 16 and 8/ differential 8 channel and 4 channel cmos analog multiplexers	single 16 and 8/ differential 8 channel and 4 channel cmos analog multiplexers	single 16 and 8/ differential 8 channel and 4 channel cmos analog multiplexers
Maker	Harris	Harris	Harris	Harris
package instruction	QCCJ, LDCC20,.4SQ	,	QCCJ, LDCC20,.4SQ	SOP, SOP16,.25
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER
JESD-30 code	S-PQCC-J20	R-PDSO-G16	S-PQCC-J20	R-PDSO-G16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	8	4	4	4
Number of functions	1	1	1	1
Number of terminals	20	16	20	16
Maximum operating temperature	75 °C	85 °C	75 °C	75 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL EXTENDED	INDUSTRIAL	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	J BEND	GULL WING	J BEND	GULL WING
Terminal location	QUAD	DUAL	QUAD	DUAL
Is it Rohs certified?	incompatible	-	incompatible	incompatible
JESD-609 code	e0	-	e0	e0
Nominal off-state isolation	68 dB	-	68 dB	68 dB
On-state resistance matching specifications	9 Ω	-	9 Ω	9 Ω
Maximum on-state resistance (Ron)	400 Ω	-	400 Ω	400 Ω
encapsulated code	QCCJ	-	QCCJ	SOP
Encapsulate equivalent code	LDCC20,.4SQ	-	LDCC20,.4SQ	SOP16,.25
power supply	+-15 V	-	+-15 V	+-15 V
Maximum signal current	0.02 A	-	0.02 A	0.02 A
Maximum supply current (Isup)	2.4 mA	-	2.4 mA	2.4 mA
Maximum disconnect time	1000 ns	-	1000 ns	1000 ns
Maximum connection time	1000 ns	-	1000 ns	1000 ns
switch	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm
