IQ12240HPD7FNRS-G

Description
half-brick DC-DC converter
File Size1MB,28 Pages
ManufacturerSynQor Worldwide Headquarters
Websitehttp://www.synqor.com/
Download Datasheet Compare View All

IQ12240HPD7FNRS-G Overview

half-brick DC-DC converter

Technical
Specification
IQ12-HPx Family
9-22 V
Continuous Input
1.8-48 V
Outputs
182 W
Max Power
2250 V dc
Isolation
Half-brick
DC-DC Converter

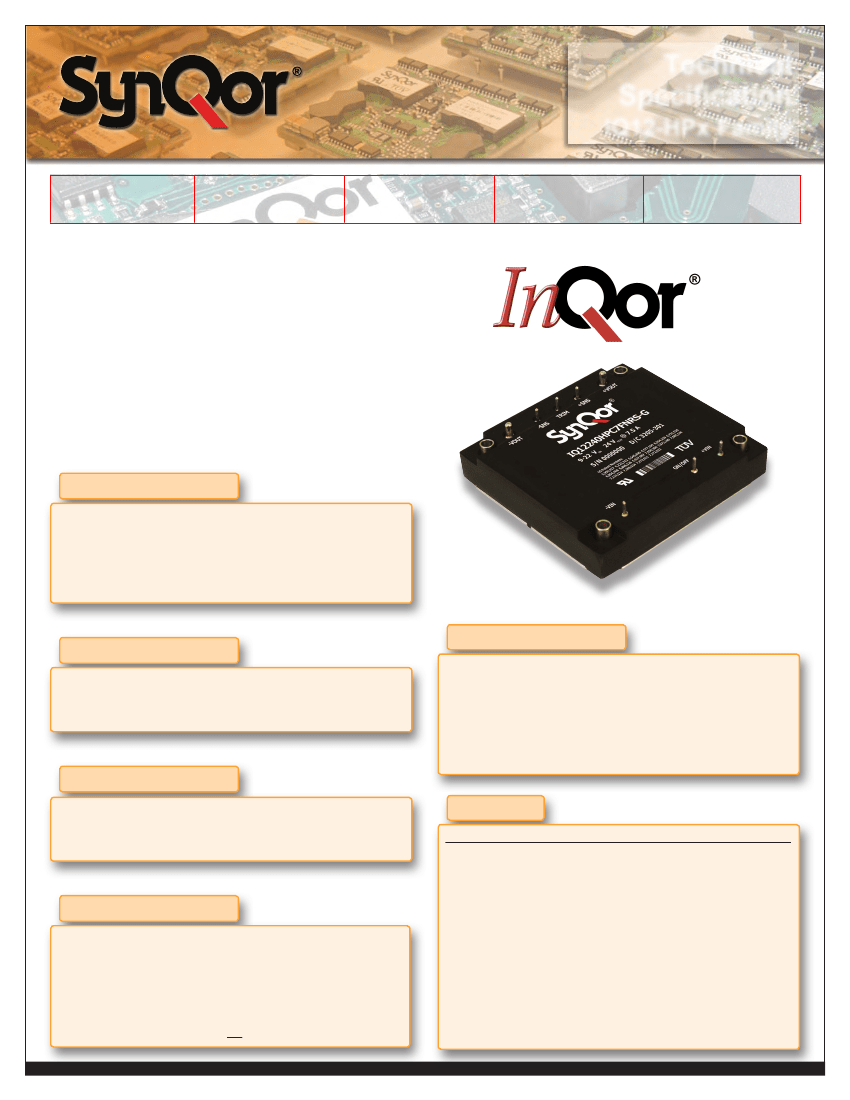

The InQor
®
Half-brick converter series is composed
of next-generation, board-mountable, isolated,
fixed switching frequency dc-dc converters that use
synchronous rectification to achieve extremely high
power conversion efficiency. Each module is supplied
completely encased to provide protection from the
harsh environments seen in many industrial and
transportation applications.
Operational Features
• High efficiencies, up to 91% at full rated load current
• Delivers full power with minimal derating - no heatsink required
• Operating input voltage range: 9-22 V
• Fixed frequency switching provides predictable EMI
• No minimum load requirement
Mechanical Features
• Industry standard Half-brick pin-out configuration
• Size: 2.390" x 2.490" x 0.512" (60.6 x 63.1 x 13.0 mm)
• Total weight: 5 oz (142 g)
Protection Features
• Input under-voltage lockout
• Input over-voltage shutdown
• Output current limit and short circuit protection
• Active back bias limit
• Output over-voltage protection
• Thermal shutdown
Control Features
• On/Off control referenced to input side
• Remote sense for the output voltage
• Output voltage trim range of -20%, +10%
COntents

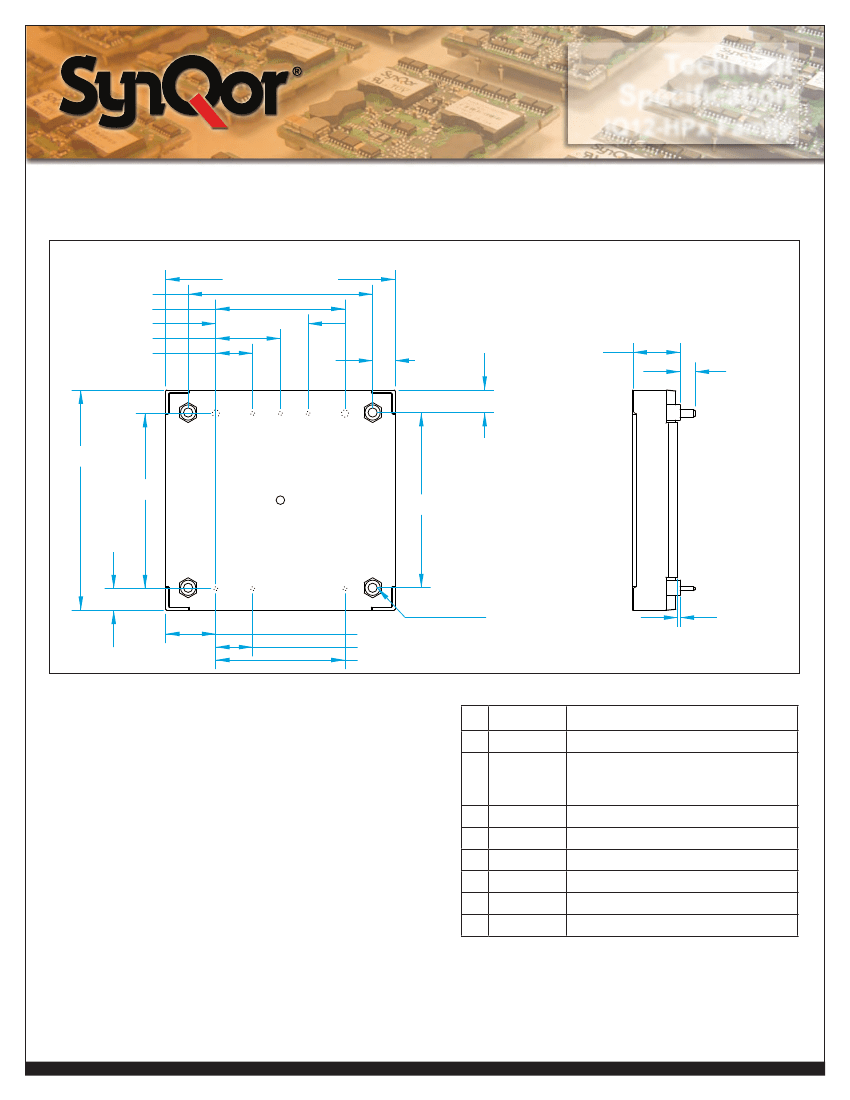

Mechanical Drawing
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
IQ12 Family Electrical Characteristics (all output voltages)
. . . . . . . . . .
3
IQ12 Family Standards & Qualification
. . . . . . . . . . . . . . . . . . . . . . . .
4

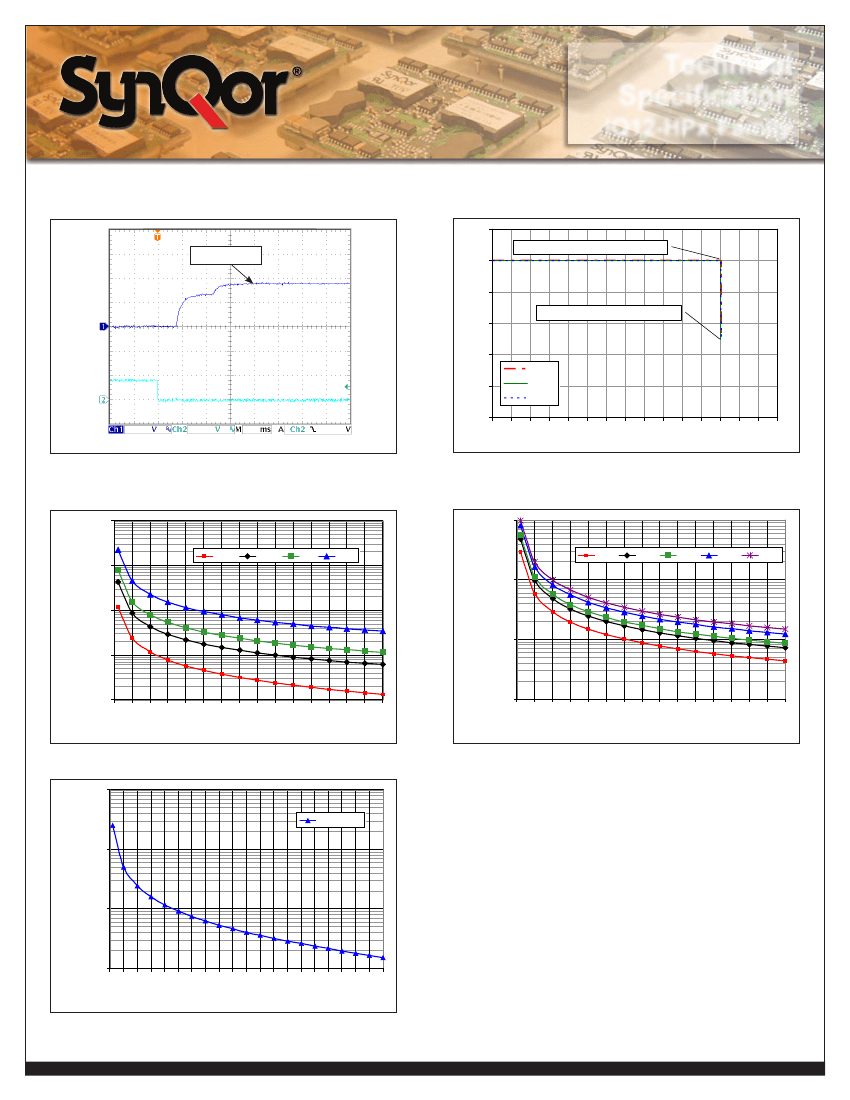

IQ12 Family Figures (all output voltages)
. . . . . . . . . . . . . . . . . . . . . .
5
IQ12018HPC60 Electrical Characteristics (1.8 Vout) & Figures.
. . . . . .
6-7
IQ12033HPC50 Electrical Characteristics (3.3 Vout) & Figures.
. . . . . .
8-9
IQ12050HPC36 Electrical Characteristics (5.0 Vout) & Figures.
. . . .
10-11
IQ12120HPC15 Electrical Characteristics (12.0 Vout) & Figures
. . . .
12-13
IQ12150HPC12 Electrical Characteristics (15.0 Vout) & Figures
. . . .
14-15
IQ12240HPC7F Electrical Characteristics (24.0 Vout) & Figures
. . . .
16-17
IQ12280HPC6F Electrical Characteristics (28.0 Vout) & Figures
. . . .
18-19
IQ12400HPC4F Electrical Characteristics (40.0 Vout) & Figures
. . . .
20-21
IQ12480HPC3H Electrical Characteristics (48.0 Vout) & Figures.
. . .
22-23
Application Section
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24
Ordering Information.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
www.synqor.com
Doc.# 005-IQ12HPX Rev. B
04/10/09
Page 1
Page No.
safety Features
• 2250 V, 30 MW
input-to-output isolation
• UL 60950-1:2003, basic insulation
• CAN/CSA-C22.2 No. 60950-1:2003
• EN60950-1:2001
• CE Marked
• RoHS compliant (see Page 28)
Product # IQ12xxxHPXxx
Phone 1-888-567-9596
