T-1 3/4 (
φ
5mm) High
Performance AllnGaP LED Lamps
Description
The MVL-534UYL , utilizes the latest absorbing
substrate Aluminum Indium Gallium Phosphide
(AllnGaP) LED technology. This LED material
has outstanding light output efficiency over
a wide range of drive current.
The package is T-1 3/4 (φ5mm) water clear standard type.
5.90
(.230)
1.00
(.040)
7.62
(.300)
MVL-534UYL
Package Dimensions
φ5.05
(.200)
Unit: mm ( inches )
5.47
(.215)
Features
l
l
l
l
SEE NOTE 2
Ultra - brightness
Low power consumption
TTL compatible
Reliable
0.5 TYP.
(.020)
25.4 MIN.
(1.000)
1.00MIN.
(.040)
2.54TYP.
(.100)
A
SEE NOTE 3
C
Notes :
1. Tolerance is ± 0.25 mm (.010") unless otherwise noted.
2. Protruded resin under flange is 1.5 mm (.059") max.
3. Lead spacing is measured where the leads emerge from the package.
Absolute Maximum Ratings
Parameter
Power Dissipation
Peak Forward Current(1/10 Duty Cycle100µs pulse width)
Continuous Forward Current
Reverse Voltage
Operating Temperature Range
o
@ T
A
=25 C
Unit
Maximum Rating
mW
125
mA
100
mA
50
V
5
o
o
-40 C to +100 C
-40
o
C to +100
o
C
Storage Temperature Range
o
Lead Soldering Temperature 1.6 mm from body for 5 seconds at 260 C
Unity Opto Technology Co., Ltd.
09/06/2000
MVL-534UYL
Optical-Electrical Characteristics
@ T
A
=25
o
C
Parameter
Luminous Intensity
Forward Voltage
Reverse Current
Peak / Dominant Wavelength
Spectral Line Half Width
Viewing Angle
Relative Luminous Intensity
Test Conditions
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
1
Symbol
I
V
V
F
I
R
λp/λd
∆λ
2θ
1/2
Min .
700
-
-
-
-
-
Typ .
1700
2.0
-
592/590
20
33
Max .
-
2.5
100
-
-
-
Unit .
mcd
V
µA
nm
nm
deg.

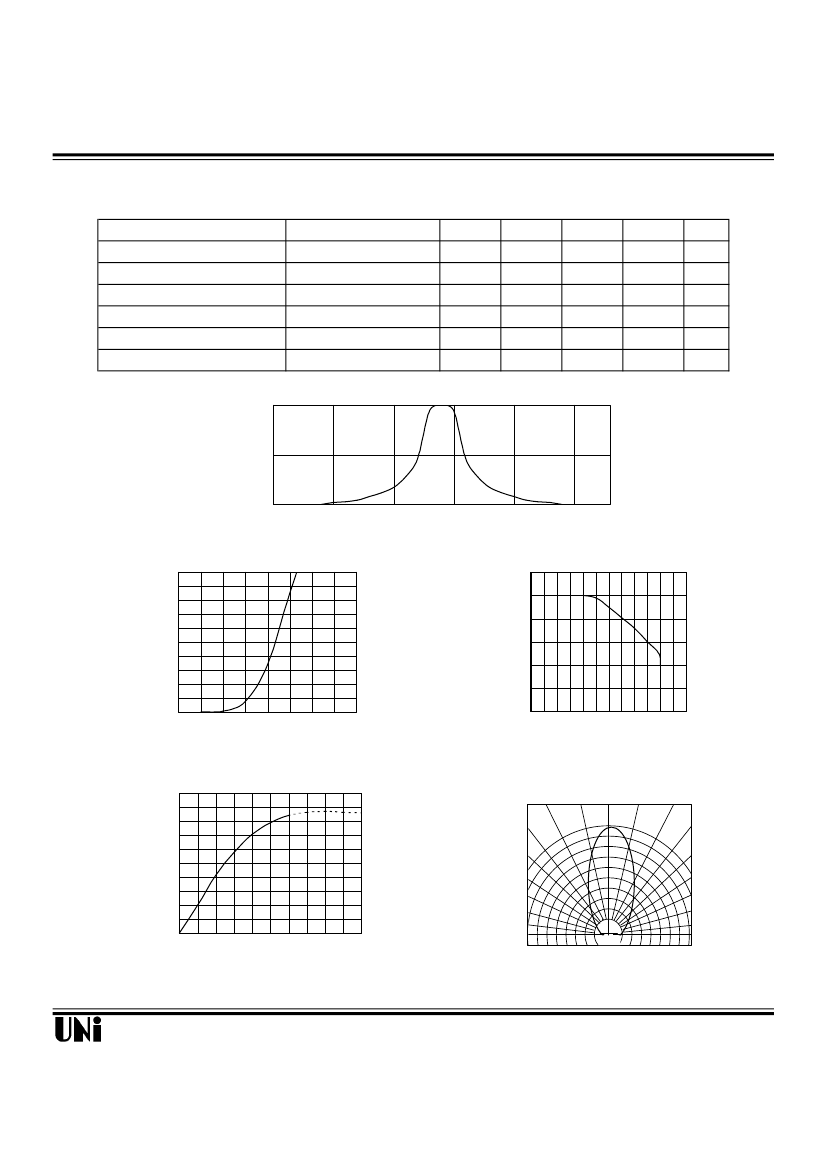

Typical Optical-Electrical Characteristic Curves
0.5
0
525
550
575
600
625
650
Wavelength (nm)
FIG.1 SPECTRAL DISTRIBUTION
Forward Current I
F
(mA)
50
60
Forward Current I
F
(mA)
40
30
20
10
0
1.2
1.6
2.0
2.4
2.8
50
40
30
20
10
0
0
30
60
90
o
120
Forward Voltage V
F
(V)
FIG.2 FORWARD CURRENT VS
FORWARD VOLTAGE
Relative Luminous Intensity
5
4
3
2
1
0
0
20
40
60
80
100
Ambient Temperature T
A
(
C
)
FIG.3 FORWARD CURRENT
VS. AMBIENT TEMPERATURE
0°
10°
20°
30°
40°
1.0
0.9
0.8
0.5 0.3 0.1
0.2 0.4 0.6
50°
60°
70°
80°
90°
Forward Current (mA)
FIG.4 RELATIVE LUMINOUS INTENSITY
VS. FORWARD CURRENT
Relative Luminous Intensity
FIG.5 RADIATION DIAGRAM
Unity Opto Technology Co., Ltd.
09/06/2000
