TA2028F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> TA2028F

TA2028F: DescriptionCONTINUOUS TIME FILTER, LOWPASS, PDSO16; CategoryAnalog mixed-signal IC filter; File Size492KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TA2028F Overview

CONTINUOUS TIME FILTER, LOWPASS, PDSO16

TA2028F Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SSOP, SOP16,.25,40
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Active filter type	CONTINUOUS TIME FILTER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	8.2 mm
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Order	2ND
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SOP16,.25,40
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
response	LOWPASS
Maximum seat height	1.9 mm
Maximum supply current (Isup)	13.7 mA
Maximum supply voltage (Vsup)	10 V
Minimum supply voltage (Vsup)	8 V
Nominal supply voltage (Vsup)	9 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
width	4.6 mm

Preview

Download Datasheet

View All

TA2028F / P

TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic

TA2028F,TA2028P

Filter IC For

Σ−∆

Modulation System DA Converter

TA2028F, TA2028P are an analog filter IC for

Σ−∆

modulation

system DA converter.

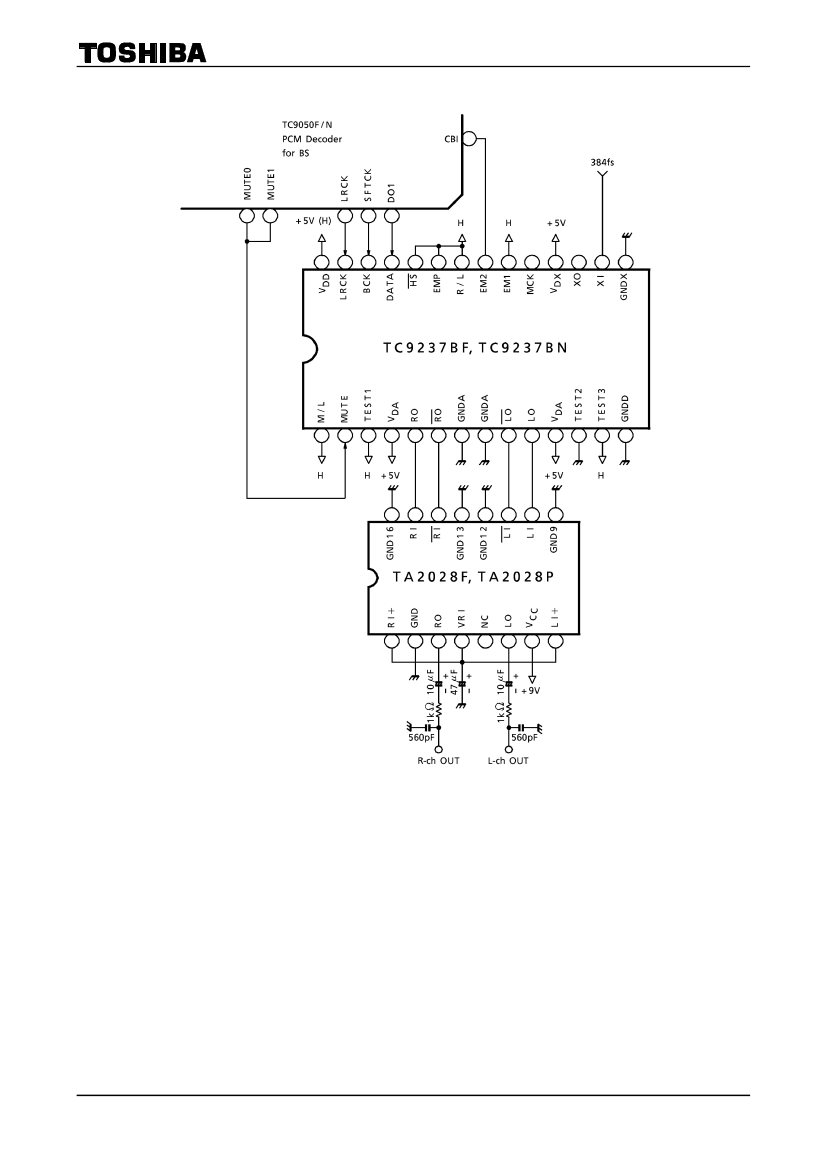

Using the TA2028F, TA2028P in combination the TC9237BF,

TC9237BN (the

Σ−∆

modulation system DA converter with a

built−in digital filter), it is possible to construct a DA conversion

system with less external parts.

Features

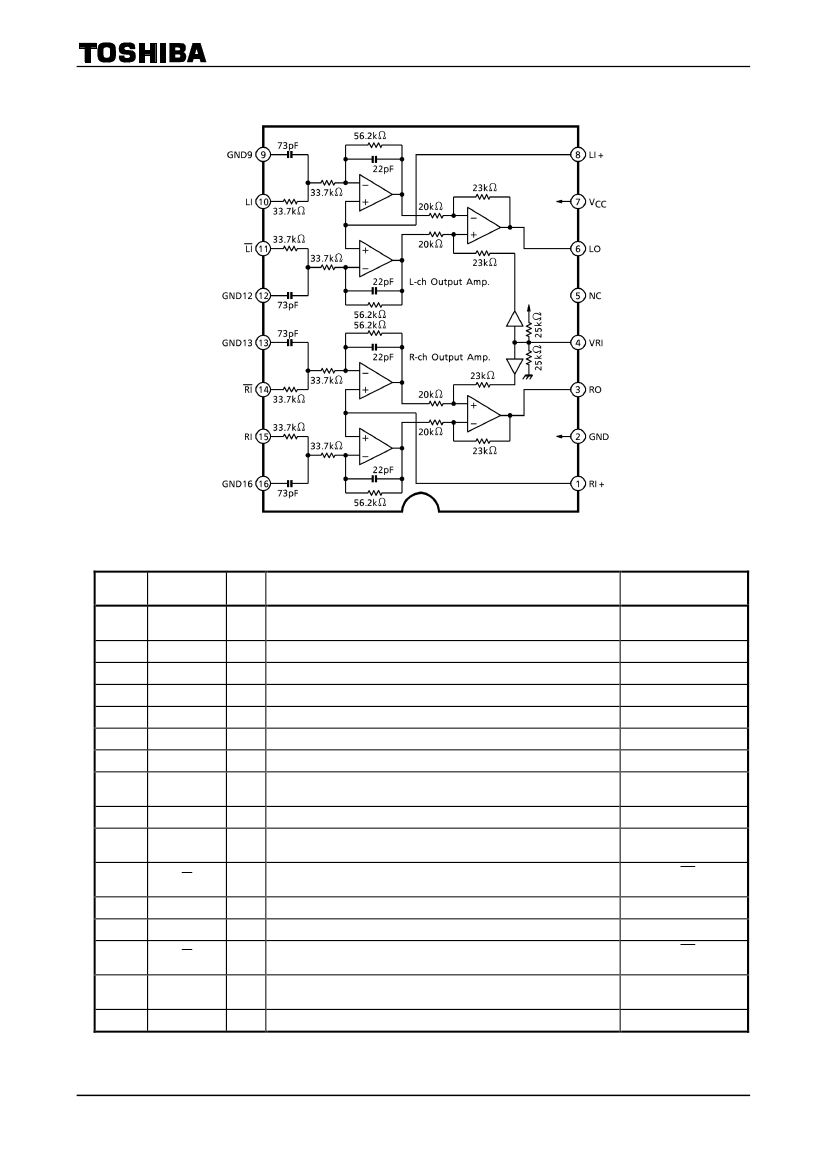

Built−in CR for LPFs and output (differential) amplifiers for

the left and right channel.

Single power supply operation.

(+9V operation: BS tuner system)

Noise distortion factor and S / N ratio are as follows

(when operating at +5V single power supply):

Noise distortion factor:

−86dB

(typ.)

S / N:

100dB

(typ.)

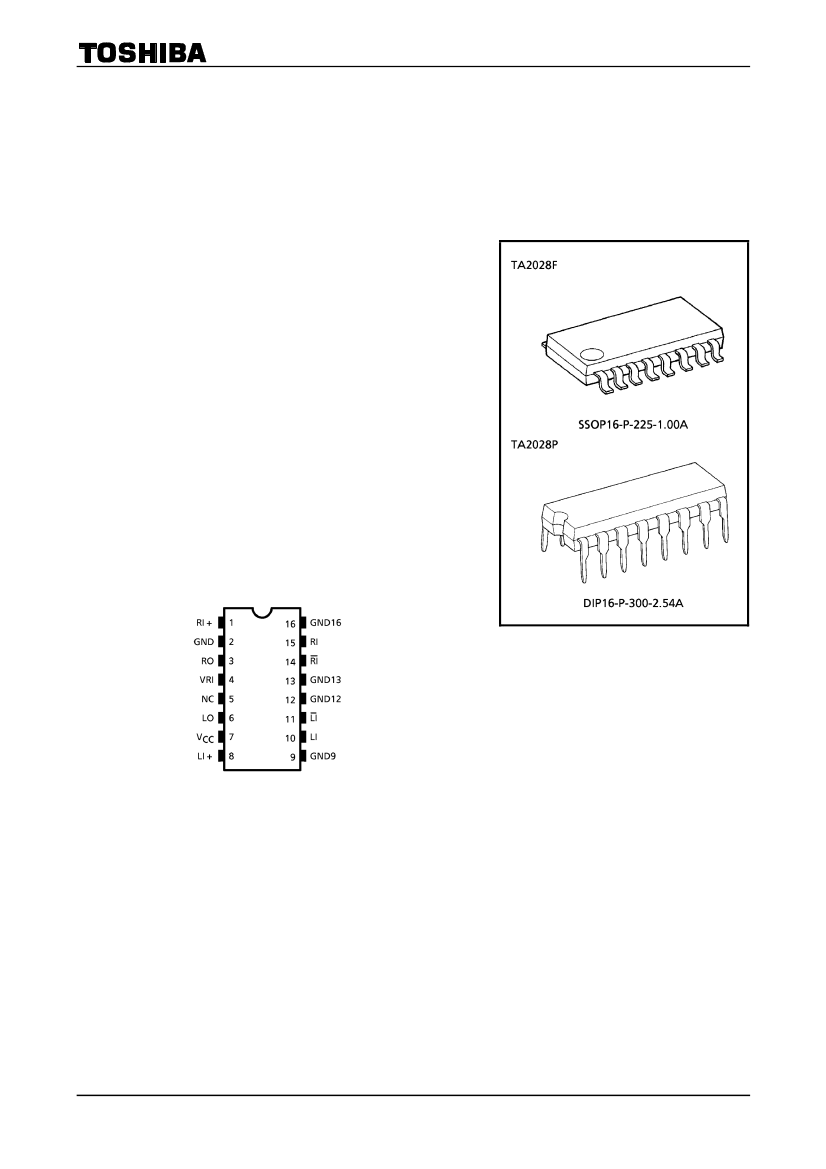

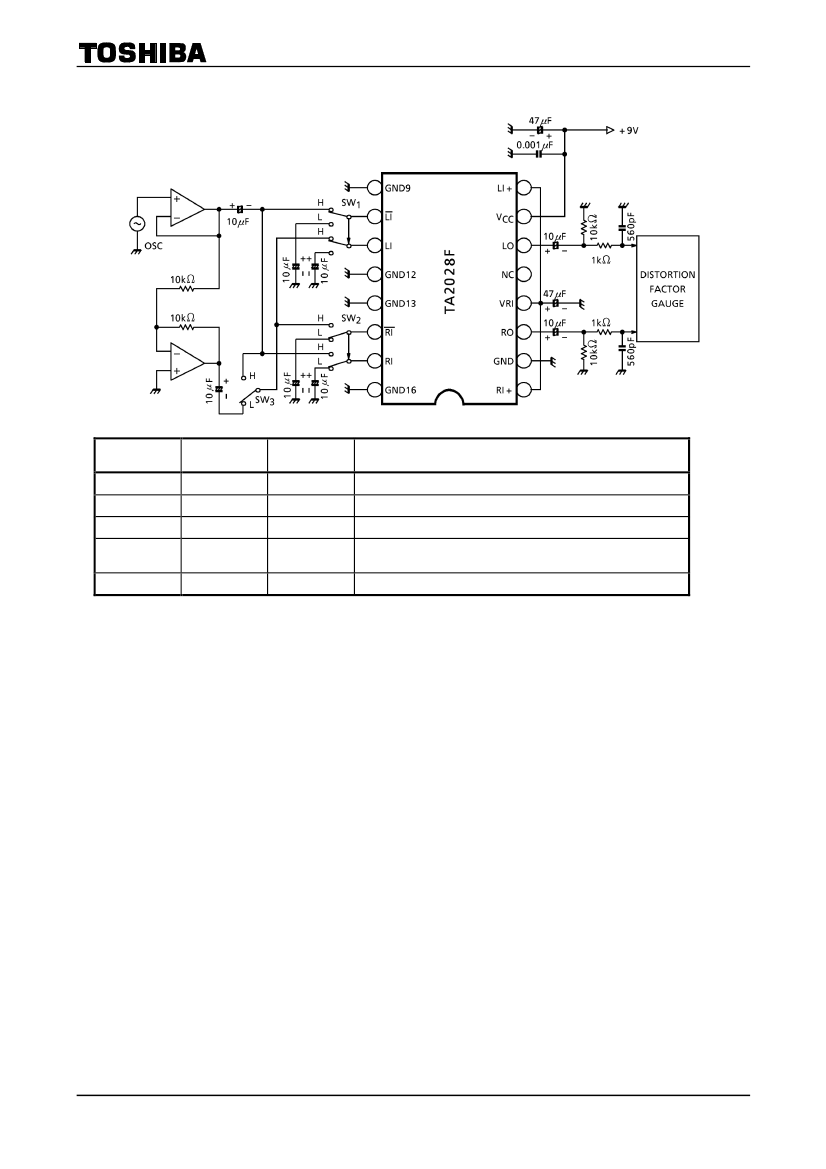

Pin Connection

(top view)

Weight

SSOP16−P−225−1.00A: 0.14g (typ.)

DIP16−P−300−2.54A: 1.00g (typ.)

2002-10-30

TA2028F Related Products

	TA2028F	TA2028P
Description	CONTINUOUS TIME FILTER, LOWPASS, PDSO16	CONTINUOUS TIME FILTER, LOWPASS, PDIP16
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	DIP
package instruction	SSOP, SOP16,.25,40	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Active filter type	CONTINUOUS TIME FILTER	CONTINUOUS TIME FILTER
JESD-30 code	R-PDSO-G16	R-PDIP-T16
JESD-609 code	e0	e0
length	8.2 mm	19.25 mm
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C
Order	2ND	2ND
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	DIP
Encapsulate equivalent code	SOP16,.25,40	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
response	LOWPASS	LOWPASS
Maximum seat height	1.9 mm	4.45 mm
Maximum supply current (Isup)	13.7 mA	13.7 mA
Maximum supply voltage (Vsup)	10 V	10 V
Minimum supply voltage (Vsup)	8 V	8 V
Nominal supply voltage (Vsup)	9 V	9 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1 mm	2.54 mm
Terminal location	DUAL	DUAL
width	4.6 mm	7.62 mm
