TW2600 Magnet Mount Iridium™ Certified Antenna
The TW2600 by Tallysman Wireless is a
professional grade, magnet mount, passive
right hand circularly polarised antenna for the
1616 to 1626.5 MHz frequency band, certified
and specially designed to maximise the
performance of Iridium™ Voice and Data
Modems.
The TW2600 features a high performance dual-
feed patch element that provides great axial
ratio (3dB max) over the entire Iridium™
frequency band, thus signals at the band edges
remain truly circular, unlike the response of
single feed antennas.
The TW2600 is housed in a compact, industrial-
grade weather-proof, magnet mount enclosure,
with threaded base holes for screw down
attach. It is available with a 50 cm cable,
allowing for the Iridium™ Modem to be
mounted out of the elements and reach, and
still providing excellent Iridium™ signal
coverage.

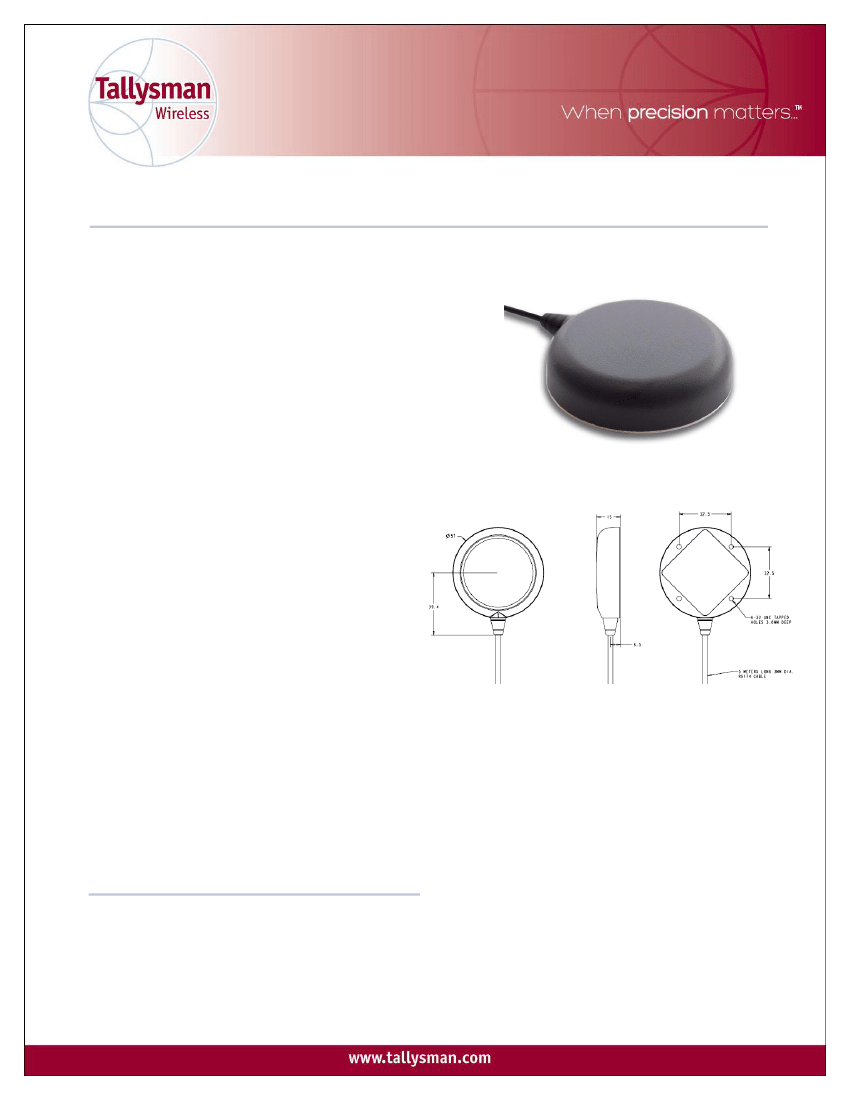

TW2600 Dimensions (mm)
Applications
Iridium™ Voice and Data Applications
Sea & Land Container Tracking
Military & Security
Fleet Management & Asset Tracking
Marine & Avionics Systems
Law Enforcement & Public Safety
Features
Custom high gain, 4.25 dBic dual-feed patch
Great axial ratio, 3 dB over full bandwidth
15 KV ESD circuit protection
IP67 weather proof housing
Robust Industrial grade enclosure
Magnet or screw mount
Benefits
Excellent circular polarized signal transmission
Industrial temperature range
Rugged Design
Ideal for harsh environments
RoHS compliant
Remote SBD antenna
TW2600 Magnet Mount Iridium™ Certified Antenna
Specifications
Antenna
Architecture
Antenna Gain (100mm ground plane)
Axial Ratio (over full bandwidth)
Dual, quadrature feeds
4.25 dBic
≤3 dB
Hybrid 90° phase signal splitter
1616 to 1626.5 MHz
RHCP
typically 20dB
< 0.5 dB, from 1616 to 1626.5 MHz
<1.5:1
>20 MHz
15 KV air discharge
57 mm dia. x 15 mm H
RG174 / 50 cm, custom lengths optional
-40 to +85 °C
Radome: ASA plastic, Base: Zamak white metal
150 g
Magnet or permanent (pre-tapped 4 x 6-32UNC)
IP67 and RoHS compliant
Vertical axis: 50 G, other axes: 30 G
3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3 G
Vcc = 3V, over full bandwidth, T=25°C
Electrical
Architecture
Frequency Bandwidth
Polarization
Cross Polarization Rejection
Gain flatness
VSWR (at antenna)
Return Loss Bandwidth(10 dB return loss)
ESD Circuit protection
Mechanicals & Environmental
Mechanical Size
Cable
Operating Temp. Range
Enclosure
Weight
Attachment Method
Environmental
Shock
Vibration
Ordering Information
Legacy Part Numbers:
TW2600 – Iridium
™
antenna, 50 cm cable, SMA Male
32-2600-0
TW2600 – Iridium
™
antenna, 50 cm cable, TNC Male
32-2600-1
TW2600 – Iridium
™
antenna, 50 cm cable, MCX Male
32-2600-2
TW2600 – Iridium
™
antenna, no cable, SMA Female on housing 32-2600-7
* As a result of a growing catalogue of part numbers, Tallysman has rationalized its part number system. No
changes have been made to the mechanical or electrical properties of these products. Where administratively
possible, please use the following new Part Numbers.
TW2600 – Iridium
™
antenna,
33-2600-xx-yyyy
Where xx = connector type and yyyy = cable length in mm
Please refer to the Ordering Guide
(http://www.tallysman.com/orderingguide.php)
for the current and complete
list of available connectors.
