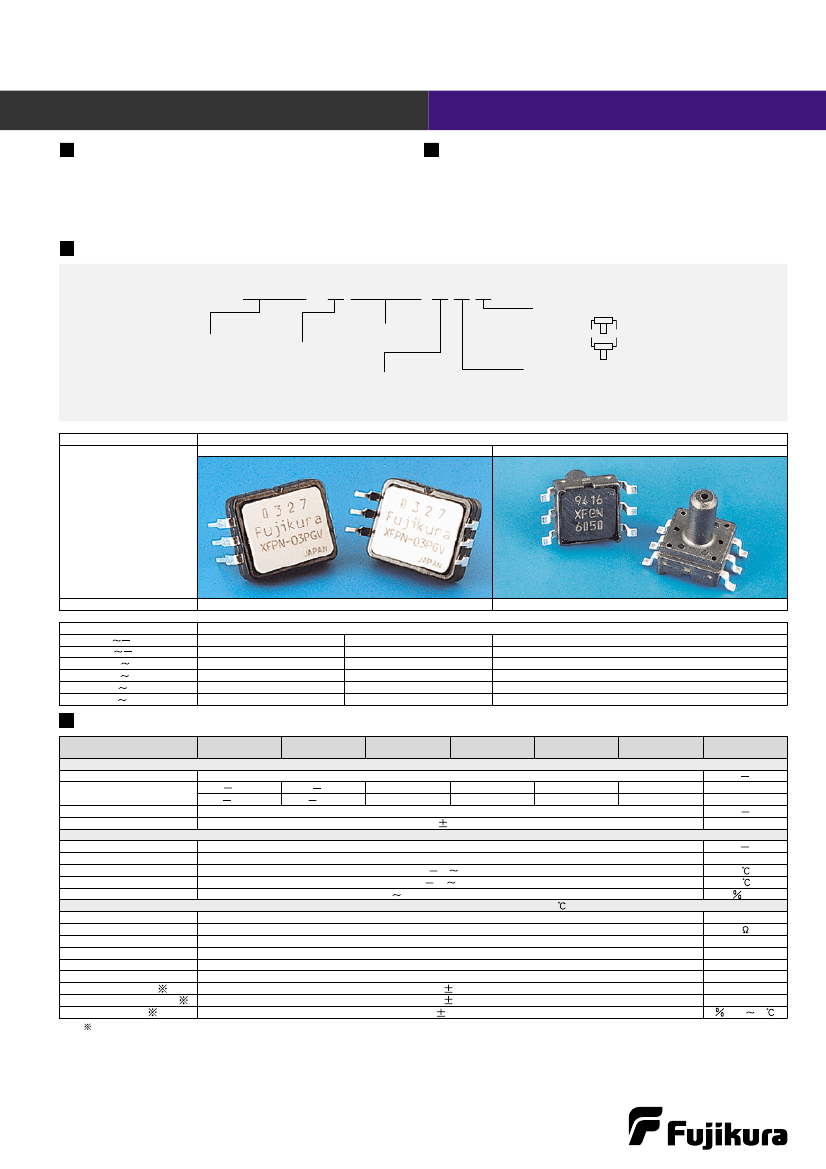

Pre-amplified/5V Excitation/Gauge
Features
.
.
.
.
Volt level output
On-chip amplification and temperature compensations
Pre-calibration of offset voltage and span
Surface mount package (XFGN)
XFPN,XFGN-6 Data sheet
Applications
. Non-Invasive Blood Pressure(NIBP)monitor for home health care
. Vacuum cleaner
. Washing machine
Part number for ordering
XFGN - 6 025KP G S R
Model
XFPN
XFGN
Rated pressure (Pa)
Length of the pressure
port
(XFGN only)
Pressure type
6 : 6mm
G : Gauge (Positive pressure)
GV : Gauge (Negative pressure)
Gauge pressure
XFPN
XFGN-6
Terminal leads direction (See Outline Diagram)
No mark :
R
:
Terminal leads configuration
No mark : DIP (XFPN)
S : Surface mount package (XFGN)
Pressure type
Model
Package configuration
Measurable pressure range (kPa)
0
24.5
0
100
0 25
0 50
0 100
0 200
Dual-In-line-Package (DIP)
Part number for ordering
XFPN-03PGVR
XFPN-100KPGVR
XFPN-025KPGR
XFPN-050KPGR
XFPN-100KPGR
XFPN-200KPGR
Surface mount package,6mm pressure port
XFPN-03PGV
XFPN-100KPGV
XFPN-025KPG
XFPN-050KPG
XFPN-100KPG
XFPN-200KPG
XFGN-603PGVSR
XFGN-6100KPGVSR
XFGN-6025KPGSR
XFGN-6050KPGSR
XFGN-6100KPGSR
XFGN-6200KPGSR
Specifications
Model/Rated pressure
03PGV
100KPGV
025KPG
050KPG
100KPG
200KPG
Unit
Recommended operating conditions
Pressure type
Gauge pressure
24.5
100
25
50
100
Rated pressure
0.250
1.020
0.255
1.020
1.020
Pressure media
Non-corrosive gas
Excitation voltage
5 0.25
Absolute maximum rating
Maximum load pressure
Twice of rated pressure
Maximum excitation voltage
8
Operating temperature
10 80
Storage temperature
20 100
Operating humidity
30 80 (No dew condensation)
Electric performances/characteristics (Excitation voltage Vcc=5.0V constant, Ambient temperature Ta=25 )
Current consumption
less than 10
Output impedance
less than 10
Source current
less than 0.2
Sink current
less than 2
Mechanical response time
2 (For the reference)
Full scale span voltage
4.0
Offset voltage
0.5 0.1
Full scale span voltage
4.5 0.1
Accuracy
5.0
Note
;
Excluding input voltage error.
200
2.040
kPa
kg/cm
2
VDC
VDC
RH
mA
mA
mA
msec
V
V
V
FS/0 50
1
Pre-amplified/5V Excitation/Gauge

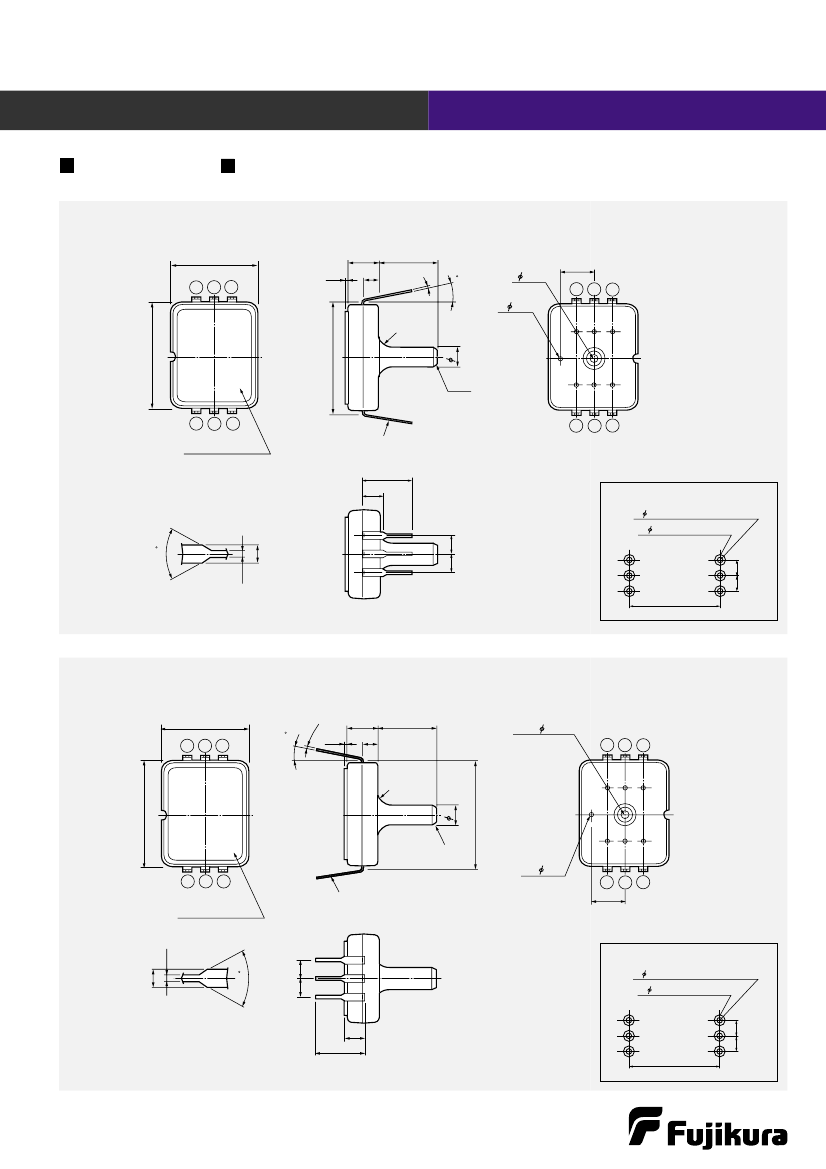

Outline dimensions
XFPN,XFGN-6 Data sheet
Unit : mm
XFPN
12
0.5
6
5
4
4
2.2
8
5
0.2
max 15
Pressure port
0.8
0.6
Vent hole
4.5
4
5
6
15.24(600mil)
R1.5
3
C0.5
14
1
2
3
Terminal leads
3
2
1
Labelled faceplate
6.8
2.8
Recommended footprint for PCB
6- 0.9(Diameter of through holes)
2.54 2.54
6- 1.8(Diameter of lands)
1.2
60
15.2
(Unit : mm)
Unit : mm
XFPN-R
0.2
12
max 15
4
0.5
2.2
8
5
6
5
4
0.8
Pressure port
4
5
6
R1.5
14
3
C0.5
1
2
3
Terminal leads
Labelled faceplate
0.6
Vent hole
3 2
4.5
1
0.5
15.24(600mil)
2.54 2.54
Recommended footprint for PCB
6- 0.9(Diameter of through holes)
6- 1.8(Diameter of lands)
1.2
60
2.8
6.8
15.2
(Unit : mm)
2
2.54 2.54
2.54 2.54
0.5
Pre-amplified/5V Excitation/Gauge
Outline dimensions
2.54 2.54
XFPN,XFGN-6 Data sheet
Unit : mm
XFPN-6
Pressure port
1
2
3
0.8
7
6
5
7
4
3
Vent hole
Index
6
9.5
0.25
3.5
Recommended footprint for PCB
1.7
1.4
2- 1(Holes for projections)
0.8
10.3
15
X
MA
Projections
0.5
.
6
5
4
2-R0.5
2.54 2.54
6.0
9.4
1
Land-pads
Projections
1
2
3
Labelled faceplate
(Unit : mm)

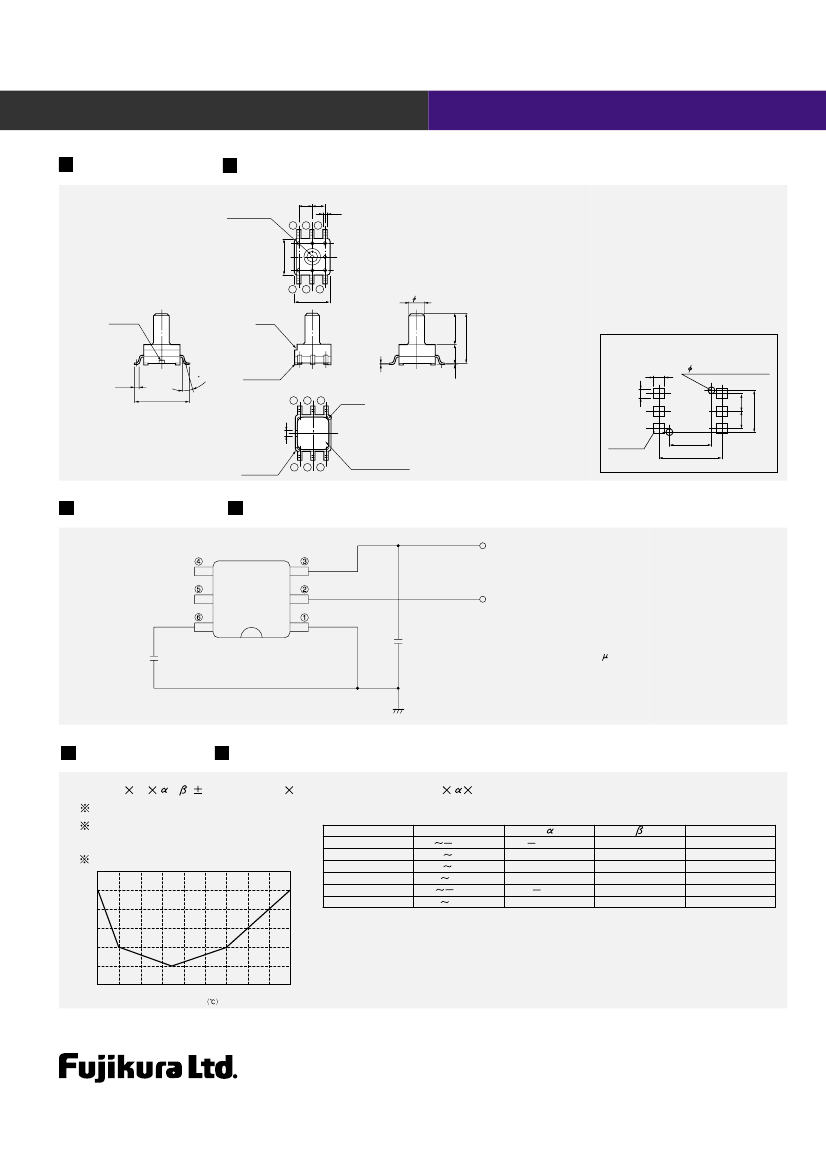

Connection diagram
XFPN, XFGN-6
Vcc(DC5V)
Vcc
Vout
Vout
GND
C2
C1
Remarks :
GND
1) C1 : Connect 680pF capacitor within 2cm distance from
leads.
2) C2 : Connect 0.01 F or more capacitor within 2cm dis-
tance from leads.
3) 4 and 5 pins must be No Connection. Open them as float-
ing ones completely, and do NOT connect to other line or
each other.
Transfer Function
Vout=Vs (P
+ ) (Pressure Error Temperature Error Multiplier
Vs)
Vs=5.0volts
Notes ; The output voltage (Vout) is no perfect ratiometric with the power supply voltage.
P=Input Pressure(kPa)
Model
pressure range
Temperature Error Multiplier
6
Temperature Error Multiplier
5
4
3
2
1
0
-10
03PGV
025KPG
050KPG
100KPG
100KPGV
200KPG
0
24.5kPa
0 25kPa
0 50kPa
0 100kPa
0
100kPa
0 200kPa
0.03266
0.032
0.016
0.008
0.008
0.004
0.1
0.1
0.1
0.1
0.1
0.1
Pressure Error(kPa)
0.612
0.625
1.25
2.5
2.5
5.0
0
10
20
30
40
50
60
70
80
Temperature
Note ; Please read instruction “Notes” before using the sensor.
Fujikura reserves the right to change specifications without notice.
If you have any questions regarding technical issues or specifications, please contact us.
Sensor Engineering Department 5-1 Kiba 1-chome, Koto-ku, Tokyo 135-8512, Japan
Phone +81-(0)3-5606-1072 Fax. +81-(0)3-5606-1538
3
E-mail : sensor@fujikura.co.jp
6.0
