The
ACTR0010/910.0/QCC8C
is a true one-port, surface-acoustic-wave (SAW) resonator in a
surface-mount ceramic
QCC8C
case. It provides reliable, fundamental-mode, quartz frequency
stabilization i.e. in transmitters or local oscillators operating at
910.000
MHz.

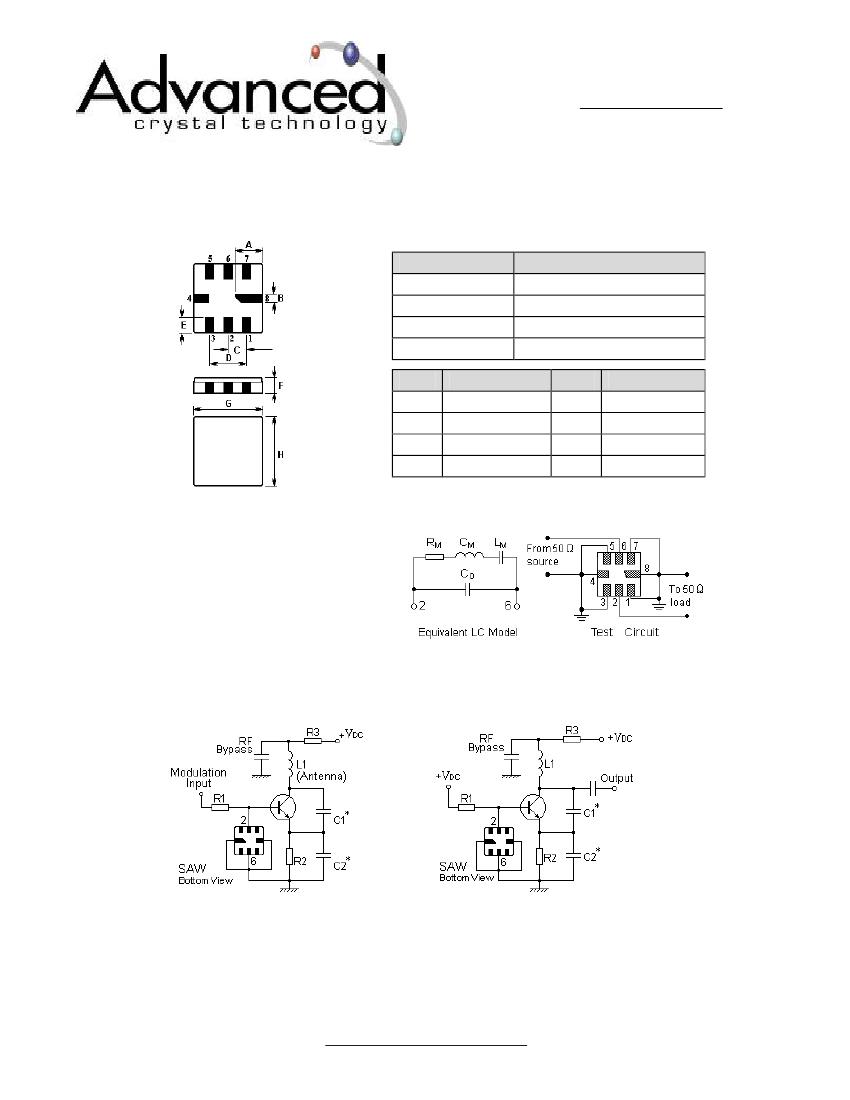

1.Package Dimension
(QCC8C)
2.
Pin
2
6
4,8
1,3,5,7
Sign
A
B
C
D
Data (unit: mm)
2.08
0.6
1.27
2.54
Sign
E
F
G
H
Configuration
Input / Output
Input / Output
Case Ground
NC
Data (unit: mm)
1.2
1.35
5.0
5.0
3.Equivalent LC Model and Test Circuit
4.Typical Application Circuits
1) Low-Power Transmitter Application
2) Local Oscillator Application
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
1 OF 3
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com

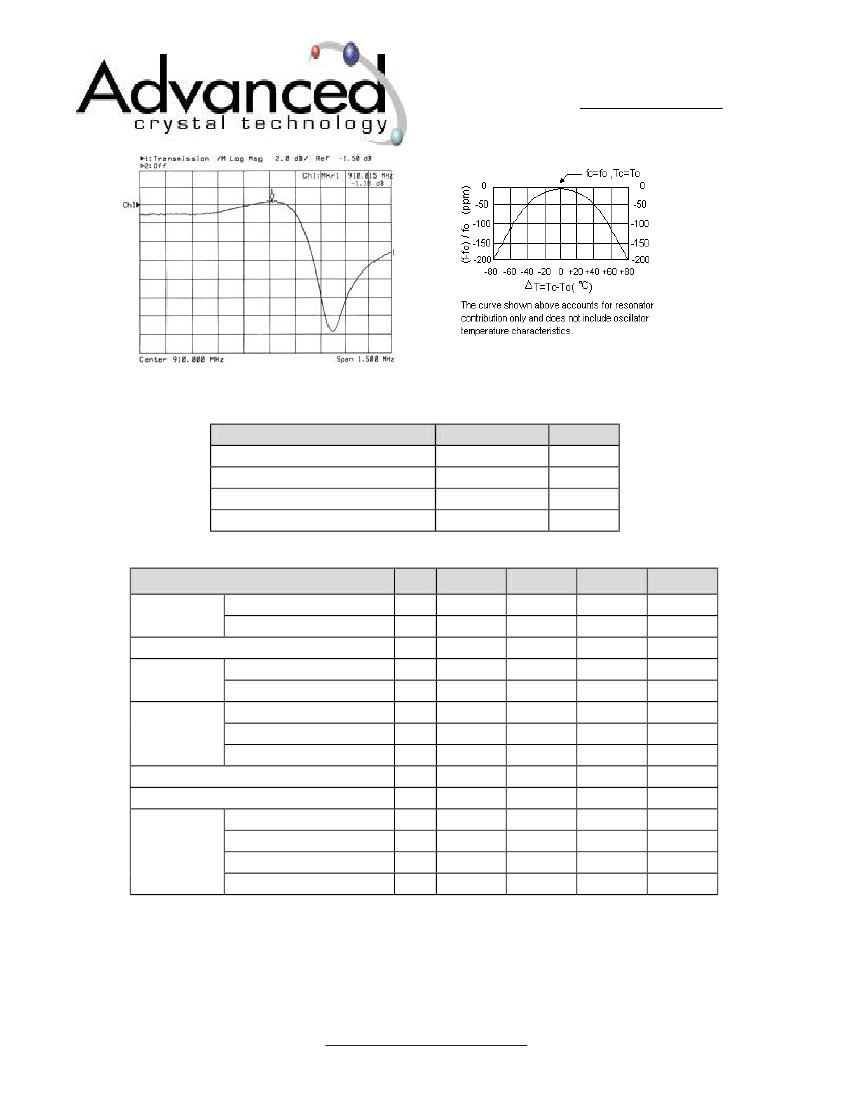

5.Typical Frequency Response
6.Temperature Characteristics
7.Performance
7-1.Maximum Ratings
Rating
CW RF Power Dissipation
DC Voltage Between Terminals
Case Temperature
Soldering Temperature
Value
0
±30V
-40 to +85
+250
Units
dBm
VDC
°C
°C
7-2.Electronic Characteristics
Characteristic
Centre Frequency
(+25
°C)
Insertion Loss
Unloaded Q
Quality Factor
50
Ω
Loaded Q
Turnover Temperature
Temperature
Stability
Turnover Frequency
Frequency Temperature Coefficient
Frequency Aging
Absolute Value during the First Year
Absolute Frequency
Tolerance from 910.000 MHz
Sym
f
C
∆f
C
I
L
Q
U
Q
L
T
0
f
0
FTC
|fA|
Minimum
909.850
Typical
Maximum
910.150
Units
MHz
kHz
±150
1.2
11,500
1,500
25
f
C
0.032
≤10
1.0
55
1.6
dB
°C
kHz
ppm/
°C
2
ppm/yr
MΩ
DC Insulation Resistance Between Any Two Terminals
Motional Resistance
RF Equivalent
RLC Model
Motional Inductance
Motional Capacitance
Shunt Static Capacitance
R
M
L
M
C
M
C
0
15
30.1848
1.0144
2.10
2.40
20
Ω
µH
fF
2.70
pF
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling!
