USD335C datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> USD335C

Preview

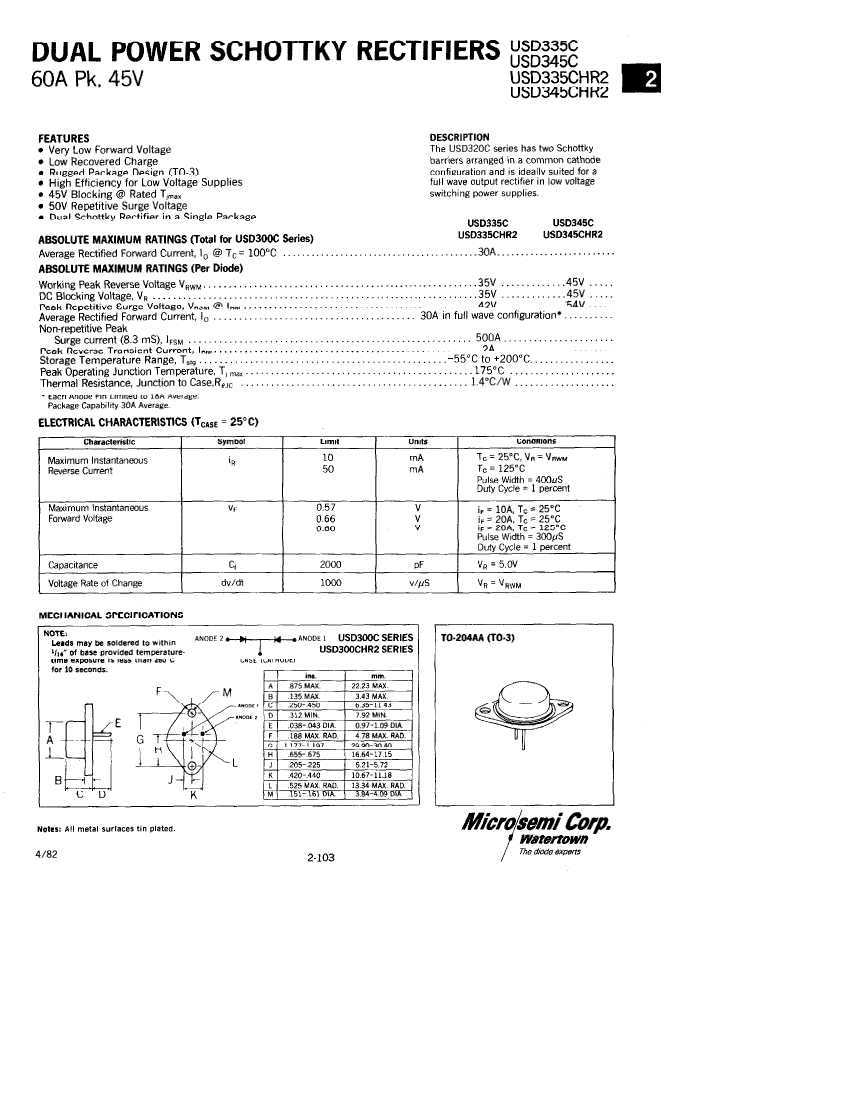

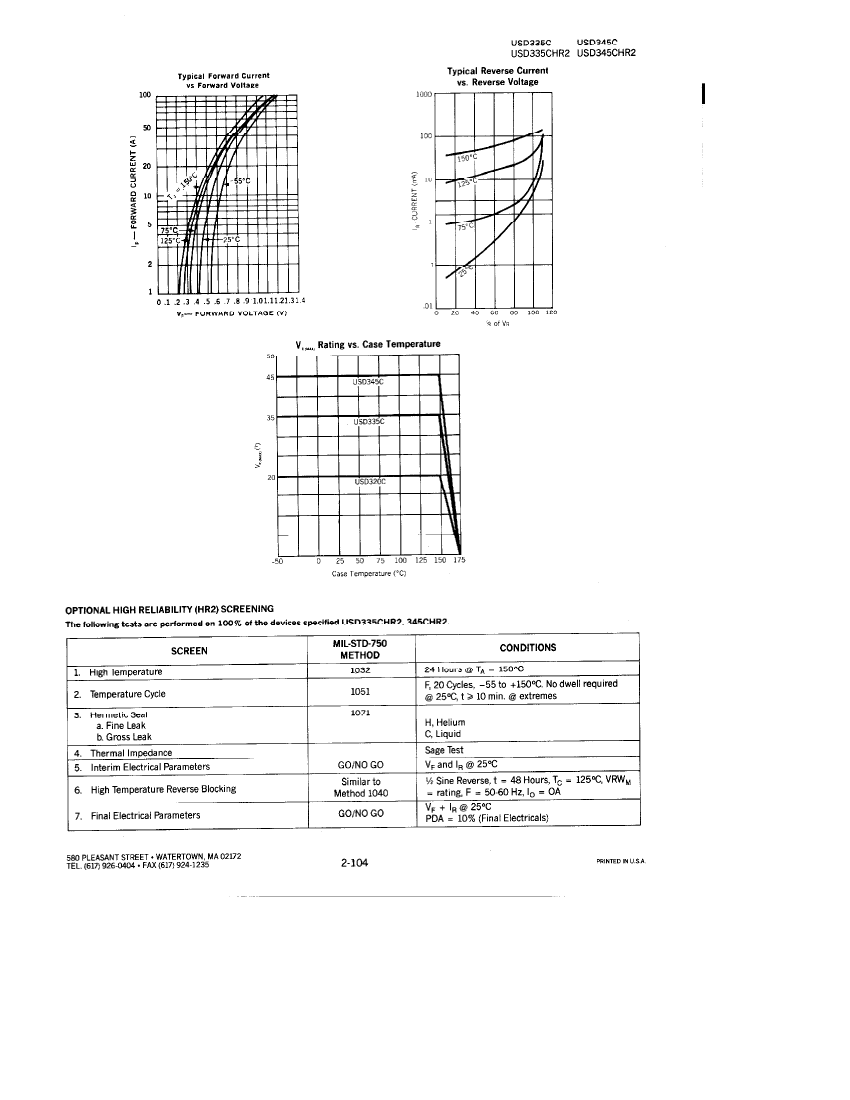

USD335C: Descriptiondual power schottky rectifiers; CategoryDiscrete semiconductor diode; File Size91KB，2 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

USD335C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	USD335C	-	-	View	Buy Now

USD335C Overview

dual power schottky rectifiers

USD335C Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	TO-3
package instruction	TO-3, 2 PIN
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.66 V
JEDEC-95 code	TO-204AA
JESD-30 code	O-MBFM-P2
JESD-609 code	e0
Maximum non-repetitive peak forward current	500 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	18 A
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	35 V
Maximum reverse current	10000 µA
surface mount	NO
technology	SCHOTTKY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

USD335C Related Products

	USD335C	USD345C	USD335CHR2
Description	dual power schottky rectifiers	dual power schottky rectifiers	dual power schottky rectifiers
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Parts packaging code	TO-3	TO-3	TO-3
package instruction	TO-3, 2 PIN	O-MBFM-P2	TO-3, 2 PIN
Contacts	2	2	2
Reach Compliance Code	unknown	compliant	unknown
ECCN code	EAR99	EAR99	EAR99
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.66 V	0.66 V	0.66 V
JEDEC-95 code	TO-204AA	TO-204AA	TO-204AA
JESD-30 code	O-MBFM-P2	O-MBFM-P2	O-MBFM-P2
JESD-609 code	e0	e0	e0
Maximum non-repetitive peak forward current	500 A	500 A	500 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C
Maximum output current	18 A	18 A	18 A
Package body material	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	35 V	45 V	35 V
Maximum reverse current	10000 µA	10000 µA	10000 µA
surface mount	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Microsemi	-	Microsemi
