Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, CA 90638-5223
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com *
www.ssdi-power.com

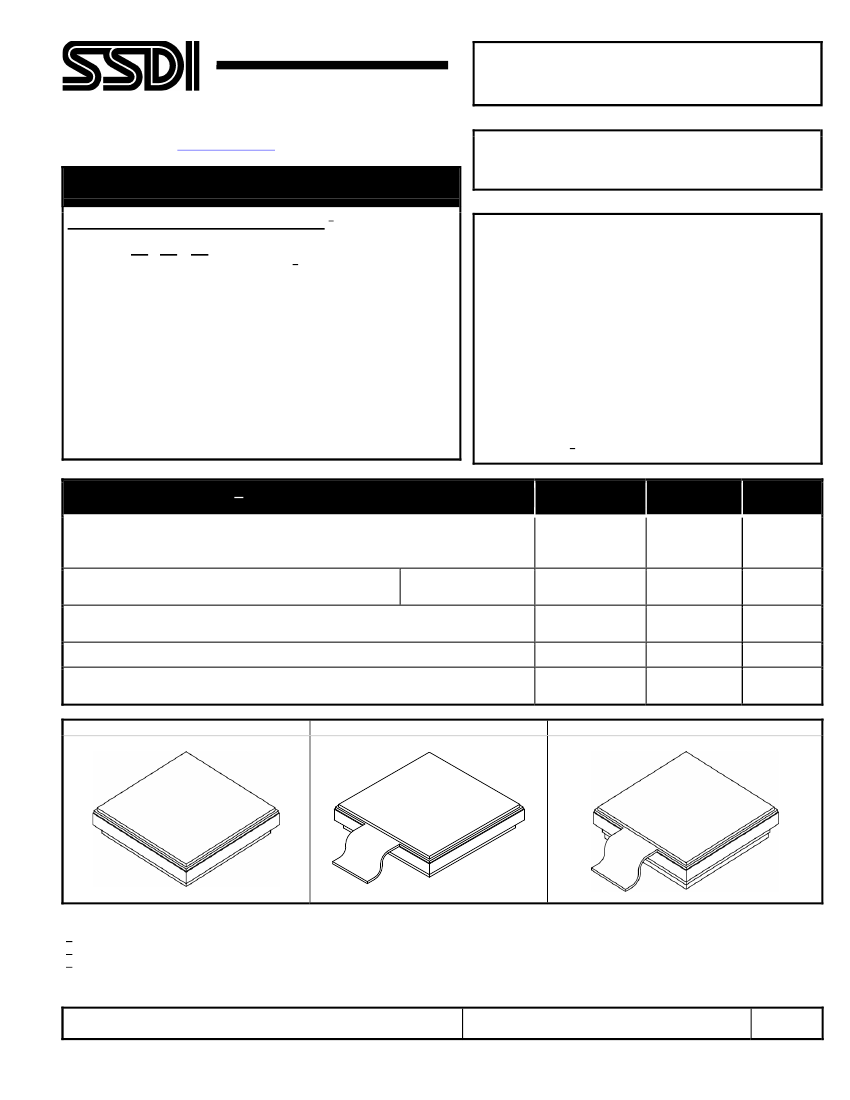

SED120LB100, SED120LE100,
and SED120LT100
120 A / 100 V
Schottky Rectifier
Designer’s Data Sheet
Part Number / Ordering Information
1/
SED120 __ __ __
│ │
└
Screening
__
= Not Screened
│ │
TX = TX Level
TXV = TXV
│ │
S = S Level
│ │
│ └
Voltage
100 = 100 V
│
│
└
Package
LB = Sedpack 3
LE = Sedpack 3 with Lead
LT = Sedpack 3 with Lead and Heatsink
2/
•
•
•
•
•
•
•
•
•
FEATURES:
100 Volt Schottky Rectifier
Average Output Current 120 Amps
Low Reverse Leakage
Low Forward Voltage Drop
Hermetically Sealed Power Surface Mount
Package
Guard Ring for Overvoltage Protection
Eutectic Die Attach
175°C Operating Temperature
TX, TXV, and Space Level Screening
Available
2/
. Consult Factory.
MAXIMUM RATINGS
3/
Peak Repetitive Reverse and DC Blocking Voltage
Average Rectified Forward Current
(Resistive Load, 60 Hz, Sine Wave, T
C
= 100
o
C)
Peak Surge Current
(8.3 ms pulse, half sine wave superimposed on Io,
allow Junction to reach equilibrium between pulses, T
A
= 25
o
C)
Operating & Storage Temperature
Maximum Thermal Resistance
(Junction to Case)
SEDPACK 3 (LB)
SEDPACK 3 with Lead (LE)
Symbol
V
RRM
V
RWM
V
R
I
O
I
FSM
T
OP
& T
stg
R
θJC
Value
100
120
1000
-55 to +175
0.3
Units
Volts
Amps
Amps
o
o
C
C/W
SEDPACK 3 with Lead and Heatsink (LT)
NOTES:
1/ For Ordering Information, Price, and Availability Contact Factory.
2/ Screened to MIL-PRF-19500.
3/ Unless Otherwise Specified, All Electrical Characteristics @25ºC.
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: SH0014D
DOC
Solid State Devices, Inc.
14701 Firestone Blvd * La Mirada, CA 90638-5223
Phone: (562) 404-4474 * Fax: (562) 404-1773
ssdi@ssdi-power.com *
www.ssdi-power.com
SED120LB100, SED120LE100,
and SED120LT100
Symbol
I
F
= 40 A
I
F
= 120 A
T
A
= 125ºC, I
F
= 120 A
ELECTRICAL CHARACTERISTICS
3/
Instantaneous Forward Voltage Drop
(T
A
=25ºC, 300
μsec
pulse)
Instantaneous Forward Voltage Drop
(300
μsec
pulse)
Reverse Leakage Current
(Rated V
R
, T
A
= 25ºC, 300
μsec
pulse minimum)
Reverse Leakage Current
(Rated V
R
, T
A
= 125ºC, 300
μsec
pulse minimum)
Junction Capacitance
(V
R
= 5V, f = 1MHz, T
A
= 25
o
C)
Maximum Value
0.71
0.95
0.78
5.0
100
3200
Units
V
DC
V
DC
mA
mA
pF
V
F1
V
F2
V
F3
I
R1
I
R2
C
J
NOTES:
1/ For Ordering Information, Price, and Availability Contact Factory.
2/ Screened to MIL-PRF-19500.
3/ Unless Otherwise Specified, All Electrical Characteristics @25ºC.

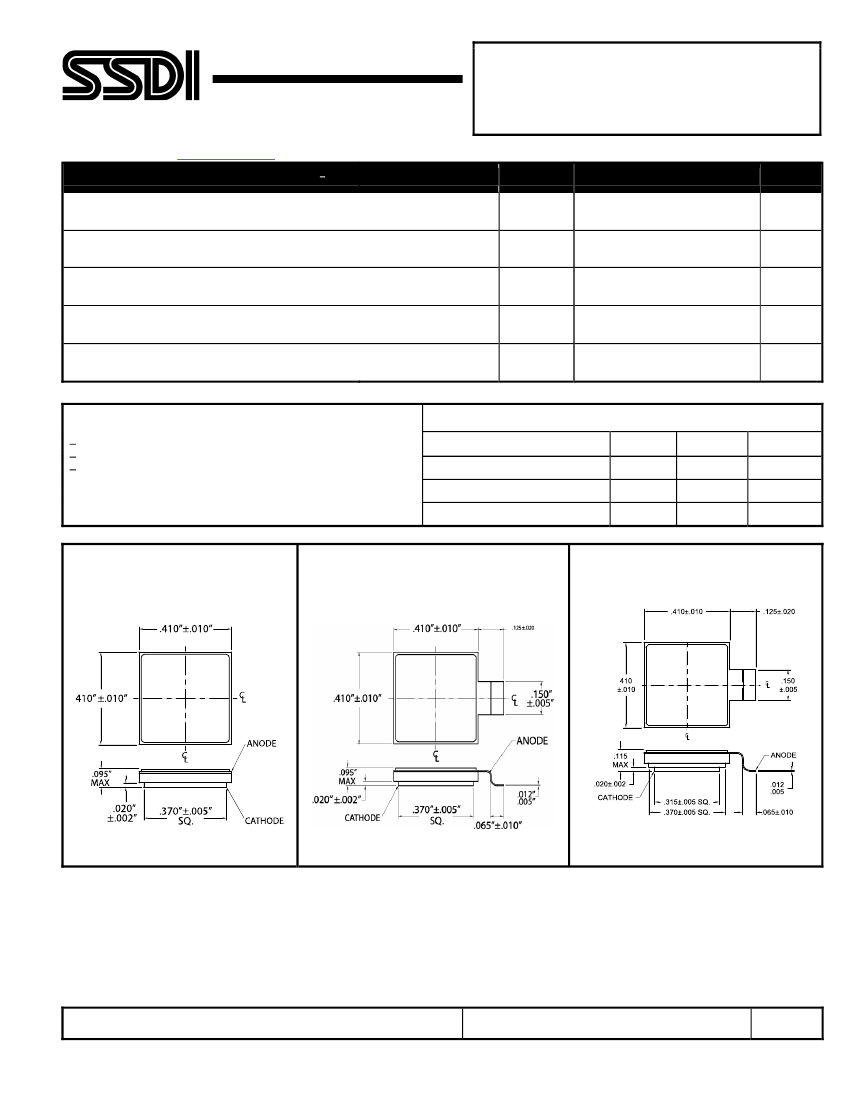

PIN ASSIGNMENT
Package
Sedpack 3 (LB)
Sedpack 3 with Lead (LE)
Sedpack 3 with Lead (LT)
TOP
Anode
Anode
Anode
BOTTOM
Cathode
Cathode
Cathode
LEAD
---
Anode
Anode
Case Outline: SEDPACK 3
Case Outline: SEDPACK 3 with Lead
Case Outline:
SEDPACK 3 with Lead and Heatsink
NOTE:
All specifications are subject to change without notification.
SCD's for these devices should be reviewed by SSDI prior to release.
DATA SHEET #: SH0014D
DOC
