FMS2031-001-EB Overview

10 watt gaas wide band spdt switch

Production
3.0
FMS2031-001

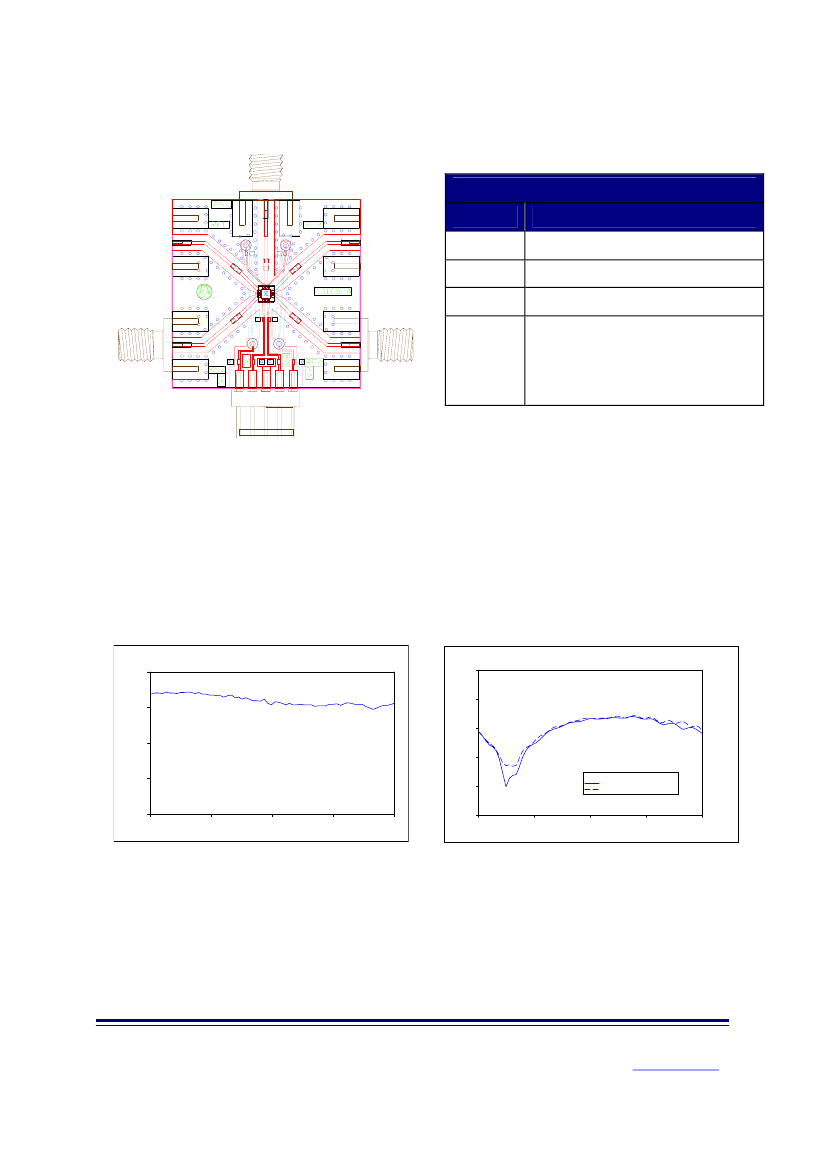

10 Watt GaAs Wide Band SPDT Switch
Features:
3x3x0.9mm Packaged pHEMT Switch
Ideal for WiMax, L, S, and C-band
digital cellular, and WLAN applications
High isolation, 36dB typ at 3.5GHz
Low insertion loss, 0.5dB typ at 2.5GHz
Low insertion loss, 0.96dB typ at 6GHz
P1dB 42dBm at 5GHz
Operates from a single positive voltage
Less than 10µA control current at
35dBm input power
RoHS compliant
ANT
V1
V2
RF1
RF2
Functional Schematic
Description and Applications:
The FMS2031-001 is a 10 Watt, low loss, and single pole dual throw Gallium Arsenide antenna switch. The
die is fabricated using the Filtronic FL05 0.5µm switch process technology, which offers leading edge
performance optimised for switch applications. The FMS2031-001 is designed for use in WiMax, L, S, and C
band wireless applications and WLAN access points where high linearity switching is required.
Absolute Maximum Ratings:
Parameter
Max Input Power
Control Voltage
Operating Temperature
Storage Temperature
Symbol
Pin
V ctrl
T oper
T stor
Absolute Maximum
+42dBm
+6V
-40°C to +100°C
-55°C to +150°C
Note:
Exceeding any one of these absolute maximum ratings may cause permanent damage to the device.
Truth Table:
Switch
State
(A)
(B)
VC1
HIGH
LOW
VC2
LOW
HIGH
ANT– RF1
Insertion Loss
Isolation
ANT– RF2
Isolation
Insertion Loss
General Test Conditions:
Note:
External DC blocking capacitors are required on all RF ports (typ: 9pF)
All unused ports terminated in 50Ω.
High +2.7V to +6V
Low +0V to +0.2V
1
Specifications subject to change without notice
Filtronic Compound Semiconductors Ltd
Fax: +44 (0) 1325 306177
Email: sales@filcs.com
Tel: +44 (0) 1325 301111
Website:
www.filtronic.com
