CYStech Electronics Corp.
General Purpose PNP Epitaxial Planar Transistor
Spec. No. : C307N3
Issued Date : 2003.06.27
Revised Date : 2006.08.04
Page No. : 1/5
BTA1514N3
Description
•
The BTA1514N3 is designed for general purpose application requiring high breakdown voltage.
•
Large I
C
, I
C( Max)
= -0.6A
•
High BV
CEO
, BV
CEO
= -150V
•
Complementary to BTC3906N3
.
•
Pb-free package
Symbol
BTA1514N3
Outline
SOT-23
B：Base
C：Collector
E：Emitter
Absolute Maximum Ratings
(Ta=25°C)
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Thermal Resistance, Junction to Ambient
Junction Temperature
Storage Temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C
Pd
R
θJA
Tj
Tstg
Limits
-160
-150
-5
-0.6
225
556
150
-55~+150
Unit
V
V
V
A
mW
°C/W
°C
°C
BTA1514N3
CYStek Product Specification
CYStech Electronics Corp.
Characteristics
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
*V
CE(sat)
1
*V
CE(sat)
2
*V
BE(sat)
1
*V
BE(sat)
2
h
FE
1
h
FE
2
h
FE
3
h
FE
4
f
T
Cob
Min.
-160
-150
-5
-
-
-
-
-
-
50
60
50
120
100
-
Typ.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Max.
-
-
-
-50
-50
-0.2
-0.5
-1
-1
-
-
-
390
-
6
Unit
V
V
V
nA
nA
V
V
V
V
-
-
-
-
MHz
pF
Spec. No. : C307N3
Issued Date : 2003.06.27
Revised Date : 2006.08.04
Page No. : 2/5
Test Conditions
I
C
=-50µA
I
C
=-1mA
I
E
=-50µA
V
CB
=-120V
V
EB
=-4V
I
C
=-10mA, I
B
=-1mA
I
C
=-50mA, I
B
=-5mA
I
C
=-10mA, I
B
=-1mA
I
C
=-50mA, I
B
=-5mA
V
CE
=-5V, I
C
=-1mA
V
CE
=-5V, I
C
=-10mA
V
CE
=-5V, I
C
=-50mA
V
CE
=-6V, I
C
=-2mA
V
CE
=-30V, I
C
=-10mA, f=100MHz
V
CB
=-10V, f=1MHz
*Pulse Test: Pulse Width
≤380µs,
Duty Cycle≤2%
Classification Of h
FE
4
Rank
Range
Q
120~270
R
180~390
Ordering Information
Device
BTA1514N3
Package
SOT-23
(Pb-free)
Shipping
3000 pcs / Tape & Reel
Marking
2L
BTA1514N3
CYStek Product Specification
CYStech Electronics Corp.
Characteristic Curves
Current Gain vs Collector Current
1000
Saturation Voltage---(mV)
HFE@VCE=5V
Spec. No. : C307N3
Issued Date : 2003.06.27
Revised Date : 2006.08.04
Page No. : 3/5
Saturation Voltage vs Collector Current
1000
VCE(SAT)@IC=10IB
Current Gain---
HFE
100
100
10
0.1
1
10
100
Collector Current---IC(mA)
10
0.1
1
10
100
Collector Current---IC(mA)
Saturation Voltage vs Collector Current
1000
Cutoff Frequency---FT(GHZ)
1
Cutoff Frequency vs Collector Current
Saturation Voltage---(mV)
FT@VCE=12V
VBE(SAT)@IC=10IB
100
0.1
1
10
100
1000
Collector Current---IC(mA)
0.1
1
10
Collector Current---IC(mA)
100
Power Derating Curve
250
Power Dissipation---PD(mW)
200
150
100
50
0
0
50
100
150
200
Ambient Temperature --- Ta(℃ )
BTA1514N3
CYStek Product Specification
CYStech Electronics Corp.

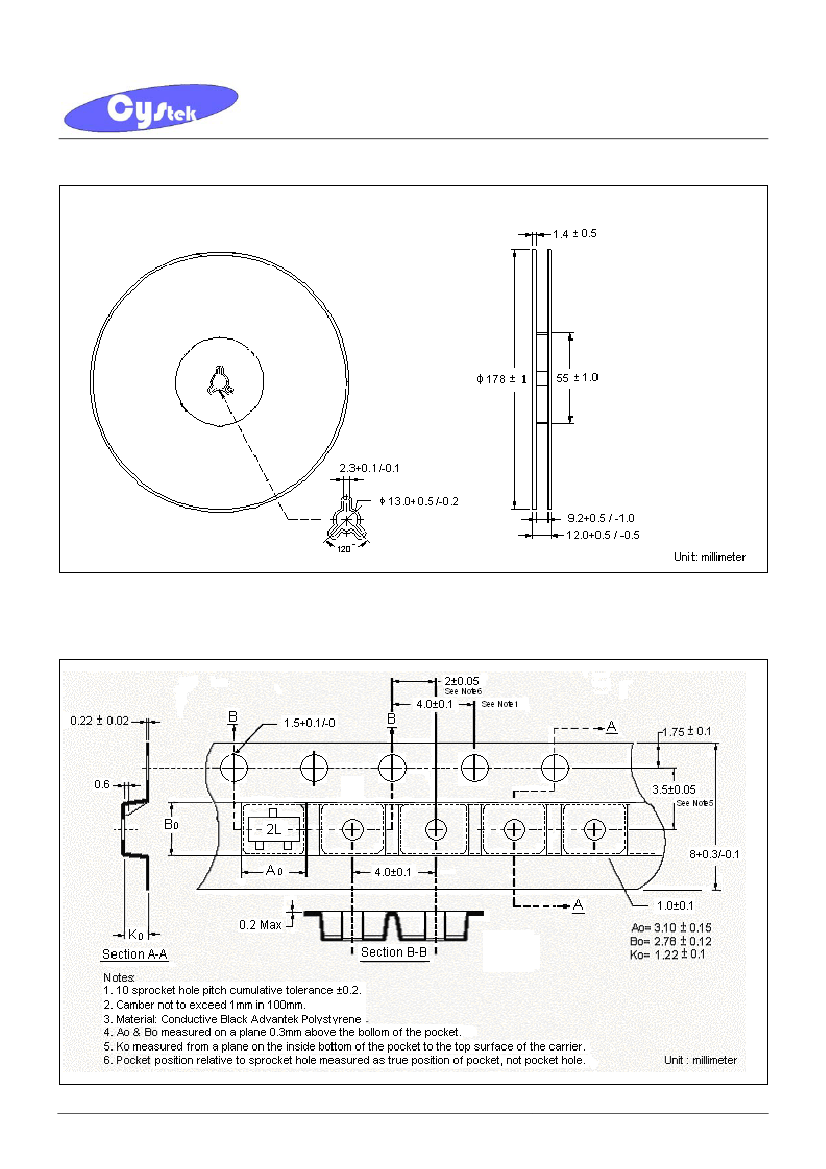

Reel Dimension
Spec. No. : C307N3
Issued Date : 2003.06.27
Revised Date : 2006.08.04
Page No. : 4/5
Carrier Tape Dimension
BTA1514N3
CYStek Product Specification
CYStech Electronics Corp.
SOT-23 Dimension
A
L
3
B
1
2
S
Spec. No. : C307N3
Issued Date : 2003.06.27
Revised Date : 2006.08.04
Page No. : 5/5
Marking:
TE
2L
V
G
3-Lead SOT-23 Plastic
Surface Mounted Package
CYStek Package Code: N3
Style: Pin 1.Base 2.Emitter 3.Collector
C
D
K
H
J
*: Typical
DIM
A
B
C
D
G
H
Inches
Min.
Max.
0.1102 0.1204
0.0472 0.0630
0.0335 0.0512
0.0118 0.0197
0.0669 0.0910
0.0005 0.0040
Millimeters
Min.
Max.
2.80
3.04
1.20
1.60
0.89
1.30
0.30
0.50
1.70
2.30
0.013
0.10
DIM
J
K
L
S
V
Inches
Min.
Max.
0.0034 0.0070
0.0128 0.0266
0.0335 0.0453
0.0830 0.1083
0.0098 0.0256
Millimeters
Min.
Max.
0.085
0.177
0.32
0.67
0.85
1.15
2.10
2.75
0.25
0.65
Notes:
1.Controlling dimension: millimeters.
2.Maximum lead thickness includes lead finish thickness, and minimum lead thickness is the minimum thickness of base material.
3.If there is any question with packing specification or packing method, please contact your local CYStek sales office.
Material:
•
Lead: 42 Alloy ; solder plating
•
Mold Compound: Epoxy resin family, flammability solid burning class: UL94V-0
Important Notice:
•
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written approval of CYStek.
•
CYStek reserves the right to make changes to its products without notice.
•
CYStek
semiconductor products are not warranted to be suitable for use in Life-Support Applications, or systems.
•
CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance.
BTA1514N3
CYStek Product Specification
