5mm FLANGE BASED LED LAMP
BLFA054MGCK-6V
MEGA GREEN
l
BUILT-IN
Features
l
LONG
l
LOW
CURRENT.
DIRECT APPLICATION OF DIFFERENT ACROSS
LIFE.
CURRENT LIMITING RESISTOR FOR
Description
The Mega Green source color devices are made with
DH InGaAlP on GaAs substrate Light Emitting Diode.
l
DIFFERENT
l
SOLID
MAINTENANCE.
l
6V INTERNAL RESISTOR.
STATE, HIGH VIBRATION RESISTANT.
COLOR AVAILABLE.

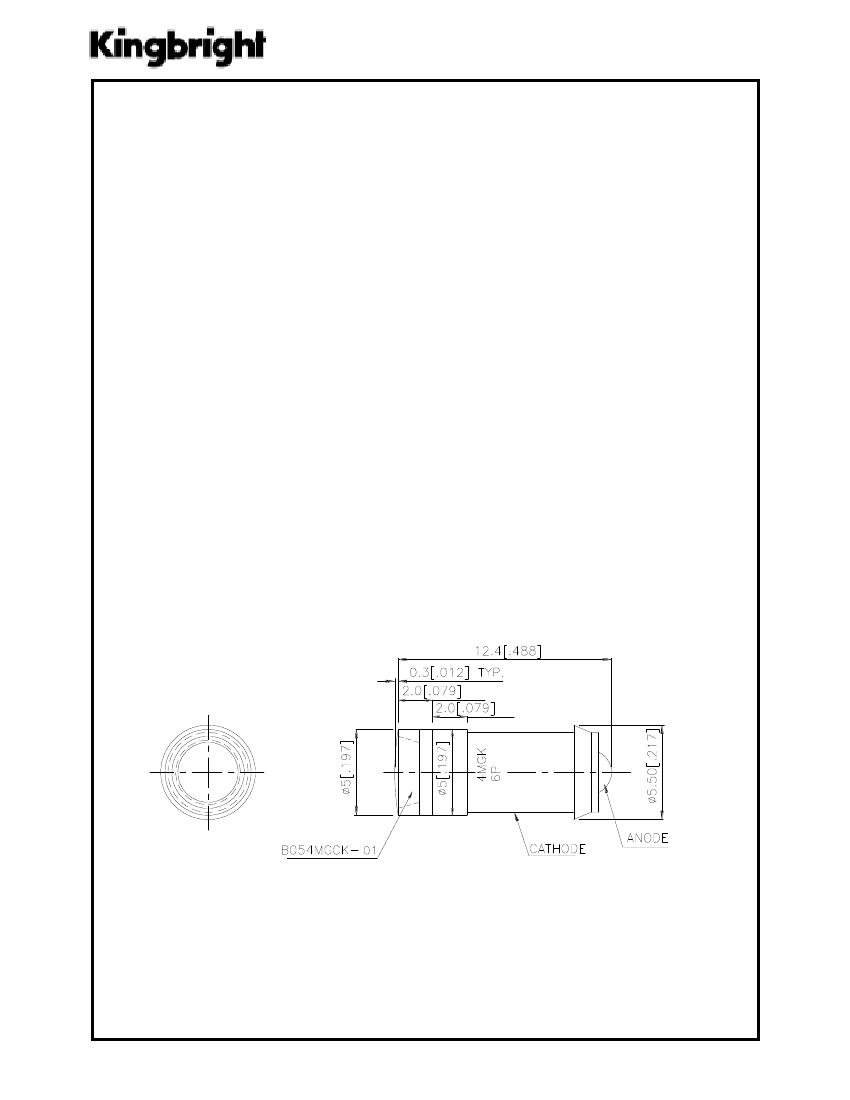

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO: DSAD1594
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/08/2003
DRAWN: Z.Y.YANG
PAGE: 1 OF 3
Selection Guide
P ar t N o .
BLFA054MGC K-6V
Dic e
MEGA GREEN (InGaAlP)
L en s Ty p e
WATER C LEAR
Mi n .
180
Iv (m c d )
V=6V
Ty p .
460
V i ew i n g
An g le
2θ1/2
110°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
°
Sy m b o l
λ
p e a k
∆λ
1/2
C
I
F
I
R
λ
D
P ar am et er
Peak Wavelength
D omi nate Wavelength
D ev i c e
Mega Green
Mega Green
Ty p .
574
570
20
15
20
-
Max .
-
-
-
-
-
10
Un its
nm
nm
nm
pF
mA
uA
Tes t C o n d i t i o n s
V
F
=6V
V
F
=6V
V
F
=6V
V
F
=0V;f=1MHz
V
F
=6V
V
R
=5V
Spectral Li ne Half-wi dth Mega Green
C apaci tance
ForwardC urrent
Reverse C urrent
Mega Green
Mega Green
Mega Green
Absolute Maximum Ratings at T
A
=25°C
°
P ar am et er
Power di ssi pati on
Forward Voltage
Reverse Voltage
Operati ng Temperature
Storage Temperature
Meg a Gr een
140
7
5
-40
°
C To +70
°
C
Un its
mW
V
V
-40
°
C To + 85
°
C
SPEC NO: DSAD1594
APPROVED: J.LU
REV NO: V.1
CHECKED: Allen Liu
DATE: APR/08/2003
DRAWN: Z.Y.YANG
PAGE: 2 OF 3
