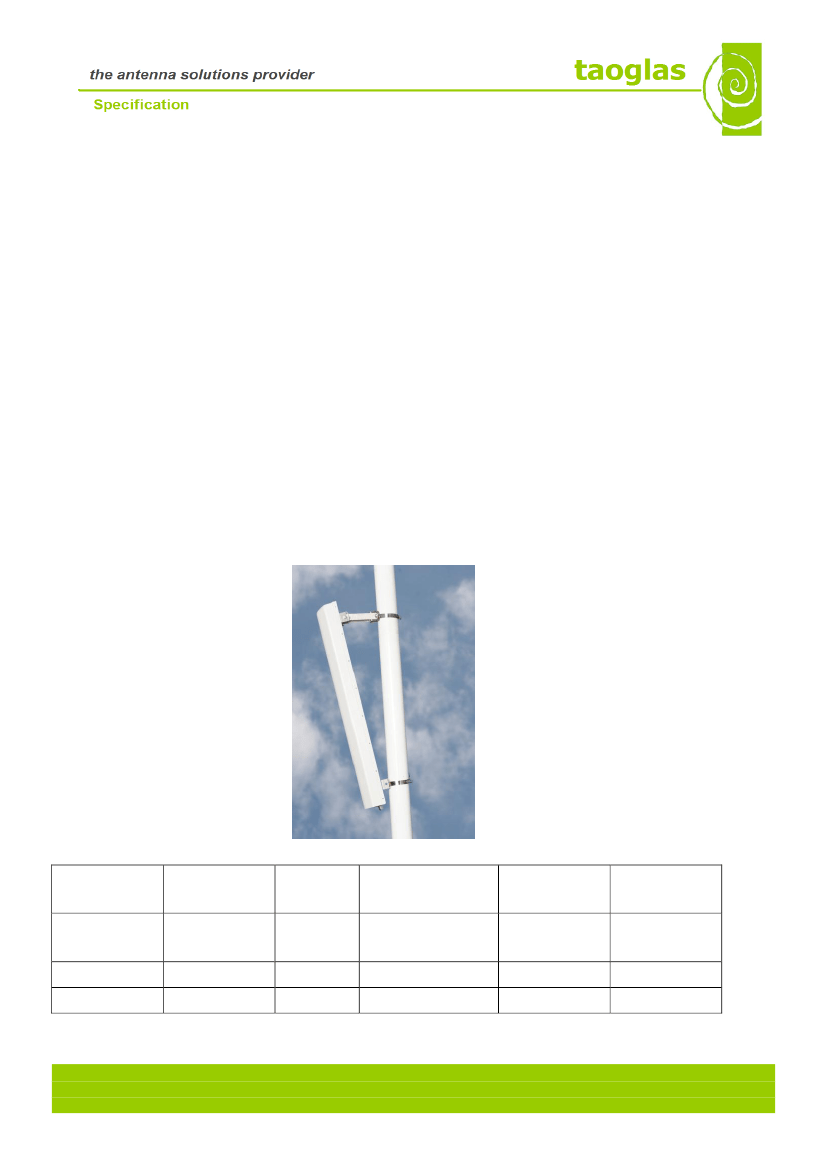

SPECIFICATION
Part No.
Spec No.
Product Name
:
:
:
SA.PANEL.20
3020
17dBi Vertical Polarized 120° Sector Antenna
4900-5900MHz
630*70*70mm
Dimensions
Features
:
:
Excellent Radiation Patterns
Wide Bandwidth with high gain across the band
UV Stabilised Radome with Stainless steel Brackets
RoHS Compliant
REVISION STATUS
Version
Date
Page
Revision Description
Prepared
Approved
01
Aug 12
th
2009
All
New Product
TW Product Centre
Ronan Quinlan
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
1.0 Introduction
This broadband vertically polarized base-station antenna is designed for sectored applications
offering superior Azimuth and Elevation pattern control across the entire frequency band. These
antennas are aesthetically pleasing while maintaining a rugged design.
Applications:- Base-station Antennas, Point to Multi-Point Solutions, 802.11 Wi-Fi.
2.0 Antenna Performance
2.1 Electrical Specifications
No.
1
2
3
4
5
6
7
8
9
10
11
12
Parameter
Communication System
Frequency Band
Return Loss
Gain
Impedance
Polarization
Max Power Handling
Horizontal Beamwidth
Vertical Beamwidth
Front to Back Ratio
Upper Sidelobe Suppression
Electrical Downtilt
Specification
Wireless LAN
4900-5900 MHz
>14dB
17 dBi
50 Ohm
Vertical
50W
120º
5°
>25dB
>18dB
0°
2.2 Mechanical Specifications
No.
1
2
3
4
5
6
Parameter
Connector
Connector Location
Dimensions (L*W*D)
Weight
Radome
Mounting
Specification
N Type Female
Bottom
630*70*70mm
2kg
UV Stabilised ASA
Adjustable pipe mount (included)
© All Rights Reserved
Taoglas Limited, Unit 3 Enniscorthy Technology Centre, Enniscorthy, Co. Wexford, Ireland
www.taoglas.com
2.3 Environmental Ratings
No.
1
2
3
Parameter
Rated Wind Velocity
Lightening Protection
Temperature
Specification
200km/h (125mph)
DC Grounded
-40°C to +70°C

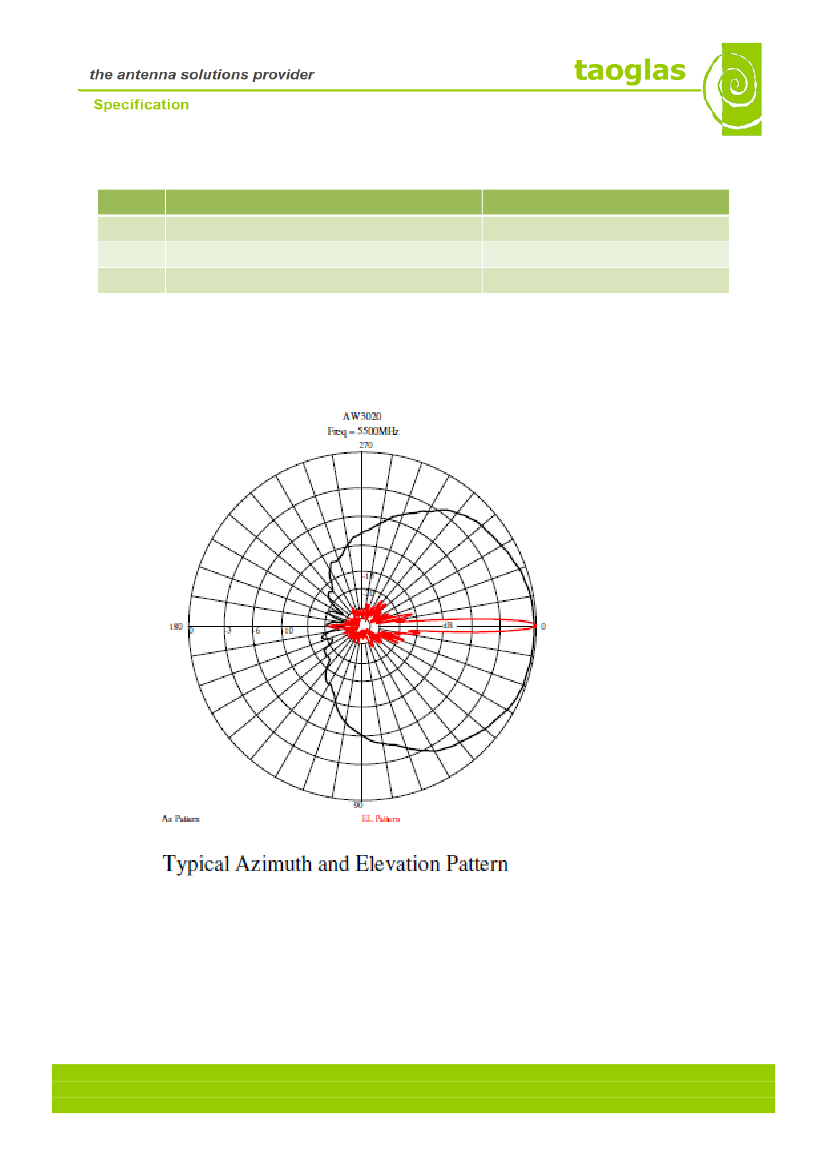

3.0 Performance
