SPECIFICATION
Part No.
Product Name
:
:
MA700.A.ABC.002
Pantheon Antenna 3in1 MA.700
Screw-Mount (Permanent Mount)
GPS/GLONASS/GALILEO / LTE Cellular /
2.4GHz / 5GHz
Combination Antenna
Features
:
Highest Efficiency/Peak Gain
Omni-directional Outdoor IP67 Antenna
Advanced RF Design and Materials
Heavy Duty
–
Integrated Metal
Base/Ground-plane
Custom cables and connectors available
RoHS
✓
SPE-13-8-002/D/ZL
MA700.A301111.B305111.C305151
Page 1 of 32
1. Introduction

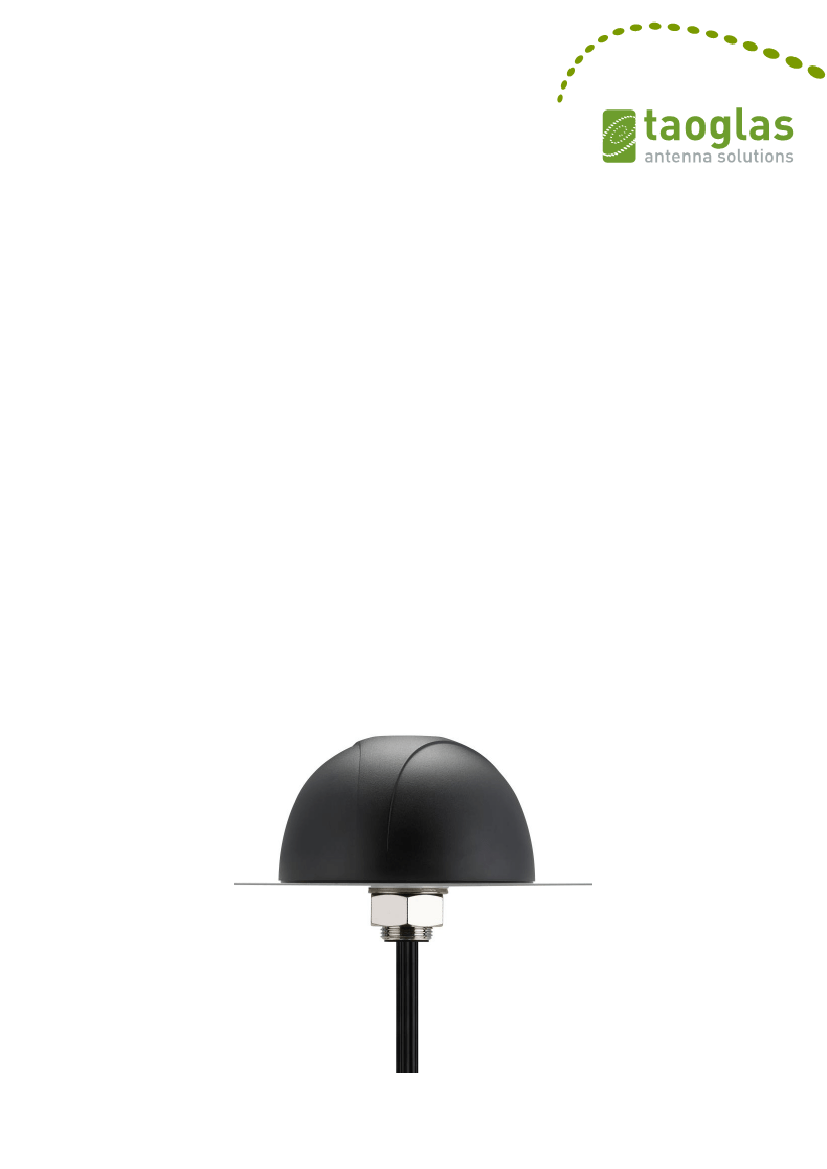

The Pantheon MA700 antenna is an omni-directional heavy-duty, fully IP67 waterproof external
M2M antenna for use in telematics, transportation and remote monitoring applications. The
Pantheon series is designed for RF professionals who accept no performance compromises
whatsoever. The MA700 combines a 3in1 GPS/GLONASS/GALILEO, Cellular 700MHz to 2200MHz
(4G/3G/2G) and 2.4GHz/5GHz antenna with the highest efficiency and peak gain possible. Unlike
our competitors who don’t measure cable loss the specification is measured at 3 meters (10ft) to
show real performance in the field. The antenna screws down permanently onto a roof or metal
panel and can be pole or wall-mounted.
All while still maintaining 20dB isolation between antennas. It uses high-shielded PTFE dielectric
ultra low-loss cables that maintain low attenuation at all frequency bands, and high noise
rejection, with an average loss of only 0.3dB per meter (0.1dB per foot), compared to 0.7dB for
RG58 and 1.2dB for RG174. Because of this, the Pantheon maximizes chances of passing PTCRB
and network approvals first time. The Pantheon also has excellent performance without need to
attach to an external ground-plane due to its internal antennas coupling to its unique super
strong integrated metal base. The antenna comes with a 3M adhesive waterproof layer to prevent
water leaking under the antenna into the mounting hole. The Pantheon can also be supplied in
single GPS/GLONASS/GALILEO, Cellular, Wi-Fi only versions, or at other frequencies.

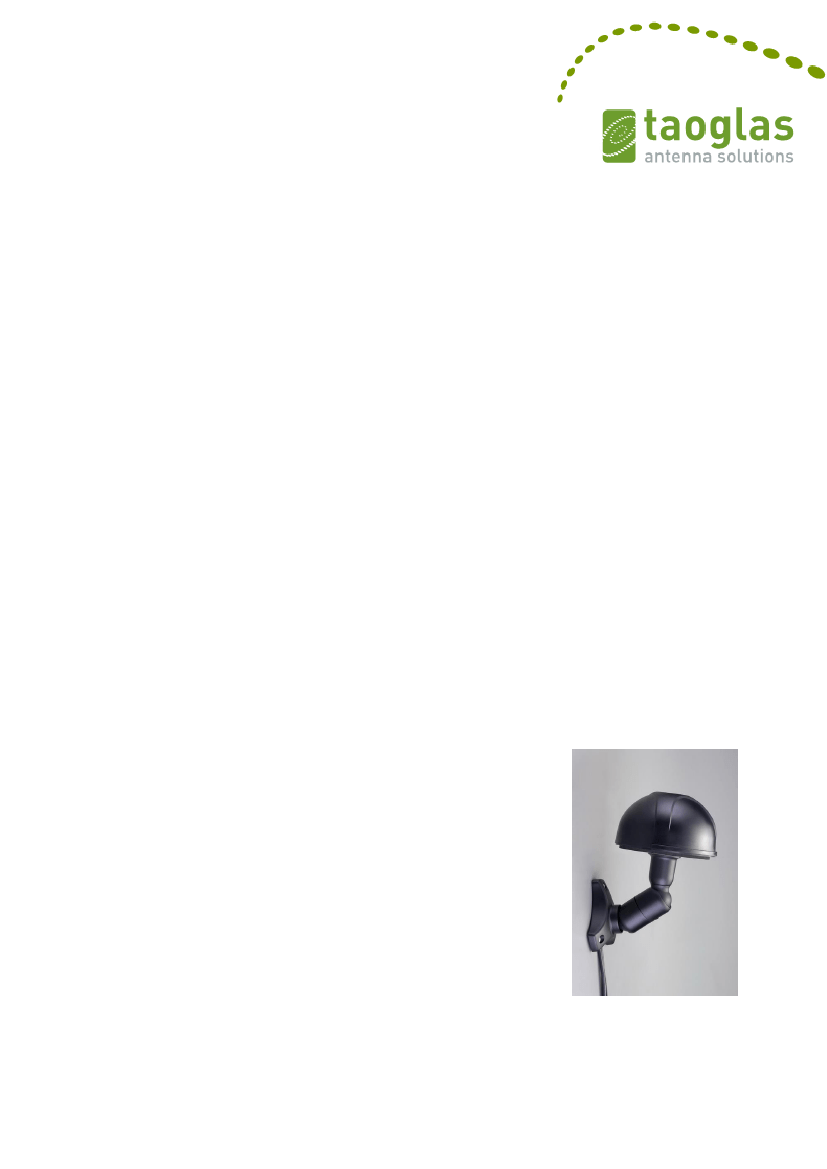

Custom designed integrated wall mounted and pole mounted
brackets are available for the Pantheon antennas. These patent
pending mounts allow for 180 degrees freedom of movement of the
antennas for ease of positioning while also preventing access to the
cables so they cannot be cut by vandals or thieves and also protecting
the cables from long term weather exposure. The removal of
unsightly cables also leads to a cleaner more professional installation
and look, and makes the antenna less identifiable and more
unobtrusive. Customized cable sleeves can be supplied for extra
protection where required.
Note: for ground-isolation antennas use the MA705 version with
Isolation Gaskets.
SPE-13-8-002/D/ZL
MA700.A301111.B305111.C305151
Page 2 of 32
2. Specification
GPS-GLONASS-GALILEO
Centre Frequency
Bandwidth
Radiation Efficiency
Passive Gain @
Zenith
VSWR
Impedance
DC Power Input
Range
DC input
MHz
VSWR
LNA Gain
Noise Figure
Power Consumption
Band Attenuation
Cable
Connector
3.3V
1575.42
2
29.2
3.1
7.5
1602
2
29
3.1
7.5
1575.42MHz / 1602MHz
10MHz
50(without cable)
4.0 typ(with ψ=140mm ground)
2
50Ω
3 ~ 5V
4.0V
1575.42
2
31
3.2
9.4
1602
2
31
3.2
9.4
5.5V
1575.42
2
32.3
3.4
15
1602
2
32
3.4
15
1520MHz: -20dB
1642MHz: -20dB
1520MHz: -20dB
1642MHz: -20dB
1520MHz: -20dB
1642MHz: -20dB
3m RG-174 standard, fully customizable
SMA(M) standard, fully customizable
CELLULAR ANTENNA
Frequency (MHz)
Peak Gain (dBi)
Average Gain (dBi)
Efficiency
Impedance
Polarization
Radiation Pattern
Cable
Connector
700~ 800
2.4
-1.3
73%
824 ~ 896
1.6
-2.0
61%
880 ~ 960
1.7
-2.3
58%
1710~ 1880
2.1
-2.8
52%
1850~1990
2.4
-2.7
52%
1710~2170
2.4
-2.7
52%
50Ω
Linear
Omni
3m CFD200 standard, fully customizable
SMA(M) standard, standard, fully customizable
SPE-13-8-002/D/ZL
MA700.A301111.B305111.C305151
Page 3 of 32
2.4GHz / 5GHz ANTENNA
Frequency (GHz)
Peak Gain (dBi)
Average Gain (dBi)
Efficiency
VSWR
Impedance
Polarization
Radiation Pattern
Cable
Connector
Dimensions
Casing
Base and thread
Thread diameter
Nut
Foam
Waterproof
ENVIRONMENTAL
Operation Temperature
Storage Temperature
-30°C to 85°C
-40°C to 90°C
2.4 ~ 2.5
2.1
-2.3
60%
4.7 ~ 5.0
2.9
-3.6
44%
50Ω
Linear
Omni
3m CFD200 standard, fully customizable
RP-SMA(M) standard, standard, fully customizable
MECHANICAL
Height 85.7mm x Diameter 145.6mm
Wonderloy PC-540 PC/ABS Alloy
CAN10 Zinc Alloy
M30 x 2 (30mm)
Nickel Plated Iron
3M 9448HK
IP67
5.0 ~ 5.4
3.8
-3.3
46%
<=1.7:1
5.4 ~ 5.9
2.8
-3.8
42%
Humidity
Non-condensing 65°C 95% RH
* all measurement are done in free space with 3m standard cable
SPE-13-8-002/D/ZL
MA700.A301111.B305111.C305151
Page 4 of 32
LTE BANDS
Band Number
1
2
3
4
5
7
8
9
11
12
13
14
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
35
38
39
40
41
42
43
LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Uplink
UL: 1920 to 1980
UL: 1850 to 1910
UL: 1710 to 1785
UL: 1710 to 1755
UL: 824 to 849
UL: 2500 to 2570
UL: 880 to 915
UL: 1749.9 to 1784.9
UL: 1427.9 to 1447.9
UL: 699 to 716
UL: 777 to 787
UL: 788 to 798
UL: 704 to 716
UL: 815 to 830
UL: 830 to 845
UL: 832 to 862
UL: 1447.9 to 1462.9
UL: 3410 to 3490
UL:2000 to 2020
UL:1625.5 to 1660.5
UL: 1850 to 1915
UL: 814 to 849
UL: 807 to 824
UL: 703 to 748
UL: -
UL: 2305 to 2315
UL: 452.5 to 457.5
UL: -
Downlink
DL: 2110 to 2170
DL: 1930 to 1990
DL: 1805 to 1880
DL: 2110 to 2155
DL: 869 to 894
DL:2620 to 2690
DL: 925 to 960
DL: 1844.9 to 1879.9
DL: 1475.9 to 1495.9
DL: 729 to 746
DL: 746 to 756
DL: 758 to 768
DL: 734 to 746 (LTE only)
DL: 860 to 875 (LET only)
DL: 875 to 890
DL: 791 to 821
DL: 1495.9 to 1510.9
DL: 3510 to 3590
DL: 2180 to 2200 (LTE only)
DL: 1525 to 1559 (LTE only)
DL: 1930 to 1995
DL: 859 to 894
DL: 852 to 869 (LTE only)
DL: 758 to 803 (LTE only)
DL: 717 to 728 (LTE only)
DL: 2350 to 2360 (LTE only)
DL: 462.5 to 467.5 (LTE only)
DL: 1452 - 1496
1850 to 1910
2570 to 2620
1880 to 1920
2300 to 2400
2496 to 2690
3400 to 3600
3600 to 3800
Covered
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
*Covered bands represent an efficiency greater than 20%
SPE-13-8-002/D/ZL
MA700.A301111.B305111.C305151
Page 5 of 32
