Technical Datasheet DS05
SuperFlux LEDs

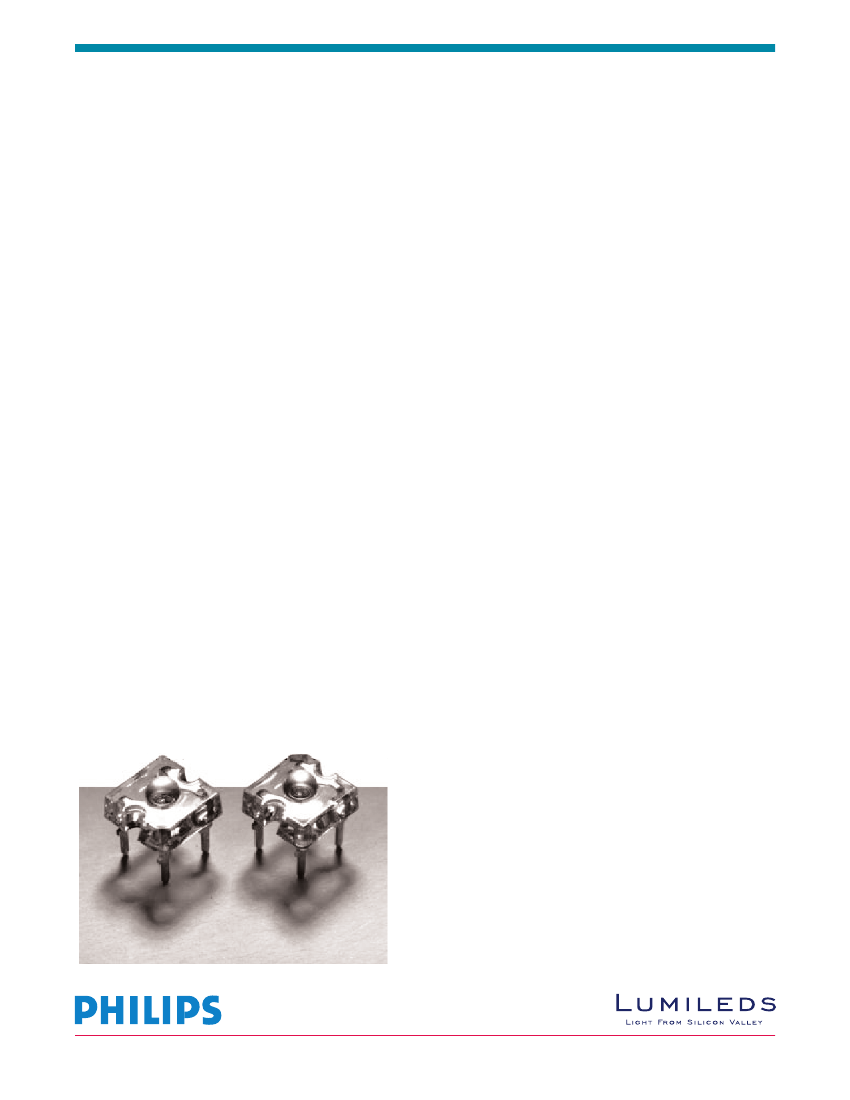

Introduction
This revolutionary package design allows the lighting designer to
reduce the number of LEDs required and provide a more uniform
and unique illuminated appearance than with other LED solutions.
This is possible through the efficient optical package design and
high current capabilities.
The low profile package can be easily coupled with reflectors or
lenses to efficiently distribute light and provide the desired lit
appearance. This product family employs the world's brightest red,
red orange, amber, blue, cyan, and green LED materials, which
allow designers to match the color of many lighting applications
like vehicle signal lamps, specialty lighting, and electronic signs.
HPWA MH00 XXXX
HPWT MH00 XXXX
HPWA DH00 XXXX
HPWT DH00 XXXX
HPWT RD00 XXXX
HPWT BH00 XXXX
HPWT MD00 XXXX
HPWT RL00 XXXX
HPWT DD00 XXXX
HPWT ML00 XXXX
HPWT BD00 XXXX
HPWT DL00 XXXX
HPWT RH00 XXXX
HPWT BL00 XXXX
HPWN MB00 XXXX
HPWN MC00 XXXX
HPWN MG00 XXXX
Key Benefits
Rugged Lighting Products
Electricity Savings
Maintenance Savings
Features
High Luminance
Uniform Color
Low Power Consumption
Low Thermal Resistance
Low Profile
Meets SAE/ECE/JIS
Automotive Color
Requirements
Packaged in tubes for use with
automatic insertion equipment
Typical
Applications
Automotive Exterior Lighting
Electronic Signs and Signals
Specialty Lighting
Selection Guide
Table 1.
Device Type
HPWA MH00
HPWA DH00
HPWT RD00
HPWT MD00
HPWT DD00
HPWT BD00
HPWT RH00
HPWT MH00
HPWT DH00
HPWT BH00
HPWT RL00
HPWT ML00
HPWT DL00
HPWT BL00
HPWN MB00
HPWN MC00
HPWN MG00
LED Color
AS AlInGaP
Red Orange
TS AlInGaP
Red
Total Flux
Φ
V
(LM) @
70 mA
[1]
(HPWA, HPWT)
50 mA (HPWN)
Typ.
2.0
Total Included
Angle
θ
0.90 V
(Degrees)
[2]
Typ.
95
60
44 X 88
100
60
50
44 X 88
100
60
50
44 X 88
100
60
50
110
110
110
View Angle
θ
2θ
1/2
(Degrees)
Typ.
90
55
25x68
70
50
30
25x68
70
50
30
25x68
70
50
30
90
90
90
3.8
TS AlInGaP
Red Orange
5.0
TS AlInGaP
Amber
InGaN Blue
InGaN Cyan
InGaN Green
2.5
2.0
5.0
4.5
Notes:
1.Φv is the total luminous flux output as measured with an integrating sphere after the device has stabilized.
(R
θ
J A
= 200°C/W, T
A
= 25ºC)
2.θ
0.90 V
is the included angle at which 90% of the total luminous flux is captured.
SuperFlux LEDs Technical Datasheet DS05 (11/07)
2

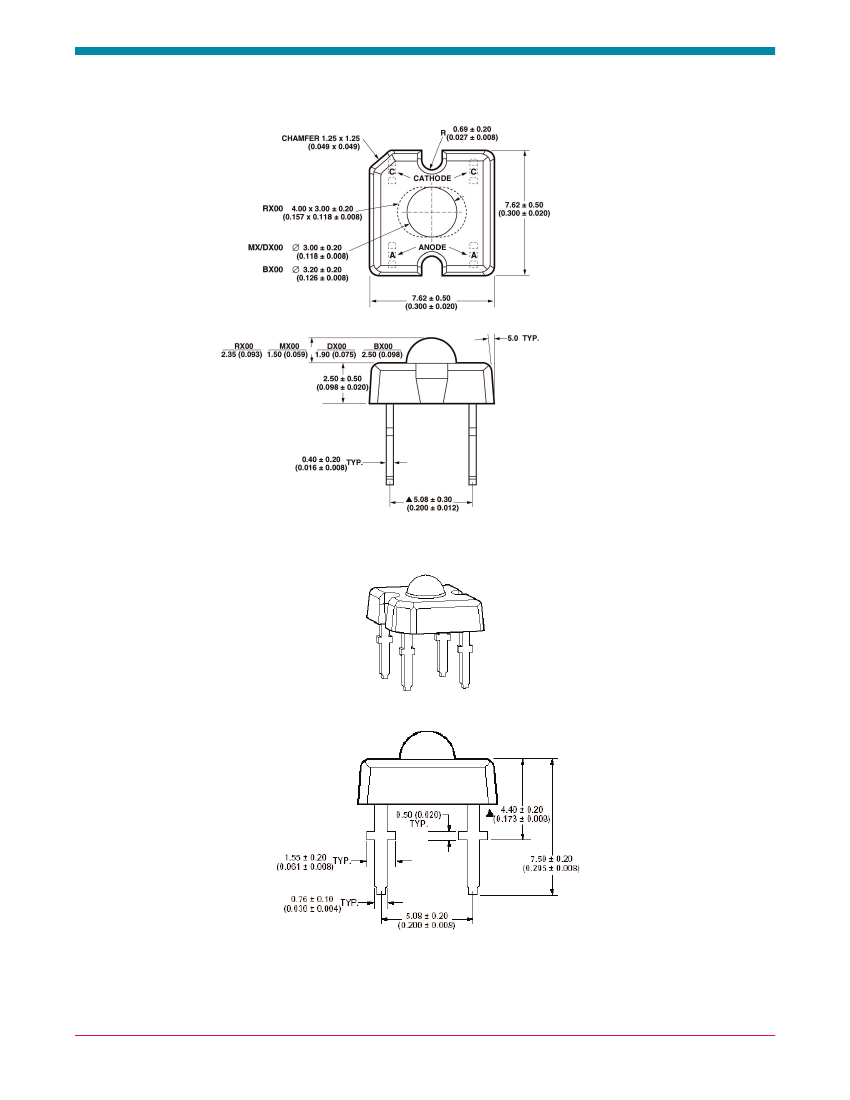

Outline Drawings
Notes:
1.Dimensions are in millimeters (inches).
2.Dimensions without tolerances are nominal.
SuperFlux LEDs Technical Datasheet DS05 (11/07)
3
Absolute Maximum Ratings at T
A
= 25ºC
Table 2.
Parameter
DC Forward Current
Power Dissipation
Reverse Voltage (I
R
= 100
μA)
Operating Temperature Range
Storage Temperature Range
High Temperature Chamber
LED Junction Temperature
Solder Conditions
Preheat Temperature
Solder Temperature
[2]
[1]
HPWA
70
187
10
HPWT
70
221
10
40 to +100
55 to +100
125ºC, 2 Hours
125ºC
HPWN
50
233
0.55
Units
mA
mW
V
ºC
ºC
85 +/ 15°C, 20 sec (Max 30 sec)
235 +/ 5°C, 2.5 +/ 0.5 sec
[1.5mm (0.06 in) below seating plane
Notes:
1.De rate as shown in Figures 4a, 4b and 4c.
2.Detail wave soldering instructions found in Application Brief AB13.
Optical Characteristics at
T
A
= 25°C, I
F
= 70 mA (HPWA, HPWT), I
F
= 50 mA (HPWN), R
θ
J A
= 200°C/W
Table 3.
Device
Type
HPWA MH00
HPWA DH00
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
HPWT
RD00
MD00
DD00
BD00
RH00
MH00
DH00
BH00
RL00
ML00
DL00
BL00
Total
Stabilized
Flux
Φ
v (lm)
[1]
Typ.
2.0
Total
Instantaneous
Flux
Φ
v (lm)
[2]
Typ.
2.4
Luminous
Intensity to
Total Flux
Iv(cd)/
Φ
v(lm)
Typ.
0.6
0.8
1.3
0.6
1.1
2.0
1.3
0.6
1.1
2.0
1.3
0.6
1.1
2.0
0.9
0.9
0.9
Color,
Dominant
Wavelength
λ
d (nm)
[3]
Typ.
618
Total
Included
Angle
θ
0.90 V
(Degrees)
[4]
Typ.
95
60
44x88
100
60
50
44x88
100
60
50
44x88
100
60
50
110
110
110
Peak
Wavelength
λ
peak (nm)
[3]
Typ.
624
Viewing
Angle
2
θ
1/2
v
(Degrees)
Typ.
90
55
25x68
70
50
30
25x68
70
50
30
25x68
70
50
30
90
90
90
3.8
4.6
630
640
5.0
6.2
620
626
2.5
4.0
594
596
HPWN MB00
HPWN MC00
HPWN MG00
2.0
5
4.5
2.0
5.2
4.7
470
505
525
460
503
520
Notes:
1.Total Stabilized Flux
Φ
v
is the total luminous flux output as measured with an integrating sphere after the device has stabilized
to Tj ~ 60°C.
2.Total Instantaneous Flux
Φ
v
is the total luminous flux output as measured with an integrating sphere at 20ms duration.
3.The dominant wavelength is derived from the CIE Chromaticity Diagram and represents the perceived color of the device
at Tj ~ 60 °C.
4.θ
0.90 V
is the included angle at which 90% of the total luminous flux is captured.
SuperFlux LEDs Technical Datasheet DS05 (11/07)
4
Electrical Characteristics at T
A
=25°C
Table 4.
Forward Voltage VF (Volts)
@
IF = 70mA (HPWA, HPWT)
IF = 50 mA (HPWN)
Device
Type
HPWA xH00
HPWT xD00
HPWT xH00
HPWT xL00
HPWN xB00
HPWN xC00
HPWN xG00
Min
1.83
2.19
2.19
2.19
3.00
3.00
3.00
Typ
2.2
2.6
2.6
2.6
3.8
3.8
3.9
Max
2.67
3.03
3.03
3.15
4.60
4.60
4.60
Reverse Breakdown
V
R
(Volts)
[1]
@ I
R
= 100
μ
A
Min
10
10
10
10
0.55
0.55
0.55
Typ.
20
20
20
20
0.65
0.65
0.65
Capacitance
C (pF)
V
F
= 0,
F = 1MHz.
Typ.
40
40
40
40
1900
1900
1900
Thermal
Resistance
R
θ
J PIN
(°C/W)
Typ.
155
125
125
125
130
130
130
Speed of
Response
τ
s
(ns)
[2]
Typ.
20
20
20
20
20
20
20
Notes:
1.Operation in reverse bias is not recommended.
2.τs is the time constant, e
t/τs
.
SuperFlux LEDs Technical Datasheet DS05 (11/07)
5
