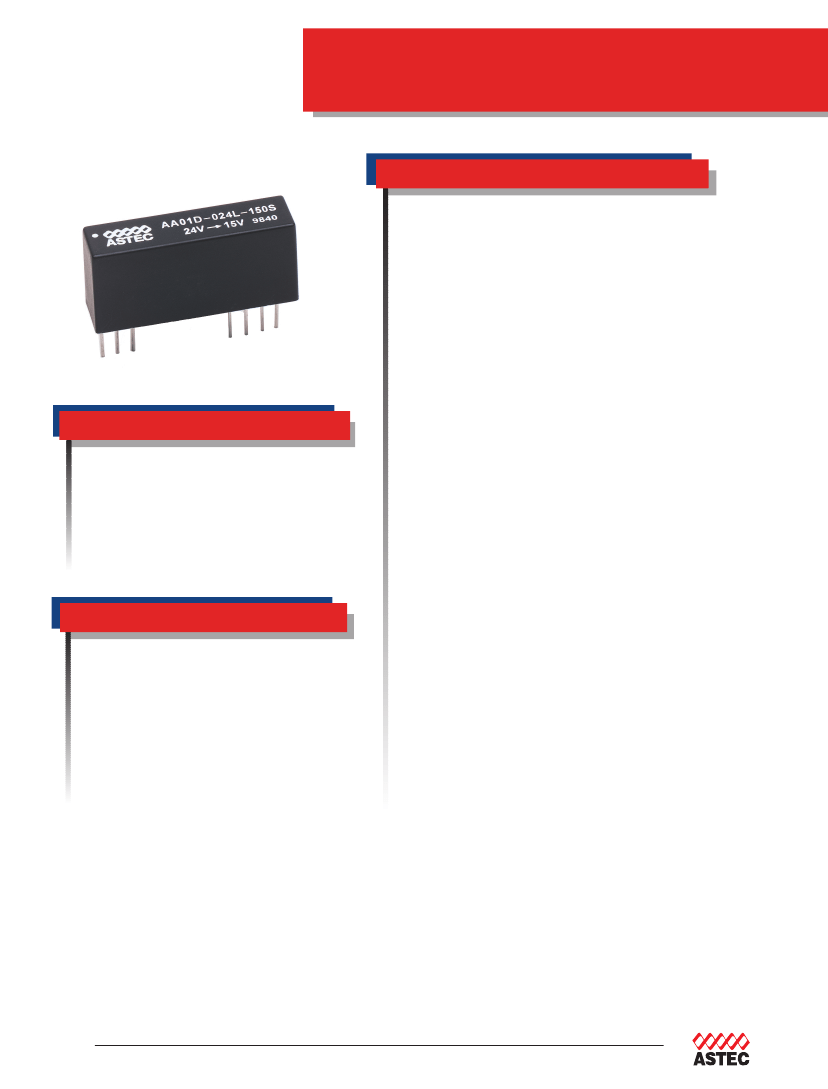

Astec Conventional Power
1-2 Watts
AA01D
Total Power:
Input Voltages:
No. of Outputs:
1-2 Watts
5V, 12V, or 24V
Single, Dual
Electrical Specs
Input
Input range
Input reverse voltage
protection
Input filter
Efficiency
4.5 - 5.5 Vdc; 10.8 - 13.2 Vdc;
21.6 - 26.4 Vdc
Fuse recommended
Capacitor
50-70% typ
Output
Voltage tolerance
Line regulation
Load regulation
Noise/ripple
Short circuit protection
Transient response
Switching frequency
Temperature coefficient
Output 1 and 2 - ±3.0%
Output 1 and 2 - ± 1.0%
5V Output Models ±1.0%
1% mV P-P (see note1)
10 Second Duration
250 usec max (50% load change to
within 1% VO Nom)
25kHz typ
± 0.02%/° C
Special Features
•
•
•
•
1 Year warranty
1.25" x 0.34" x 0.57" Case size
500Vdc Isolation
-25°C to +71°C operating temperature
Isolation
I/O isolation
Isolation resistance
500Vdc
1 x 109 ohms
Environmental
Operating ambient temperature:
-25°C to +71°C (full load, no derating)
Storage temperature: -55°C to +105°C
Humidity: 5% to 95% (non-condensing)
Cooling method: Convection
MTBF: >1,000,000 hours
(MIL-HDBK-217F)
60
America’s (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211
Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
AA01D
Ordering Information
Input
Voltage
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
4.5-5.5Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
10.8-13.2Vdc
21.6-26.4Vdc
21.6-26.4Vdc
21.6-26.4Vdc
21.6-26.4Vdc
21.6-26.4Vdc
21.6-26.4Vdc
Output 1
Voltage
5V @ 0.200A
9V @ 0.200A
12V @ 0.125A
15V @ 0.100A
+12V @ 0.060A
+15V @ 0.050A
5V @ 0.200A
9V @ 0.200A
12V @ 0.125A
15V @ 0.100A
+12V @ 0.060A
+15V @ 0.050A
5V @ 0.200A
9V @ 0.200A
12V @ 0.125A
15V @ 0.100A
+12V @ 0.060A
+15V @ 0.050A
Output 2
Voltage
Maximum
Power
1W
1.8W
1.5W
1.5W
1.44W
1.5W
1W
1.8W
1.5W
1.5W
1.44W
1.5W
1W
1.8W
1.5W
1.5W
1.44W
1.5W
Model
Number
AA01D-005L-050S
AA01D-005L-090S
AA01D-005L-120S
AA01D-005L-150S
AA01D-005L-120D
AA01D-005L-150D
AA01D-012L-050S
AA01D-012L-090S
AA01D-012L-120S
AA01D-012L-150S
AA01D-012L-120D
AA01D-012L-150D
AA01D-024L-050S
AA01D-024L-090S
AA01D-024L-120S
AA01D-024L-150S
AA01D-024L-120D
AA01D-024L-150D
-12V @ 0.060A
-15V @ 0.050A
-12V @ 0.060A
-15V @ 0.050A
-12V @ 0.060A
-15V @ 0.050A
Pin Assignments
Single Output
1.
2.
3.
9.
10.
11.
12.
Dual Output
1.
2.
3.
9.
10.
11.
12.
+Vin
-Vout
Com
N\C
Com
+Vout
-Vin
0.07
[1.9]
.020 [0.5]
0.10 typ.
[2.54]
1.10
[27.94]
0.34
[8.6]
0.08
[2.0]
+Vin
N/C
N/C
N/C
-Vout
+Vout
-Vin
1.25
[31.8]
Pin #'s are for
reference only
0.57
[14.5]
1 2
3
9 10 11 12
0.4
[10.2]
.010 [0.25]
Astec Conventional Power
Notes:
1. 20 MHz bandwidth. An external 0.1uf ceramic capacitor
is recommended to be placed from +V out to -V out.
2. All specifications are typical at nominal line, full load,
and 25 ° C unless otherwise noted.
3. All specifications subject to change without notice.
Mechanical drawings are for reference only.
4. Warranty: 1 yr
Case Material: Plastic
Weight: 0.3Oz/8Grams
www.astec.com
61
