A-12.960-S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> Crystal/resonator> A-12.960-S

Preview

A-12.960-S: Descriptionmicroprocessor crystal unit; CategoryPassive components Crystal/resonator; File Size86KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/

Download Datasheet Parametric Compare View All

A-12.960-S Overview

microprocessor crystal unit

A-12.960-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Raltron
package instruction	HC-49/U, 2 PIN
Reach Compliance Code	compliant
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	12.96 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	11.05mm x 4.65mm x 13.49mm
Series resistance	30 Ω
surface mount	NO

Preview

Download Datasheet

View All

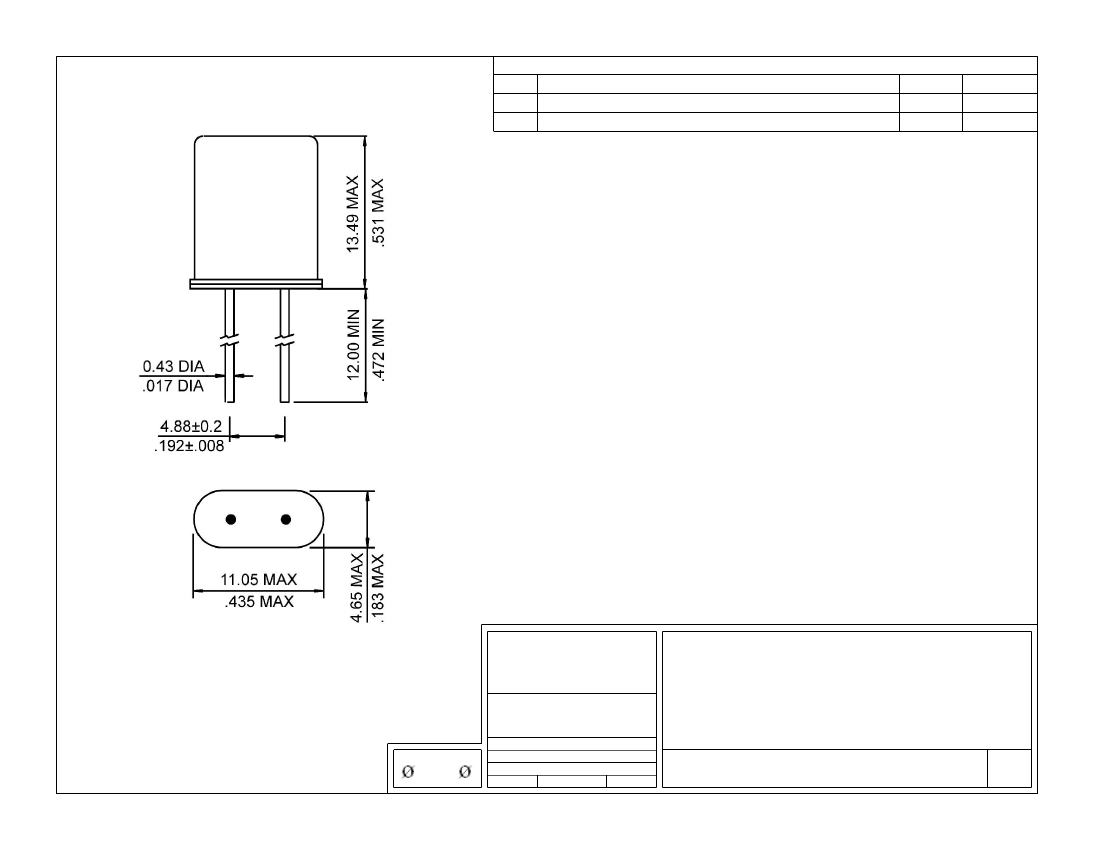

REVISIONS

LTR

A

INITIAL RELEASE

DATE

5/5/03

APPROVED

SPECIFICATIONS:

NOMINAL FREQUENCY:

MODE OF OSCILLATION:

FREQUENCY TOLERANCE AT 25°C:

FREQUENCY STABILITY OVER

TEMPERATURE RANGE:

OPERATING TEMPERATURE RANGE:

STORAGE TEMPERATURE RANGE:

AGING:

LOAD CAPACITANCE:

DRIVE LEVEL:

SHUNT CAPACITANCE:

EQUIVALENT SERIES RESISTANCE:

HOLDER TYPE:

12.288 MHz

FUNDAMENTAL

±30 PPM MAX

±50 PPM MAX

-20°C TO +70°C

-55°C TO +125°C

±5 PPM PER YEAR MAX

20 pF

100 µW TYP, 1000 µW MAX

7 pF MAX

30 OHMS MAX

HC-49/U AS SHOWN

RALTRON

10651 NW 19TH STREET

MIAMI, FL 33172

ALL DIMENSIONS ARE IN mm/inch

UNLESS OTHERWISE SPECIFIED

DRAWN BY:

Part Generator

CHECKED BY:

APPROVED BY:

SCALE:

SHEET 1 OF

DATE:

DRAWING TITLE:

MICROPROCESSOR CRYSTAL UNIT

CAGE CODE:

DRAWING NUMBER:

VUE

A-12.288-20

A-12.960-S Related Products

	A-12.960-S	A-12.000-20	A-12.288-20
Description	microprocessor crystal unit	microprocessor crystal unit	microprocessor crystal unit
Maker	Raltron	Raltron	Raltron
Reach Compliance Code	compliant	compliant	compliant
Ageing	5 PPM/YEAR	5 PPM/YEAR	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL	PARALLEL - FUNDAMENTAL	PARALLEL - FUNDAMENTAL
Drive level	100 µW	100 µW	100 µW
frequency stability	0.005%	0.005%	0.005%
frequency tolerance	30 ppm	30 ppm	30 ppm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	12.96 MHz	12 MHz	12.288 MHz
Maximum operating temperature	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
physical size	11.05mm x 4.65mm x 13.49mm	L11.05XB4.65XH13.49 (mm)/L0.435XB0.183XH0.531 (inch)	L11.05XB4.65XH13.49 (mm)/L0.435XB0.183XH0.531 (inch)
Series resistance	30 Ω	30 Ω	30 Ω
surface mount	NO	NO	NO
package instruction	HC-49/U, 2 PIN	-	HC-49/U, 2 PIN
load capacitance	-	20 pF	20 pF
