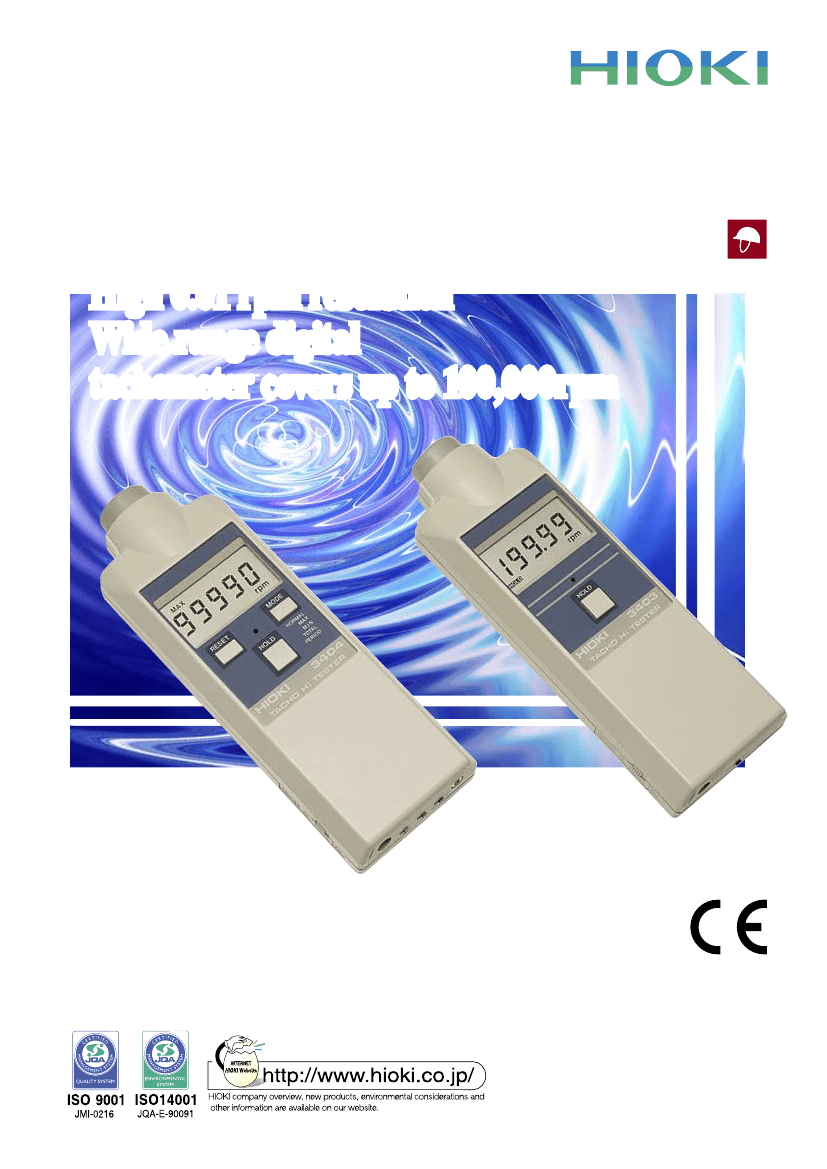

Record RPM data with the Universal 3404
High-precision, high-resolution
Maximum 0.01 rpm resolution and high
±
1 dgt. precision make the tachometer
effective for precise measurements.
Measurement range
Note: Contact adapter may be used for rotations up to 20,000 rpm.
NORMAL, MIN and MAX modes (MIN and MAX modes only on the 3404)
SLOW
sampling (3403 and 3404)
Range
30.00 to 199.99
rpm
200.0 to 1999.9
2000 to 19999
20000 to 99990
0.5000 to 1.9999
2.000 to 19.999
rps
20.00 to 199.99
200.0 to 1600.0
Accuracy
30.00 to 99.99 ±1 dgt.
100.00 to 199.99 ±2 dgt.
200.0 to 999.9 ±1 dgt.
1000.0 to 1999.9 ±2 dgt.
2000 to 9999
±1 dgt.
10000 to 19999 ±2 dgt.
±10 dgt.
±2 dgt.
2.000 to 9.999 ±1 dgt.
10.000 to 19.999 ±2 dgt.
20.00 to 99.99 ±1 dgt.
100.00 to 199.99 ±2 dgt.
200.0 to 999.9 ±1 dgt.
1000.0 to 1600.0 ±2 dgt.
FAST
sampling (3404 only)
Range
120.00 to 199.90
200.0 to 1999.0
rpm
2000 to 19990
20000 to 99900
2.000 to 19.990
rps
20.00 to 199.90
200.0 to 1600.0
Accuracy
±40 dgt.
200.0 to 999.0 ±20 dgt.
1000.0 to 1999.0 ±40 dgt.
2000 to 9990
±20 dgt.
10000 to 19990 ±40 dgt.
±200 dgt.
2.000 to 9.990 ±20 dgt.
10.000 to 19.990 ±40 dgt.
20.00 to 99.90 ±20 dgt.
100.00 to 199.90 ±40 dgt.
200.0 to 999.0 ±20 dgt.
1000.0 to 1600.0 ±40 dgt.
Internal micro-computer for
multi-functional performance
(3404 only)
MIN, MAX-Holds
minimum and
maximum rpm/rps values.
TOTAL-Provides
total rotation counts
from 0 to 500,000 for real-time
rotation count measurement.
PERIOD-Accurately
measure rotation
pulses from 600
μ
s to 2.000 seconds.
Stable analog signal output from low
to high speeds provides clear recording
by merely connecting your present
recorder. Output sampling mode can
be set to slow or fast to meet different
application needs.
Note: Display will read 0.0 below 120 rpm or 2 rps.
Note: Display will read 0.0 below 30 rpm or 0.5 rps.
Analog output (3404 only)
TOTAL
mode (3404 only) - 0 to 499999 5-digit display.
(dicimal point code used for 100,000 counts and over)
PERIOD
mode (3404 only) 600
μs
to 2.000 s -
±
1 dgt. for
4 digit display,
±
2 dgt. for 4 1/2 - digit display.
Specifications
Measurement method
Display
:Visible light reflectance
:LCD 4 1/2 digits (5 digit display
for 20,000 counts or higher, lowest
digit fixed to zero).
Selection guide
Single-function
type
Multi-function type
Double performance from one
tachometer
By using the optional 9213 contact
adapter the 3403 and 3404 become
contact-type tachometers, while the
period ring can be used in applications
like measurement of conveyer line speed
(period).
Simple reflector detection
check
LED and buzzer signals confirm that
the light pulses reflected from the tape
on the rotating body are being picked
up. Signals can be turned on and off
freely.
TOTAL
measurement 5 digits
(3404 only).
HOLD
• rpm • rps •
B
mark (MAX.
• MIN. • TOTAL • PERIOD •
μsec
• msec • sec [3404 only] )
:----- displayed
Overscale display
:50 to 200 mm
Detection range
Reflected light detection
:Buzzer and LED
check
Operating temperature/
:0 to 40 ˚C 80% RH maximum
(no condensation)
humidity
:1000m VDC f.s. (3404 only).
Analog output
Output accuracy
±
1% rdg.
±
1m V,
output resistance 1kΩ
:SUM3 (AA)
×
4 Continuous
Power supply
battery operation time approx. 16h
AC adapter also available (6V
300mA)
Dimensions and weight
:180H
×
62W
×
38Dmm,
(approx.)
250g(3403), 260g (3404)
3403
3404
Non-contact
Measurement method
Non-contact
0.7 to 2.0 sec
SLOW
mode 0.7 to 2.0 sec
Sampling rate
FAST
mode 0.18 to 0.5 sec
_
FAST/SLOW
mode select
MAX.,MIN.,
TOTAL
Mode (total count
_
select measurement)
PERIOD
(period
measurement)
_
Analog output
Auto-range function
Data hold function
Tripod mounting
AC power jack
9211
Accessories
Reflective tape
(1 sheet)
Carrying case
9211 Reflective tape
(1 sheet)
9094 Output cord
Carrying case
Optional accessories
9211 Reflective tape (10 sheets)
(30 pieces per sheet, each sheet 12
×
12 mm)
9213
Contact adapter
(includes 9032, two 9033 and 9212)
9032
9033
Metal contact tip Rubber contact tip
9212
Peripheral ring
rpm
↔
rps
Switch units even during measurement.
9094 Output cord (1.5 m)
Auto-ranging function covers
from 30 to 100,000 rpm.
Tripod mounting socket
included.
AC and DC power supplies
may be used.
9213 dimensions:
70H
×
62W
×
39Dmm (Not including contact tip)
Standard packing
(double carton box)
Sets
20
N.W.kg
16
G.W.kg
18
M
3
0.1
DISTRIBUTED BY
HEAD OFFICE :
81 Koizumi, Ueda, Nagano, 386-1192, Japan
TEL +81-268-28-0562 / FAX +81-268-28-0568
E-mail: os-com@hioki.co.jp
HIOKI USA CORPORATION :
6 Corporate Drive, Cranbury, NJ 08512 USA
TEL +1-609-409-9109 / FAX +1-609-409-9108
E-mail: hioki@hiokiusa.com
Shanghai Representative Office :
1704 Shanghai Times Square Office
93 Huaihai Zhong Road
Shanghai, 200021, P.R.China
TEL +86-21-6391-0090, 0092
FAX +86-21-6391-0360
E-mail: info@hioki.cn
All information correct as of Nov. 29, 2005. All specifications are subject to change without notice.
3403E2-5YE
Printed in Japan
