FR301 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FR301

Preview

FR301: Descriptionfast switching plastic rectifier voltage:50 TO 1000v current:3.0A; CategoryDiscrete semiconductor diode; File Size2MB，2 Pages; ManufacturerGulf Semiconductor; Websitehttp://www.gulfsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

FR301 Overview

fast switching plastic rectifier voltage:50 TO 1000v current:3.0A

FR301 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Gulf Semiconductor
package instruction	O-PALF-W2
Reach Compliance Code	unknown
Is Samacsys	N
Other features	LOW LEAKAGE CURRENT
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-201AD
JESD-30 code	O-PALF-W2
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	200 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Maximum repetitive peak reverse voltage	50 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

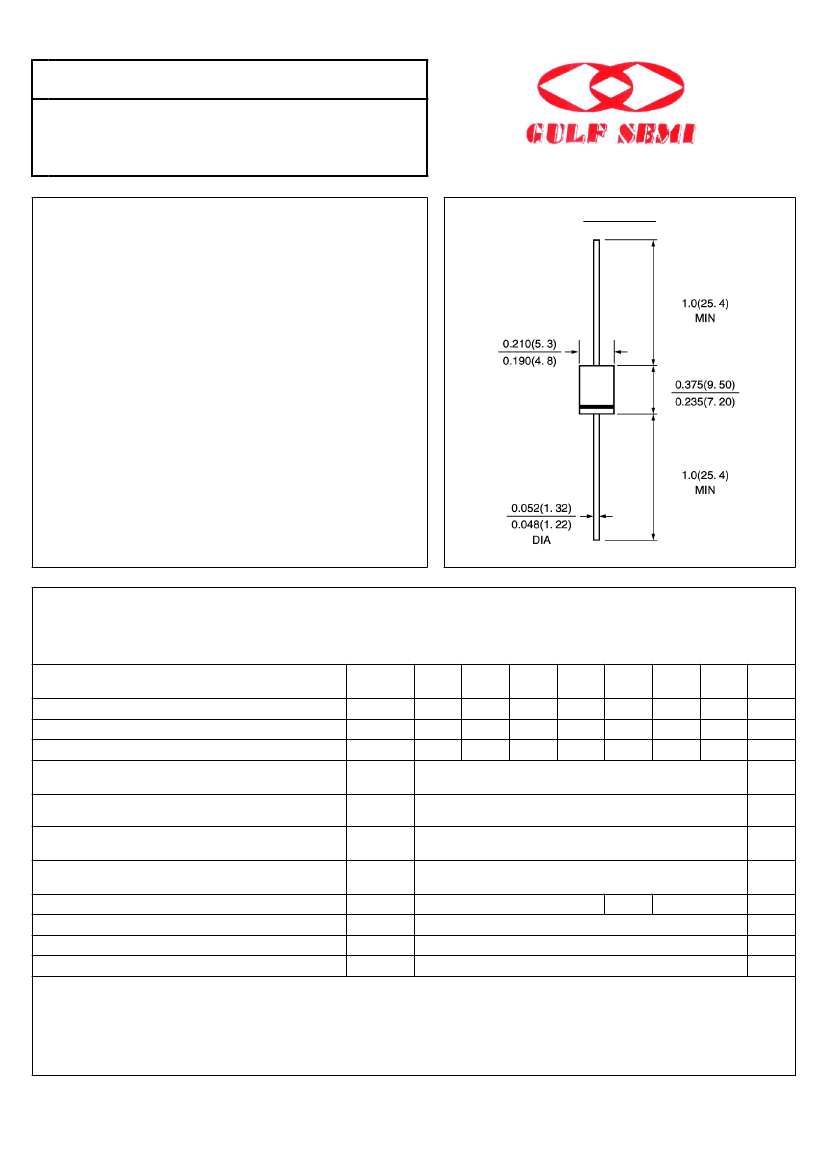

FR301 THRU FR307

FAST SWITCHING

PLASTIC RECTIFIER

VOLTAGE:50 TO 1000V

CURRENT:3.0A

FEATURE

Molded case feature for auto insertion

High current capability

Low leakage current

High surge capability

High temperature soldering guaranteed

250°C/10sec/0.375”lead length at 5 lbs tension

Fast switching for high efficiency

DO- 201AD

MECHANICAL DATA

Terminal:Plated axial leads solderable per

MIL-STD 202E, method 208C

Case:Molded with UL-94 Class V-0 recognized Flame

Retardant Epoxy

Polarity:color band denotes cathode

Mounting position:any

Dimensions in inches and (millimeters)

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(single-phase, half -wave, 60HZ, resistive or inductive load rating at 25°C, unless otherwise stated)

SYMBOL

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC blocking Voltage

Maximum Average Forward Rectified

Current 3/8”lead length at Ta =75°C

Peak Forward Surge Current 8.3ms single

Half sine-wave superimposed on rated load

Maximum Forward Voltage at rated Forward

Current and 25°C

Maximum DC Reverse Current

Ta =25°C

at rated DC blocking voltage

Maximum Reverse Recovery Time (Note 1)

Typical Junction Capacitance

(Note 2)

Typical Thermal Resistance

(Note 3)

Storage and Operating Junction Temperature

Note:

Vrrm

Vrms

Vdc

If(av)

Ifsm

Vf

Ir

Trr

Cj

R(ja)

Tstg,Tj

FR

301

50

35

50

FR

302

100

70

100

FR

303

200

140

200

FR

304

400

280

400

3.0

200.0

1.3

5.0

FR

305

600

420

600

FR

306

800

560

800

FR

307

1000

700

1000

units

V

A

V

µA

150

65.0

20.0

-50 to +150

250

500

nS

pF

°C/W

°C

1. Reverse Recovery Condition If

=0.5A,

Ir=1.0A, Irr =0.25A

2. Measured at 1.0 MHz and applied reverse voltage of 4.0Vdc

3. Thermal Resistance from Junction to Ambient at 0.375”lead length, P.C. Board Mounted

Rev.A4

www.gulfsemi.com

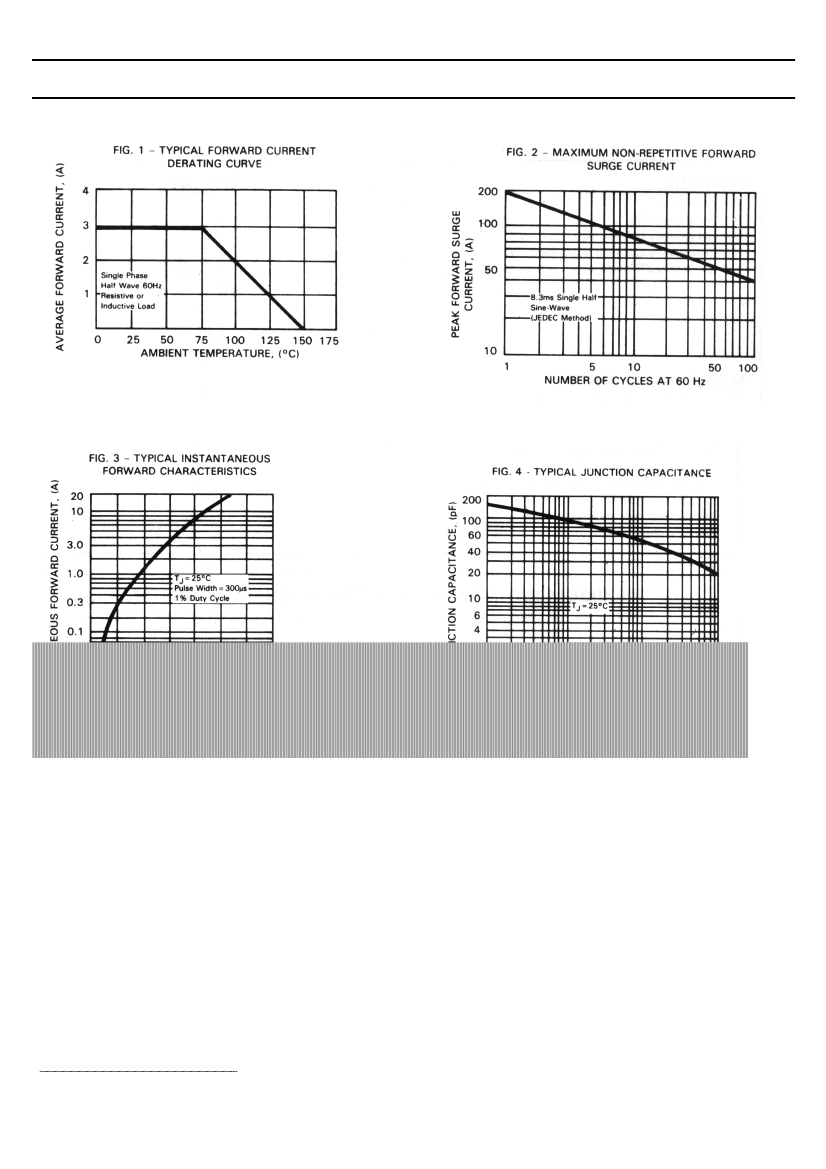

FR301 Related Products

	FR301	FR302	FR304	FR303
Description	fast switching plastic rectifier voltage:50 TO 1000v current:3.0A	fast switching plastic rectifier voltage:50 TO 1000v current:3.0A	fast switching plastic rectifier voltage:50 TO 1000v current:3.0A	fast switching plastic rectifier voltage:50 TO 1000v current:3.0A
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor	Gulf Semiconductor
package instruction	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT	LOW LEAKAGE CURRENT
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-201AD	DO-201AD	DO-201AD	DO-201AD
JESD-30 code	O-PALF-W2	O-PALF-W2	O-PALF-W2	O-PALF-W2
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	200 A	200 A	200 A	200 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	3 A	3 A	3 A	3 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Maximum repetitive peak reverse voltage	50 V	100 V	400 V	200 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
