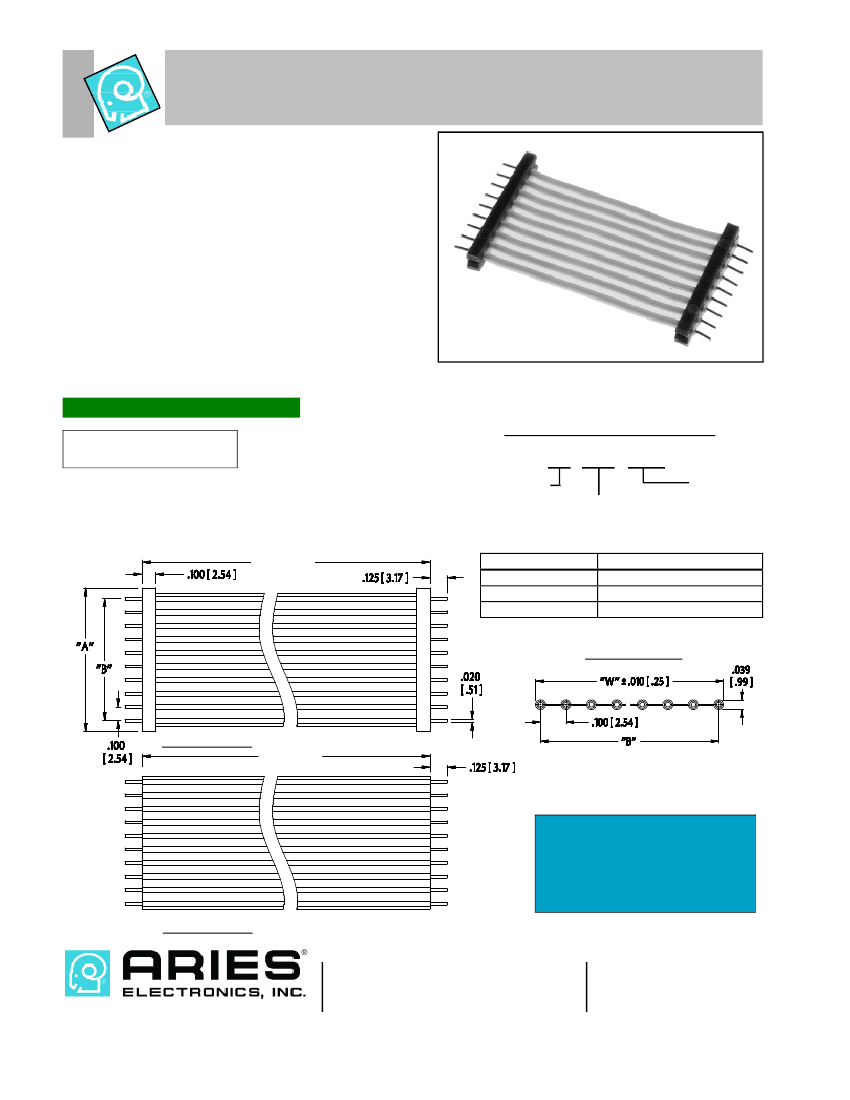

Series 154 Yellow Streak Jumpers
on .100 [2.54] Centers
FEATURES:
• A low-cost jumper available with (Series 154YP) or with-
out (Series 154YS) pitch bars.
• Pitch bars help maintain .100 [2.54] conductor spacing.
SPECIFICATIONS:
• Pitch bar is natural UL 94-HB Nylon 6/6.
• Cable insulation is UL Style 1061 Polyvinyl Chloride
(PVC), semi-rigid.
• Laminate is clear PVC, self-extinguishing.
• Conductors are 24 AWG, Tinned, solid Copper.
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
• Cable voltage rating=300 Volts.
• Cable temperature rating=176°F [80°C].
MOUNTING CONSIDERATIONS:
•Suggested PCB hole size=.030 ± .002 [.76 ± .05].
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
All tolerances ± .005 [.13]
unless otherwise specified
“A”=(NO. OF CONDUCTORS X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF CONDUCTORS - 1) X .100 [2.54]
“W”=(NO. OF CONDUCTORS X .100 [2.54]) - .016 [.41]
“L” ± .125
ORDERING INFORMATION
XX-XXX-XXX
No. of conductors
(5 thru 22)
Length “L”
in inches
(see table)
Series:
154YS=bare-
ended
154YP=pitch bars
No. of Conductors
4 thru 8
9 and 10
11 thru 22
Minimum Insulation Length
1.000 [25.40]
1.250 [31.75]
1.500 [38.10]
Consult factory for sizes not shown
CABLE DETAIL
STYLE 154YP
“L” ± .125
Note: Yellow streak jumpers are
not for high-flex applications.
Use Aries’ Staked Flex or In-Line
jumpers for high-flex applica-
tions. Consult Data Sheet Nos.
11005 and 11014, respectively.
STYLE 154YS
NORTH AMERICA
Frenchtown, NJ USA
TEL: (908) 996-6841
FAX:(908) 996-3891
http://www.arieselec.com • info@arieselec.com
ABCDEFG
EUROPE
TEL: +44 870 240 0249
FAX: +44 871 919 6033
europe@arieselec.com
11015
REV.C
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
