LCA126 is a 250V, 170mA, 15Ω 1-Form-A relay. It fea-
tures enhanced on-resistance.
Features
•
Small 6 Pin DIP Package
•
Low Drive Power Requirements (TTL/CMOS
Compatible)
•
No Moving Parts
•
High Reliability
•
Arc-Free With No Snubbing Circuits
•
3750V
RMS
Input/Output Isolation
•
FCC Compatible
•
VDE Compatible
•
No EMI/RFI Generation
•
Machine Insertable, Wave Solderable
•
Surface Mount and Tape & Reel Versions Available
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Applications
•
Telecommunications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment—Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Part #
LCA126
LCA126S
Description
6 Pin DIP (50/Tube)
6 Pin Surface Mount (50/Tube)
Pin Configuration
LCA126 Pinout
AC/DC Configuration
1
2
3
6
5
4
LCA126 Pinout
DC Only Configuration
1
2
3
6
5
4
+ Control
– Control
Do Not Use
Load
Do Not Use
Load
+ Control
– Control
Do Not Use
+ Load
– Load
Switching Characteristics of
Normally Open (Form A) Devices
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-LCA126-R3
www.clare.com
1
LCA126
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Surface Mount Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
50
mA
-
1
A
-
5
V
- 800
2
mW
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
AC/DC Configuration
DC Configuration
Peak Load Current
On-Resistance
AC/DC Configuration
DC Configuration
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
Capacitance
Input to Output
Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Common Characteristics @ 25°C
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
-
10ms
I
L
=170mA
I
L
=300mA
V
L
=250V
I
F
=5mA, V
L
=10V
I
F
=5mA, V
L
=10V
50V; f=1MHz
-
I
L
=170mA
-
I
F
=5mA
-
V
R
=5V
-
-
Symbol
V
L
I
L
I
L
I
LPK
R
ON
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
-
I
F
I
F
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
-
-
-
5
0.4
0.9
-
-
-
3750
Typ
-
-
-
-
10
4
-
-
-
50
3
-
0.7
1.2
-
-
3
-
Max
250
170
300
400
15
5
1
5
5
-
-
50
-
1.4
5
10
-
-
Units
V
mA
mA
mA
Ω
Ω
µA
ms
ms
pF
pF
mA
mA
V
V
µA
pF
V
RMS
2
www.clare.com
Rev. 3
LCA126
PERFORMANCE DATA*
35
30
Device Count (N)
LCA126
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 5mADC
35
30
Device Count (N)
LCA126
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
LCA126
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
35
30
Device Count (N)
25
20
15
10
5
0
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
LED Forward Voltage Drop (V)
25
20
15
10
5
0
6.5
7.5
8.5
9.5
10.5
On-Resistance (Ω)
305
315
325
335
345
355
365
Blocking Voltage (V)
LCA126
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC)
25
20
15
10
5
0
0.3
0.5
0.7
0.9
1.1
1.3
1.5
LED Current (mA)
25
20
15
10
5
0
LCA126
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC)
25
20
15
10
LCA126
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
Device Count (N)
Device Count (N)
Device Count (N)
5
0
0.15
0.45
0.75
1.05
1.35
1.65
1.95
0.625 0.875 1.125 1.375 1.625 1.875 2.125
Turn-On (ms)
LED Current (mA)
LCA126
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 170mADC; I
F
= 5mADC)
25
LCA126
Typical Load Current vs. Temperature
250
Load Current (mA)
200
150
100
50
0
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
0.0250
0.0200
LCA126
Typical Leakage vs. Temperature
(Measured across Pins 4 & 6)
Device Count (N)
20
15
10
5
0
0.335 0.525 0.715 0.905 1.095 1.285 1.475
Turn-Off (ms)
20mA
10mA
5mA
Leakage (µA)
0.0150
0.0100
0.0050
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
LCA126
Typical Blocking Voltage vs. Temperature
350
LCA126
Typical Turn-On vs. Temperature
(Load Current = 170mADC)
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-40
-20
0
20
40
60
Temperature (°C)
0.700
LCA126
Typical Turn-Off vs. Temperature
(Load Current = 170mADC)
0.600
Blocking Voltage (V
RMS
)
345
5mA
Turn-Off (ms)
Turn-On (ms)
340
335
330
325
320
315
-40
-20
0
20
40
60
80
100
Temperature (°C)
0.500
0.400
0.300
0.200
0.100
0
-40
-20
0
20
40
60
5mA
10mA
20mA
80
100
80
100
Temperature (°C)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
Rev. 3
www.clare.com
3
LCA126
PERFORMANCE DATA*
LCA126
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
1.4
1.2
1.0
0.8
-40
-20
0
20
40
60
80
100
120
Temperature (°C)
Turn-On (ms)
LCA126
Typical Turn-On vs. LED Forward Current
(Load Current = 170mADC)
1.4
1.2
Turn-Off (ms)
LCA126
Typical Turn-Off vs. LED Forward Current
(Load Current = 170mADC)
0.410
0.400
0.390
0.380
0.370
0.360
0.350
0.340
1.0
0.8
0.6
0.4
0.2
0
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
50mA
30mA
20mA
10mA
5mA
0
5
10
15
20
25
30
35
40
45
50
LED Forward Current (mA)
60.000
On-Resistance (Ω)
50.000
LCA126
Typical On-Resistance vs. Temperature
(Load Current = 170mADC; I
F
= 5mADC)
2.500
2.000
1.500
1.000
0.500
0
LCA126
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 170mADC)
LCA126
Typical I
F
for Switch Dropout vs. Temperature
(Load Current = 170mADC)
2.500
2.000
1.500
1.000
0.500
0
LED Current (mA)
40.000
30.000
20.000
10.000
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
-40
-20
0
20
40
60
80
100
LED Current (mA)
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
200
150
LCA126
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 5mADC
LCA126
Energy Rating Curve
1.2
1.0
Load Current (A)
0.8
0.6
0.4
0.2
0
10µs 100µs 1ms 10ms 100ms
Time
Load Current (mA)
100
50
0
-50
-100
-150
-200
-2.5 -2.0 -1.5 -1.0 -0.5
0
0.5 1.0 1.5 2.0 2.5
1s
10s 100s
Load Voltage (V)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 3
LCA126

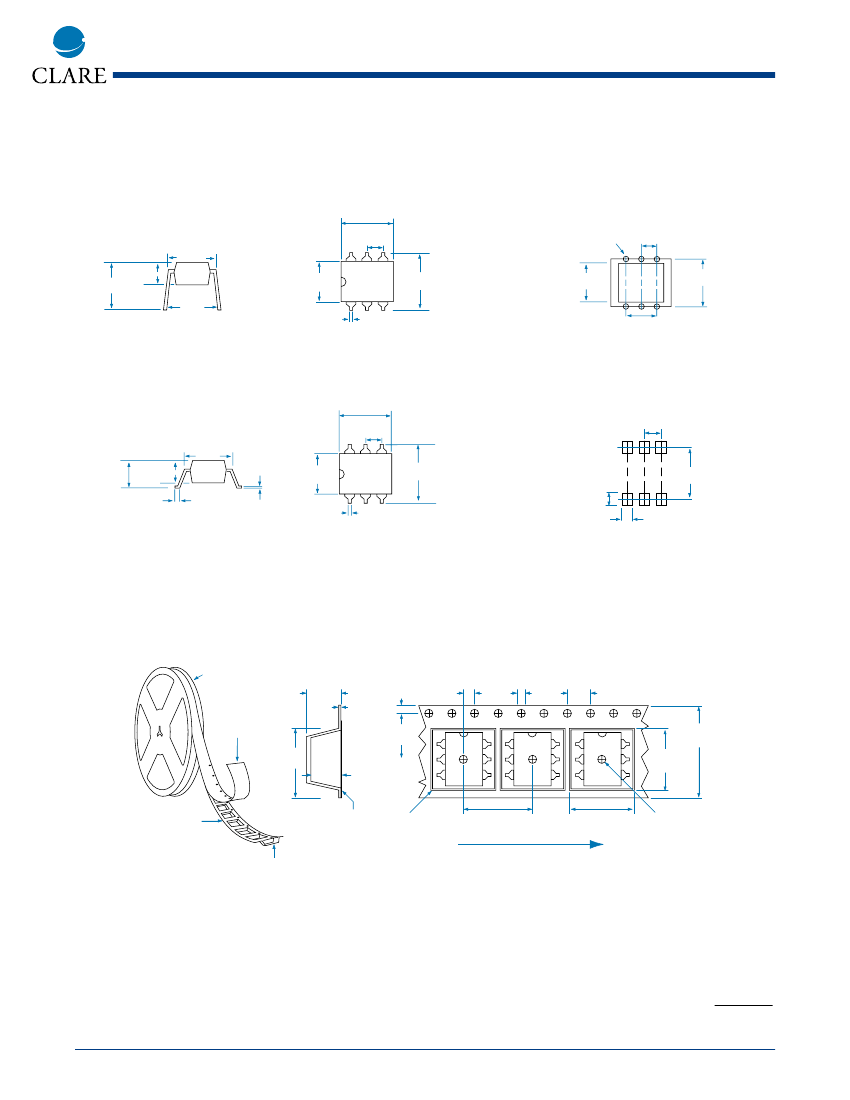

Mechanical Dimensions
6 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
6.350
±
.127
(.250
±
.005)
9.144
±
.508
(.360
±
.020)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
6-.800 DIA.
(6-.031 DIA.)
9.144
(.360)
6.350
±
.127
(.250
±
.005)
2.540
±
.127
(.100
±
.005)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
.457
±
.076
(.018
±
.003)
5.080
±
.127
(.200
±
.005)
6 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
8.382
±
.635
(.330
±
.025)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
8.305
±
.127
(.327
±
.005)
.457
±
.076
(.018
±
.003)
1.499
±
.127
(.059
±
.005)
Tape and Reel Packaging for 6 Pin Surface Mount Package
Let me tell you some bad news first: the MLINK on the "Fujitsu Easy Kit" does not support MB9BF506N (see the picture below). But we can still use the MLINK on the "Fujitsu Easy Kit" to simulate the "F...
After booting up, the message is printed repeatedly, but the screen is not lit. Or it is printed only once, and the screen flickers. Does anyone know the reason? [NBL2] main() Starts ! [NBL2] Serial I...
[i=s]This post was last edited by wateras1 on 2014-2-10 21:18[/i] My grandma had a car accident a few days ago. She is still in a coma and in the emergency room. She was supposed to go to Beijing tomo...
What is "Car Electronic Fence"
Fleet managers can define a graphical area (regular or irregular) or divide it into administrative zones in Yamei Technology's vehicle backend management system ...[Details]
Is pure electric vehicles a false proposition for long-distance driving? At least from my personal perspective, based on current technological and infrastructure standards, I believe so. Below, I'l...[Details]
Topics: Bring Your Own Device (BYOD) trends; the impact of using employees' own mobile devices to control access to work facilities and equipment on information security; and ways to securely imple...[Details]
For healthcare professionals, accurate diagnosis and treatment are crucial for a clear picture of a person's health. However, healthcare professionals often rely on tests at medical facilities, cli...[Details]
Gross profit margin jumped from 13.6% in the first half of last year to 25.9%, almost doubling year-on-year.
On August 21, RoboSense released its interim performance report, in which the...[Details]
Recently, Tesla released the "Tesla Car Voice Assistant Terms of Use", announcing that the car voice assistant will be connected to the Doubao large model (Skylark large model) and DeepSeek Chat pr...[Details]
On August 22, South Korean media Nate reported on the 20th local time that Samsung Electronics is introducing Hyper Cell technology into its most advanced 2nm process technology, striving to improv...[Details]
introduction
Sonar imaging is of great significance in marine resource development and defense. Its long range, intuitive display of the observed area, and target identification make it widely...[Details]
introduction
The concept of the smart home is gradually developing and gaining market acceptance. We believe its ultimate form lies in the interconnection of all home appliances through open i...[Details]
As AI accelerates across industries, the demand for data center infrastructure is also growing rapidly.
Keysight Technologies, in collaboration with Heavy Reading, released the "Beyo...[Details]
Spark plugs are an indispensable device for engines. As the saying goes, without spark plugs, the engine cannot work properly. The serious consequence is that when driving at high speeds, the engin...[Details]
PowiGaN achieves 95% efficiency at both light and full loads, meeting critical operational and safety requirements.
DARWIN, Australia and SAN JOSE, Calif.,
August 22, 2025 – Powe...[Details]
Before understanding single-phase control transformers, let's briefly understand what a single-phase transformer is. A single-phase transformer uses a single-phase input. Compared to a three-phase ...[Details]
Methods of DC motor speed regulation:
1. The voltage regulator can be used to change the input voltage and speed directly, which is often used for large kilowatt-level motors.
2. Thyristo...[Details]
Renesas Electronics' new ultra-low-power RA4C1 MCU features advanced security and a dedicated peripheral set, making it ideal for metering and other applications.
The new product mee...[Details]
DIY/Open Source Hardware
京公网安备 11010802033920号
EEWORLD
