The LCA210 is a common input 1-Form 2A solid state relay
which has two independent optically couple MOSFETS
controlled by a common input signal. The efficient MOS-
FET switches and photovoltaic die use Clare’s patented
OptoMOS
®
architecture to provide 3750 V
RMS
of input to
output isolation. The optically coupled input is controlled by
highly efficient GaAIAs infrared LEDs. Common input
OptoMOS relays can replace standard dual pole relays in
a variety of applications. The common input relay elimi-
nates the need to make an external circuit connection
when both poles are controlled by a common signal.
Approvals
•
UL Recognized: File Number E76270
•
CSA Certified: File Number LR 43639-10
•
BSI Certified to:
•
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
•
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Part #
LCA210
LCA210S
LCA210STR
Description
8 Pin DIP (50/Tube)
8 Pin Surface Mount (50/Tube)
8 Pin Surface Mount (1000/Reel)
Applications
•
Telecom Switching
•
Tip/Ring Circuits
•
Modem Switching (Laptop, Notebook, Pocket Size)
•
Hookswitch
•
Dial Pulsing
•
Ground Start
•
Ringer Injection
•
Instrumentation
•
Multiplexers
•
Data Acquisition
•
Electronic Switching
•
I/O Subsystems
•
Meters (Watt-Hour, Water, Gas)
•
Medical Equipment-Patient/Equipment Isolation
•
Security
•
Aerospace
•
Industrial Controls
Pin Configuration
LCA210 Pinout
NC
+ Control
Ð Control
NC
1
2
3
4
8
7
6
5
Output 1
Output 1
Output 2
Output 2
Switching Charcteristics of
Normally Open (Form A) Devices
10ms
CONTROL
LOAD 10%+
+90%
10%+
T
ON
T
OFF
DS-LCA210-R7
www.clare.com
1
LCA210
Absolute Maximum Ratings (@ 25˚ C)
Parameter
Input Power Dissipation
Input Control Current
Peak (10ms)
Reverse Input Voltage
Total Power Dissipation
Isolation Voltage
Input to Output
Operational Temperature
Storage Temperature
Soldering Temperature
DIP Package
Flatpack/Surface Mount
Package
(10 Seconds Max.)
1
2
Min
-
-
-
-
-
3750
-40
-40
-
-
Typ Max Units
- 150
1
mW
-
100 mA
-
1
A
-
5
V
2
mW
- 800
-
-
-
-
-
-
V
RMS
+85
°C
+125 °C
+260
+220
°C
°C
Absolute Maximum Ratings are stress ratings. Stresses
in excess of these ratings can cause permanent damage
to the device. Functional operation of the device at these
or any other conditions beyond those indicated in the
operational sections of this data sheet is not implied.
Exposure of the device to the absolute maximum ratings
for an extended period may degrade the device and effect
its reliability.
Derate Linearly 1.33 mw/˚C
Derate Linearly 6.67 mw/˚C
Electrical Characteristics
Parameter
Output Characteristics @ 25°C
Load Voltage (Peak)
Load Current (Continuous)
Peak Load Current
On-Resistance
Off-State Leakage Current
Switching Speeds
Turn-On
Turn-Off
Output Capacitance
*Input Characteristics @ 25°C
Input Control Current
Input Dropout Current
Input Voltage Drop
Reverse Input Voltage
Reverse Input Current
Input to Output Capacitance
Input to Output Isolation
Conditions
-
-
10ms max
I
L
=85mA
V
L
=350V
I
F
=8mA, V
L
=10V
I
F
=8mA, V
L
=10V
50V; f=1MHz
I
L
=120mA
-
I
F
=8mA
-
V
R
=5V
-
-
Symbol
V
L
I
L
I
LPK
R
ON
I
LEAK
T
ON
T
OFF
C
OUT
I
F
-
V
F
V
R
I
R
C
I/O
V
I/O
Min
-
-
-
-
-
-
-
-
8
0.8
0.9
-
-
-
3750
Typ
-
-
-
25
-
-
-
25
-
1.4
1.2
-
-
3
-
Max
350
85
170
35
1
3
3
-
100
-
1.4
5
20
-
-
Units
V
mA
mA
Ω
µA
ms
ms
pF
mA
mA
V
V
µA
pF
V
RMS
*Input characteristics represent requirements of two parallel connected LEDs.
2
www.clare.com
Rev. 7

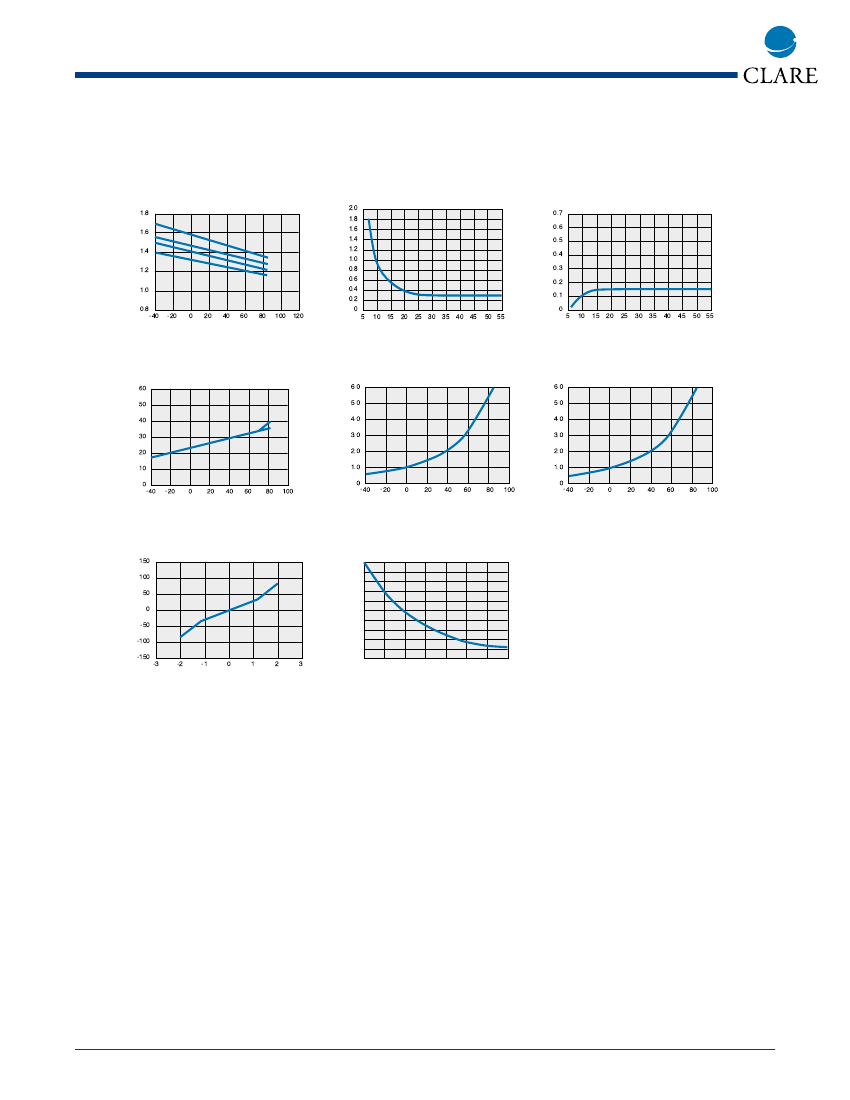

LCA210

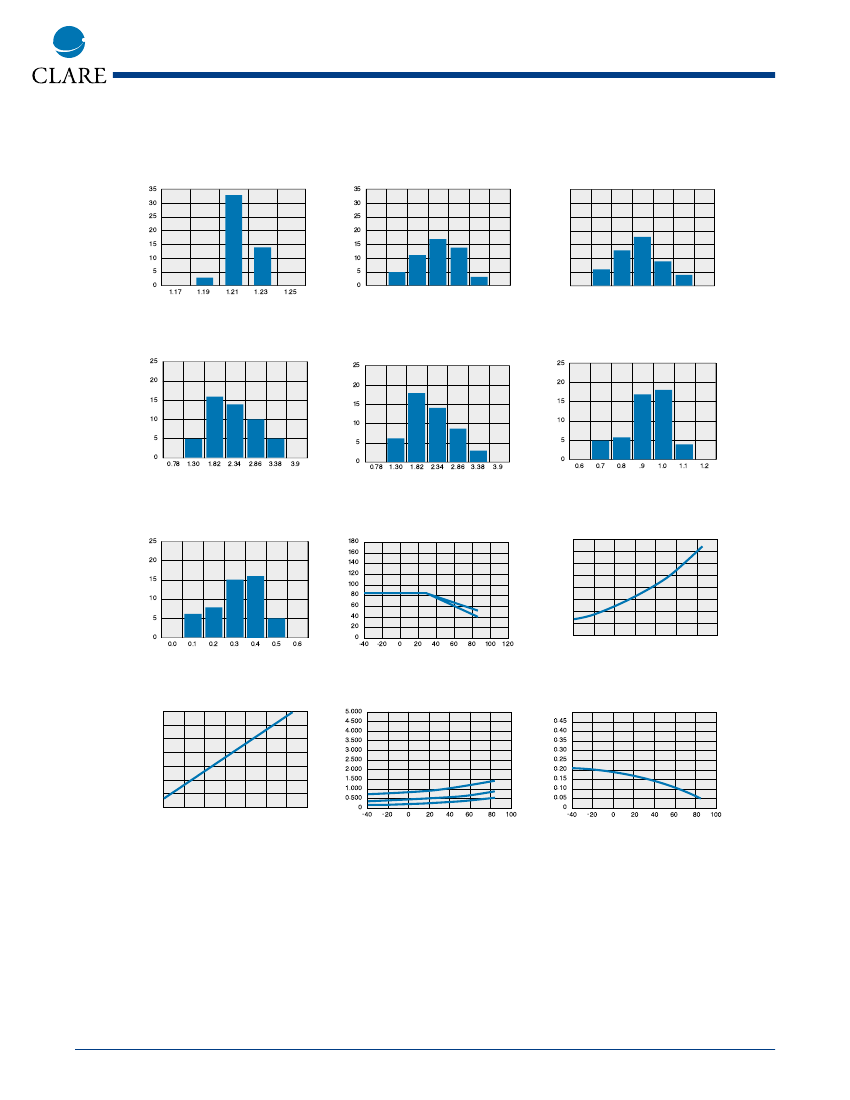

PERFORMANCE DATA*
LCA210
Typical LED Forward Voltage Drop
(N=50 Ambient Temperature = 25°C)
I
F
= 8mADC
35
30
!#
!
Device Count (N)
LCA210
Typical On-Resistance Distribution
(N=50 Ambient Temperature = 25°C)
(Load Current = 85mADC) I
F
=8mA
35
30
Device Count (N)
22.9
23.3
23.7
24.1
24.5
24.9
25.3
25
20
15
10
5
0
LCA210
Typical Blocking Voltage Distribution
(N=50 Ambient Temperature = 25°C)
Device Count (N)
25
20
15
10
5
0
1.17
1.19
1.21
1.23
1.25
#
#
#
420
425
430
435
440
445
450
LED Forward Voltage Drop (V)
On-Resistance (Ω)
Blocking Voltage (V)
LCA210
Typical I
F
for Switch Operation
(N=50 Ambient Temperature = 25°C)
(Load Current = 85mADC)
25
25
LCA210
Typical I
F
for Switch Dropout
(N=50 Ambient Temperature = 25°C)
(Load Current = 85mADC )
LCA210
Typical Turn-On Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 85mADC; I
F
= 8mADC)
25
20
Device Count (N)
20
15
Device Count (N)
Device Count (N)
20
15
15
10
10
10
5
5
5
0
0.78
1.30
1.82
2.34
2.86
3.38
3.9
0
0.78
1.30
1.82
2.34
2.86
3.38
3.9
0
0.6
0.7
0.8
.9
1.0
1.1
1.2
LED Current (mA)
LED Current (mA)
Turn-On (ms)
LCA210
Typical Turn-Off Time
(N=50 Ambient Temperature = 25°C)
(Load Current = 85mADC; I
F
= 8mADC)
25
20
15
10
5
0
0.0
0.1
0.2
0.3
0.4
0.5
0.6
180
160
140
120
100
80
60
40
20
0
LCA210
Typical Load Current vs. Temperature
LCA210
Typical Leakage vs. Temperature
(Measured across Pins 5 & 6 or 7 & 8)
0.016
0.014
Leakage (µA)
0.012
0.010
0.008
0.006
0.004
0.002
0
-40
-20
0
20
40
60
80
100
Temperature (°C)
Load Current (mA)
Device Count (N)
16mA
8mA
-40 -20
0
20
40
60
80 100 120
Turn-Off (ms)
Temperature (°C)
LCA210
Typical Blocking Voltage
vs. Temperature
430
Blocking Voltage (V
RMS
)
425
Turn-On (ms)
420
415
410
405
400
395
-40
-20
0
20
40
60
80
100
Temperature (°C)
5.000
4.500
4.000
3.500
3.000
2.500
2.000
1.500
1.000
0.500
0
LCA210
Typical Turn-On vs. Temperature
(Load Current = 40mADC)
LCA210
Typical Turn-Off vs. Temperature
(Load Current = 40mADC)
8mA
16mA
32mA
-40
-20
0
20
40
60
80
100
0.45
0.40
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0
Turn-Off (ms)
8mA
-40
-20
0
20
40
60
80
100
Temperature (°C)
Temperature (°C)
The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
Rev. 7
www.clare.com
3
LCA210
PERFORMANCE DATA*
LCA210
Typical LED Forward Voltage Drop
vs. Temperature
LED Forward Voltage Drop (V)
1.8
1.6
1.4
1.2
50mA
30mA
20mA
10mA
1.0
0.8
-40
-20
0
20
40
60
80
100
120
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
LCA210
Typical Turn-On vs. LED Forward Current
(Load Current = 50mADC)
5 10 15 20 25 30 35 40 45 50 55
LED Forward Current (mA)
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
LCA210
Typical Turn-Off vs. LED Forward Current
(Load Current = 50mADC)
Turn-On (ms)
Turn-Off (ms)
5 10 15 20 25 30 35 40 45 50 55
LED Forward Current (mA)
Temperature (°C)
LCA210
Typical On-Resistance vs. Temperature
(Load Current = Max Rated at Temperature)
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
6.0
LED Current (mA)
LCA210
Typical I
F
for Switch Operation
vs. Temperature
(Load Current = 50mADC)
6.0
LED Current (mA)
LCA210
Typical I
F
for Switch Dropout
vs. Temperature
(Load Current = 50mADC)
On-Resistance (Ω)
5.0
4.0
3.0
2.0
1.0
0
-40
-20
0
20
40
60
80
100
5.0
4.0
3.0
2.0
1.0
0
-40
-20
0
20
40
60
80
100
8mA
16mA
Temperature (°C)
Temperature (°C)
Temperature (°C)
150
Load Current (mA)
LCA210
Typical Load Current vs. Load Voltage
(Ambient Temperature = 25°C)
I
F
= 8mADC
LCA210
Energy Rating Curve
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
10µs 100µs 1ms 10ms 100ms
Time
100
50
0
-50
-100
-150
-3
-2
-1
0
1
2
3
Load Current (A)
1s
10s 100s
Load Voltage (V)
*The Performance data shown in the graphs above is typical of device performance. For guaranteed parameters not indicated in the written specifications, please contact
our application department.
4
www.clare.com
Rev. 7
LCA210

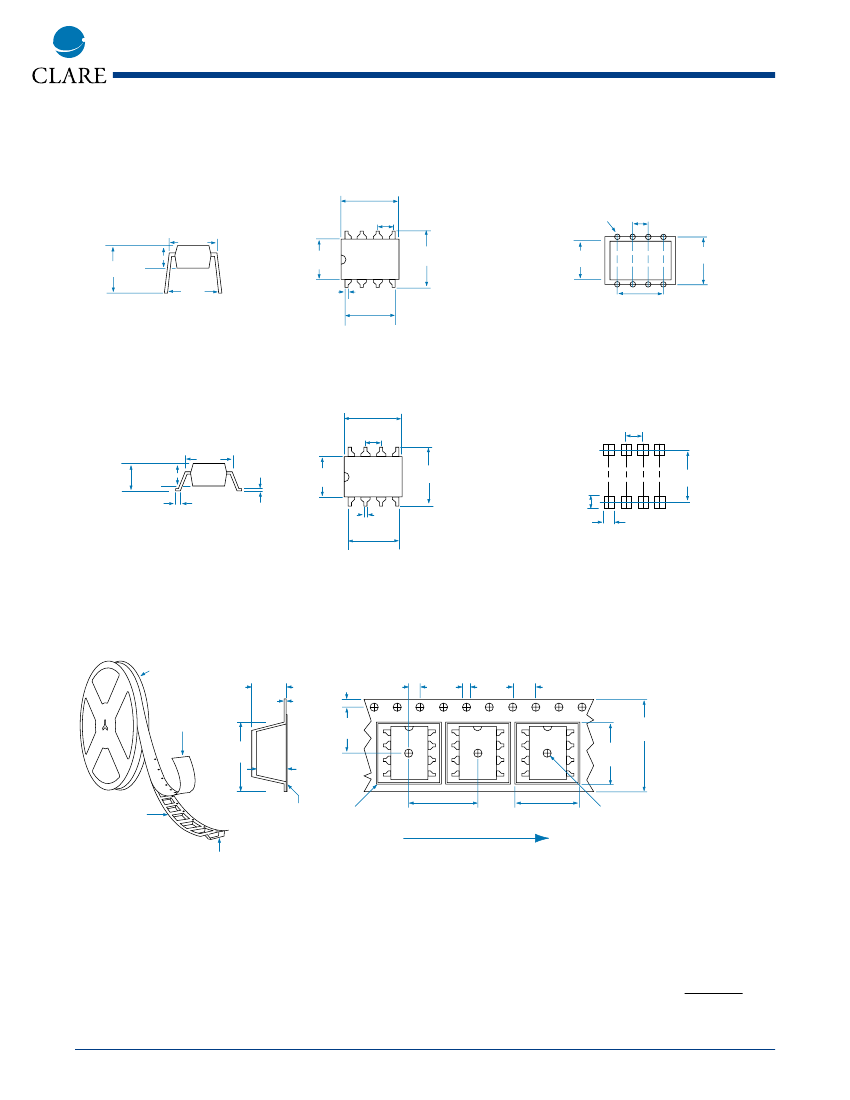

Mechanical Dimensions
8 Pin DIP Through Hole (Standard)
7.620
±
.254
(.300
±
.010)
3.302
(.130)
9.144 TYP.
(.360)
6.350
±
.127
(.250
±
.005)
9.652
±
.381
(.380
±
.015)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
8-.800 DIA. (.100
±
.005)
(8-.031 DIA.)
7.620
±
.127
(.300
±
.005)
7.239 TYP.
(.285)
9.144
±
.508
(.360
±
.020)
6.350
±
.127
(.250
±
.005)
.457
±
.076
(.018
±
.003)
8.077
±
.127
(.318
±
.005 )
7.620
±
.127
(.300
±
.005)
8 Pin DIP Surface Mount (“S” Suffix)
7.620
±
.254
(.300
±
.010)
4.445
±
.127
(.175
±
.005)
3.302
(.130)
.635 TYP.
(.025)
.254 TYP.
(.010)
6.350
±
.127
(.250
±
.005)
9.652
±
.381
(.380
±
.015)
2.540
±
.127
(.100
±
.005)
PC Board Pattern
(Top View)
2.540
±
.127
(.100
±
.005)
9.525
±
.254
(.375
±
.010)
1.905
±
.127
(.075
±
.005)
.457
±
.076
(.018
±
.003)
8.077
±
.127
(.318
±
.005)
1.498
±
.127
(.059
±
.005)
8.305
±
.127
(.327
±
.005)
Tape and Reel Packaging for 8 Pin Surface Mount Package
