Features:
Low optical
insertion loss
Add/Drop one
DWDM
wavelength
1 Channel 100GHz DWDM
OADM Plug-in Module
SC connectors
(LC version available)
Reliable passive
WDM technology
Scalable for
ring networks
Low-profile
modular design
Fits in 1RU 19”
rack mount chassis
RoHS compliant

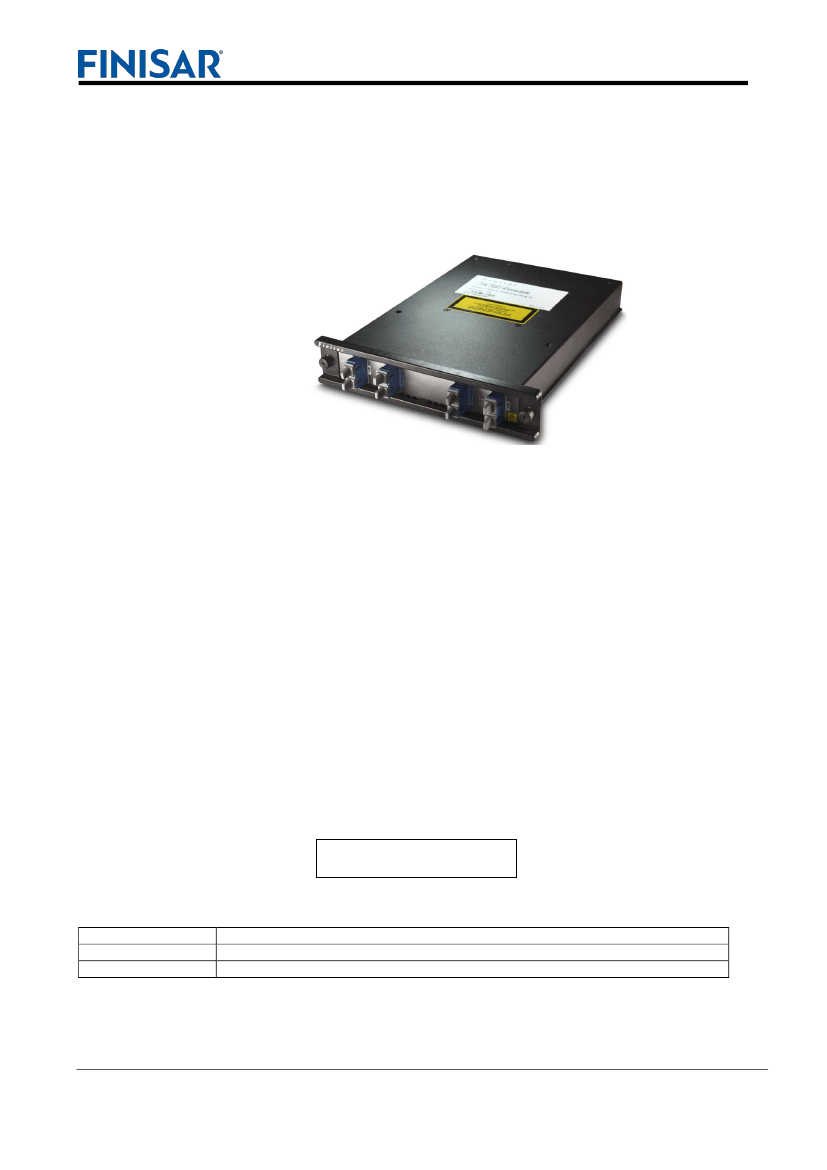

One channel FWSFOADMD1xxyy DWDM plug-in module is a passive optical add/drop
multiplexer designed for metro access applications that represent the state of the art in
fiber optics design. Finisar's unique one channel DWDM design maps one pair of
add/drop channels of same wavelength with 100GHz channel spacing into two-
fiber paths, going in opposite directions into a network (east/west).
The OADM module plugs into one half of a 1RU, 19” rack mount chassis for simple
installation and modularity. This chassis based system offers network equipment
manufacturers a more scalable and higher-density solution to add WDM capability to
their existing and new networks with simple pluggable interface.
Finisar’s OADM product delivers dramatic cost savings to network equipment
manufacturers, enabling them to develop metro access systems that are lower in cost,
easier to provision and simpler to operate.
FWSFOADMDwxxyy Plug-in Module
Product selection
FWSFOADMDwxxyy
w
xx
yy
Channel number ( w=1 channel)
The first channel ID (see below table channel wavelength)
The last channel ID (see below table channel wavelength)
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar.15 Rev.B
Channel ID
("xx"/”yy”)
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
Center
Wavelength (nm)
1528.773
1529.553
1530.334
1531.116
1531.898
1532.681
1533.465
1534.250
1535.036
1535.822
1536.609
1537.397
1538.186
1538.976
1539.766
1540.557
1541.349
1542.142
1542.936
1543.730
1544.526
Channel ID
("xx"/”yy”)
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
Center
Wavelength (nm)
1545.322
1546.119
1546.917
1547.715
1548.515
1549.315
1550.116
1550.918
1551.721
1552.524
1553.329
1554.134
1554.940
1555.747
1556.555
1557.363
1558.173
1558.983
1559.794
1560.606
Channel ID
("xx"/”yy”)
20
19
18
17
16
15
14
13
12
11
10
09
08
07
06
05
04
03
02
01
Center
Wavelength (nm)
1561.419
1562.233
1563.047
1563.863
1564.679
1565.496
1566.314
1567.133
1567.952
1568.773
1569.594
1570.416
1571.239
1572.063
1572.888
1573.714
1574.540
1575.368
1576.196
1577.025
For example:
FWSFOADMD15858
– 1 channel, CH58, 100 GHz DWDM Add/Drop plug-in modules, SC
connector
Specifications
Mechanical
Dimensions
:
8.3” x 1.7” x 10.4”,
210mm x 43mm x 264mm,
plug-in for 1RU rack-mount
Connectors:
FWSFOADMD1xxyy
• SC/PC
Environmental:
o
•
Operating -5 to 70 C
•
Relative humidity:
10 to 85%, non-condensing
o
• Storage - 40 to 85 C
FWSFOADMD1xxyy Parameter Specifications (connector loss included)
Parameter
Center Wavelength
Channel Spacing
Channel Pass band
Add and Drop Channel Insertion Loss
Pass-Through Channel Insertion Loss
Add and Drop Channel Ripple
Add side
Adjacent Channel
Isolation
Drop side
Add side
Non- Adjacent
Channel Isolation
Drop side
Optical Return Loss
Directivity
Polarization Dependent Loss
Polarization Mode Dispersion
Optical Power Handling
-
-
-
Max
Max
Max
Min
Min
Min
Min
Min
Min
Max
Max
Max
Specifications
ITU Grid Channels
100
ITU± 0.11
1.3
1.4
0.4
15
30
15
40
45
50
0.2
0.2
500
Unit
nm
GHz
nm
dB
dB
dB
dB
dB
dB
dB
dB
ps
mW
Finisar WuXi Inc.
Lot Z3-1, Wuxi Export Processing Zone, Wuxi New District, WuXi,
Jiangsu Province, China 214028
Main: +86-510-68007800 Fax: +86-510-68007900
Finisar Corporation
1308 Moffett Park Drive, Sunnyvale, CA 94089-1133, USA
Main: (408) 548-1000 Fax: (408)543-0083
Email:
sales@finisar.com
Website:
www.finisar.com
Mar.15 Rev.B

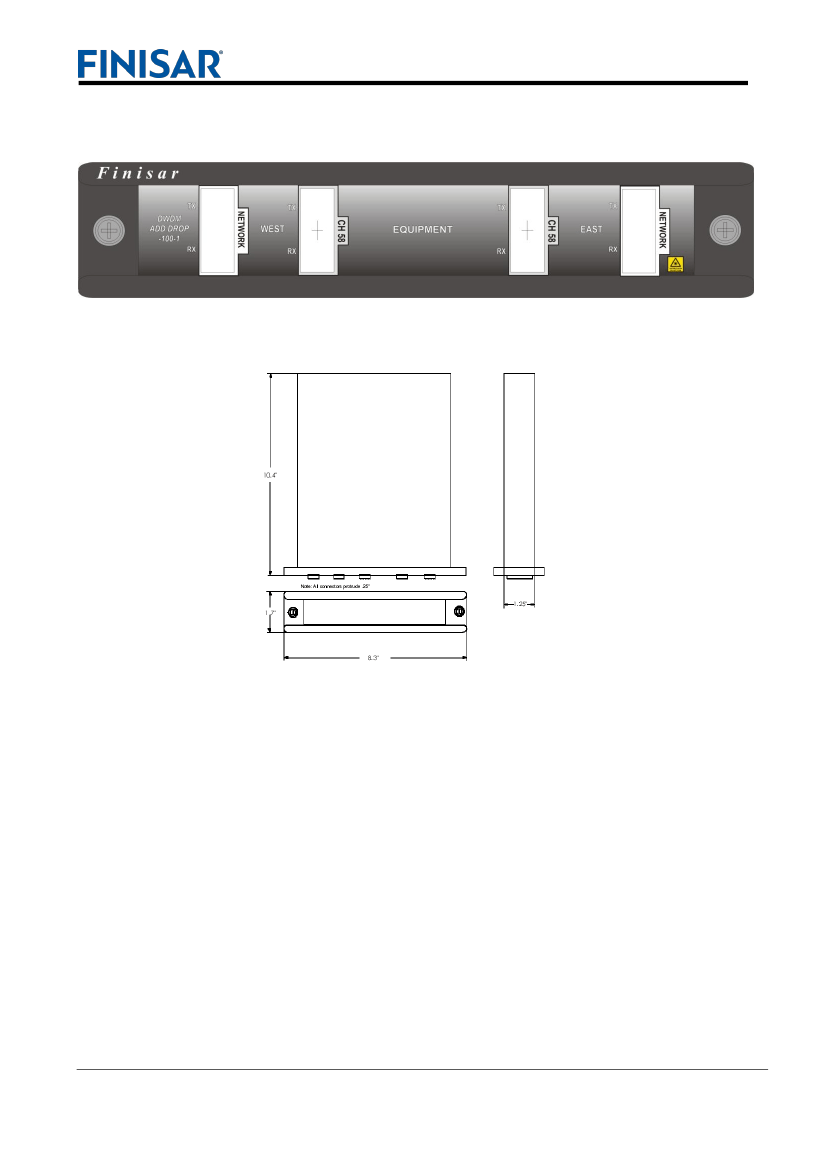

Front Panel
