B125C3700-2200 datasheet, PDF - EEWORLD Datasheet

B125C3700-2200: Descriptionsilicon-bridge rectifiers; CategoryDiscrete semiconductor diode; File Size169KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

B125C3700-2200 Overview

silicon-bridge rectifiers

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	R-PSIP-W4
Contacts	4
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4
JESD-609 code	e2
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	2.7 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	250 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

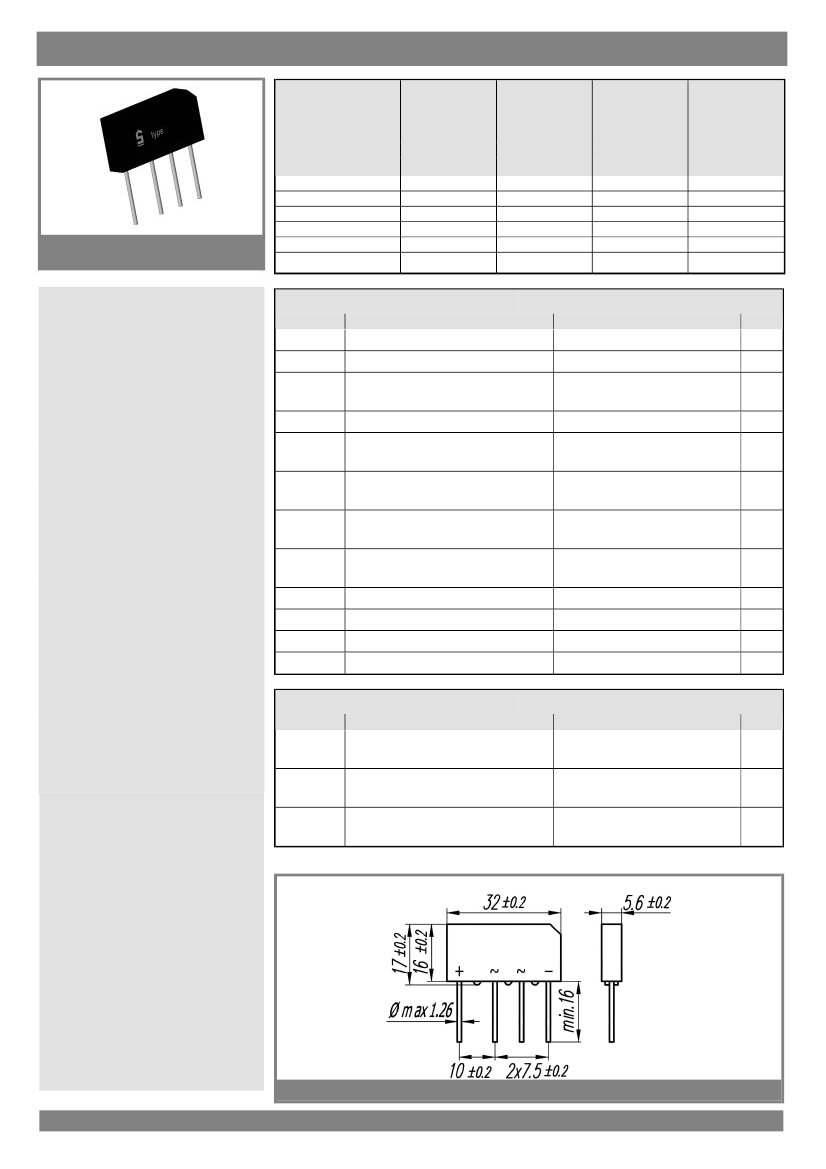

B ...C3700-2200

Inline bridge

Silicon-Bridge Rectifiers

B ...C3700-2200

Forward Current: 3,7 / 2,2 A

Reverse Voltage: 80 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Mechanical Data

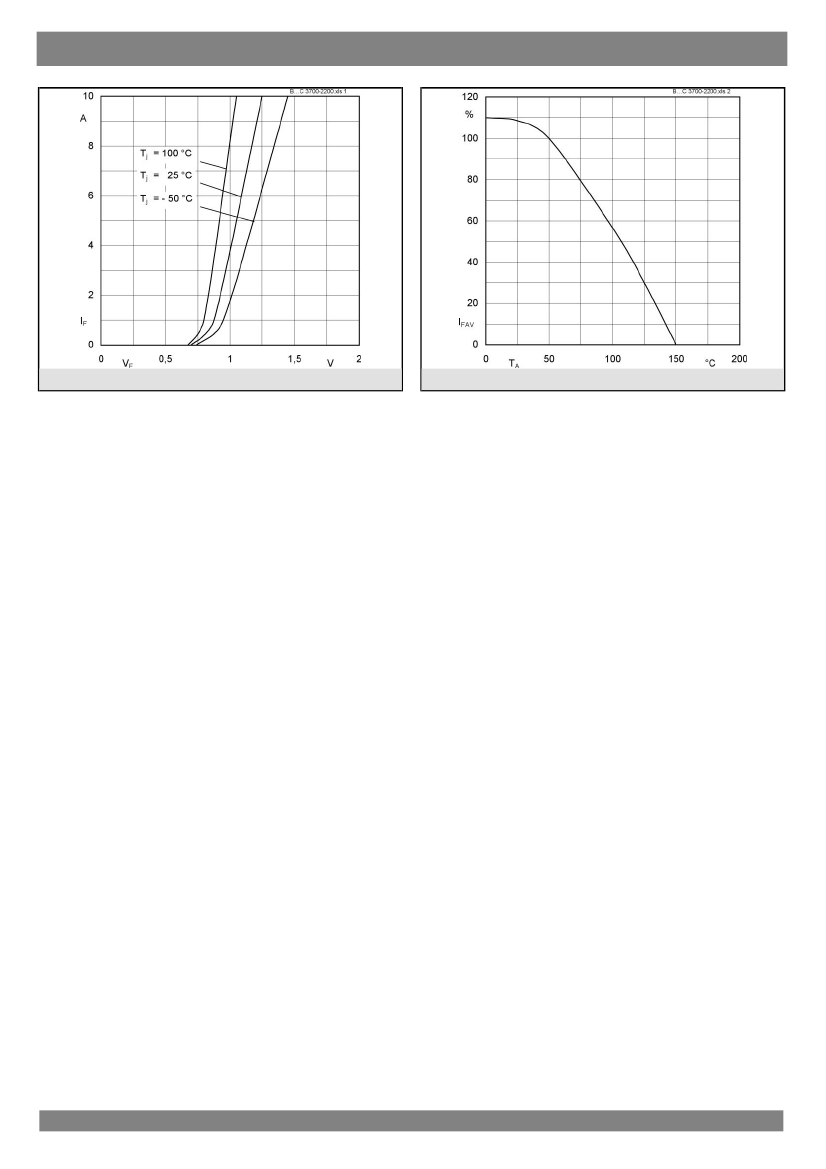

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

1

15-10-2004 SCT
