60W DC-DC Converter P60A-Series
●
●
●
●
●
●
●
Offer single, dual and triple output
50 to 60 W Output power
2:1 Wide input voltage range
International safety standard approval
Six-Sided continuous shield
High efficiency up to 86%
Short circuit protection
Model selection guide
Typ
Input
nominal
voltage
[V
DC
]
Single output
P60A12S05P
P60A12S12P
P60A12S15P
P60A12S24P
P60A24S05P
P60A24S12P
P60A24S15P
P60A24S24P
P60A48S05P
P60A48S12P
P60A48S15P
P60A48S24P
Dual output
P60A12D05P
P60A12D12P
P60A12D15P
P60A12D512P
P60A24D05P
P60A24D12P
P60A24D15P
P60A24D512P
P60A48D05P
P60A48D12P
P60A48D15P
P60A48D512P
Triple output
P60A12T512P
P60A24T512P
P60A48T512P
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
9-18
18-36
36-72
current
no load
[mA]
20
20
20
20
15
15
15
15
10
10
10
10
20
20
20
20
15
15
15
15
10
10
10
10
20
15
10
Output 1
voltage
[V
DC
]
5.0
12.0
15.0
24.0
5.0
12.0
15.0
24.0
5.0
12.0
15.0
24.0
5.0
12.0
15.0
5.0
5.0
12.0
15.0
5.0
5.0
12.0
15.0
5.0
5.0
5.0
5.0
current
[A]
12.0
5.0
4.0
2.5
12.0
5.0
4.0
2.5
12.0
5.0
4.0
2.5
5.0
2.5
2.0
5.0
5.0
2.5
2.0
12.0
5.0
2.5
2.0
12.0
5.0
5.0
5.0
5.0
12.0
15.0
12.0
5.0
12.0
15.0
12.0
5.0
12.0
15.0
12.0
± 12.0
± 12.0
± 12.0
5.0
2.5
2.0
2.5
5.0
2.5
2.0
2.5
5.0
2.5
2.0
2.5
± 1.25
± 1.25
± 1.25
Output 2 (or Dual Output)
voltage
current
[V
DC
]
[A]
Efficiency
typ.
[%]
79
82
82
84
80
84
84
85
83
85
85
86
78
80
80
79
80
82
82
80
80
84
84
81
78
79
80
Output Power
[W]
60
60
60
60
60
60
60
60
60
60
60
60
50
60
60
55
50
60
60
60
50
60
60
60
55
55
55
Suffix "P" PCB mounting type, heat sink will be added on module.
Suffix "T" Chassis mounting type, (terminal block) heat sink or fan force cooling.
Indicate suffix when order!
Page 1 of 4
Deutschland:
Inselkammerstraße 10
D-82008 Unterhaching
Tel.: 089 614 503-10
E-Mail: power@hy-line.de
Schweiz:
Gründenstraße 82
CH-8247 Flurlingen
Tel.: 052 647 42 00
E-Mail: power@hy-line.ch
60W DC-DC Converter P60A-Series
Specifications
Input
Voltage range
Filter
Input reversed protection
Output
Output Power
Voltage accuracy
(full load and nominal V
in
)
Voltage adjustability
Ripple and noise
(at 20 MHz BW)
Short circuit
Line voltage regulation
(I
out
nom, V
in
min… V
in
max)
Load voltage regulation
(I
out
min…I
out
nom)
Transient recovery time @
25% load, step changed
Temperature coefficient
Minimum load
9-18 V
DC
18-36 V
DC
36-72 V
DC
Pi-type
Shunt diode built in,
external fuse recommended !
60 W max.
±1%
±10%
± 1% of V
out
Coninuous
±1%
Single output model: ± 2%
Dual output model: ±2%
Triple output model: ±5%
500 µs
± 0.02% / °C, max
Single: and Dual: 0%
+5V of triple output 0%
±12V of triple output 20%
General
Efficiency
Switching frequency
Environmental
Operating temperature
ambient
Operating temperature
case
Storage temperature range
Cooling
MTBF according to
MIL-HDBK-217F, GF40
Physical
Dimensions “P” model
Dimensions “T” model
Weight
Case material
Isolation
Rated voltage
Resistance
Remote control
Remote control on
Remote control off
Shutdown idle current
See table
80 kHz, typ.
-25°C to +95°C
(with derating, see diagram)
+95 °C, max.
-25 °C to +100 °C
Free air convection
122,500 hrs
3.5 x 5.5 x 1.4 inches
88.9 x 139.7 x 35.6 mm
3.5 x 5.5 x 1.29 inches
88.9 x 139.7 x 32.9 mm
“P” Model 690 g
“T” Model 570 g
metal
1500 V
DC
, min
9
10
Ω,
min.
Open or > + 5.5 V
DC
Short or 0V … < + 1.8 V
DC
referenced to – Input, pin 2
10mA
Derating
Page 2 of 4
Deutschland:
Inselkammerstraße 10
D-82008 Unterhaching
Tel.: 089 614 503-10
E-Mail: power@hy-line.de
Schweiz:
Gründenstraße 82
CH-8247 Flurlingen
Tel.: 052 647 42 00
E-Mail: power@hy-line.ch

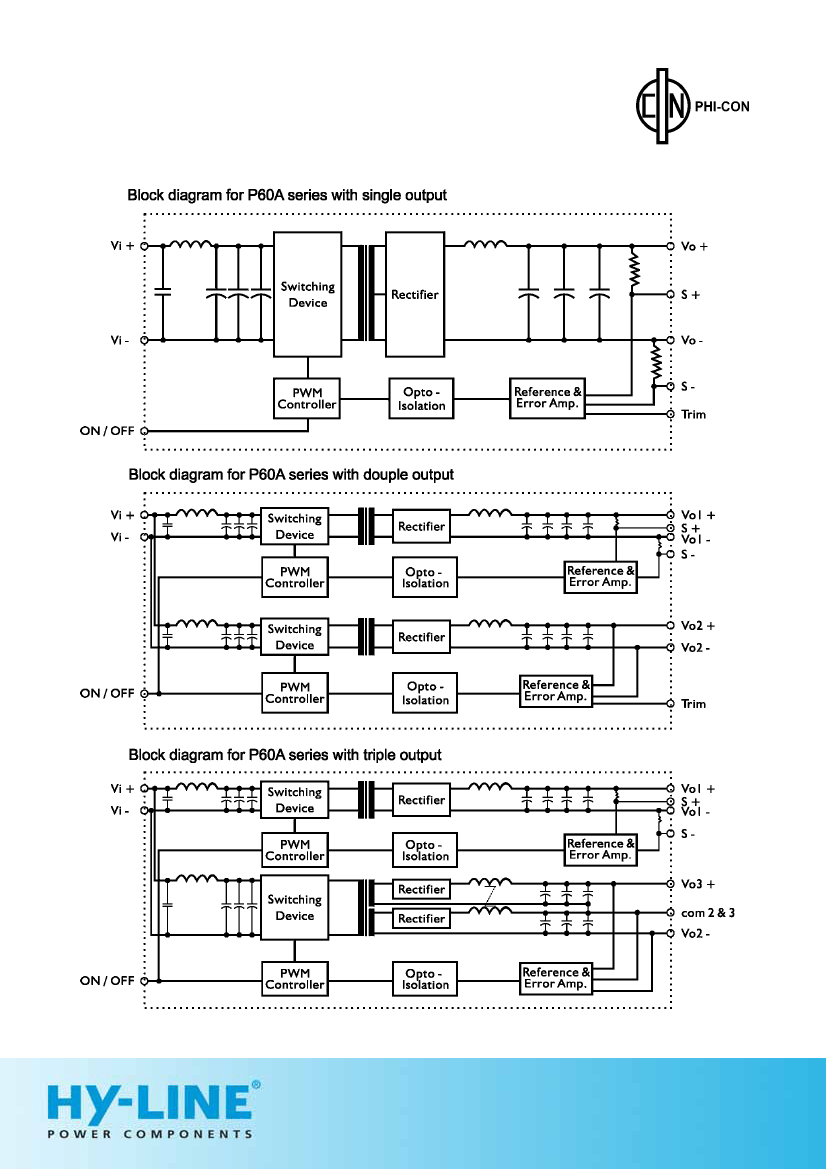

60W DC-DC Converter P60A-Series
Internal circuit schematic
Page 3 of 4
Deutschland:
Inselkammerstraße 10
D-82008 Unterhaching
Tel.: 089 614 503-10
E-Mail: power@hy-line.de
Schweiz:
Gründenstraße 82
CH-8247 Flurlingen
Tel.: 052 647 42 00
E-Mail: power@hy-line.ch
60W DC-DC Converter P60A-Series
Pin connections
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Single
Omitted
- Input
- Input
+ Input
+ Input
Remote CTRL
NC
- Output
- Output
+ Output
+ Output
- Sense / Trim up
TRIM
+ Sense/ trim down
Dual
Omitted
- Input
- Input
+ Input
+ Input
Remote CTRL
NC
- Sense / Trim up
- Output
+ Output
+ Sense/ trim down
- Output 2
TRIM
+ Output 2
Triple
Omitted
- Input
- Input
+ Input
+ Input
Remote CTRL
NC
- Sense / Trim up
- Output
+ Output
+ Sense/ trim down
- Output 2
Common –Vo 2 & +Vo 3
+ Output 3
Trimming
12
TRIM UP
13
TRIM DOWN
14
Dimensions
Life Support Policy:
HY-LINE does not authorize the use of any of its products for use in life support devices or systems without the express
written approval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when
properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the
user. Rev: 11 / 2004 f
Page 4 of 4
