P600A THRU P600M
GENERAL PURPOSE PLASTIC RECTIFIER
Reverse Voltage -
50 to 1000 Volts
Case Style P600
Forward Current -
6.0 Amperes
FEATURES
♦
Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦
High forward current capability
♦
Construction utilizes void-free
molded plastic technique
♦
High surge current capability
♦
High temperature soldering guaranteed:
250°C/10 seconds, 0.375” (9.5mm) lead length,
5 lbs. (2.3kg) tension
1.0 (25.4)
MIN.
0.360 (9.1)
0.340 (8.6)
0.360 (9.1)
0.340 (8.6)
MECHANICAL DATA
0.052 (1.32)
0.048 (1.22)
DIA.
1.0 (25.4)
MIN.
Case:
Void-free molded plastic body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.07 ounce, 2.1 grams
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
P600A
P600B
P600D
P600G
P600J
P600K
P600M
UNITS
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current at
T
A
=60°C, 0.375" (9.5mm) lead length
(FIG 1)
T
L
=60°C, 0.125" (3.18mm) lead length
(FIG 2)
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at: 6.0A
100A
Maximum DC reverse current
at rated DC blocking voltage
Typical junction capacitance
(NOTE 1)
Typical reverse recovery time
(NOTE 2)
Typical thermal resistance
(NOTE 3)
Operating junction and storage temperature range
T
A
= 25°C
T
A
=100°C
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
400
280
400
6.0
22.0
400.0
0.90
1.30
5.0
1.0
150.0
2.5
20.0
4.0
600
420
600
800
560
800
1000
700
1000
Volts
Volts
Volts
Amps
I
FSM
Amps
1.0
1.4
V
F
I
R
C
J
t
rr
R
ΘJA
R
ΘJL
T
J
, T
STG
Volts
µA
mA
pF
µS
°C/W
°C
-50 to +150
NOTES:
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Reverse recovery time conditions: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(3) Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead length,
P.C.B. mounted with 1.1 x 1.1 (30 x 30mm) copper pads
10/12/98

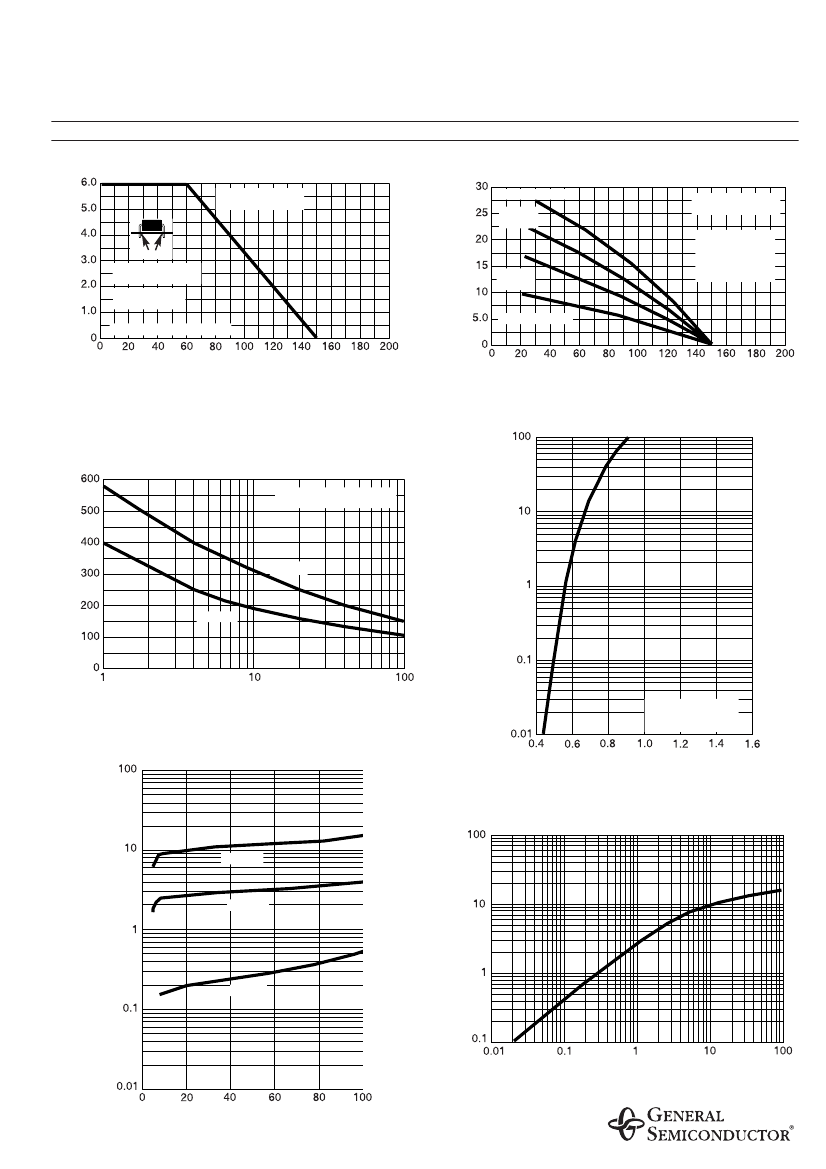

RATINGS AND CHARACTERISTIC CURVES P600A THRU P600M
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
FIG.1 - MAXIMUM FORWARD CURRENT DERATING
CURRENT
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
FIG. 2 - MAXIMUM FORWARD CURRENT DERATING CURVE
L=0.125” (3.18mm)
AVERAGE FORWARD CURRENT,
AMPERES
L=0.25”
(6.35mm)
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
BOTH LEADS
ATTACHED to HEAT
SINKS WITH
LENGTH as
SHOWN, L
1.1 x 1.1” (30 x 30mm)
COPPER PADS
STANDARD P.C.B.
MOUNTING
0.375” (9.5mm) LEAD LENGTH
L=0.375”
(9.5mm)
L=0.625” (15.8mm)
AMBIENT TEMPERATURE, °C
LEAD TEMPERATURE, °C
FIG. 4 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
FIG. 3 - MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
8.3 SINGLE HALF SINE-WAVE
(JEDEC Method)
T
A
=25°C
T
J
=150°C
NUMBER OF CYCLES AT 60 H
Z
INSTANTANEOUS FORWARD CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
AMPERES
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
FIG. 5 - TYPICAL REVERSE CHARACTERISTIC
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
TRANSIENT THERMAL IMPEDANCE,
°C/W
T
J
=125°C
T
J
=100°C
T
J
=25°C
t, PULSE DURATION, sec.
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
