Connecting Sockets, Mounting Brackets, DIN Rails
CSM_ConnectionSocket_DS_E_2_1
Durable, Easy-to-handle Connecting
Sockets and Mounting Brackets
• Highly reliable Track-mounted and Back-connecting Sockets
• 61F Controllers and Surge Killer Units can be mounted
securely and easily using Mounting Brackets and DIN Rails.
■

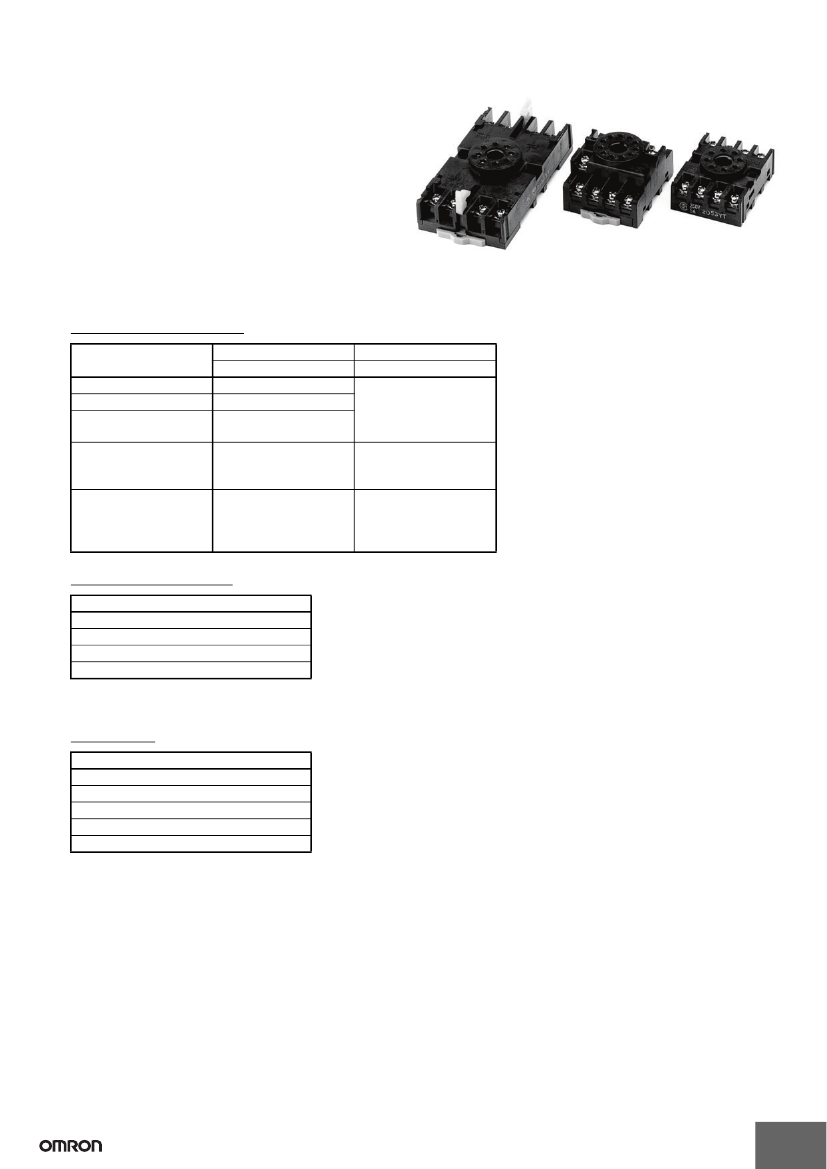

Ordering Information
Connection Sockets
Type
Controller Model
61F-UHS
61F-HSL
61F-APN2
61F-GP-N8@
61F-G1P@
61F-G2P@
61F-IP (-22)
61F-GP-N@
61F-03B
61F-GPN-BT/-BC
61F-04B
8PFA1
8PFA
PF083A-E
14PFA
PL15
Track-mounted Socket
Model
PL08
Back-connecting Socket
Model
PF113A-E
PL11
Mounting Brackets
Model
PFC-A1
PHC-5
PLC
PFC-N8 (See note.)
Note:
PFC-N8 Mounting Brackets are included with 61F-GP-N@,
61F-GP-N8@, 61F-GPN-V50, 61F-GPN-BT/-BC, and 61F-APN2 Controllers.
DIN Rails
Model
PFP-100N
PFP-50N
PFP-100N2
PFP-M
PFP-S
1

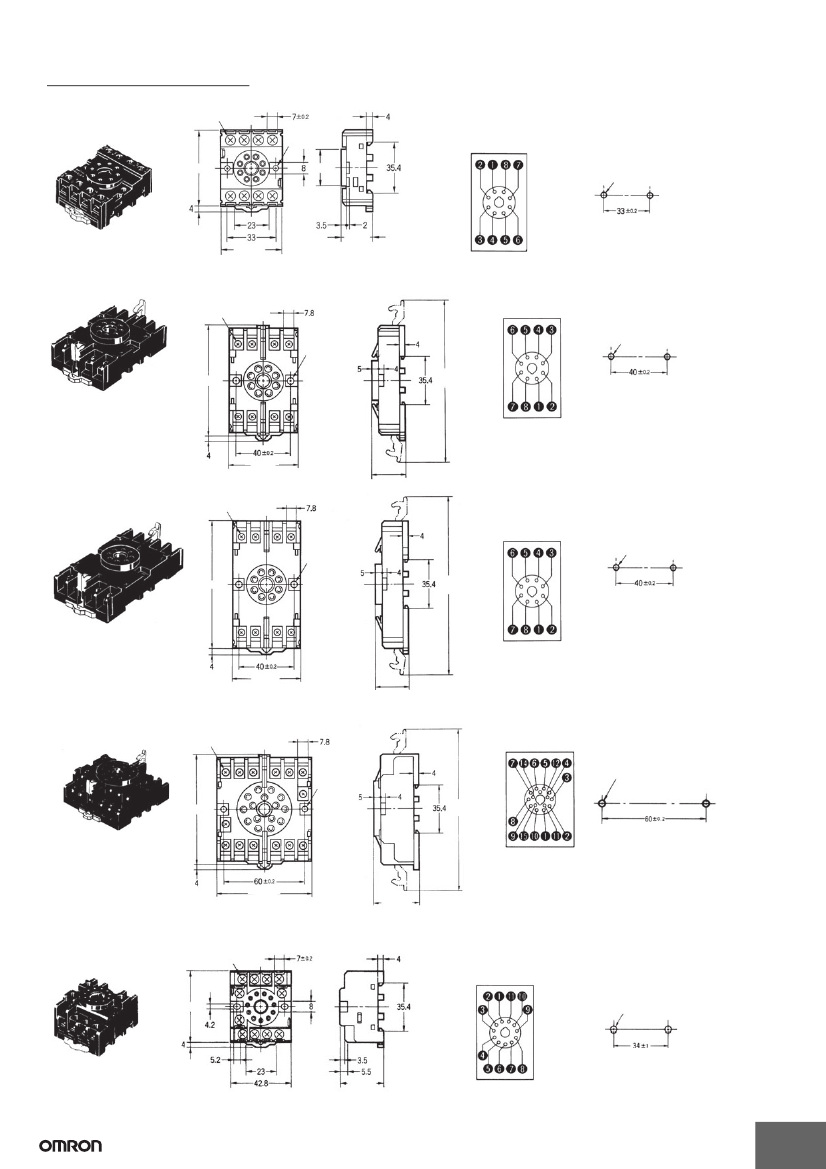

Track-mounted Sockets
PF083A-E
Eight, M3.5 x 7
sems screws
Two, 4.2-dia.
holes
52 max.
25 dia.
Two, M4 or 4.5-dia. holes
Terminal Arrangement/
Internal Connections
(Top View)
Mounting Holes
41 max.
21 max.
8PFA
Eight, M3.5 x 7
sems screws
Terminal Arrangement/
Internal Connections
(Top View)
Mounting Holes
Two M4 or 4.5 dia. holes
Two, 4.5 dia.
holes
81 max.
118 max.
51 max.
24 max.
8PFA1
Eight, M3.5 x 7
sems screws
Terminal Arrangement/
Internal Connections
(Top View)
Two, 4.5 dia.
holes
Mounting Holes
Two M4 or 4.5 dia. holes
93 max.
130 max.
51 max.
24 max.
14PFA
Fourteen, M3.5 x 7
sems screws
Terminal Arrangement/
Internal Connections
(Top View)
Mounting Holes
Two 4.5 dia. or M4 mounting holes
Two, 4.5 dia.
holes
52 max.
118 max.
72 max.
31 max.
M3.5 x 11.5 sems screws for terminal screws
PF113A-E
Eleven, M3.5 x 5
sems screws
Terminal Arrangement/
Internal Connections
(Top View)
Mounting Holes
52 max.
Two, M4 or 4.5-dia. holes
31 max.
2

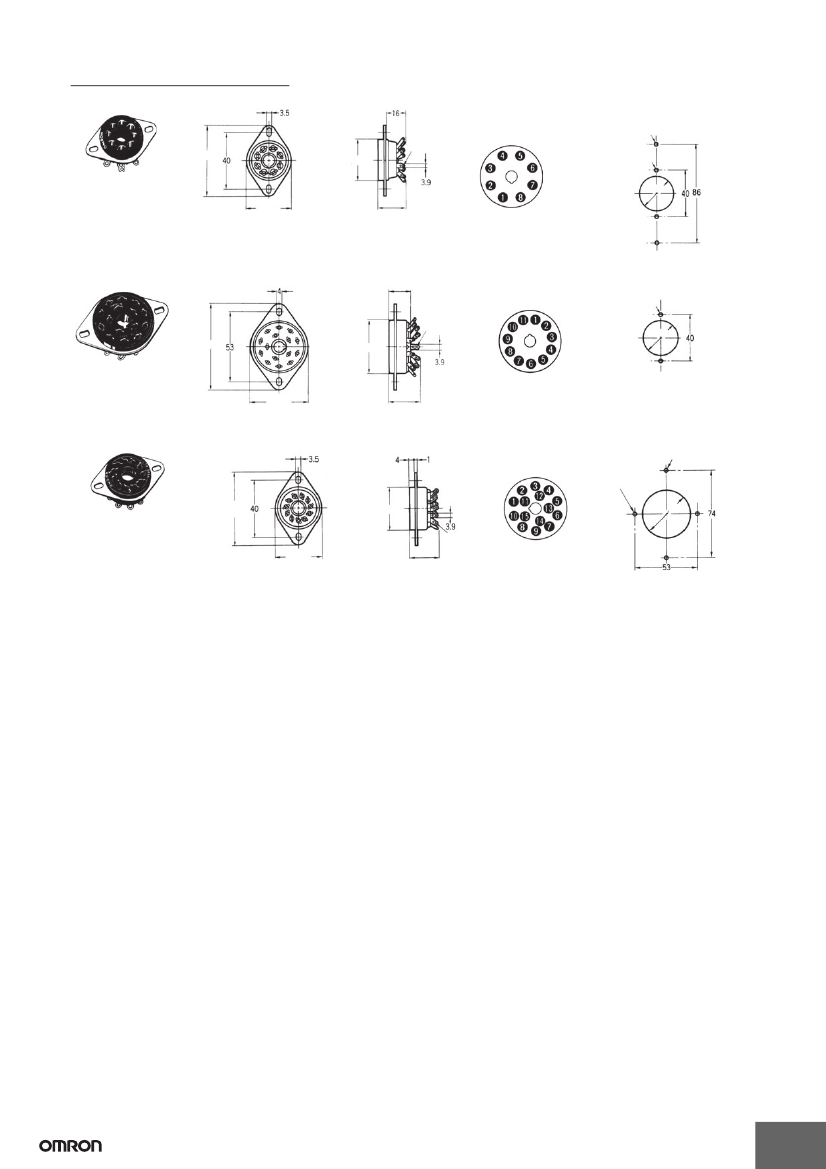

Back-connecting Sockets
PL08
Terminal Arrangement/
Mounting Holes
Internal Connections
Two, 3.5-dia. or M3 Controller
(Top View)
Unit mounting holes
Two, 2-dia. holes
50.5 max.
30 dia.
Two, 3.5-dia. or M3 Socket
mounting holes
31 dia.
hole
35 max.
Approx. 20.5
PL11
Terminal Arrangement/
Mounting Holes
Internal Connections
(Top View)
Two, 3.5-dia. or M3 Socket
mounting holes
Two, 2-dia. holes
51 max.
31 dia.
hole
35 max.
Approx. 20.5
PL15
16 max.
Terminal Arrangement/
Internal Connections
(Top View)
Mounting Holes
Two, 3.5 dia. or M3 Controller
Unit mounting holes
Two, 3.5-dia. or M3 Socket
mounting holes
66 max.
41 max.
Two 2-dia. holes
45 max.
22 max.
3
■

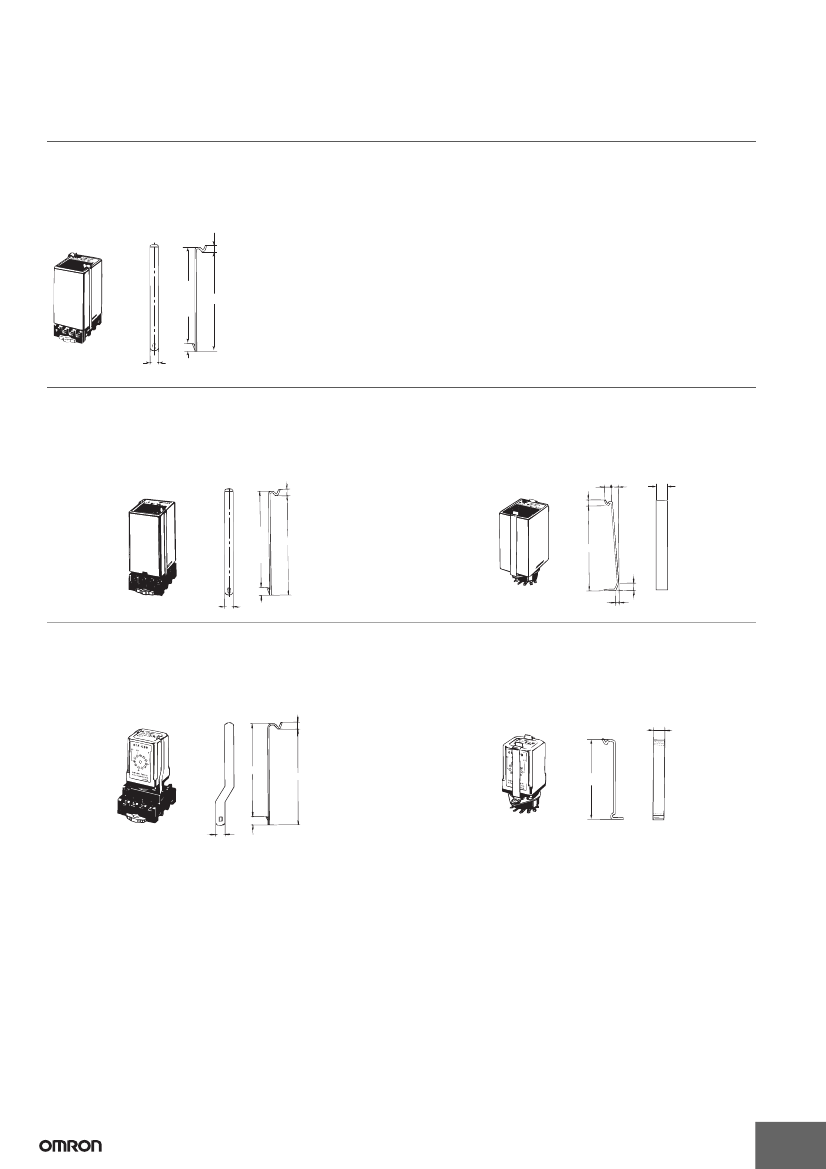

Mounting Brackets
When the 61F-G1P/-G2P/-IP/-UHS/-HSL is mounted using a Track-mounted Socket, the Switch is held secure by the hooks
on the mounting Socket.
61F-GP-N8, 61F-APN2
To mount to the PF083A-E Track-mounted Socket, use the enclosed
PFC-N8 Mounting Bracket.
PFC-N8
4
Approx. 80
83
4.5
6
t = 0.3
61F-GP-N, 61F-GPN-BT/-BC
To mount to the PF113A-E Track-mounted Socket, use the enclosed
PFC-N8 Mounting Brackets.
PFC-N8
4
To mount to the PL11 Back-connecting Socket, use the PHC-5
Mounting Brackets.
PHC-5
6.1
4
4.6
7.6
Approx. 80
83
73.6
4.5
6
t = 0.3
6
2
61F-03B, -04B
To mount to the PF113A-E Track-mounted Socket, use the PFC-A1
Mounting Brackets.
PFC-A1
4.6
To mount to the PL11 Back-connecting Socket, use the PLC
Mounting Brackets.
PLC
7.6
60.8
62
56.6
4.5
6
4
■

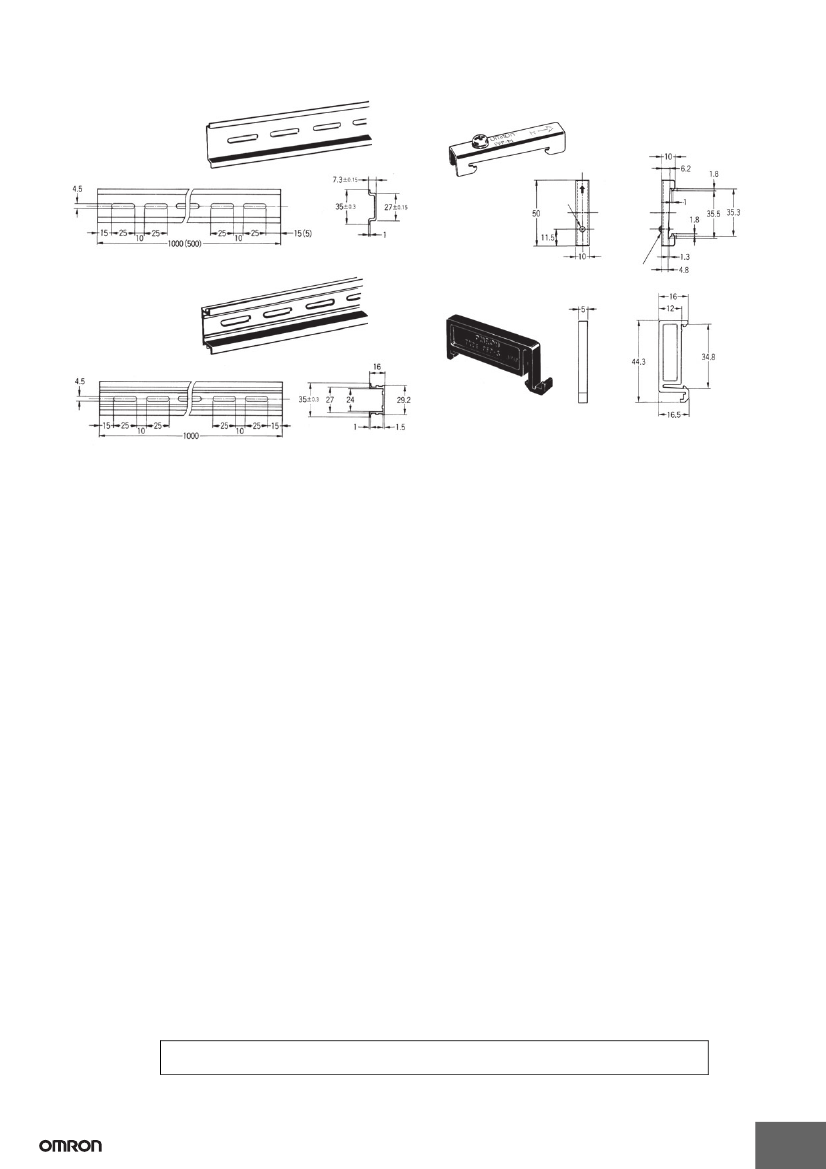

DIN Track Mounting Accessories
DIN Track
PFP-100N
PFP-50N
End Plate
PFP-M
M4 x 8
Round
head
screw
(see note 1)
(see note 1)
(see note 2)
M4 spring washer
DIN Track
PFP-100N2
Spacer
PFP-S
(see note 2)
Note:
1. The PFP-100N is 15 mm on both ends, while the PFP50N
is 15 mm on one end and 5 mm on the other end.
2. Indicates total DIN Track length.
1 m:
PFP-100N
50 cm: PFP-50N
1 m:
PFP-100N2
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
In the interest of product improvement, specifications are subject to change without notice.
