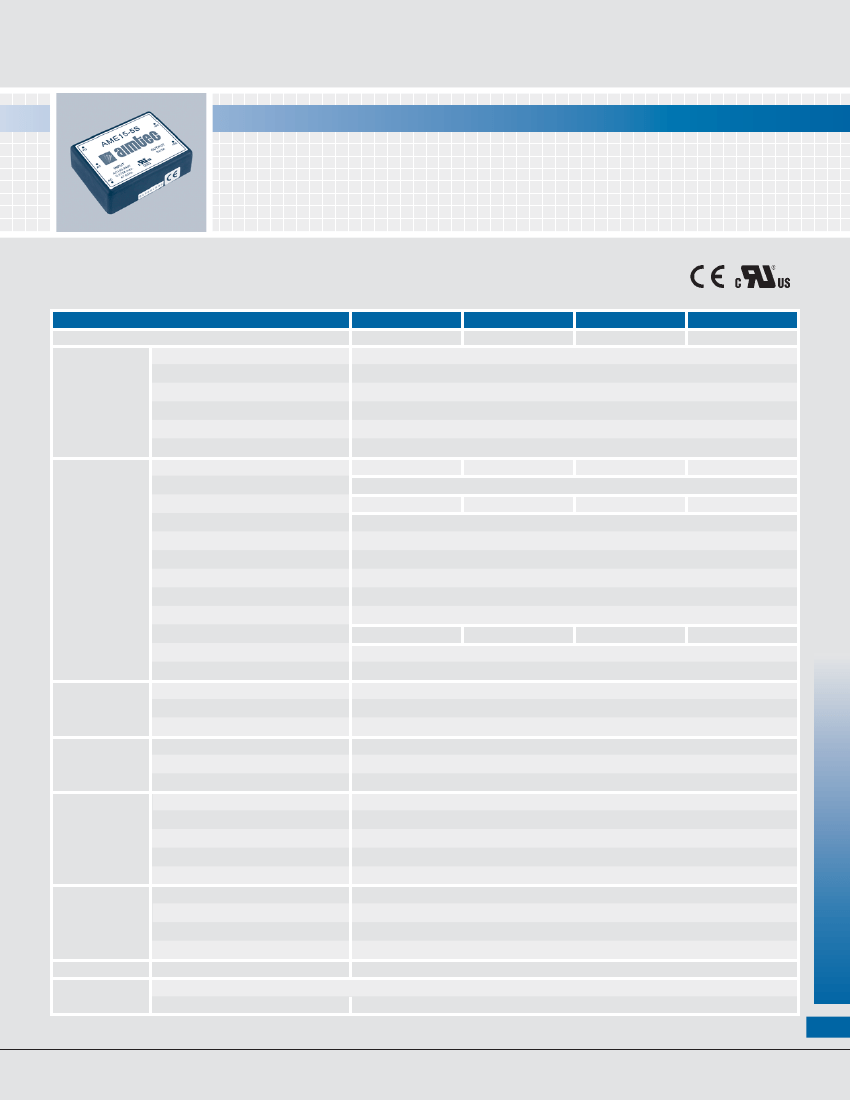

AME15 Series

15 watt encapsulated ac-dc converter

•

SWITCHING POWER MODULES FOR PCB MOUNTING

FULLY ENCAPSULATED PLASTIC CASE

UNIVERSAL INPUT RANGE 90 ... 260 VAC, 47 ... 440 Hz

REGULATED OUTPUT

•

LOW RIPPLE & NOISE

HIGH EFFICIENCY

CE, cUL APPROVALS

ELECTRICAL SPECIFICATIONS

All specifications valid at nominal Input voltage, full load and +25°C after warm-up time unless otherwise stated.

Model No. (Single Output)

AME15-5S

AME15-12S

AME15-15S

AME15-24S

Max output wattage (W)

15W

Voltage

90 ... 260 VAC or 120 ... 370 VDC

Frequency (Hz)

47 ... 440 Hz

Current (Full Load)

280mA max. (115 VAC) / 170mA max. (230 VAC)

Input

Inrush Current (<2ms)

10 A max. (115 VAC) / 20 A max. (230VAC)

Leakage Current

0.75mA max.

External Fuse (recommended)

1.5 A slow blow type

Voltage (VDC)

12V

15V

24V

Voltage Accuracy

±2%

Current (mA) max.

3000

1250

1000

625

Line Regulation (typ.)

±0.5%

Load Regulation (typ.)

±0.5%

Output

Minimum Load

Maximum Capacitive Load

470-23,000m F depending on model

Noise

<0.5% Vout +50mV max (Vp-p)

Ripple

<0.2% Vout +40mV max (Vp-p)

Efficiency

75%

80%

84%

Hold-up Time

15 ms min.

Switching Frequency

100 kHz

Over Current Protection

Hiccup technique, auto-recovery

Protection

Over Voltage Protection

Zener diode clamp

Short Circuit Protection

Hiccup mode, indefinite (automatic recovery)

Input-Output (VAC)

3000V

Isolation

Input-FG (VAC)

1500V

Outut-FG (VAC)

500V

Operating Temperature

-25°C ... +71°C

Storage Temperature

-40°C ... +85°C

Environment Temperature Coefficient

0.02% / °C

Humidity

95% RH

MTBF

>210,000 h @ 25°C (MIL-HDBK-217F)

Dimension (L x W x H)

2.91 x 2.13 x 0.87 inches (74.0 x 54.0 x 22.0 mm)

Case Material

Plastic resin + Fiberglass (flammability to UL 94V-0)

Physical

Weight

140g

Cooling Method

Free air convection

Safety

Agency Approvals

cUL, CE

EMI (Conducted & Radiated Emission)

EN 55022 class B

EMC

EMS (Noise Immunity)

EN 55024

Specifications are subject to change without notification

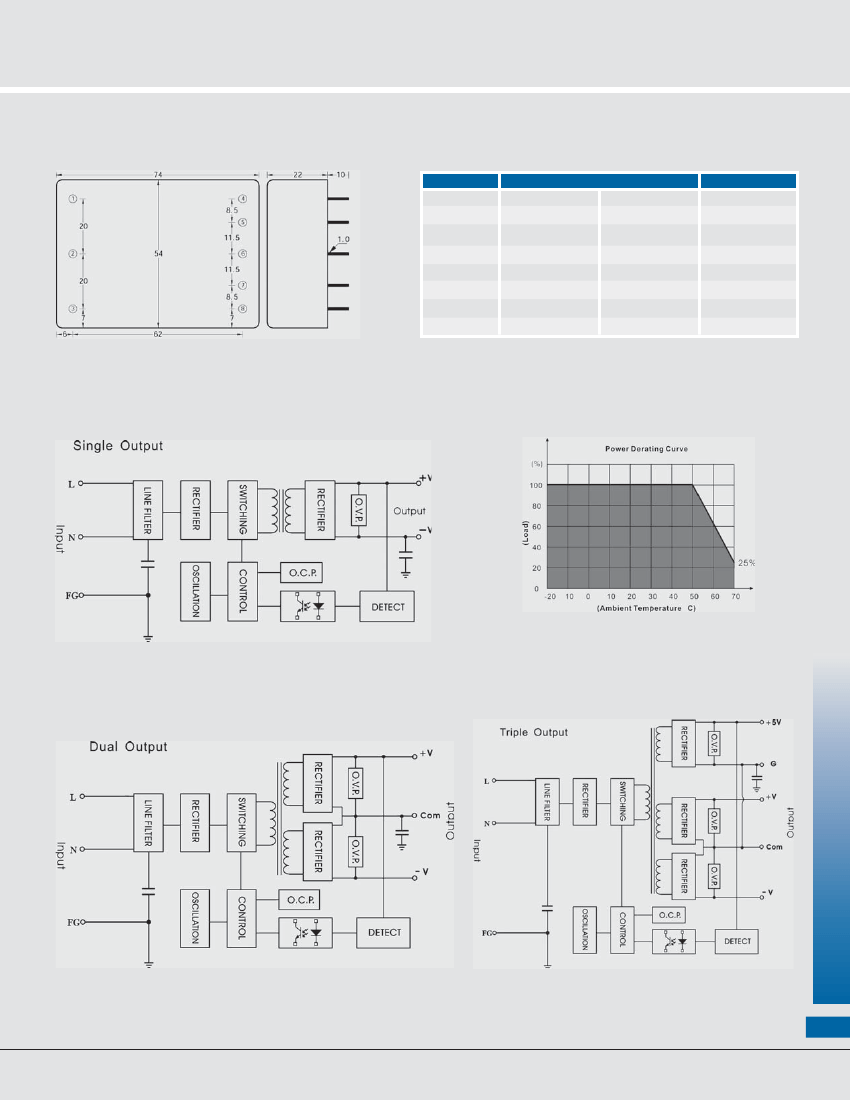

Continued on next page

VISIT US AT WWW.AIMTEC.CA

AC-DC CONVERTERS
