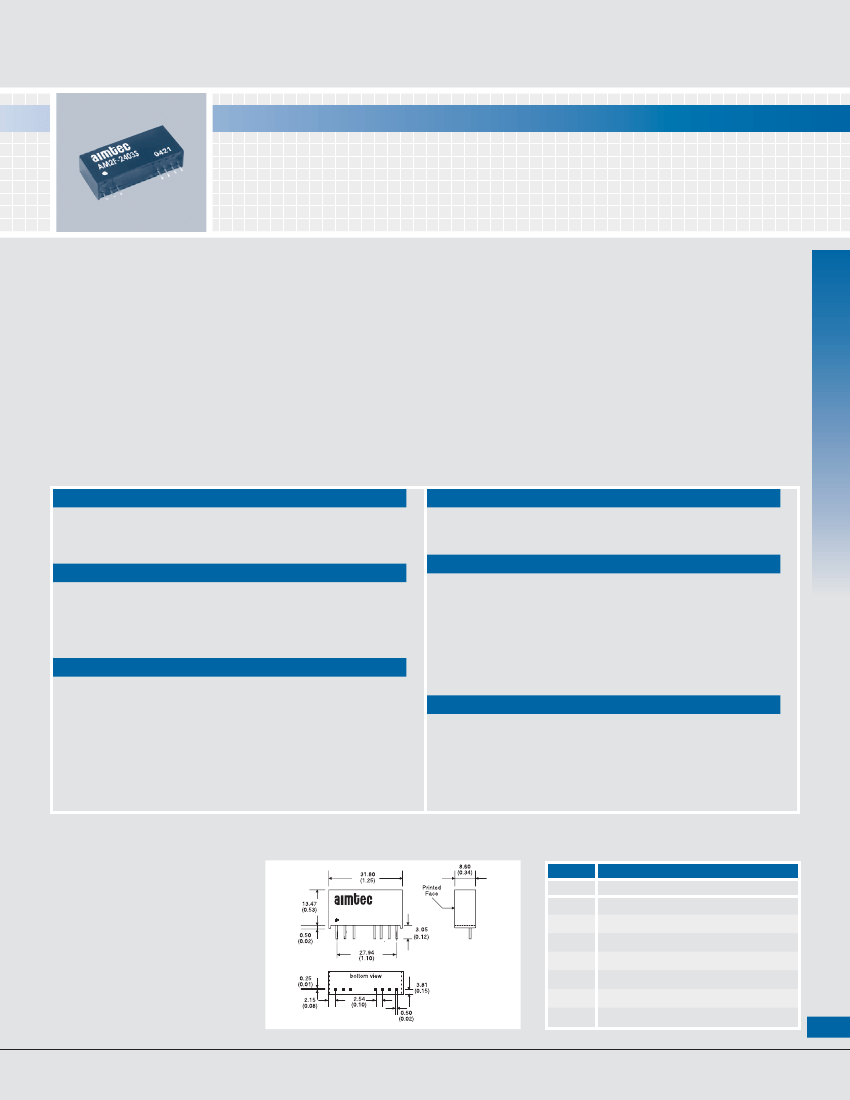

AM2F Series
2 watt dc-dc converters
•
•
•
•
REGULATED SINGLE OUTPUT
12 PIN SIP PACKAGE
LOW RIPPLE & NOISE
HIGH EFFICIENCY UP TO 68%
•
•
•
INPUT/OUTPUT ISOLATION: 1000, 3000 & 5200VDC
OPERATING TEMPERATURE: -25°C ... +71°C
PIN-COMPATIBLE WITH MULTIPLE MANUFACTURERS
Our AM2F series is a family of cost effective 2W single out-
put DC-DC converters. These converters combine miniature
package in a 12-pin SIP compatible case with high perform-
ance features such as 1000VDC, 3000VDC & 5200VDC
input/output isolation voltage, continuous short circuit pro-
tection with automatic restart and tight line / load regulation.
Input voltages of 5, 12 & 24VDC with producing output
voltage levels of 3.3, 5, 7.2, 9, 12, 15, 18, 24VDC. High
performance features include high efficiency operation up
to 68% and output voltage accuracy of ±2% maximum.
Standard features include an input range of ±10% tolerance
and low output noise and ripple. All models are package in
a low profile 31.80x8.60x13.47mm 12 pin SIP non-
conductive black plastic case. Operation is specified over
the full operating temperature range of -25°C to +71°C with
no derating required. Cooling is by free-air convection.
ELECTRICAL SPECIFICATIONS
Specifications typical at +25°C, nominal input voltage, rated output current unless otherwise specified
Input Specifications:
Voltage range
Filter
Isolation Specifications:
Rated voltage (60 sec)
Resistance
Capacitance
Output Specifications:
Voltage accuracy
Ripple & noise (at 20MHz BW)
Short circuit protection
Short circuit restart
Line voltage regulation
Load voltage regulation
Temperature coefficient
±10%
p
(Pi) Network
General Specifications:
Efficiency
Switching frequency
64% to 68%
125KHz, typ. 100% load
1000, 3000 & 5200VDC
> 1000MOhm
60pF, typ.
±2%, max.
75mVp-p, max.
Continuous
Automatic
±0.5%, max.
±0.5%, max.
±0.02%/°C, typ.
Environmental Specifications:
Operating temperature (ambient) -25°C ... +71°C
Storage temperature
-40°C ... +125°C
Case temperature
+90°C, max.
Derating
None required
Humidity (non-condensing)
Up to 90%
Cooling
Free-air Convection
Physical Specifications:
Dimensions
Weight
Case material
31.80x8.60x13.47mm
1.25x0.34x0.53inches
10.7g
Non-conductive black
plastic
MTBF: > 1,024,000 hrs (MIL-HDBK-217F, Ground Benign, t=+25°C)
Specifications are subject to change without notification
Pin
1000, 3000 & 5200VDC
Single
OUTLINE
DIMENSIONS &
PIN CONNECTIONS
1
2
3
9
10
11
12
+V Input
N.C.
N.C.
N.C.
-V Output
+V Output
-V Input
Continued on next page
39
