DSR30-48-24: DescriptionSingle output 30W~180W; File Size232KB，4 Pages; ManufacturerDensei-Lambda （TDK）; Websitehttp://www.densei-lambda.com/indexe.html

Download Datasheet View All

DSR30-48-24 Overview

Single output 30W~180W

Preview

Download Datasheet

View All

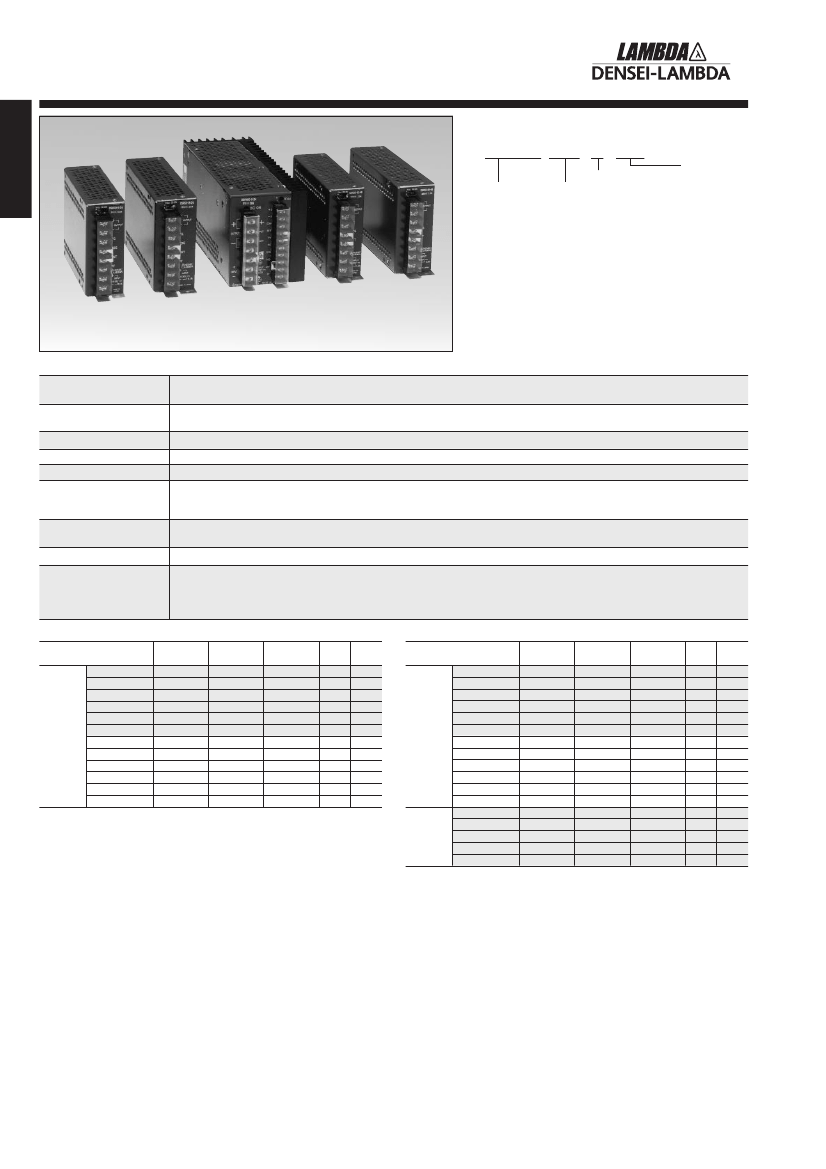

DSR

-SERIES

Unit Type Power Supply

Single output 30W ~ 180W

Model name

DSR 50-5-24

Output voltage: 5 ~ 48V

Name of series

Output power: 30W, 50W, 180W

Input voltage

24: 18 ~ 32VDC

48: 32 ~ 63VDC

Features

Long life and high reliability

Over 10 years lifetime at 40°C, full load

Vibration: 5G max.

Wide operating temperature range: –20 ~ +71°C

Input voltage range

DC24V input: DC18 ~ 32V, 48V input: 32 ~ 63V

Wide variation

DC24V input: 17 models, 30/50/180W

DC48V input: 12 models, 30/50W

5 year warranty

DSR50 (DC48V INPUT)

DSR30 (DC48V INPUT)

DSR50 (DC24V INPUT)

DSR30 (DC24V INPUT)

DSR180 (DC24V INPUT)

5 year warranty

Specifications

1. Input voltage range

2. Output voltage

range

3. Line regulation

4. Load regulation

5. Cooling

6. Operating ambient

temperature

(Standard mounting)

7. Withstand voltage

8. Vibration

9. Functions

DC 24V input: DC 18 ~ 32V

DC 48V input: DC 32 ~ 63V

–10% ~ +20%

0.4% (DC18 ~ 32V/DC32 ~ 63V, at constant load)

0.8% (No load – full load, at constant input voltage)

Convection cooling

–20 ~ +71°C (+61 ~ +70°C: Forced Air Cooling)

–20°C: 50%, 0 ~ +50°C: 100%, +60°C: 70%, +71°C: 50%

Input–output: 1.5kVAC, input–FG: 1.5kVAC, output–FG: 500VAC for 1 min.

(DSR180... Input/output–FG: 2.5kVAC, output–FG: 500VAC for 1 min.)

When not operating 10 ~ 55Hz, amplitude 0.825mm constant (MAX. 5G), Sweep for 1 min., X, Y and Z axes for 1 hour

Over voltage protection, Over current protection, Thermal protection, Remote on/off control

Low input protection, Power failure (Low output voltage detection signal)

DSRI80: Remote sensing, Output current balancing, Switching frequency synchronization

Output voltage programmable by external control

Product lineup

Model name

DSR30-5-24

DSR30-12-24

DSR30-15-24

DSR30-24-24

DSR30-40-24

DSR30-48-24

DSR30-5-48

DSR30-12-48

DSR30-15-48

DSR30-24-48

DSR30-40-48

DSR30-48-48

Nominal

Max.

output voltage output current output power

30.0W

6.0A

30.0W

12V

2.5A

30.0W

15V

2.0A

31.2W

24V

1.3A

32.0W

40V

0.8A

33.6W

48V

0.7A

30.0W

6.0A

30.0W

2.5A

12V

30.0W

2.0A

15V

31.2W

1.3A

24V

32.0W

0.8A

40V

33.6W

0.7A

48V

∆

CSA

∆

Model name

DSR50-5-24

DSR50-12-24

DSR50-15-24

DSR50-24-24

DSR50-40-24

DSR50-48-24

DSR50-5-48

DSR50-12-48

DSR50-15-48

DSR50-24-48

DSR50-40-48

DSR50-48-48

DSR180-5-24

DSR180-6-24

DSR180-12-14

DSR180-24-24

DSR180-48-24

Nominal

Max.

output voltage output current output power

50.0W

10.0A

12V

51.6W

4.3A

15V

51.0W

3.4A

24V

50.4W

2.1A

40V

52.0W

1.3A

48V

52.8W

1.1A

50.0W

10.0A

12V

51.6W

4.3A

15V

51.0W

3.4A

24V

50.4W

2.1A

40V

52.0W

1.3A

48V

52.8W

1.1A

180W

36A

180W

30A

12V

180W

15A

24V

180W

7.5A

48V

177.6W

3.7A

∆

CSA

∆

DSR30

DSR50

DSR180

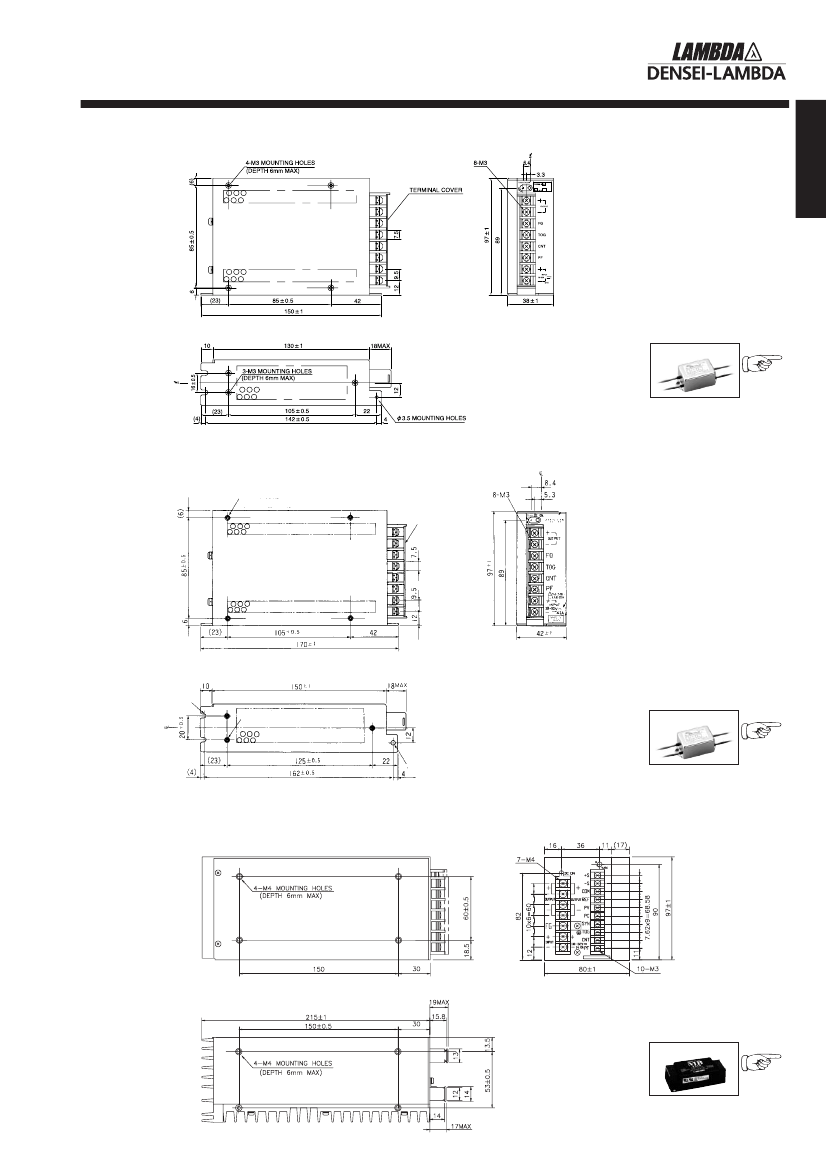

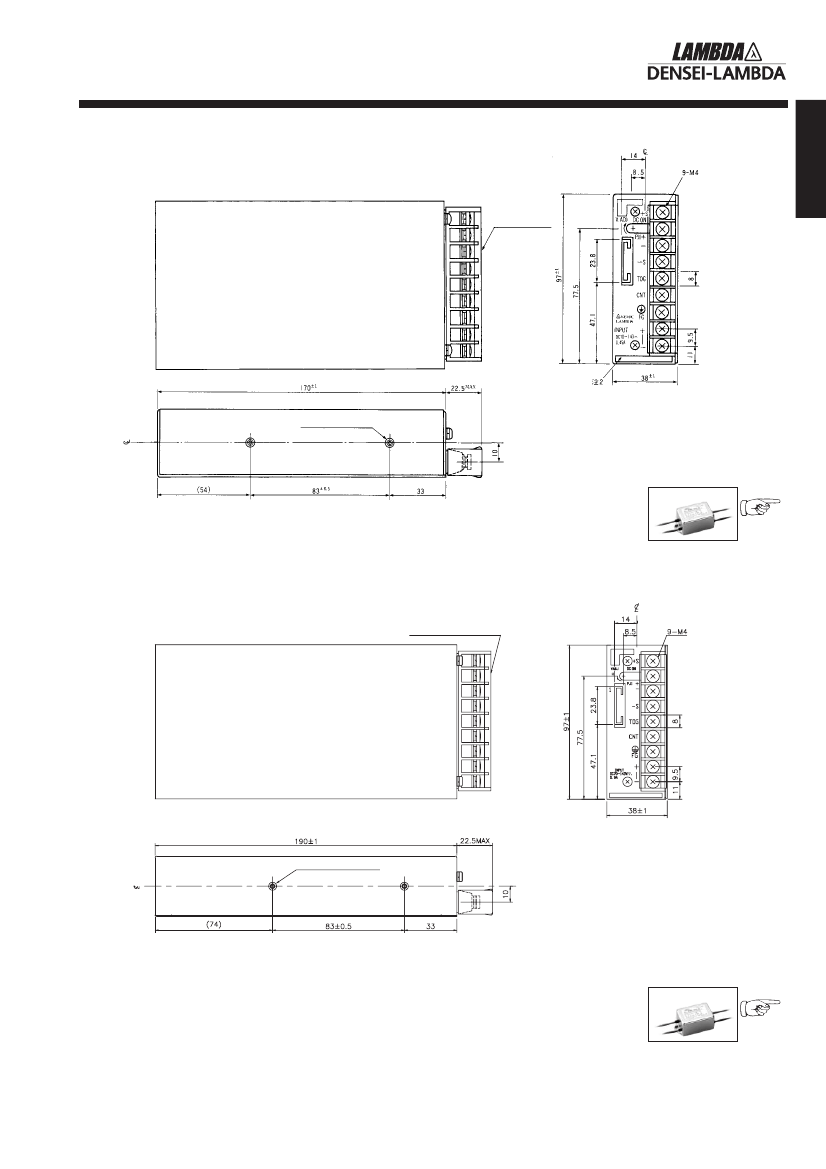

Request customer specification for further details of specifications, outline, characteristics, etc.

Read the instruction manual before usage.

∆
