Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998 FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web: frontierusa.com
Common Mode Line Filters—
CFU1602 series
A. Specifications:
Part
Number
CFU1602-01
CFU1602-02
CFU1602-03
CFU1602-04
Inductance
(mH)
2 x 10
2x8
2x8
2 x 25
/ L1-L2/
(uH) Max.
100
75
75
200
DCR
(OHMS) Max.
0.5
0.4
0.3
1.2
Rated Current
(A) RMS.
1.0
1.2
1.5
0.5
B.

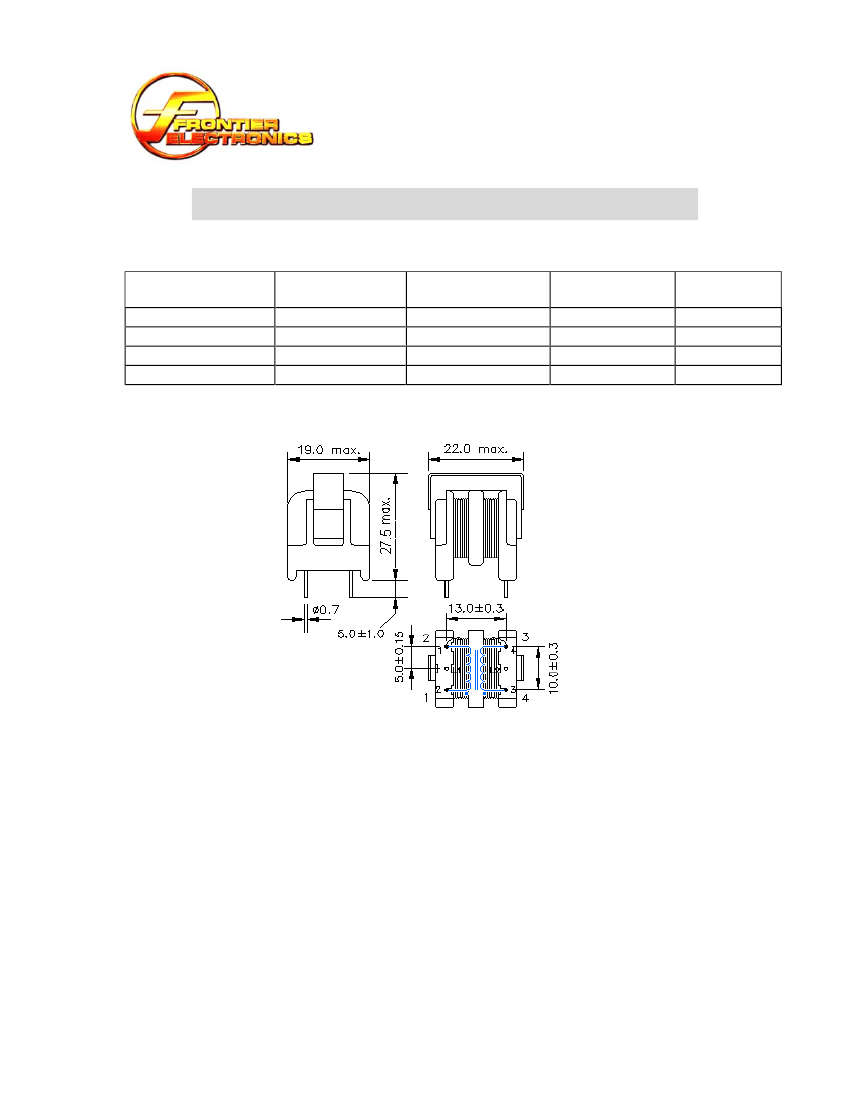

Mechanical Dimensions:
C. General information:
1.
2.
3.
4.
5.
6.
7.
Test Condition: 1.0KHz / 1V.
Electrical specifications at 25°C.
Temperature Rise: 40°C.
Operating temperature: -20°C TO +105°C.
Insulation Resistance: 100M OHMS at 500VDC.
Rated Voltage: 100V to 270V / 50-60 Hz.
Hi-Pot Voltage: 1500VAC for one minute.
Custom specifications are available.
Note:
RoHS
compliant; for the
ROHS
parts, we add “-LFR” at the end of the P/N.
Common Mode Line Filter P/N: CF1602 Series
Rev. A
Jan. 01, 2006 Page 1 of 1
