USB-520
USB 2.0 Fiber Extender
USB Transmission over Two Fibers up to 10 km
The USB-520 system provides the flexibility to
integrate high-speed USB 2.0 extension with
unsurpassed optical transmission.
System Design
The USB-520 transmitter (XMT) and receiver (RCV)
units come as a compact stand alone system.
The USB-520 represents Opticomm’s next
generation of products which allow for integrated
USB 2.0 extended range solutions.
• Extends USB 2.0 over fiber (up to 10 km)
• Opticomm’s USB-520 suits a wide variety
of applications for the consumer electronics,
medical, security, Pro A/V, environmental
monitoring, KVM, financial, industrial control
and flight simulation markets.
Features
• Supports USB 1.1 (low-speed, full-speed) and
USB 2.0 (high-speed) devices at up to 480 Mb/s.
• True plug-and-play, no drivers required.
• Supports all major operating systems including:
Windows, Mac-OS, Sun and Linux.
865
1310
Mode
MM
Wavelength
Suffix
L0
L2
Fiber
Type
50/125µ
62.5/125µ
9/125µ
Range*
500 m
10 km
Conn
Type
Dual LC
Dual LC
•
•
SM
* Chromatic dispersion and additional losses should be taken into account.
800-867-8426 • info@opticomm.com • www.opticomm.com • Contact Opticomm for custom requirements.
Opticomm reserves the right to change specifications without notice
Data (Ethernet/Serial/USB)
Product Specifications
USB cable
Data rate
XMT connector (upstream)
XMT connector (downstream)
RCV connector (upstream)
RCV connector (downstream)
Power adapter capacity
Power available to USB at RCV
XMT dimensions
XMT weight
RCV dimensions
RCV weight
Power adapter capacity
Total system shipping weight
Temperature range
2 meters (6.6 ft)
480 Mbps
1 x USB Type B
Dual LC
Dual LC
4 x USB Type A
15 V
DC
@1A (connected at XMT and RCV)
4 x 500 mA
114 mm x 106 mm x 38 mm (4.5” x 4.2” x 1.5”)
0.3 kg (0.6 lb)
114 mm x 106 mm x 38 mm (4.5” x 4.2” x 1.5”)
0.3 kg (0.6 lb)
5 V
DC
@1 Amp (connected at XMT and RCV)
1.1 kg (2.4 lb)
0
o
C to 40
o
C
Optiva
™
Configurable
Communication Platform
Network Management
SDI & HD-SDI
Composite Video,
Audio & Data
RGB/VGA/DVI
Audio/FSK/Intercom
Data (Ethernet/Serial/USB)
CATV/RF & L-Band
Optical Switching, Routing
& Redundancy
Passive Multiplexing
Solutions
Enclosures, Racks
& Frames
Power Supplies
& Accessories

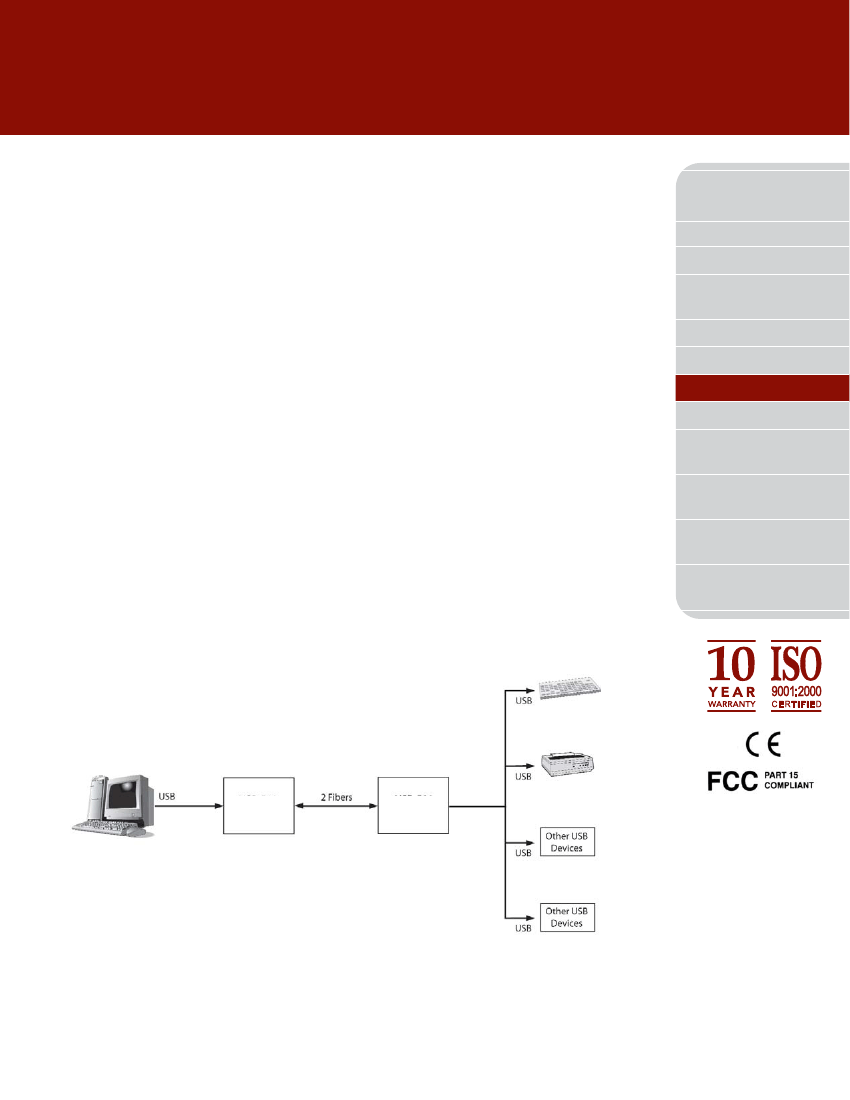

Sample Configuration
