FR601G thru FR607G
GLASS FAST RECOVERY RECTIFIERS
REVERSE VOLTAGE
- 50
to
1000
Volts
FORWARD CURRENT
- 6.0
Amperes
R-6
FEATURES
●
Fast switching for high efficiency
●
Low cost
●
Diffused junction
●
Low reverse leakage current
●
Low forward voltage drop
●
High current capability
●
The plastic material carries UL recognition 94V-0
1.0(25.4)
MIN
.052(1.3)
DIA
.048(1.2)
.360(9.1)
.340(8.6)
2100
.360(9.1)
DIA
.340(8.6)
MECHANICAL DATA
●
Case: JEDEC R-6 molded plastic
●
Polarity: Color band denotes cathode
●
Weight: 0.07 ounces , 2.1 grams
●
Mounting position: Any
1.0(25.4)
MIN
Dimensions in inches and (millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward
Rectified Current
Peak Forward Surage Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load(JEDEC Method)
Peak Forward Voltage at 6.0A DC(Note1)
Maximum DC Reverse Current
at Rated DC Blocking Voltage
@T
J
=25℃
@T
J
=100℃
@T
A
=75
℃
SYMBOL FR601G FR602G FR603G FR604G FR605G FR606G FR607G
V
RRM
V
RMS
V
DC
I
(AV)
50
35
50
100
70
100
200
140
200
400
280
400
6.0
600
420
600
800
560
800
1000
700
1000
UNIT
V
V
V
A
I
FSM
V
F
I
R
T
RR
C
J
R
θJA
T
J
T
STG
150
140
300
1.3
5.0
100
250
70
32
-50 to +150
-50 to +150
500
A
V
uA
Maximum Reverse Recovery Time(Note 1)
Tyical Junction Capacitance (Note2)
Tyical Thermal Resistance (Note3)
Operating Temperature Range
Storage Temperature Range
NOTES: 1.Measured with I
F
=0.5A,I
R
=1A,I
RR
=0.25A
pF
℃/W
℃
℃
2.Measured at 1.0 MHz and applied reverse voltage of 4.0V DC
3.Thermal resistance junction of ambient.
~ 73 ~

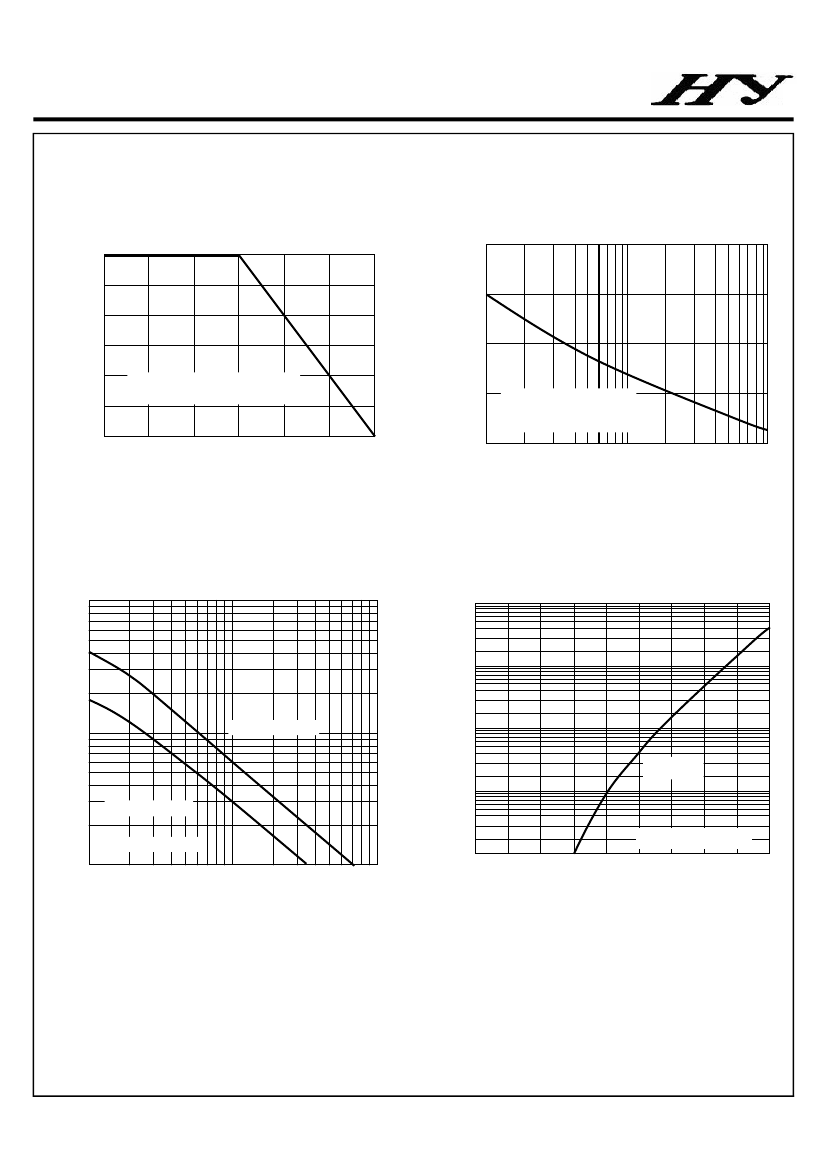

RATING AND CHARACTERTIC CURVES
FR601G thru FR607G
FIG. 1
–
FORWARD CURRENT DERATING CURVE
6.0
5.0
4.0
3.0
2.0
SINGLE PHASE HALF WAVE 60Hz
RESISTIVE OR INDUCTIVE LOAD
FIG. 2
–
MAXIMUM NON-REPETITIVE SURGE CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
400
AVERAGE FORWARD CURRENT
AMPERES
300
200
100
1.0
0
0
25
50
75
100
125
150
PULSE WIDTH 8.3ms
SINGLE HALF-SINE-WAVE
(JEDEC METHOD)
0
1
2
5
10
20
50
100
AMBIENT TEMPERATURE
NUMBER OF CYCLES AT 60Hz
FIG.3
–
TYPICAL JUNCTION CAPACITANCE
1000
INSTANTANEOUS FORWARD CURRENT,(A)
FIG.4-TYPICAL FORWARD CHARACTERISTICS
1000
100
CAPACITANCE, (pF)
100
FR601G - FR604G
10
T
J
= 25°C
1.0
FR605G - FR607G
T
J
= 25°C f = 1 MHz
PULSE WIDTH 300us
0.1
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
10
1
4
10
100
REVERSE VOLTAGE ,VOLTS
INSTANTANEOUS FORWARD VOLTAGE ,VOLTS
~ 74 ~
