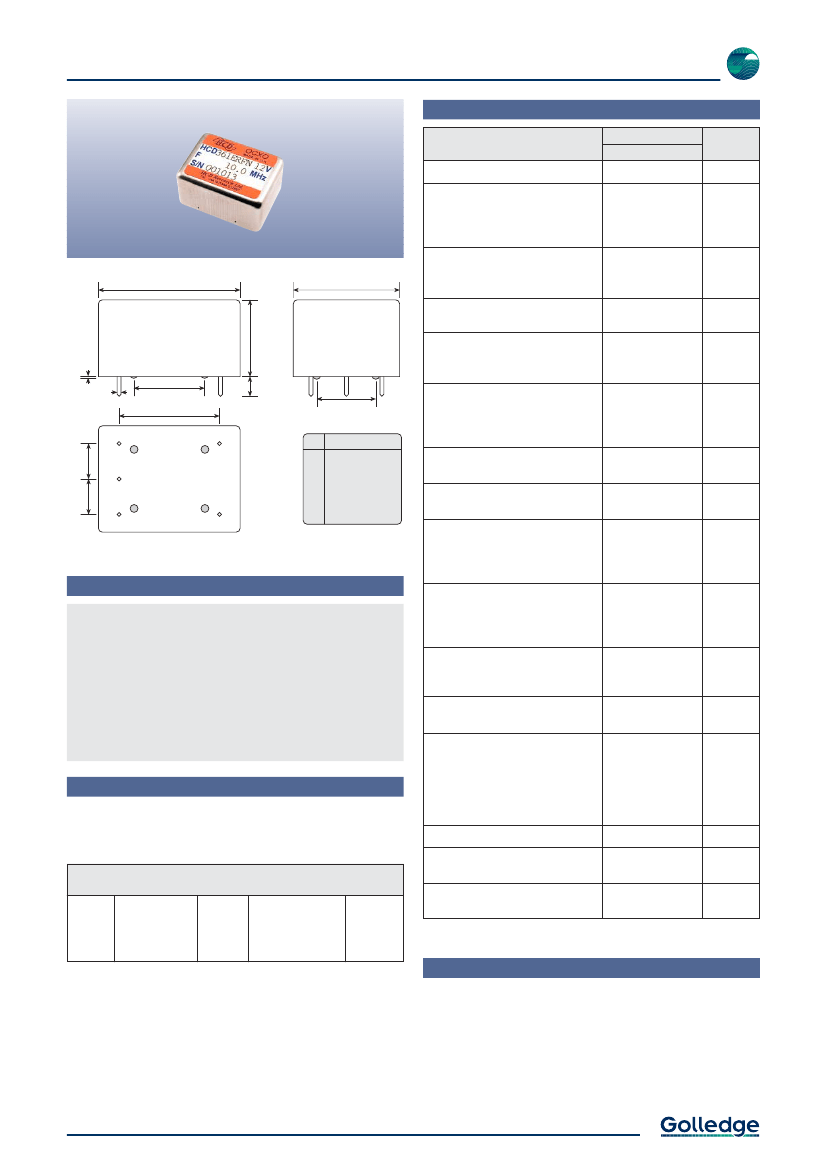

OCXO HCMOS Output

Specifications

HCD361

Parameters

Frequency range:

5.0 ~ 20.0MHz

Ageing per day (at despatch):

< ±1x10

-9

< ±5x10

-10

< ±2x10

-10

Frequency stability:

< ±5x10

-8

per year

< ±1x10

-9

per 10% change in V

Short term stability:

< ±1x10

-11

over 1 sec

Product

HCD361

Option

Codes

36.10 (max)

27.20 (max)

19.40

(max)

0.50

0.80Ø

17.80

25.40

5.00

15.00

Temperature stability:

< ±2x10

-8

< ±1x10

-8

< ±5x10

-9

8.90

BOTTOM VIEW

CONNECTION

Freq adjustment

Ref voltage out

Supply

RF output

Ground & case

Operating temperature range:

0 to +50°C

-10 to +60°C

-20 to +70°C

Storage temperature range:

-40 to +90°C

Output waveform:

HCMOS / TTL compatible

Frequency adjustment:

±5x10

-7

(typ) over +0.5 to +7.0V

(sufficient for 10 years ageing min)

Stabilised +7.0V supply provided

Supply voltage (V

+12V (±0.5V)

+15V (±0.5V)

+18V (±0.5V)

Power consumption:

5.0W max at switch on

1.2W typ when stabilised at 25°C

Warm up:

< ±1x10

-8

after 10mins at +20°C

Phase noise (@ 10.0MHz):

< -125 dBc/Hz @ 10Hz

< -135 dBc/Hz @ 100Hz

< -150 dBc/Hz @ 1kHz

< -155 dBc/Hz @ 10kHz

< -155 dBc/Hz @ 50kHz

Harmonics:

Shock:

< -30dB wrt carrier

IEC 68-2-27 Test Ea

50G for 11ms

Scale 1:1

Features

Temperature stability down to 5ppb

Single 12V supply (15v or 18V optional)

Compact package

Standard European IEC CO-08 pin-out

Custom options available

Standard Models

The table shows the most common models. In most cases

selecting one of these models will ensure the best combina-

tion of price / performance and availability.

Freq

5.0MHz

10.0MHz

Specification

HCD361/DPFN

HCD361/ERFN

HCD361/DPFN

HCD361/ERFN

Ageing

per day

±1x10

-9

±5x10

-10

±1x10

-9

±5x10

-10

Temperature

stability

±2x10

-8

-20+70°C

±1x10

-8

-20+70°C

±2x10

-8

-20+70°C

±1x10

-8

-20+70°C

Part No

MS06942

MS06944

MS06941

MS06943

Vibration:

IEC 68-2-06 Test Fc

10-55Hz, 1.5mm. 55-500Hz, 10G

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Part No, or product name + option codes + frequency

eg:

HCD361/DPFN 10.0MHz

HCD361/ERFN 5.0MHz

Option code X (eg HCD361/X) denotes a custom specification.

Tel:

+44 1460 256 100

17 Sep 2003

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
