P4SMAJ85A: Description400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC; CategoryDiscrete semiconductor diode; File Size162KB，4 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric View All

P4SMAJ85A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P4SMAJ85A	-	-	View	Buy Now

P4SMAJ85A Overview

400 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AC

P4SMAJ85A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
Parts packaging code	DO-214AC
package instruction	R-PDSO-C2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Maximum breakdown voltage	105 V
Minimum breakdown voltage	94.4 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Humidity sensitivity level	1
Maximum non-repetitive peak reverse power dissipation	400 W
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	85 V
surface mount	YES
technology	AVALANCHE
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

P4 SMAJ 6.5 ... P4 SMAJ 170CA

Surface Mount

unidirectional and bidirectional

Transient Voltage Suppressor Diodes

Unidirektionale und bidirektionale

Spannungs-Begrenzer-Dioden

für die Oberflächenmontage

400 W

6.5...170 V

~ SMA

~ DO-214AC

0.07 g

Pulse power dissipation – Impuls-Verlustleistung

Maximum stand-off voltage

Maximale Sperrspannung

Plastic case

Kunststoffgehäuse

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Dimensions / Maße in mm

Standard packaging taped and reeled

Standard Lieferform gegurtet auf Rolle

see page 18

siehe Seite 18

Suffix “C” or “CA” for bidirectional types

Suffix “C” oder “CA” für bidirektionale Typen

Maximum ratings and Characteristics

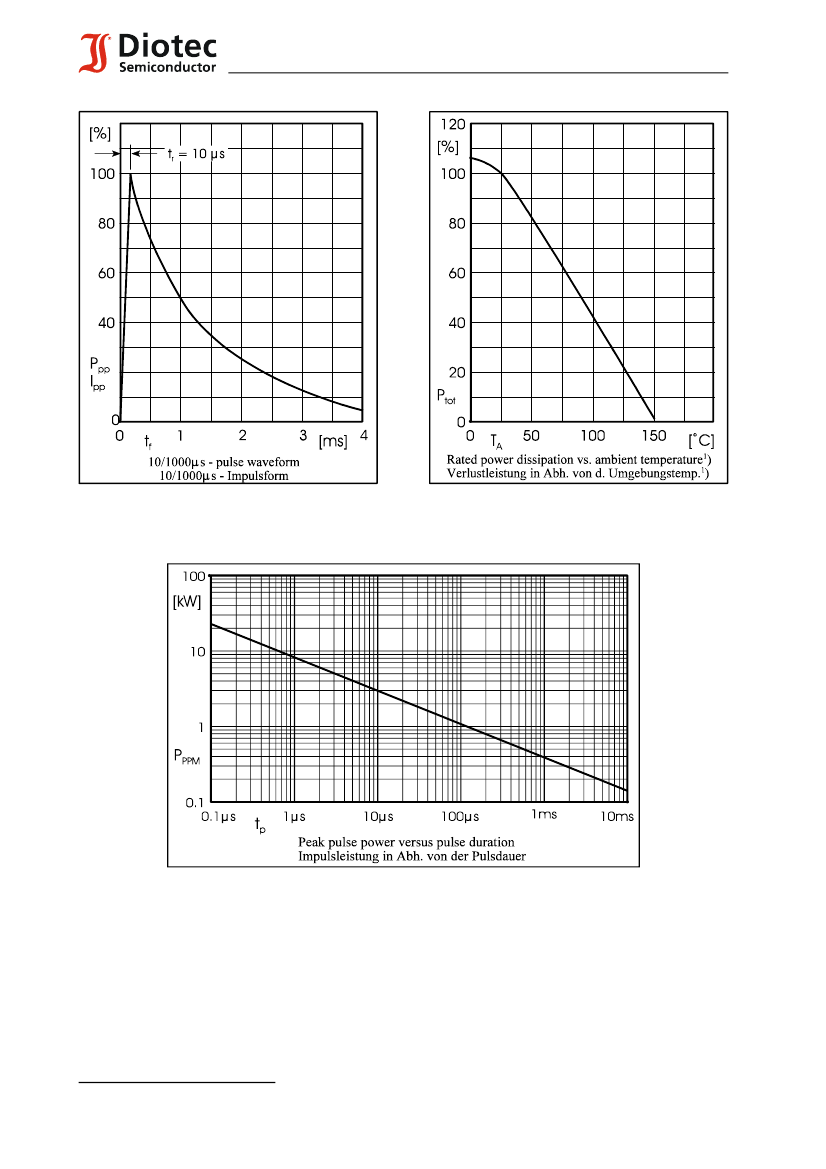

Peak pulse power dissipation (10/1000

s waveform)

Impuls-Verlustleistung (Strom-Impuls 10/1000

Steady state power dissipation

Verlustleistung im Dauerbetrieb

Peak forward surge current, 60 Hz half sine-wave

Stoßstrom für eine 60 Hz Sinus-Halbwelle

Operating junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Max. instantaneous forward voltage

Augenblickswert der Durchlaßspannung

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to terminal

Wärmewiderstand Sperrschicht – Anschluß

= 25 A

= 25

Grenz- und Kennwerte

PPM

M(AV)

FSM

thA

thT

400 W

)

1 W

)

40 A

)

– 50…+150

< 3.5 V

)

< 70 K/W

)

< 30 K/W

) Non-repetitive current pulse see curve I

PPM

= f (t

)

Höchstzulässiger Spitzenwert eines einmaligen Strom-Impulses, siehe Kurve I

PPM

= f (t

)

) Mounted on P.C. board with 25 mm

copper pads at each terminal

Montage auf Leiterplatte mit 25 mm

Kupferbelag (Lötpad) an jedem Anschluß

) Unidirectional diodes only – nur für unidirektionale Dioden
