HMC677G32

v00.0510

6-Bit SERIAL/PARALLEL SWITCH

DRIVER/CONTROLLER

Features

Accepts Serial or Parallel Data

Compatible with TTL and CMOS Logic

Complementary Outputs

6-Bit Control Word

Power-up State Selection

Low Power Consumption

Fast Clock Rate

Typical Applications

The HMC677G32 is ideal for:

• Microwave and Millimeterwave Control Circuits

• Test and Measurement Equipment

• Complex Multi-Function Assemblies

• Military and Space Subsystems

• Transmit/Receive Module Controllers

INTERFACE - SMT

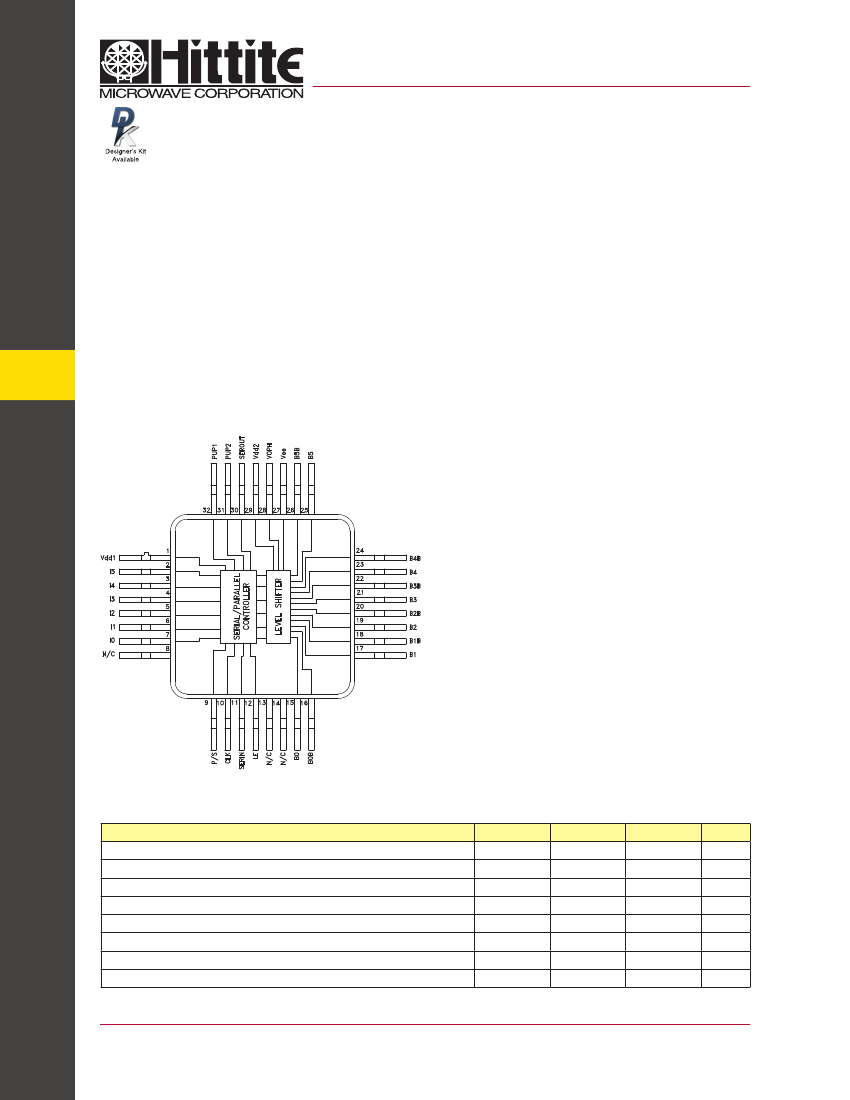

Functional Diagram

General Description

The HMC677G32 is a multi-function BiCMOS control

interface IC which is ideal for driving the gates of FET

and pHEMT based MMIC control devices. This unique

IC can be used to simplify the control of microwave

and millimeterwave transmit/receive modules, mili-

tary subsystems, and multi-throw/multi-port test

and measurement equipment. The HMC677G32

accepts serial or parallel data, and can drive up to 6

complementary sets of outputs.

The HMC677G32 also provides additional functionality

such as a power-up state selection, adjustable

output voltage levels, and a latched parallel control

mode which allows multiple control devices to share

a common data bus. The HMC677G32 is ideal for

controlling digital phase shifters, digital attenuators,

digital variable gain amplifiers, and switching matrices

embedded in complex microwave and millimeterwave

assemblies.

Electrical Specifications,

= +25° C, Vdd1 = Vdd2 = +5V, Vee = -5V, Voph = 0V

Parameter

Input High Voltage, Vih

Low Voltage, Vil

Output High Voltage, Voh (Ioh = 1 mA, Vee = -4.5V)

Output Low Voltage, Vol (Iol = 2 mA, Vee = -4.5V)

Maximum Input Leakage Current, Iin

Propagation Delay, tplh

Maximum Serial Bit Rate

Maximum I/O Update Rate (with 10 pF capacitive load at each output pin)

Voph - 0.1

Vee + 0.1

100

Min

0.8

Typ

Max

Units

µA

Mbps

5-1

For price, delivery and to place orders: Hittite Microwave Corporation, 20 Alpha Road, Chelmsford, MA 01824

Phone: 978-250-3343

Fax: 978-250-3373

Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

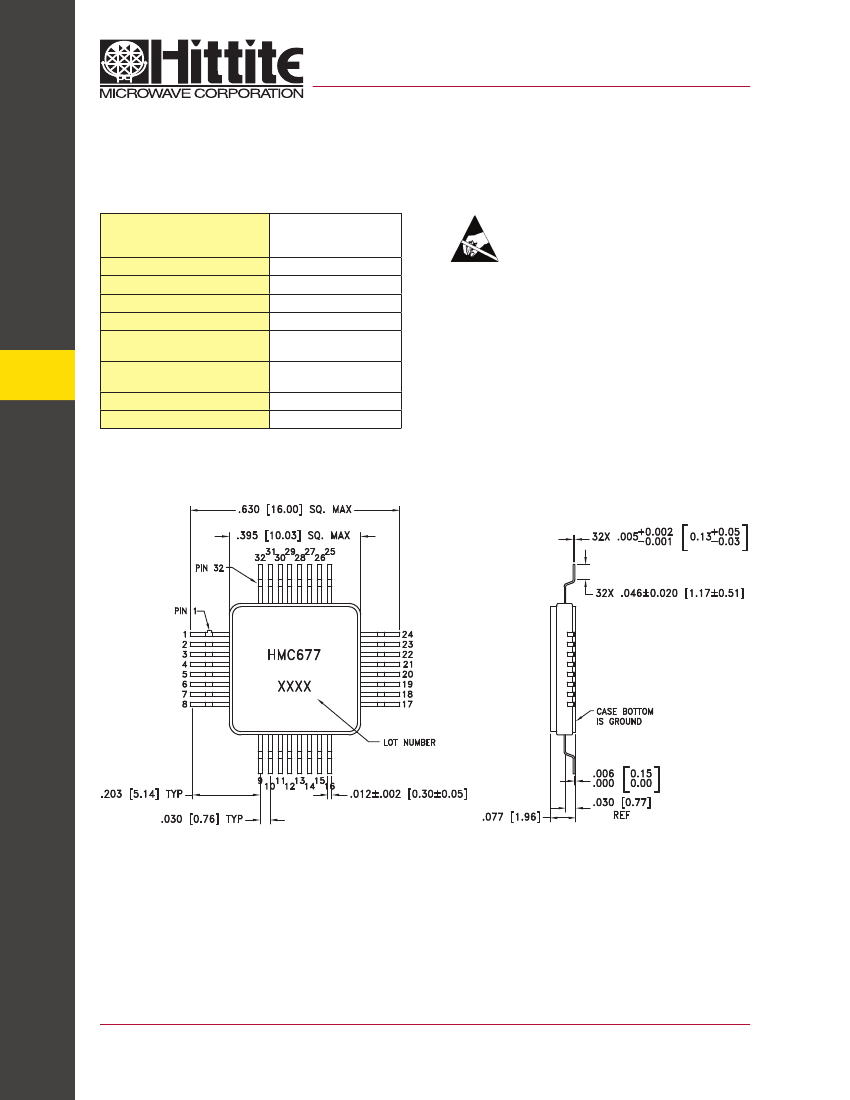

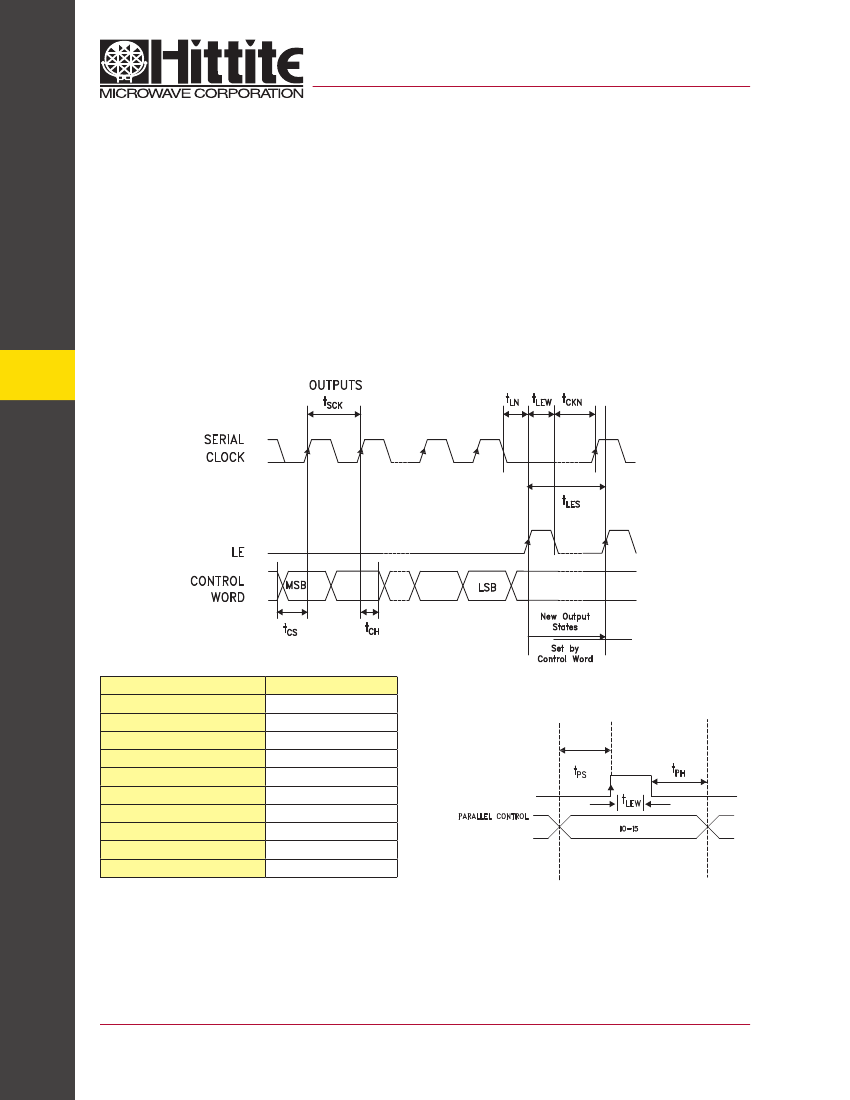

HMC677G32 Related Products

	HMC677G32	HMC677G32TR
Description	IC level shifter 6-bit	Interface Circuit, BICMOS, PQFP32, SMT-32
Is it Rohs certified?	conform to	conform to
Maker	Hittite Microwave（ADI）	Hittite Microwave（ADI）
package instruction	QFP, QFP32,.63SQ,30	QFP,
Reach Compliance Code	compliant	unknown
Interface integrated circuit type	INTERFACE CIRCUIT	INTERFACE CIRCUIT
JESD-30 code	S-PQFP-G32	S-PQFP-G32
Nominal negative supply voltage	-5 V	-5 V
Number of functions	1	1
Number of terminals	32	32
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QFP
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	BICMOS	BICMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.76 mm	0.76 mm
Terminal location	QUAD	QUAD
