Band Pass Filter/
Isolator Hybrid Combination
BFIH Series
Features
•
Wide Operating
Wavelength Range
B
AND
P
ASS
F
ILTER
/I
SOLATOR
H
YBRID
C
OMBINATION

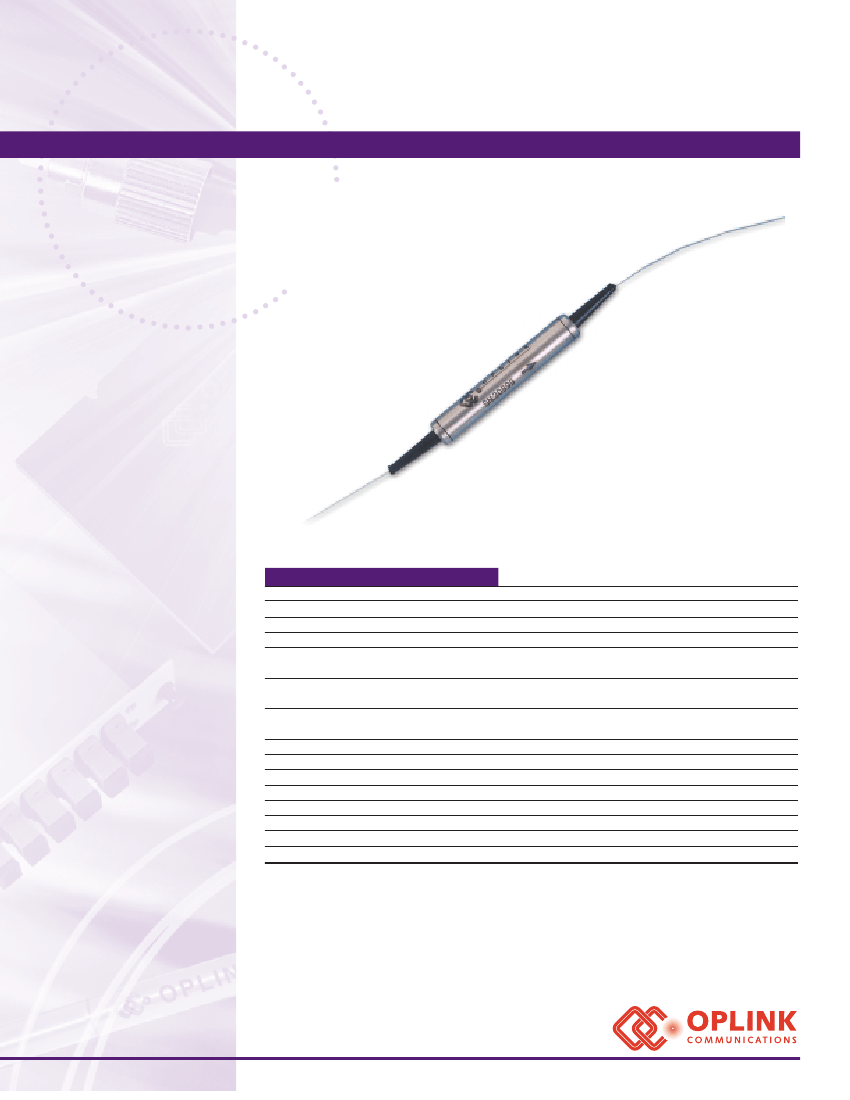

Oplink’s BFIH is a compact combination of a bandpass filter
and a polarization insensitive optical isolator. The built-in
bandpass filter blocks the amplifiers spontaneous
emission (ASE) in the erbium doped fiber amplifier
(EDFA), thus significantly improving the
amplifier’s performance.
•
Compact Size
•
High Isolation
•
Ultra Low PDL & PMD
•
Highly Stable & Reliable
•
Epoxy-Free Optical Path
Applications
•
Fiberoptic Amplifiers
•
CATV Fiberoptic Links
•
WDM Systems
•
Fiberoptic Instruments
•
Transmitters and Fiber
Lasers Sensors
•
Laboratory R&D
Performance Specifications
BFIH Series
Type A
Type B
Isolator Stage
Single Stage
Pass Channel Wavelength Range
1528-1563
Rejection channel Wavelength Range
1450-1495
Isolation(Min.)
21
(over Pass Channel wavelength range 0
~
70°C, all SOP)
Pass Channel Insertion Loss(Max.)
(over wavelength range, 0 to +70°C, all SOP)
Rejection Channel Insertion Loss(Max.)
(over wavelength range and 0 to +70°C, all SOP)
WDL (Max.)
Return Loss(Min.) (input/output ports)
PDL (Max.)
PMD(Max.)
Maximum Power Handling
Operation Temperature
Storage Temperature
Package Dimension*
0.3
0.15
0.25
0.8
Dual Stage
36
1.0
30
0.4
0.2
0.05
500
0 to +70
-40 to +85
P1:(ø)5.5 x (L)34
Single Stage
1547
.5-1563.5
1450-1540
21
0.9
Dual Stage
36
1.1
25
Unit
nm
nm
dB
dB
dB
dB
dB
dB
dB
mW
°C
°C
mm
0.3
55
0.15
0.25
0.4
0.2
0.05
Oplink Fiber Optic
Product Lines
Amplifier Components
Amplifier Modules
DW DMs
Switching/Routing/
Monitoring/ Conditioning
Transmission
RGB Laser Modules
Values are referenced without connector loss
*
The mechanical tolerance should be +/- 0.2 mm on all package dimensions unless otherwise custom specified.
Oplink Communications, Inc.
Band Pass Filter/Isolator Hybrid Combination
Pack age Dimensions:
Configuration:
Ordering Information
Oplink custom designs and manufactures high performance fiber optic networking components and
integrated optical modules. Oplink can provide a remarkable range of customized optical solutions to
meet your specific design needs. By combining our technical expertise with our extensive micro-optic
manufacturing and packaging capability, your volume requirements for components and customized
integrated products can be met. We are happy to discuss your requirements. Please contact Oplink’s
OEM Design Team or Sales Representative for ordering and price information
(510) 933-7200
.
BFIH
Wavelength
Type A=A
Type B=B
0
Stage
Single
Stage=S
Dual Stage=D
0
0
0
0
1
Fiber Length
1.0 Meter=1*
1.5 Meters=5
2.0 Meters=2
Fiber Type
250
µ
m SMF-28=1
900
µ
m tight
buffer=5
Connector Type
None=1
FC/PC=2
FC/SPC=3
FC/APC=4
SC/PC=5
SC/SPC=6
SC/APC=7
ST=8
LC=9
MU=A
* 1 meter is standard. The lead time for
special fiber length will be longer.
Package Type
P1=1
