V674ME06

9939 Via Pasar • San Diego, CA 92126

TEL (858) 621-2700 FAX (858) 621-2722

VOLTAGE CONTROLLED OSCILLATOR

Rev A1

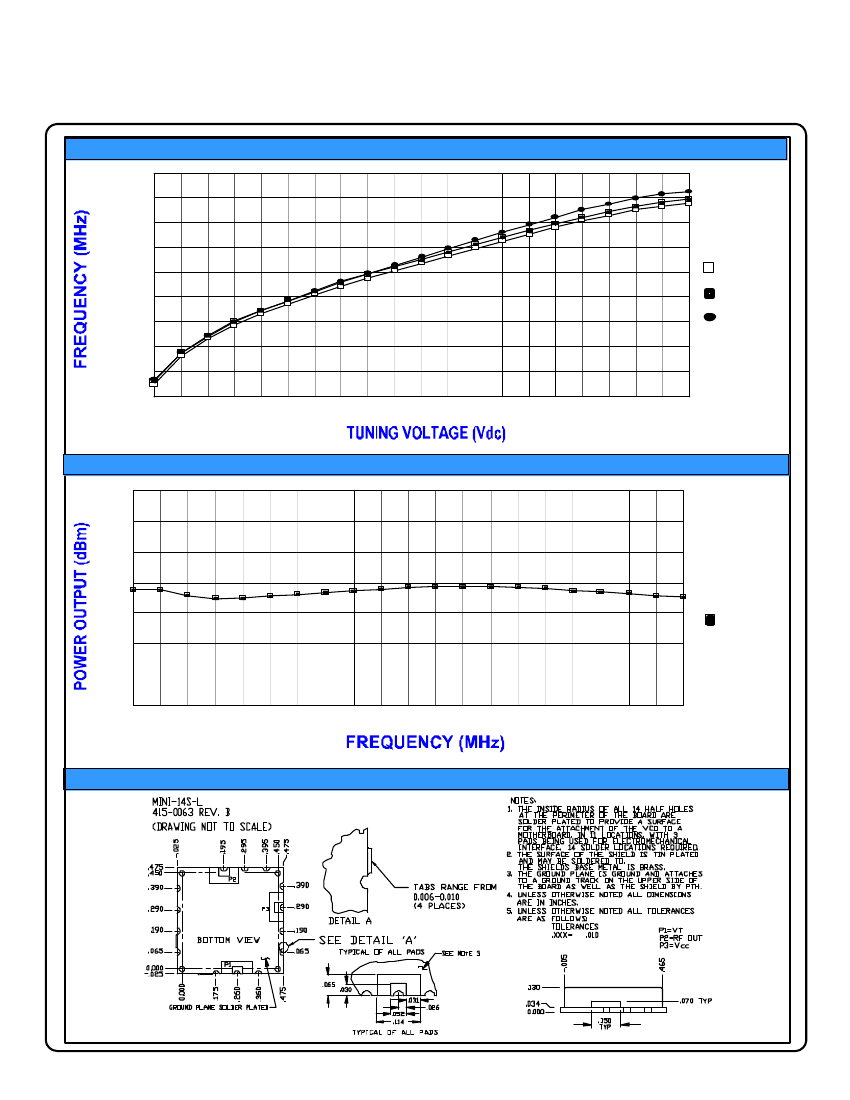

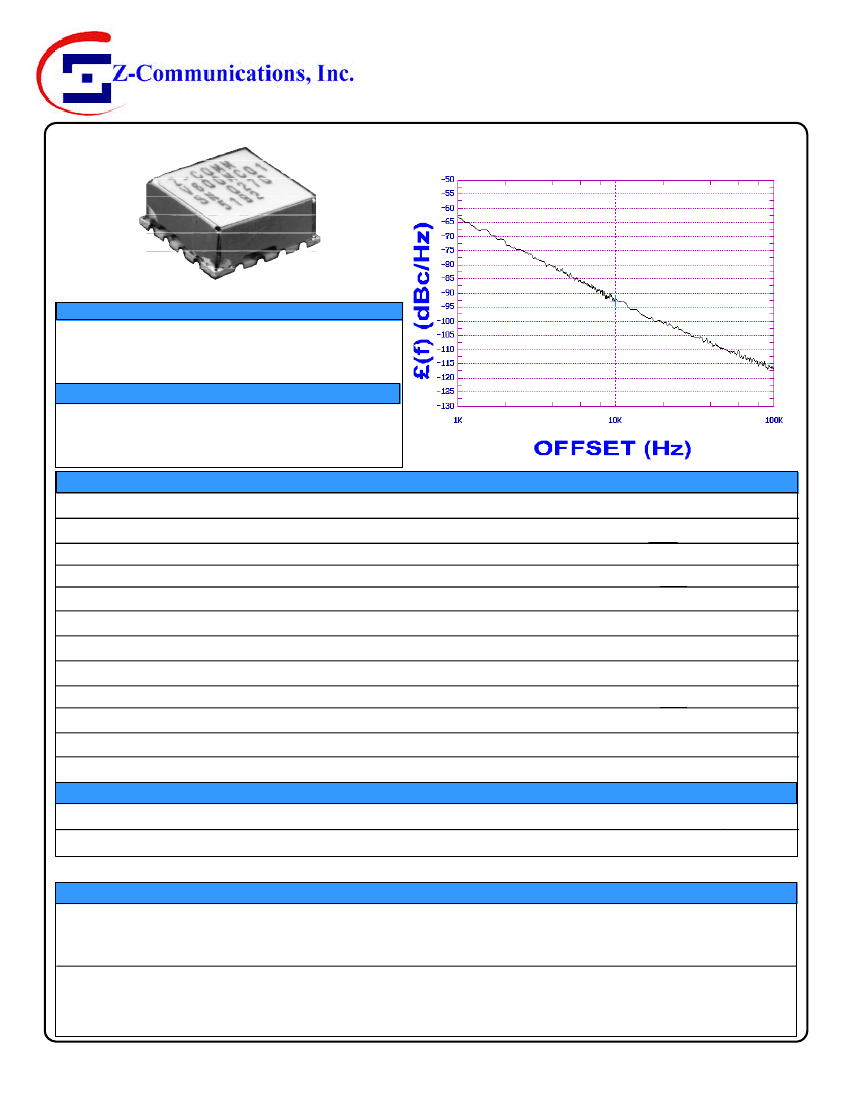

PHASE NOISE (1 Hz BW, typical)

FEATURES

• Frequency Range: 1700 - 2496

• Tuning Voltage:

2-20 Vdc

• MINI-14S-L - Style Package

APPLICATIONS

• Satellite Communication Systems

• Earthstations

• Digital Radios

PERFORMANCE SPECIFICATIONS

Oscillation Frequency Range

MHz

VALUE

1700

2496

-93

-15

2-20

7±3

<12

-10 to 85

MINI-14S-L

UNITS

MHz

dBc/Hz

dBc

Vdc

MHz/V

dBm

Phase Noise @ 10 kHz offset (1 Hz BW, typ.)

Harmonic Suppression (2nd, typ.)

Tuning Voltage

Tuning Sensitivity (avg.)

Power Output

Load Impedance

Input Capacitance (max.)

Pushing

Pulling (14 dB Return Loss, Any Phase)

MHz/V

MHz

°C

Operating Temperature Range

Package Style

POWER SUPPLY REQUIREMENTS

Supply Voltage (Vcc, nom.)

Supply Current (Icc, typ.)

APPLICATION NOTES

Vdc

All specifications are typical unless otherwise noted and subject to change without notice.

•

AN-100/1 : Mounting and Grounding of VCOs

•

AN-102 : Proper Output Loading of VCOs

•

AN-107 : How to Solder Z-COMM VCOs
