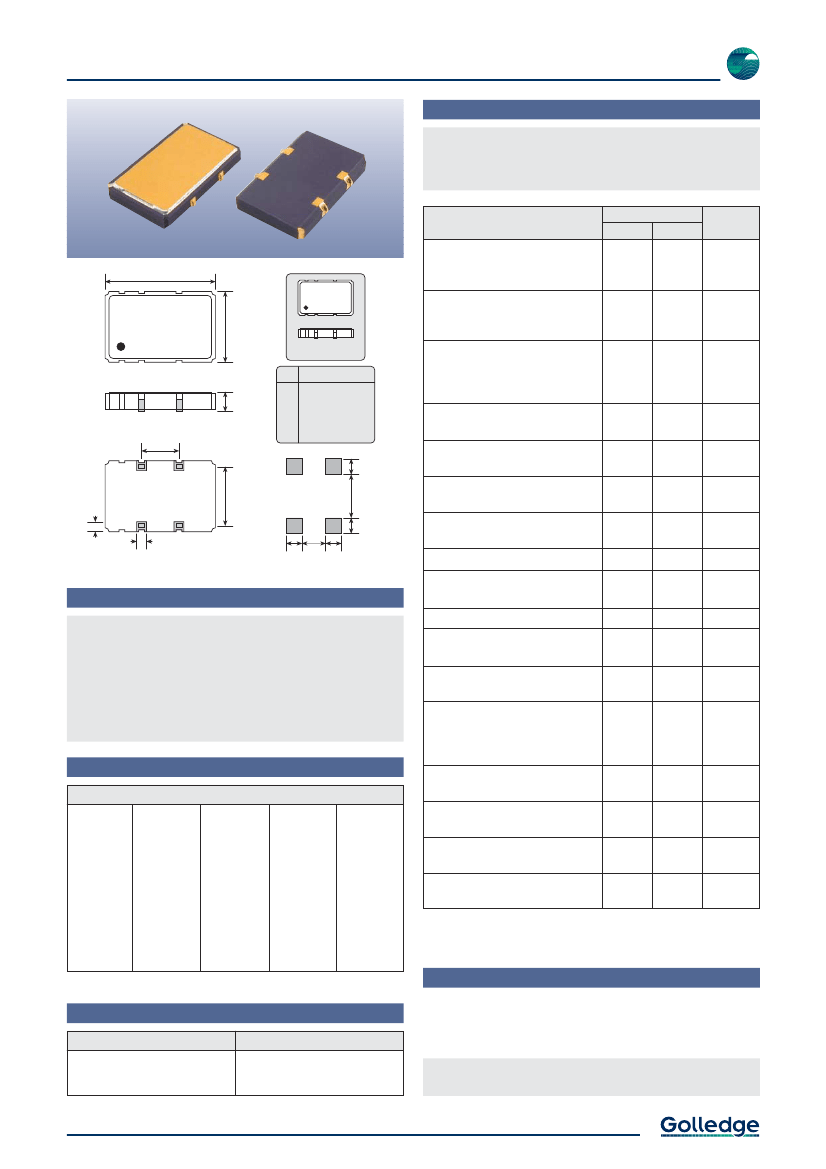

3.3V CMOS Oscillator Mil Temp
MCSOV & MCSOHV
Specifications
MCSOV: 10.0kHz ~ 20.0MHz
MCSOHV: 20.0 ~ 160MHz
Parameters
14.10
Product
MCSOV MCSOHV
Option
Codes
Frequency range:
10.0kHz ~ 20.0MHz
20.0 ~ 160MHz
Frequency stability*:
9.30
±100ppm
±50ppm
tighter stabilities on request
T
specify
A
B
C
ACTUAL SIZE
PAD
1
2.40
2
3
5.08
4
CONNECTION
Not connected or
Enable/Disable
Operating temperature range:
0 to +70°C
-40 to +85°C
-55 to +125°C
Operable temperature range:
-55 to +125°C
2.00
Ground
Output
Supply
Storage temperature range:
-65 to +125°C
Supply voltage (V
DD
):
+3.3V (±10%)
Supply current (max):
Driving ability:
10mA
30mA
CMOS
1
1.30
2
7.30
4
1
3
5.62
2
2.00
4
1.30
3
2.00 3.08 2.00
TOP VIEW
Scale 2:1
Features
Logic levels:
‘0' level = +0.4V max
‘1' level = 90%V
DD
min
Start up time:
5ms max
«
«
«
«
Military temperature range option
Excellent shock & vibration resistance
Enable / disable tristate option (> 500kHz)
J-leads option
Waveform symmetry:
40:60 max @ 50%V
DD
Rise / fall times:
7ns max
3ns max
Standard Frequencies
Frequencies in MHz
10.00000*
10.15000*
10.23000*
10.24000*
11.05920*
12.00000*
12.28800*
12.80000*
13.00000*
14.74560*
16.00000*
16.38400*
18.43200*
19.20000*
19.66080*
20.00000*
40.00000
40.60000
40.96000
44.23680
48.00000
49.15200
50.00000
50.75000
51.15000
51.20000
52.00000
55.29600
58.98240
60.00000
60.90000
61.38000
61.44000
64.00000
65.00000
65.53600
66.35520
72.00000
73.72800
76.80000
78.00000
80.00000
81.20000
81.84000
81.92000
88.47360
90.00000
96.00000
98.30400
100.00000
102.40000
104.00000
108.00000
110.59200
117.96400
120.00000
125.00000
128.00000
131.07200
132.71040
144.00000
150.00000
160.00000
Enable / disable function:
None (pad 1 NC)
Tristate* (control via pad 1)
* not available under 500kHz
Terminations:
Stand-offs
J-leads (drawing on request)
Shock resistance:
5,000G, 0.3ms, ½ sine
Vibration resistance:
10G rms 10.0 ~ 2,000Hz
Soldering condition:
260°C, 10 sec max
Standard.
Optional - Please specify required code(s) when ordering
E
J
* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply
voltage change, load change and ageing over 10 years.
* Binary divisions of the above frequencies also available.
Ordering Information
Product name + option codes (if any) + frequency
eg:
MCSOV/BE 16.0MHz
±100ppm -40 to +85°C Enable / disable
MCSOHV/TAJ 120MHz
±50ppm 0 to +70°C, J-leads
Option code X (eg MCSOV/X) denotes a custom specification.
Available on T&R (1k pcs/reel) or trays (50pcs/tray).
Refer to our website for T&R and soldering details.
Enable / Disable Function
Input (pad 1)
Open
‘1’ level
‘0’ level
Output (pad 3)
Enabled
Enabled
High Impedance
