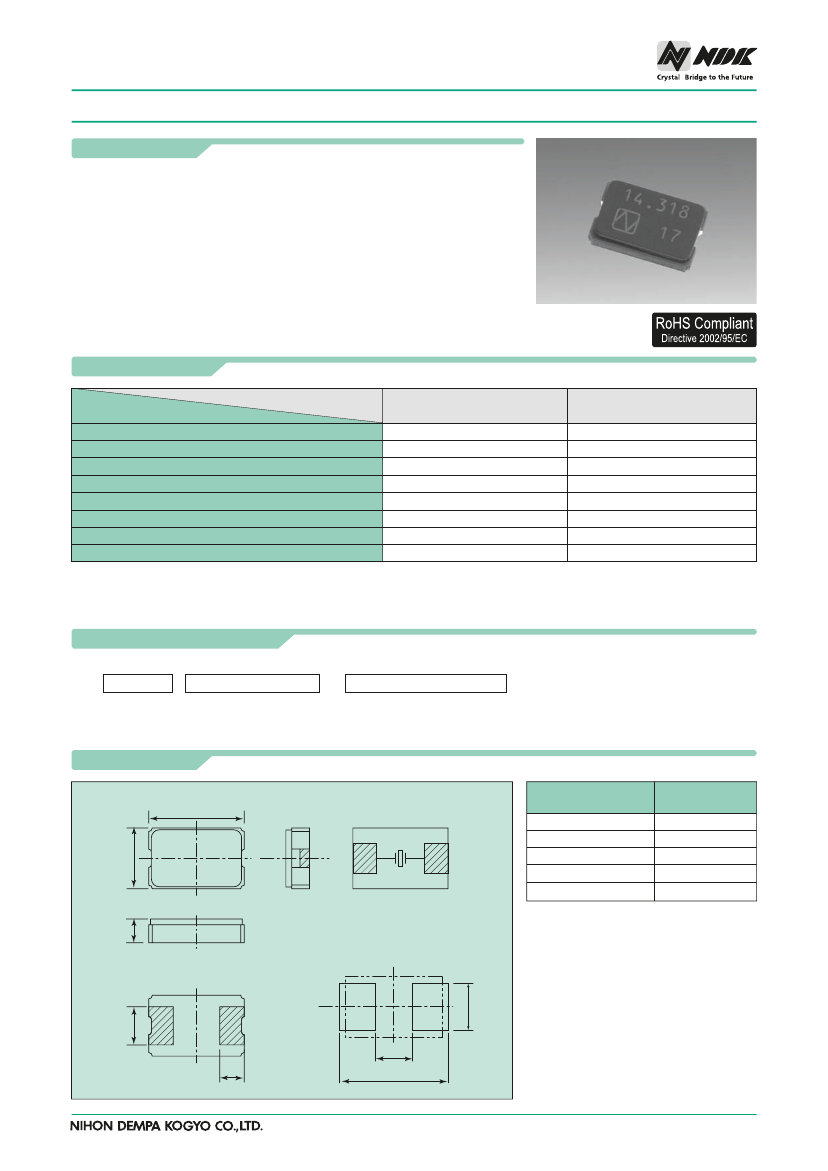

Crystal Units
NX5032GA / NX5032GB
n
Features
A small surface-mount type crystal unit, suitable for OA (office automation) and AV
(audiovisual) applications.
Compatible with low frequencies starting from 8MHz.
(NX5032GA : 5.0 × 3.2 × 1.3mm typ.)
l
Excellent electrical performance, ideal for OA and AV applications.
l
Lead-free. Meets the requirements for re-flow profiling using lead-free solder.
l
NX5032GA supports low frequencies starting from 8MHz.
l
NX5032GB supports low height mounting (product height: 1.0mm typ.).
For OA / AV
n
Specifications
Item
Frequency Range
Overtone Order
Frequency Tolerance (25 ±3℃)
Temperature Characteristics (with reference to +25°C)
Operating Temperature Range
Equivalent Series Resistance
Drive Level
Load Capacitance
Model
NX5032GA
8 to 55MHz
Fundamental
±20 × 10
−6
NX5032GB
12 to 55MHz
Fundamental
±20 × 10
−6
±30 × 10
−6
−10 to +70℃
Refer to *1
50μW(Max:500μW)
8pF
±30 × 10
−6
−10 to +70℃
Refer to *1
50μW(Max:500μW)
8pF
The above specifications are standard for this NDK product.
Custom-made specifications such as load capacitance and temperature characteristics are also available.
Please contact NDK sales with your enquiries.
n
How to Specify an Order
When ordering our products, specify them with an “Ordering Code” that consists of the following :
Model name - Frequency (Max : 9 digits) M - Number for specifying an order
Example NX5032GA-12.000M-STD-CSK-4
If you have any queries concerning our standard frequencies and numbers for specifying orders, please contact our sales representatives or visit our homepage
(http://www.ndk.com/).
n
Dimensions
5.0 ±0.2
*1 Equivalent Series Resistance
mm
Internal connections(TOP VIEW)
Frequency (MHz)
(Range)
8 to 9.5
9.5 to 10
10 to 20
20 to 30
30 to 55
Equivalent Series
Resistance max.[Ω]
300
150
120
70
50
H
3.2 ±0.2
NX5032GA : H=1.3±0.2
NX5032GB : H=1.0±0.2
Reference land pattern
2.0
2.0
1.3
6.0
2.4
cu27_071108_NX5032GA_e1
