305WF Overview

single channel coaxial, N & tnc connectors

PRODUCT
SPECIFICATION
ROTARY JOINTS
SINGLE CHANNEL COAXIAL, N & TNC CONNECTORS
FEATURES
Coaxial In-line, TNC or TYPE-N Male and Female
Designed for High Speed Operation
Designed to MIL-E-5400 Class II
Long Life
305 & 344 SERIES
SPECIFICATIONS
Frequenc
y
Range
f (GHz)
VSWR
max
@ f (GHz)
Insertion
Loss, max
(dB) @
f (GHz)
Peak
Powe
r
(kW)
Average
Power
Watts
@f
(GHz)
100 @ 1
Starting
Torque
Max
(oz-in)
8
8
7
7
7
Continuous
Rotational
Speed
(rpm)
500
500
1500
1500
1500
Nominal
Weight
(ounces)
Model
Number
DC – 12.4
1.10:1 DC–3
1.15:1 3–6
1.30:1 6–10
1.50:1 10–12.4
1.5
0.1 + 0.015f
10
8
9
4
5
5
305W
305WF
344
344F
344AF
DC – 18
1.0
6
100 @
18

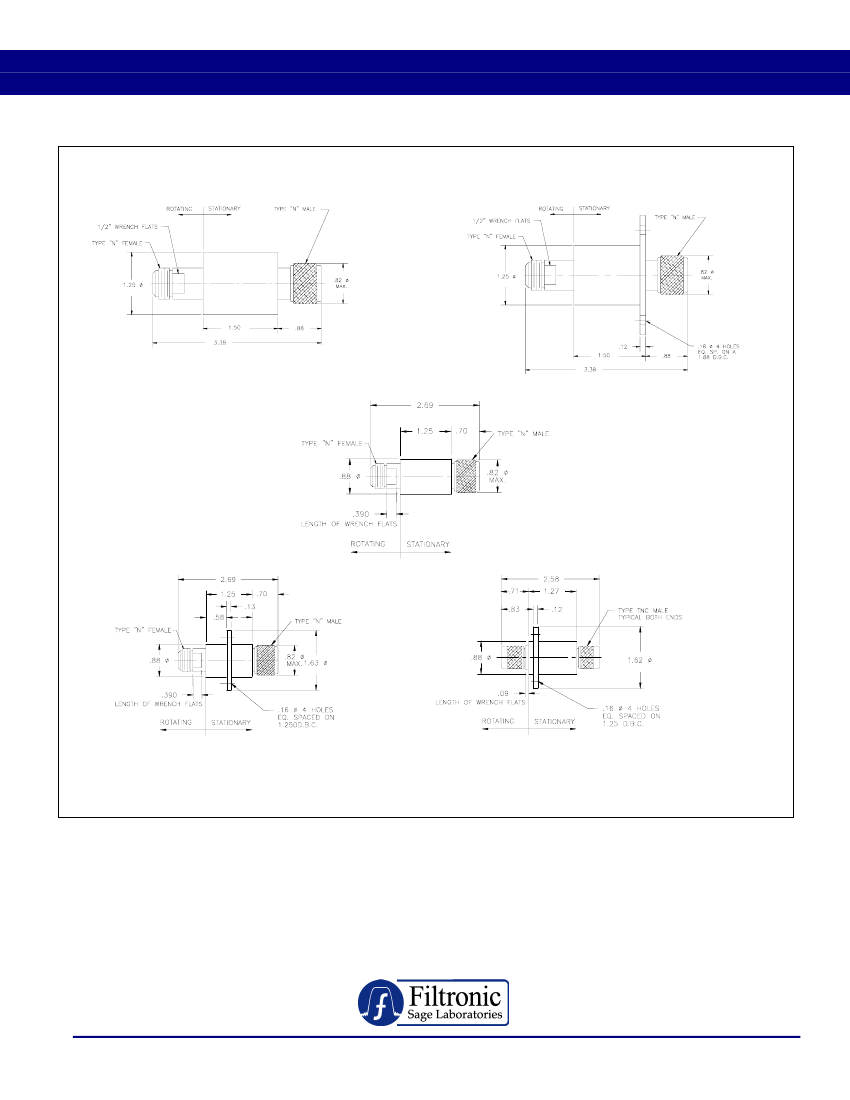

Model 344AF supplied with TNC connectors, all others have Type N.
Models designated F are flanged styles for gimbal.
WOW (max VSWR/min VSWR)/360
o
is 1.01.
Max DC current is 10 A.
Refer to Power Derating chart for power ratings at other frequencies.
VSWR and insertion loss graphs applicable only for models with Type N connectors.
Sage Laboratories, Inc.
11 Huron Drive
Natick, MA 01760-1338
www.sagelabs.com
Tel: 508-653-0844
Fax: 508.653.5671
