Fiber Optics and
liquid level Sensors
line Guide
Excellence, through every fiber.
Honeywell Sensing and Control
(S&C) offers fiber optic sensors manufactured with SERCOS (Serial
Real-time Communication System) transmitters and receivers,
duplexers, even liquid level sensors. Each fully customizable, and
designed to meet and exceed harsh environmental demands.
SERCOS Transmitters and Receivers:
Best for low and medium
speed short-haul fiber optic links in cost-sensitive, rugged
environments —from potential industrial applications to backbone
in building networks.
Duplexers:
Honeywell S&C’s single fiber duplex modules are
capable of either bi-directional data transmission or multiplexing
two different wavelengths over a single optical fiber.
liquid level Sensors:
Using the principle of total internal
reflection, we’ve created a fast, often reliable, cost-effective solid-
state sensor family.
FEATURES
DUplEx MODUlES
HOD2236-111/BBA and
HOD4090-111/BBA Series.
Features:
Full duplex over single fiber
• dc to 160 MHz link bandwidth • Link
budgets of 2 km [1.24 miles] or greater
• 40 dB isolation • Other transmitter/
receiver configurations, housing, and
connector options available
Benefits:
Pair of single fiber duplex
modules allows full duplex communication
over a single fiber link. Two devices
per module, coupled to a single
fiber via integral lenses and a 3 dB
wavelength differentiating mirror, allow
two corresponding duplex modules to
communicate in opposing directions
simultaneously and independently of each
other. Used to multiplex two signals to a
single fiber or where a dual fiber solution
is neither possible nor economical. Fiber
optic technology provides minimum data
corruption and EMI/RFI immunity. Used in
potential applications requiring fiber-optic
medium but looking to reduce cabling
costs such as CCTV/video surveillance,
data communications, test equipment, and
remote sensing and control.
applications include harsh industrial
environments, building networks, machine
tool/robot control, automated industrial
production lines, point-to-point links
requiring a speed up to 50 Mb/s, and
lower cost plastic fiber networks.
SERCOS TRAnSMiTTERS
HFE7000-210 Series.
Features:
Designed to work with
Honeywell’s high-speed receivers
HFD7000-XXX and HFD7500-XXX • Super
bright LED • Enhanced power output
• Speed • Enhanced reliability • Meets
SERCOS (Serial Real-time Communication
System) specifications
Benefits:
650 nm wavelength provides
low attenuation; integrated lens provides
maximum coupling into plastic fibers.
Fiber optic LED component mounted in
polymide plastic fiber-reinforced housing
for mechanical stability. Plastic SMA
housing delivers cost-effective module
easily mounted on PCB. High-speed
optical transmitter converts electrical
signals into optical signals to meet data
transmission requirements for factory and
office automation applications. Potential
HFE7020-210 Series.
Features:
Designed to work with
Honeywell’s high speed receiver
HFE7520-2120 • Enhanced power output
• Speed • Enhanced reliability • Meets
SERCOS (Serial Real-time Communication
System) specifications
Benefits:
650 nm wavelength provides
low attenuation in plastic fibers.
Fiberoptic LED component mounted in
polymide plastic fiber-reinforced housing
for mechanical stability. Plastic SMA
housing delivers cost-effective module
easily mounted on PCB. High-speed
optical transmitter converts electrical
signals into optical signals to meet data
transmission requirements for factory and
office automation applications. Potential
continued on page 4
Fiber Optics and liquid level Sensors line Guide
Custom solutions. Rugged
performance.
Honeywell S&C offers a wide
variety of fiber optic and liquid
level sensors.
SERCOS Transmitters
and Receivers:
Meeting all
SERCOS specs and featur-
ing SMA fiber DIP packaging
— for enhanced mechanical
stability and better immunity
against RFI.
Potential applica-
tions include machine tool and
robot controls, automated lines
and lower cost plastic fiber
networks.
Duplexers:
For potential
customer-specific applications
requiring a fiber-optic medium
and reduced cabling costs
including video surveillance,
data communications, and
test equipment. The modules
fall into three basic configura-
tions: 1. WDM (Wavelength
Division Multiplexing) delivers
full duplex data communica-
tion over a single optical fiber
by multiplexing two different
wavelengths of light. 2. The
Active Coupler behaves as a
WDM module, but uses the
same wavelength of light in
both directions. 3. Wave Divi-
sion Combiners and Splitters
can couple or divide two differ-
ent wavelengths of light into, or
from, a single fiber.
liquid level Sensors:
An
Optoschmitt trigger provides
a digital output indicating
the presence or absence of
a liquid. Designed for harsh
industrial environments with
extremes in temperature, pres-
sure, vibration, and shock.
2

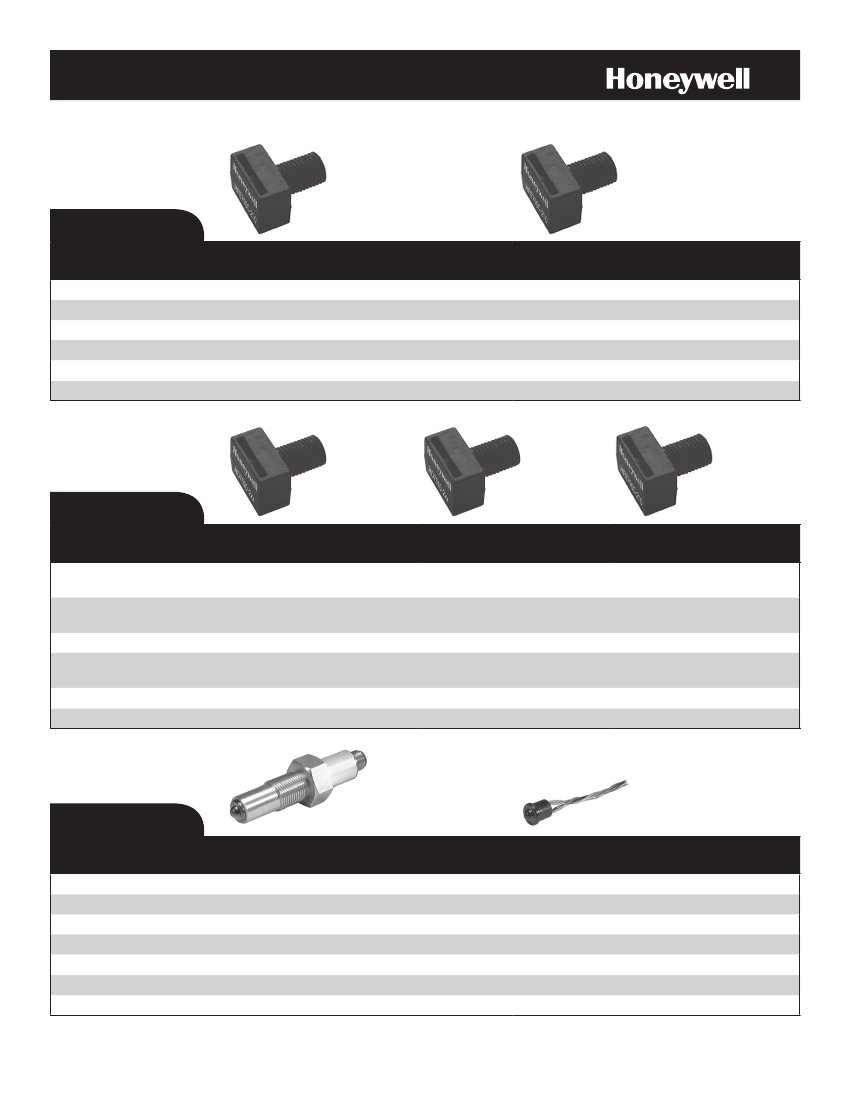

Duplex Modules
HOD2236-111/
BBA
Device location
Device type
Rise/fall time
Fiber coupled power range
Slope efficiency
Forward voltage
Threshold current
Spectral bandwidth
Response time
Flux responsivity
Dark current
Reverse voltage
Capacitance
Optical budget when used with
corresponding duplexer
Connector
Operating temperature range
Mounting
Port 1
transmit
1300 nm
multimode laser
<3 ns
40
mW
to 100
mW
0.35 mW/mA typ.
1.2 V typ.
12 mA typ.
2 nm typ.
0.5 ns max.
–
–
–
–
<10 dB
ST low profile
0 °C to 70 °C
[32 °F to 158 °F]
PCB
Port 2
receive
850 nm PIN diode
<3 ns
–
–
–
–
–
3 ns max.
0.3 A/W typ.
0.05 nA typ.
50 V max.
1.5 pF typ.
<10 dB
ST low profile
0 °C to 70 °C
[32 °F to 158 °F]
PCB
HOD4090-111/
BBA
Port 1
receive
1300 nm PIN
diode
<3 ns
–
–
–
–
–
1 ns max.
0.50 A/W typ.
2.0 nA typ.
20 V max.
1.5 pF typ.
<10 dB
ST low profile
0 °C to 70 °C
[32 °F to 158 °F]
PCB
Port 2
transmit
850 nm VCSEL
<3 ns
200
mW
to 400
mW
0.2 mW/mA typ.
1.8 V typ.
3.6 mA typ.
0.85 nm max.
300 ps max.
–
–
–
–
<10 dB
ST low profile
0 °C to 70 °C
[32 °F to 158 °F]
PCB
www.honeywell.com/sensing
SERCOS
Transmitters
HFE7000-210 Series
plastic SMA fiber DIP
50 Mbps
-10 dBm min. at 10 mA
250 mWA
40 mA
0 °C to 70 °C [32 °F to 158 °F]
HFE7020-210 Series
plastic SMA fiber DIP
156 Mbps
-1.5 dBm typ. at 30 mA
250 mW
50 mA
0 °C to 67 °C [32 °F to 140 °F]
Housing style/material
Data rate
Fiber coupled output power
Power dissipation
Forward current
Operating temperature range
SERCOS
Receivers
HFD7520-2xx Series
plastic SMA fiber DIP
-22 dBm at 650 nm
156 Mbps max.
40 mA
-0.5 V to 7 V
-20 °C to 70 °C [-4 °F to 158 °F]
HFD7510-2xx Series
plastic SMA fiber DIP
-29.5 dBm at 650 nm
50 Mbps max.
40 mA (operation mode)
100
mA
(standby mode)
-0.5 V to 7 V
-40 °C to 85 °C [-40 °F to 185 °F]
HFD7000-2xx Series
plastic SMA fiber DIP with plastic or
metal barrel
-21 dBm at 660 nm
16 Mbps max.
45 mA
4.75 V to 5.25 V
-0 °C to 70 °C [32 °F to 158 °F]
Housing style/material
Minimum detectable signal
level
Data rate
Current consumption
Supply voltage range
Operating temperature range
liquid level
Sensors
lln Series
stainless steel
10 Vdc to 40 Vdc
60 mA max.
sinking
3-pin Lumberg/Brad Harrison-type connector
fluorocarbon
-40 °C to 125 °C [-40 °F to 257 °F]
llE Series
polysulphone, nickel-plated brass, stainless steel
5 Vdc to 12 Vdc
15 mA max.
sinking
lead wires
nitrile rubber, vamac rubber
-40 °C to 125 °C [-40 °F to 257 °F] (inclusive)
Housing material
Supply voltage range
Supply current
Output
Termination
Seal washer
Operating temperature range
www.honeywell.com/sensing
3
applications include harsh industrial
environments, building networks, machine
tool/robot control, automated industrial
production lines, point-to-point links
requiring a speed up to 50 Mb/s, and
lower cost plastic fiber networks.
SERCOS RECEivERS
HFD7520-2xx Series.
Features:
Designed to work with
Honeywell’s high-speed 650 nm LED HFE
7020-210 • Often accurate, high-speed
data transmission in difficult environments
• PECL voltage conversion output • Wide
dynamic range • Enhanced reliability
• Meets SERCOS (Serial Real-time
Communication System) specifications
Benefits:
Monolithic chip design provides
enhanced resistance to external noise
and enhanced reliability. Plastic SMA
housing provides cost-effective module
easily mounted on PCB. Monolithic 156
Mbps receiver designed for plastic
optical fiber data communication in
factory automation, office machines,
home automation, and LANs, especially
those subject to high electromagnetic
noise. Potential applications include harsh
industrial environments, building networks,
machine tool/robot control, automated
industrial production lines, point-to-point
links requiring a speed up to 50 Mb/s, and
lower cost plastic fiber networks.
provides cost-effective module easily
mounted on PCB. Monolithic 50 Mbps
receiver designed for plastic optical fiber
data communications in factory automation,
office machines, home automation,
and LANs, especially those subject to
high electromagnetic noise. Potential
applications include harsh industrial
environments, building networks, machine
tool/robot control, automated industrial
production lines, point-to-point links
requiring a speed up to 50 Mb/s, and lower
cost plastic fiber networks.
HFD7000-2xx Series.
Features:
Designed to work with
Honeywell’s high-speed 660 nm LED HFE
7000 • Enhanced mechanical stability
• Enhanced RFI/EMI/ESD shielding
• Often accurate, high-speed data
transmission in difficult environments
• TTL output • Low cost plastic version
available • Meets SERCOS (Serial
Real-time Communication System)
specifications
Benefits:
Monolithic CMOS chip consists
of large area photodiode, preamplifier
with controlled gain, post amplifier,
comparator, and TTL output stage.
Integrated voltage regulator for easy use
in many applications. On-chip controlled
gain provides a wide dynamic range
and low pulse width distortion. Metal
receptacle provides greater mechanical
stability and better immunity against RFI
than plastic because electrical ground is
separated from the receptacle’s ground.
High-speed optical receiver designed
for data transmission in industrial LAN
applications. Potential applications include
harsh industrial environments, building
networks, machine tool/robot control,
automated industrial production lines,
point-to-point links requiring a speed up
to 50 Mb/s, and lower cost plastic fiber
networks.
Benefits:
Principle of total internal
reflection creates fast, reliable, cost-
effective solid-state sensor. Optoschmitt
trigger provides digital output indicating
presence or absence of liquid. Stainless-
steel housing for extended life and
easy cleaning. Quick-connect, industry-
standard cable assembly for easy
installation. Meets IP67 for use in harsh
industrial environments with extremes
in temperature, pressure, vibration,
and shock such as food and beverage
processing, machine tools, industrial
compressors, and vending machines.
Polysulphone sensor dome often suitable
for potential hygiene applications.
llE Series.
Features:
Miniature size • Solid-state
reliability, no moving parts • Sinking output
• Microprocessor compatible • Very large
choice of sensing media • Cost effective
• Fast response • Polysulphone housing
• Reverse polarity and overvoltage
protection • Short circuit and transient
protection
Benefits:
Photo-transistor trigger provides
digital output indicating presence or
absence of liquid. Internal or external
mounting options for application flexibility.
Miniature size for potential use in
home appliances, food and beverage
processing, compressors, and vending
machines. Polysulphone housing often
suitable for potential hygiene applications.
HFD7510-2xx Series.
Features:
Designed to work with
Honeywell’s high-speed 650 nm LED HFE
7010-210 • Standby mode for low power
dissipation • Often accurate, high-speed
data transmission in difficult environments
• TTL output • Wide dynamic range
• Enhanced reliability • Meets SERCOS
(Serial Real-time Communication System)
specifications
Benefits:
Monolithic chip design provides
enhanced resistance to external noise
and enhanced reliability. Standby mode
automatically switches to low power
dissipation mode when no light is input and
switches back to normal operation mode
when light is input, from the optical fiber.
Current consumption in standby mode
is approximately 1/400
th
that of normal
current consumption. Plastic SMA housing
4
www.honeywell.com/sensing
liqUiD lEvEl SEnSORS
lln Series.
Features:
Solid-state reliability, no
moving parts • 200 mA sinking output is
TTL compatible • Sinking output • Fast
response • Polysulphone sensor dome
• Stainless steel, high pressure housing
• IP67 • Reverse polarity and overvoltage
protection
Warranty.
Honeywell warrants goods of
its manufacture as being free of defective
materials and faulty workmanship.
Honeywell’s standard product warranty
applies unless agreed to otherwise by
Honeywell in writing; please refer to your
order acknowledgement or consult your
local sales office for specific warranty
details. If warranted goods are returned to
Honeywell during the period of coverage,
Honeywell will repair or replace, at its
option, without charge those items it finds
defective.
The foregoing is buyer’s sole
remedy and is in lieu of all warranties,
expressed or implied, including those
of merchantability and fitness for a
particular purpose. in no event shall
Honeywell be liable for consequential,
special, or indirect damages.
While we provide application assistance
personally, through our literature and
the Honeywell web site, it is up to the
customer to determine the suitability of the
product in the application.
Specifications may change without notice.
The information we supply is believed to
be accurate and reliable as of this printing.
However, we assume no responsibility for
its use.
For more information about Sensing and
Control products, visit www.honeywell.
com/sensing or call +1-815-235-6847
Email inquiries to info.sc@honeywell.com
WARninG
pERSOnAl inJURY
• DO NOT USE these products as
safety or emergency stop devices
or in any other application where
failure of the product could result in
personal injury.
Failure to comply with these
instructions could result in death or
serious injury.
WARninG
MiSUSE OF DOCUMEnTATiOn
• The information presented in this
catalogue is for reference only. DO
NOT USE this document as product
installation information.
• Complete installation, operation and
maintenance information is provided
in the instructions supplied with each
product.
Failure to comply with these
instructions could result in death or
serious injury.
Sensing and Control
Automation and Control Solutions
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422 USA
+1-815-235-6847
www.honeywell.com/sensing
006729-1-EN IL50 GLO
June 2008
Copyright © 2008 Honeywell International Inc. All rights reserved.
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
