TW1010/TW1012 Embedded GPS L1 Antenna
The TW1010/TW1012 by Tallysman Wireless is low
cost, high gain, high performance, embedded GPS L1
antenna, specially designed for OEM industrial,
military, precision positioning and timing applications.
The TW1010/TW1012 features a precisely tuned
single feed ceramic patch element. It has a two stage
Low Noise Amplifier (LNA) with a mid-section SAW.
An optional tight pre-filter is available with part
number TW1012 to protect against saturation by high
level sub-harmonics and L-Band signals.
The TW1010/TW1012 covers the GPS L1 and SBAS
(WAAS /EGNOS/MSAS) frequency band (1572.5 to
1578 MHz), and it offers great circular polarized signal
reception, multipath rejection and out of band signal
rejection.
The TW1010/TW1012 has a built-in 35mm circular
ground plane that can be augmented with host system
ground surfaces. Patch Elements are susceptible to
detuning by the local environment.
Tallysman offers

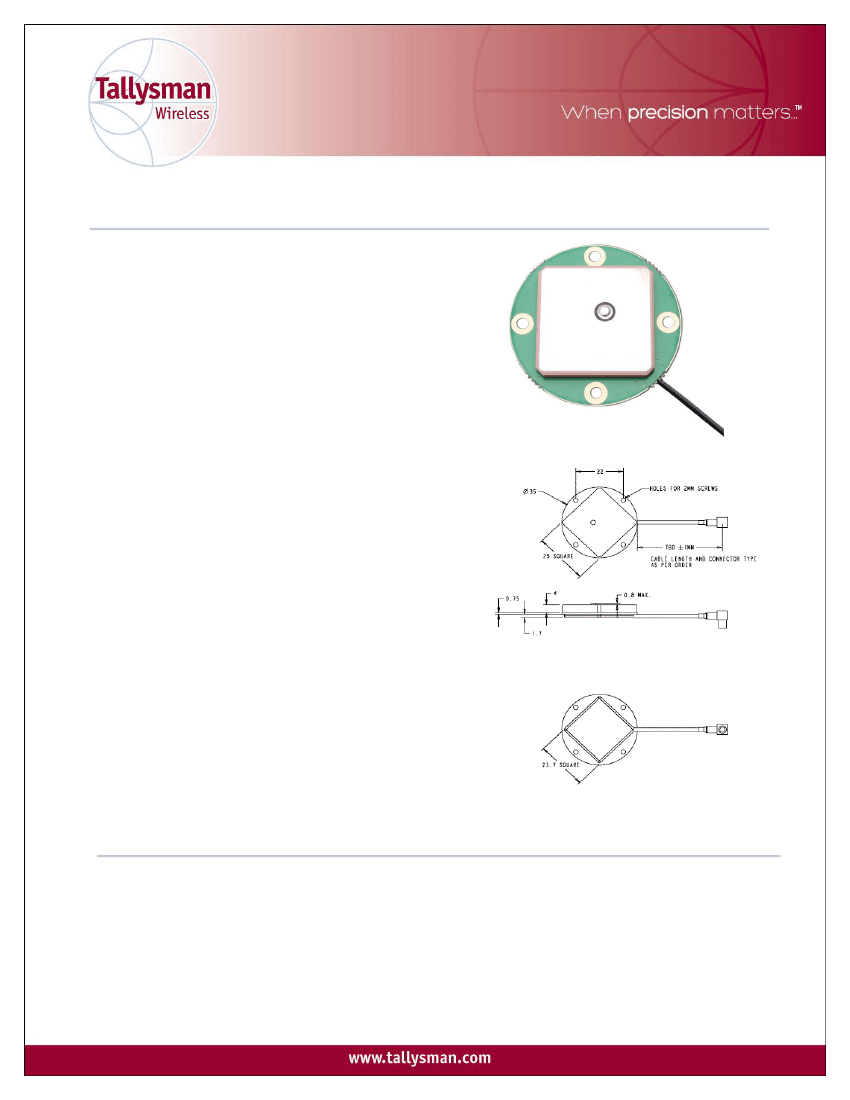

TW1010/TW1012 Dimensions (mm)
custom services to assist with integration of OEM
modules into an end user solution.
Applications
High Accuracy & Mission Critical GPS
Precision Agriculture, Mining & Construction
Military & Security
Avionics
Law Enforcement & Public Safety
Fleet Management & Asset Tracking
Features
Very low noise LNA: 1 dB (TW1010).
Great axial ratio: <4dB at Zenith
High rejection SAW filter
LNA gain: 28 dB typ (TW1010).
Low current: 10 mA typ.
ESD circuit protection: 15 KV
Wide Supply voltage: fixed 2.5V to 16V
Benefits
Low Profile: 7.25mm
Great multipath rejection
Increase system accuracy
Excellent signal to noise ratio
Great out of band signal rejection
Compact form factor
RoHS compliant
TW1010/TW1012 Embedded GPS L1 Antenna
Specifications
At; Vcc = 3V, over full bandwidth, T=25°C
Antenna
Architecture
Polarization
Antenna Gain (70mm ground plane)
Axial Ratio
Frequency/Bandwidth (-10dB Return Loss)
TW1010
TW1012
Gain (1575.42 to 1606 MHz)
Filtered LNA Frequency Bandwidth (3dB)
Out-of-Band Rejection
VSWR (at LNA output)
Noise Figure
Supply Voltage Range (over coaxial cable)
Supply Current
ESD Circuit protection
Architecture
Custom single-feed ceramic patch
RHCP
4 dBic at 90°
4 dB at 90°, 6dB at 20°
1575.42MHz +/- 10MHz
LNA stage 1 -> SAW filter-> LNA stage 2
SAW Prefilter ->LNA stage 1 -> SAW filter-> LNA stage 2
27dB min., TW1010; 25dB min, TW1012,
1575.42MHz +/- 10MHz
TW1010: <1500MHz
>35dB. TW1012: >70dB.
TW1010: <1550MHz
>25dB. TW1012: >45dB.
TW1010: >1650MHz
>35dB. TW1012: >70dB.
<1.5:1
TW1010:1 dB typ. TW1012: 3.5dB typ.
+2.5VDC to 16VDC nominal
10mA typ, 15mA max @ . 85°C
15KV air discharge
35mm dia. x 7.5mm
1.48mm OD,
-40°C to +85°C
30 g
Adhesive or screw mount
RoHS compliant
Vertical axis: 50G, other axes: 30G
3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3G
One year – parts and labour
Electrical
Mechanicals & Environmental
Mechanical Size
Cable
Operating Temp. Range
Weight
Attachment Method
Environmental
Shock
Vibration
Warranty
Ordering Information
Legacy:
TW1010 – GPS L1 antenna,
32-1010-xx –yyyy -zz
TW1012 – Pre-filtered OEM GPS L1 antenna,
32-1012-xx –yyyy -zz
Connector:
xx = 00 SMA male ,
01 = TNC male
02 = MCX male
03 = MMCX male 04 = SMB male
05 = MCX right angle male 06 = MMCX right angle male
07 = SMA female
08 = H.FL**
09 = U.FL
10 = SMA R/A**
11 = Reverse polarity SMA** ** Premiums apply. Please contact your Distributor
Cable length: yyyy = cable length in mm
Custom Tuning: zz = Assigned by Tallysman
* As a result of a growing product portfolio, Tallysman has rationalized its part number system. No changes have been made to the
mechanical or electrical properties of these products. Where administratively possible, please use the following Part Numbers.
TW1010 – GPS L1 antenna,
33-1010-xx-yy-zz
TW1012 –
33-1012-xx-yy-zz
Please refer to the Ordering Guide
(http://www.tallysman.com/orderingguide.php)
for the current and complete list of available
connectors.
