Specification for Approval
( Version 1.0 )
Part No. : LRH1035
comments
LUXPIA Co., Ltd.
Designed by
Checked by
Approved by
Approved by Approved by Approved by
/
/
/
/
/
/
Date :
.
.
.
Date :
.
.
.
948-1, Dunsan-Li Bongdong-Eup, Wanju-Gun, JeonBuk, Korea
Tel 82-63-260-4500
Fax 82-63-261-8255
LUXPIA CO.,LTD.
-
1. Features
CONTENTS
-
2. Package Outline Dimensions and Materials
3. Absolute Maximum Ratings
4. Electro-Optical Characteristics
5. Materials
6. Taping
7. Packing
8. Reliability
9. Cautions
10. Warranty
11. Others
12. Characteristic Diagrams
1/14
1. Features
•
Package : SMD Top View Type (1chips in 1)
•
Dimension : 3.5 × 2.7 × 1.8 mm (L×W×H)
•
Small size surface mount type
•
Viewing angle : extremely wide(120˚)
•
Soldering methods : IR reflow soldering

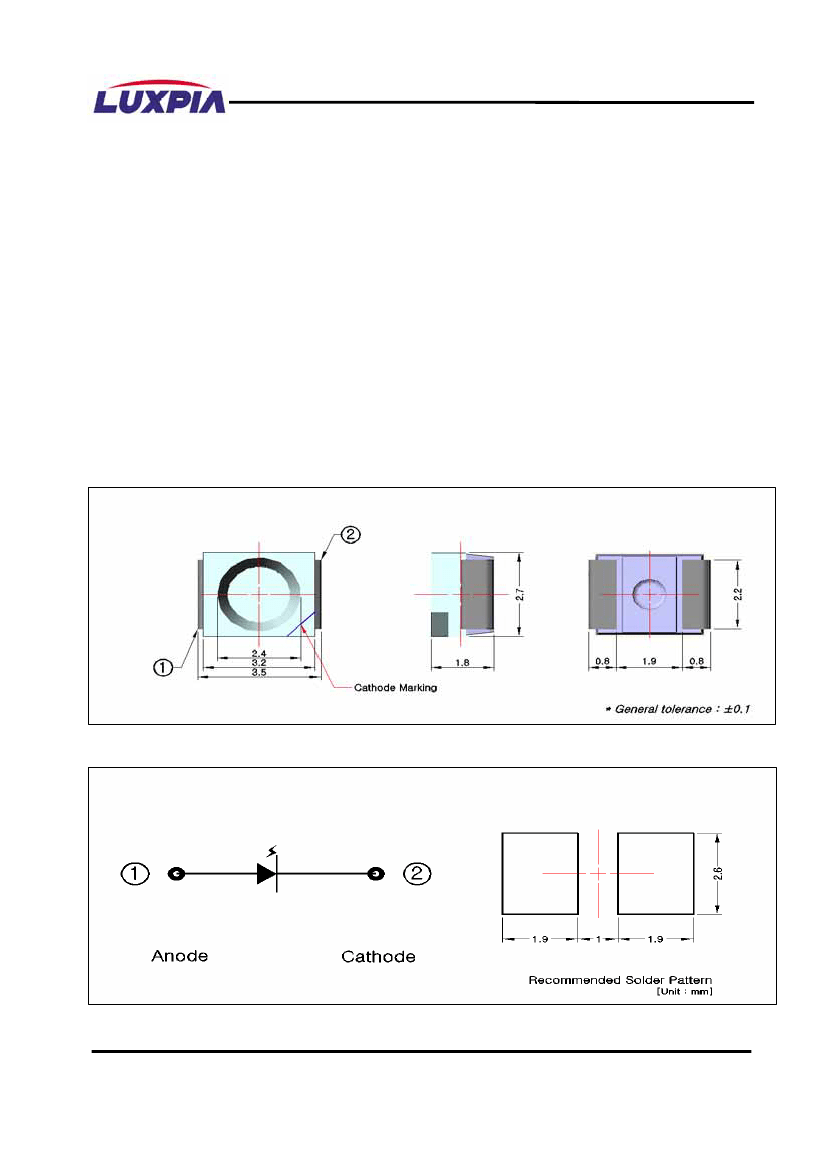

2. Package Outline Dimensions and Recommended Solder Patterns
2/14
3. Absolute Maximum Ratings
(T
a
=25℃)
item
forward current
pulse forward current
reverse voltage
power dissipation
operating temperature
storage temperature
1)
symbol
I
F
1)
value
30
100
5
80
-30 to+85
-40 to +100
unit
mA
mA
V
mW
I
FP
V
R
P
D
T
opr
T
stg
℃
℃
I
FP
conditions : pulse width
≤
10msec & duty ratio
≤
1/10
3/14
4. Electro-Optical Characteristics
item
type
rank
0
forward
voltage
2)
-
1
2
3
Dominant
Wavelength
3)
(T
a
=25℃, I
F
=2mA)
symbol
condition
min
1.60
typ
-
-
-
-
-
-
-
-
max
1.70
1.80
1.90
2.00
635
12.5
17.0
50
unit
V
F
I
F
= 2mA
1.70
1.80
1.90
V
-
-
-
B
C
-
λ
D
I
V
I
F
= 2mA
I
F
= 2mA
625
9.0
12.5
-
nm
mcd
Luminous
intensity
4)
reverse
current
-
I
R
V
R
=5V
㎂
(T
a
=25℃, I
F
=20mA)
item
type
rank
0
symbol
condition
min
1.80
typ
-
-
-
-
-
-
-
-
-
max
2.00
2.20
2.40
2.60
635
110
150
210
50
unit
forward
voltage
2)
-
1
2
3
V
F
I
F
= 20mA
2.00
2.20
2.40
V
Dominant
Wavelength
3)
-
-
G
λ
D
I
F
= 20mA
625
80
nm
Luminous
intensity
4)
reverse
current
2)
3)
4)
-
H
J
I
V
I
F
= 20mA
110
150
mcd
-
-
I
R
V
R
=5V
-
㎂
Forward voltages are tested at a current pulse duration of 10 ms and an accuracy within ±0.1V.
Dominant wavelength are tested at a current pulse duration of 10 ms and an accuracy within ±1nm.
The allowance of luminous intensity measurement is within ±10%.
4/14
