Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TMP86CH21F

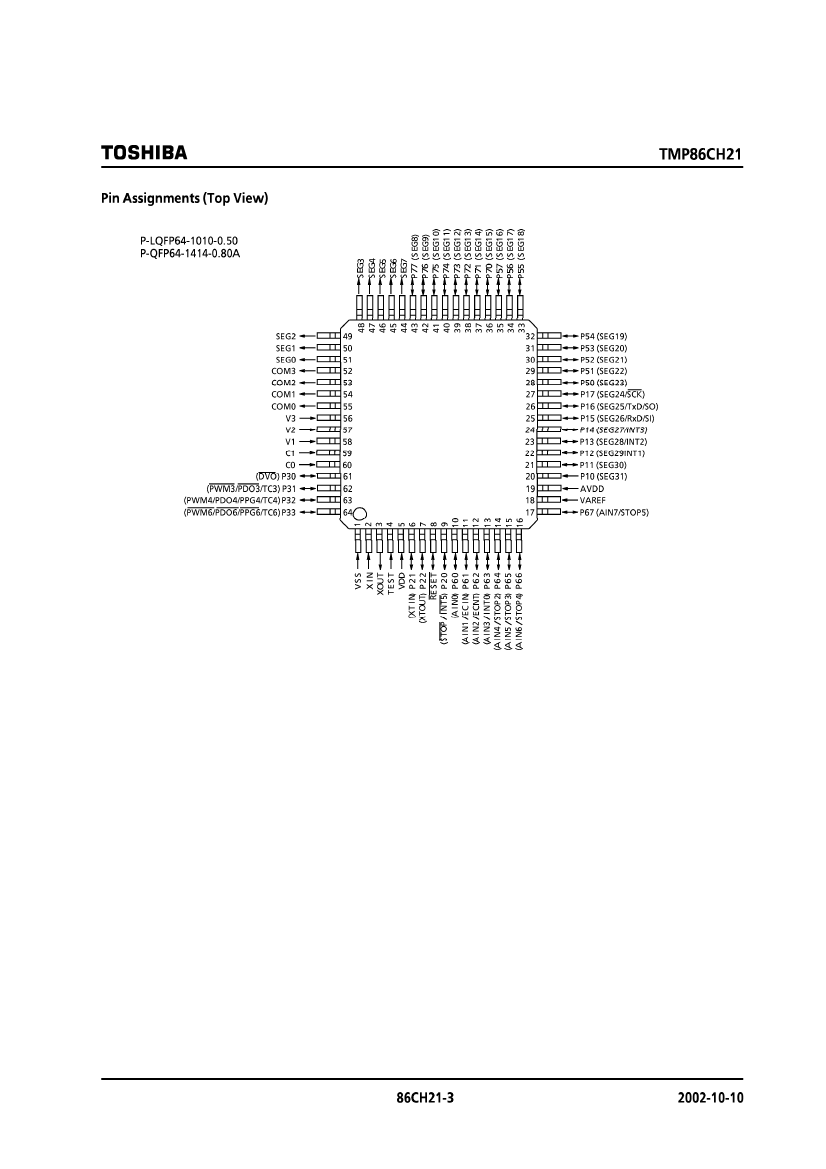

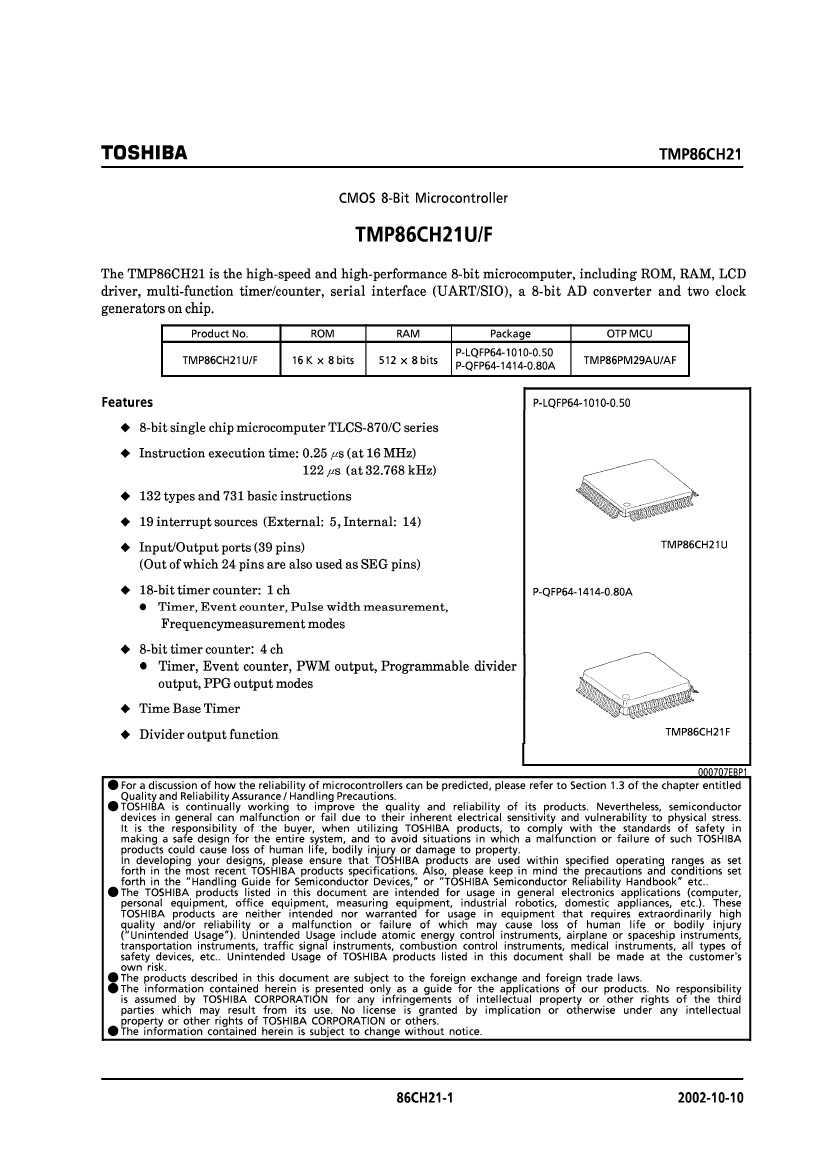

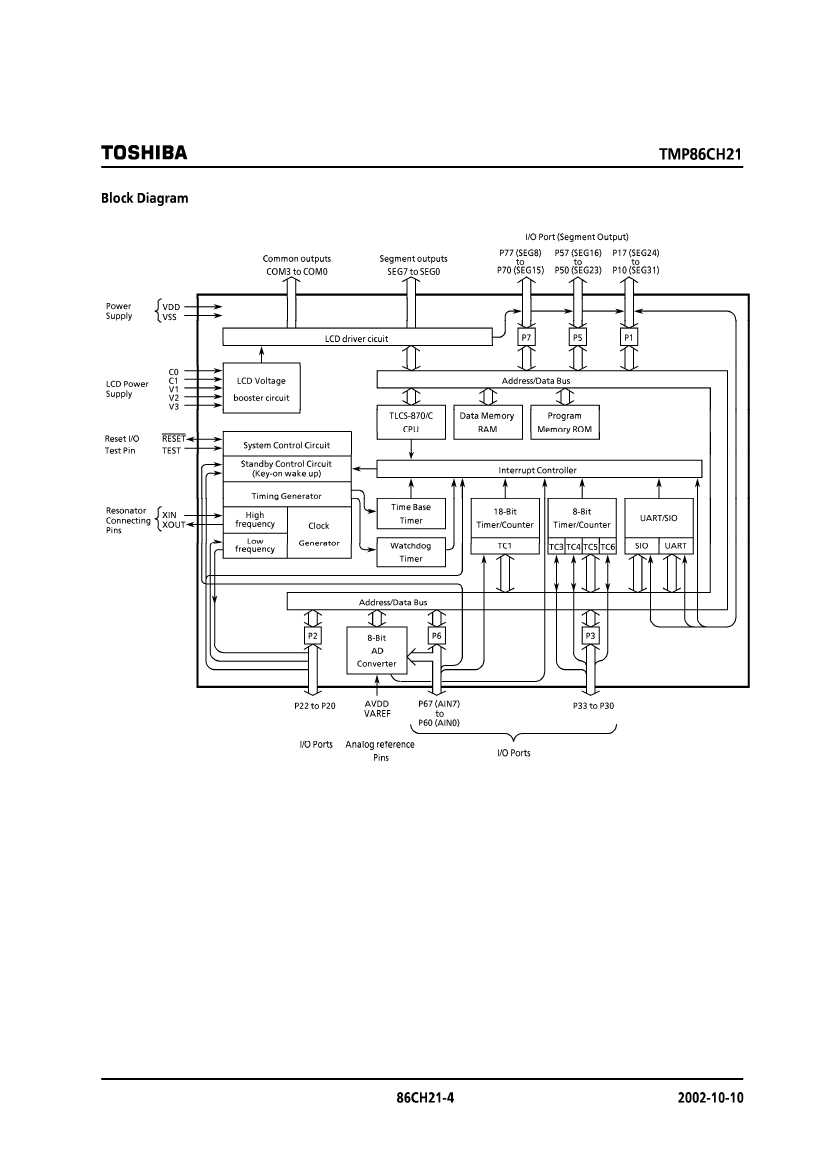

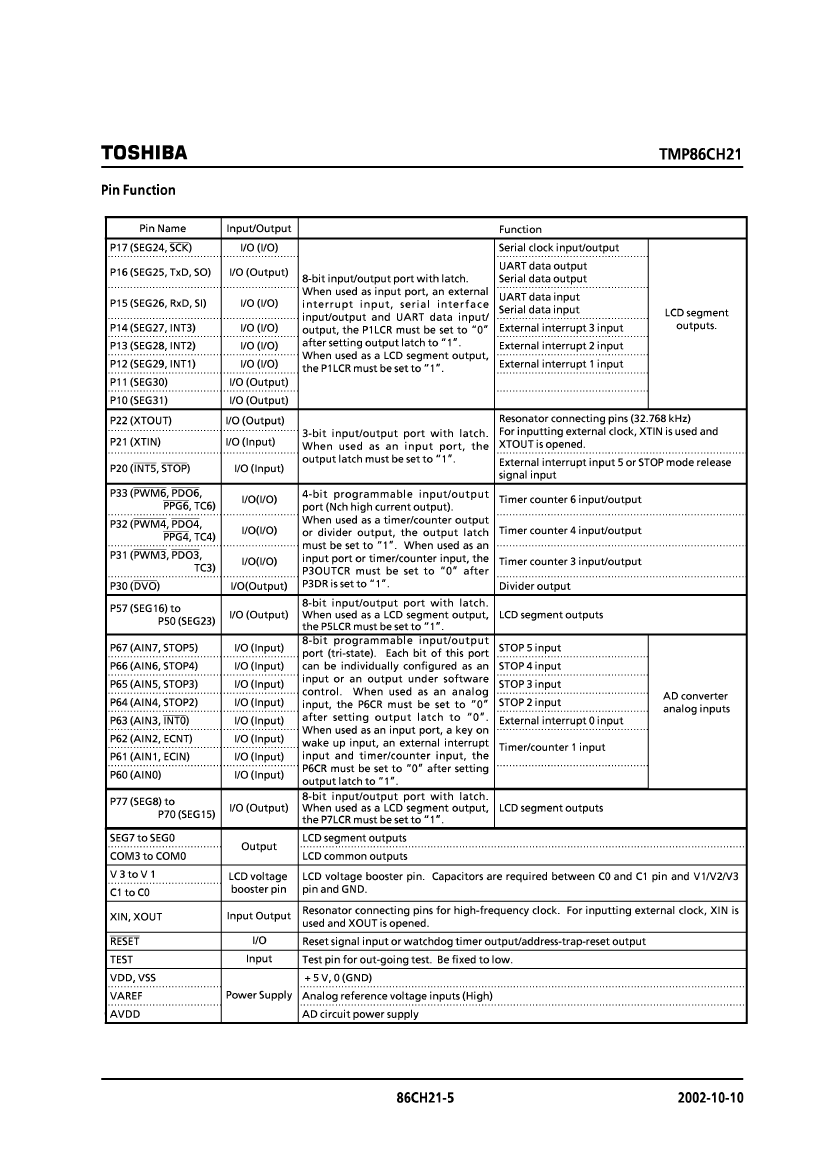

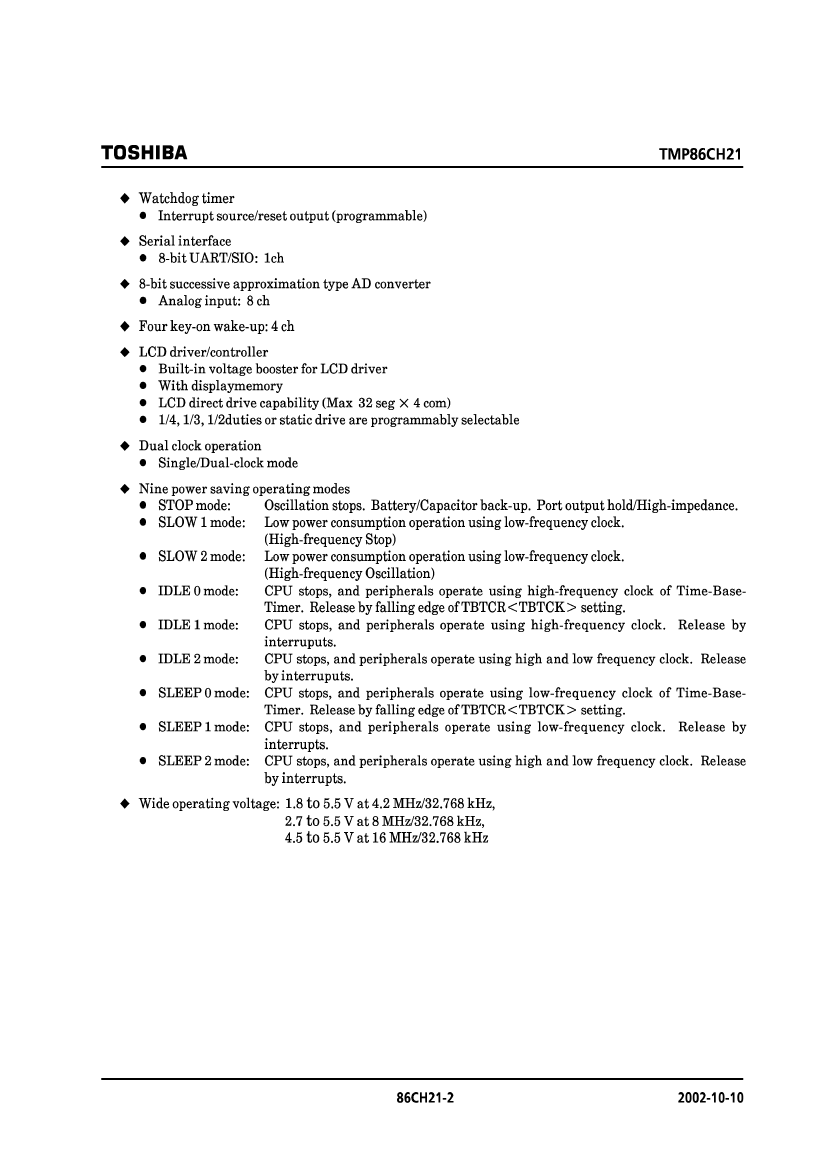

Preview

TMP86CH21F: DescriptionCMOS 8-Bit Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size586KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TMP86CH21F Overview

CMOS 8-Bit Microcontroller

TMP86CH21F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	QFP
package instruction	QFP, QFP64,.66SQ,32
Contacts	64
Reach Compliance Code	unknow
Has ADC	YES
Other features	ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.2 MHZ
Address bus width
bit size	8
CPU series	TLCS-870/C
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	S-PQFP-G64
JESD-609 code	e0
length	14 mm
Number of I/O lines	39
Number of terminals	64
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Encapsulate equivalent code	QFP64,.66SQ,32
Package shape	SQUARE
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/5 V
Certification status	Not Qualified
RAM (bytes)	512
rom(word)	16384
ROM programmability	MROM
Maximum seat height	3.15 mm
speed	16 MHz
Maximum slew rate	9 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	14 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

Preview

Download Datasheet

View All

TMP86CH21F Related Products

	TMP86CH21F	TMP86CH21U
Description	CMOS 8-Bit Microcontroller	CMOS 8-Bit Microcontroller
Is it Rohs certified?	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	QFP	QFP
package instruction	QFP, QFP64,.66SQ,32	FQFP, QFP64,.47SQ,20
Contacts	64	64
Reach Compliance Code	unknow	unknow
Has ADC	YES	YES
Other features	ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.2 MHZ	ALSO OPERATES AT 1.8V MINIMUM SUPPLY AT 4.2 MHZ
bit size	8	8
CPU series	TLCS-870/C	TLCS-870/C
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	NO	NO
JESD-30 code	S-PQFP-G64	S-PQFP-G64
length	14 mm	10 mm
Number of I/O lines	39	39
Number of terminals	64	64
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	FQFP
Encapsulate equivalent code	QFP64,.66SQ,32	QFP64,.47SQ,20
Package shape	SQUARE	SQUARE
Package form	FLATPACK	FLATPACK, FINE PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	2/5 V	2/5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	512	512
rom(word)	16384	16384
ROM programmability	MROM	MROM
Maximum seat height	3.15 mm	1.85 mm
speed	16 MHz	16 MHz
Maximum slew rate	9 mA	9 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.5 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	14 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
