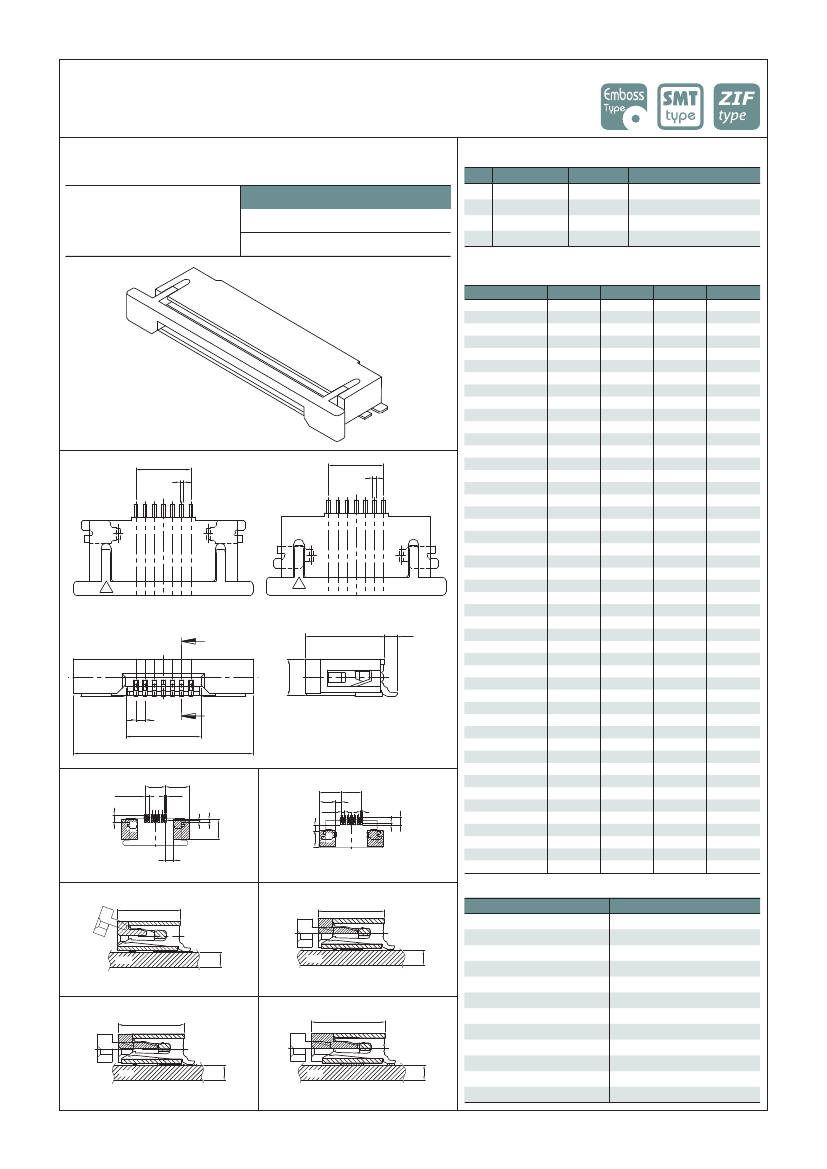

0.50mm
(0.02") PITCH CONNECTOR
Material
FPC/FFC Connector
Housing
SMT, ZIF(Bottom Contact Type)
Right Angle
05003HR-00A01/2 Series
I/NO
1
2
3
4
DESCRIPTION
HOUSING
ACTUATOR
TERMINAL
HOOK
TITLE
05003HR
05003AS
05003TR
05006LR
MATERIAL
PA46, PA6T, LCP, UL 94V Grade
PPS, UL 94V Grade
Phosphor Bronze & Tin plated
Phosphor Bronze & Tin plated
Available Pin
05003HR- 04A01/2
05003HR- 05A01/2
05003HR- 06A01/2
05003HR- 07A01/2
05003HR- 08A01/2
05003HR- 09A01/2
05003HR-10A01/2
05003HR- 11A01/2
05003HR- 12A01/2
05003HR- 13A01/2
05003HR- 14A01/2
05003HR- 15A01/2
05003HR- 16A01/2
05003HR- 17A01/2
05003HR- 18A01/2
05003HR- 19A01/2
05003HR- 20A01/2
05003HR- 21A01/2
05003HR- 22A01/2
05003HR- 23A01/2
05003HR- 24A01/2
05003HR- 25A01/2
05003HR- 26A01/2
05003HR- 27A01/2
05003HR- 28A01/2
05003HR- 29A01/2
05003HR- 30A01/2
05003HR- 31A01/2
05003HR- 32A01/2
05003HR- 33A01/2
05003HR- 34A01/2
05003HR-35A01/2
05003HR- 36A01/2
05003HR- 37A01/2
05003HR- 38A01/2
05003HR-39A01/2
05003HR- 40A01/2
05003HR-41A01/2
05003HR-42A01/2
05003HR-43A01/2
05003HR-44A01/2
05003HR-45A01/2
05003HR-46A01/2
05003HR-47A01/2
05003HR-48A01/2
05003HR-49A01/2
05003HR-50A01/2
PARTS NO.
C
0.2
C/L
C
0.2
C/L
0O
YH A
0O
YH A
(05003HR-00A01)
A
(05003HR-00A02)
D
0.7
0.5(PITCH)
B
A
A"
P=0.5
±0.05
1.1
C
±0.05
3.65
0.3
0.2
0.4
3.05
3.3 C
±0.05
2.4 0.9
P=*0.5
±0.05
0.3
2.4 0.9
0.3
1.1
1.2
PCB LAYOUT (05003HR-00A01)
(04P ~ 20P)
4.3
PCB LAYOUT (05003HR-00A02)
(21P ~ 40P)
4.5
8.3
8.8
9.3
9.8
10.3
10.8
11.3
11.8
12.3
12.8
13.3
13.8
14.3
14.8
15.3
15.8
16.3
16.8
17.3
17.8
18.3
18.8
19.3
19.8
20.3
20.8
21.3
21.8
22.3
22.8
23.3
23.8
24.3
24.8
25.3
25.8
26.3
26.8
27.3
27.8
28.3
28.8
29.3
29.8
30.3
30.8
31.3
A
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
14.5
15.0
15.5
16.0
16.5
17.0
17.5
18.0
18.5
19.0
19.5
20.0
20.5
21.0
21.5
22.0
22.5
23.0
23.5
24.0
24.5
25.0
25.5
B
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
10.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
14.5
15.0
15.5
16.0
16.5
17.0
17.5
18.0
18.5
19.0
19.5
20.0
20.5
21.0
21.5
22.0
22.5
23.0
23.5
24.0
24.5
C
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.3
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
4.5
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
D
2.0
Specification
Voltage Rating
Current Rating
Operating Temperature
Contact Resistance
Withstanding Voltage
Insulation Resistance
Applicable Wire
Applicable P.C.B
Applicable FPC/FFC
Solder Height
Crimp Tensile Strength
UL FILE NO
ITEM
PCB
PCB
T
AC/DC 50V
AC/DC 0.5A
-25℃~+85℃
30mΩ MAX
AC500V/1min
100MΩ MIN
-
0.8 ~ 1.6mm
0.30±0.05mm
0.15mm
-
-
SPEC
PCB ASS'Y, (05003HR-00A01)
(21P ~ 40P)
4.5
PCB ASS'Y, (05003HR-00A02)
(41P ~ 50P)
5.0
PCB
PCB
PCB ASS'Y, (05003HR-00A01)
T
PCB ASS'Y, (05003HR-00A02)
T
T
FPGA/CPLD
