Connectors (Inlets/Outlets)
www.schurter.com/pg07

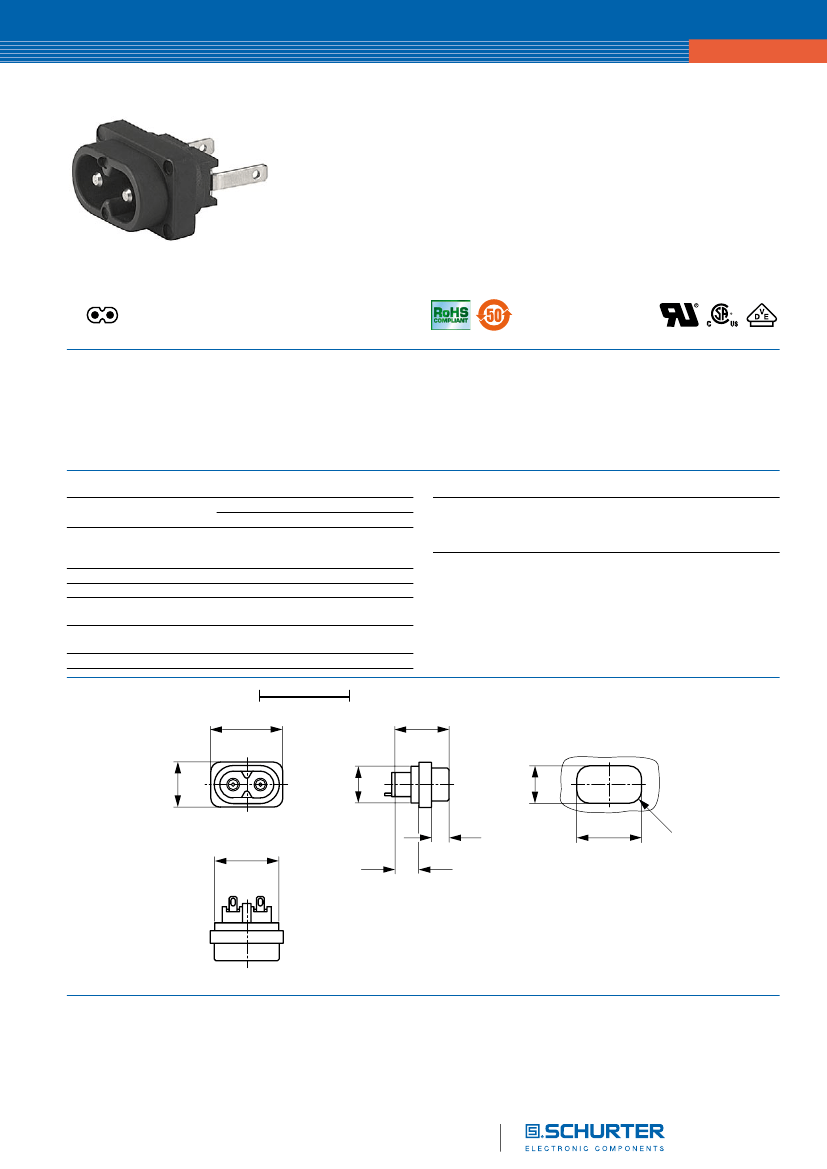

IEC Appliance Inlet C8, insert Mounting, Solder, PCB or Quick-connect Terminal
2572
C8
70° C
Description
Drop-in type Appliance Inlet,
- Pin temperature 70 °C, Protection class II
- Solder, Quick Connect or PCB Terminal
References
Weblinks
We recommend for new applications the type
0720-FP
pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,
Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-
Stock-Check, Accessories, Wire Harness
Approvals
- VDE Certificate Number: 40002274
- UL File Number: E96454
- CSA File Number: 27324
Technical Data
Ratings IEC
Ratings UL/CSA
Dielectric Strength
2.5 A / 250 VAC; 50 Hz
2.5 A / 250 VAC; 60 Hz
> 4 kVAC between L-N
> 2 kVAC between L/N-PE
(1 min/50 Hz)
-25 °C to 70 °C
from front side IP 20 acc. to IEC 60529
Suitable for appliances with protection
class 2 acc. to IEC 61140
Solder, Quick Connect or PCB Terminal
straight
PA6, black / grey / white, UL 94V-0
22.7 mm
Appliance Inlet
C8 acc. to IEC/EN 60320-1
UL 498, CSA C22.2 no. 42 (for cold
conditions) pin-temperature 70 °C,
2.5 A, Protection Class 2
Allowable Operation Temp.
Degree of Protection
Protection Class
Terminal
Material: Housing
Dimensions
22.7
17
+0.2
12.0
- 0
14.2
11.6
5.5
20.2
7.0
20.6
- 0
+0.2
R
4
Length of the terminal please find at the order code configuration table
Connectors
2572
www.schurter.com/pg07
Config. Code
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
The characters are placeholders for the correspondingly keys of selections from the key tables.
Connectors (Inlets/Outlets)
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Type
Type
protection class 2
Configuration
key
B
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Terminals
Terminal Ground
without terminal
Symbols similar as in table A
Configuration
key
0
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Terminals
Terminal L
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
PCB-terminal (standard)
Configuration
key
2
3
4
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Color
Color
jet black: RAL9005
silver grey: RAL7001
pure white: RAL9010
Configuration
key
A
B
D
PCB-terminal (short)
5
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Style
PCB-terminal (long)
Blade terminal (2.8 x 0.8 mm)
Blade terminal (4.8 x 0.8 mm)
6
7
8
Style
insert type
Configuration
key
5
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Terminals
Terminal N
short solder terminal (L = 4.8 mm)
long solder terminal (L = 8.5 mm)
PCB-terminal (standard)
PCB-terminal (short)
PCB-terminal (long)
Blade terminal (2.8 x 0.8 mm)
Blade terminal (4.8 x 0.8 mm)
Symbols similar as in table A
Configuration
key
2
3
4
5
6
7
8
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Dimension X
Dimension "X"
00
The dimension "X" is dispalyed in (
1
/
10
mm). This information is also valid for the
order code
Configuration
key
2572
|
-
|
H
|
-
|
A
|
B
|
C
|
0-
|
D
|
-
|
E
|
G
|
F
|
= Orientation of Terminals
Orientation of Terminals
horizontal
vertical
Configuration
key
A
B
Packaging unit
100 Pcs
2
Connectors
Connectors (Inlets/Outlets)
www.schurter.com/pg07

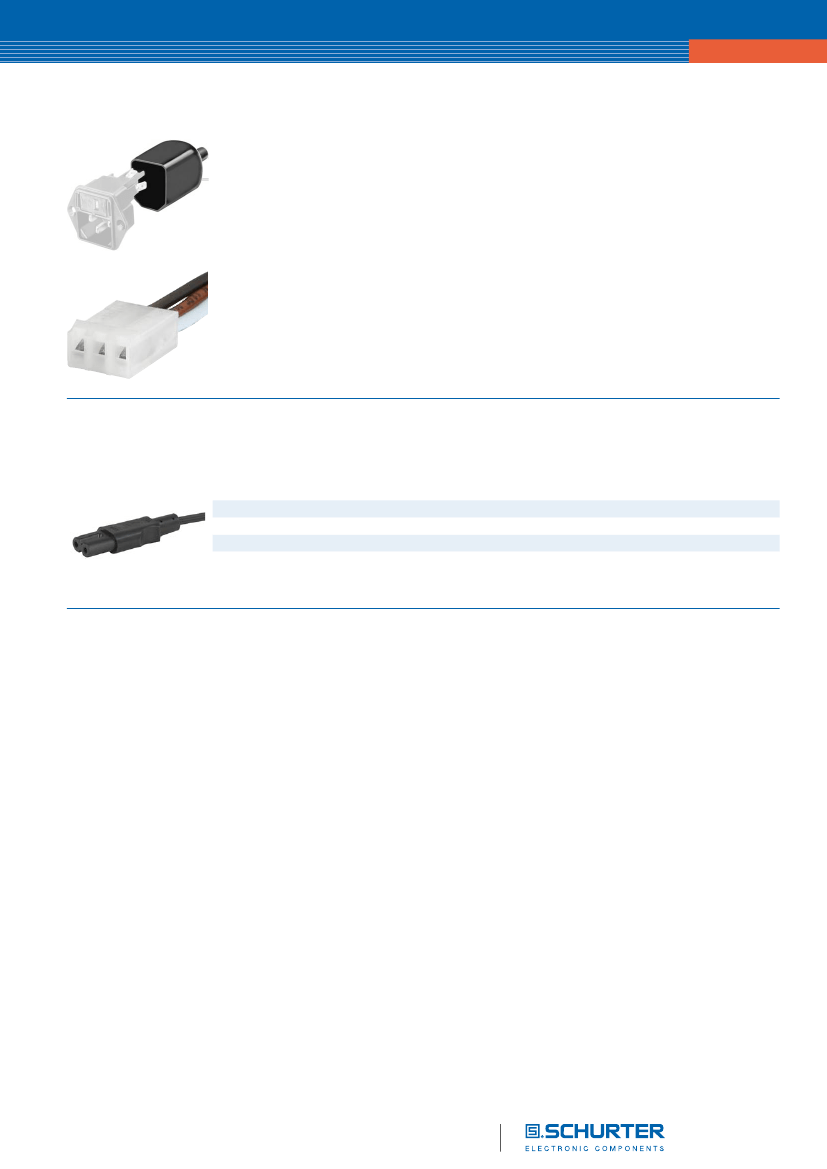

Accessories
Description
2572
Assorted Covers
Rear Cover
Wire Harness
Wire harness for SCHURTER products
Mating Outlets/Connectors
Category / Description
Power CordOverview complete
Power Cord with IEC Connector C7, Straight 70°C
Power Cord with IEC Connector C7, Angled
Power Cord with IEC Plug C7, Angled
Power Cord with IEC Connector C7, Straight 70°C
Power Cordfurther types to2572
2510
2511
2514
4810
The specifications, descriptions and illustrations indicated in this document are based on
Connectors
current information. All content is subject to modifications and amendments.
