* Not CE certified for the EU"

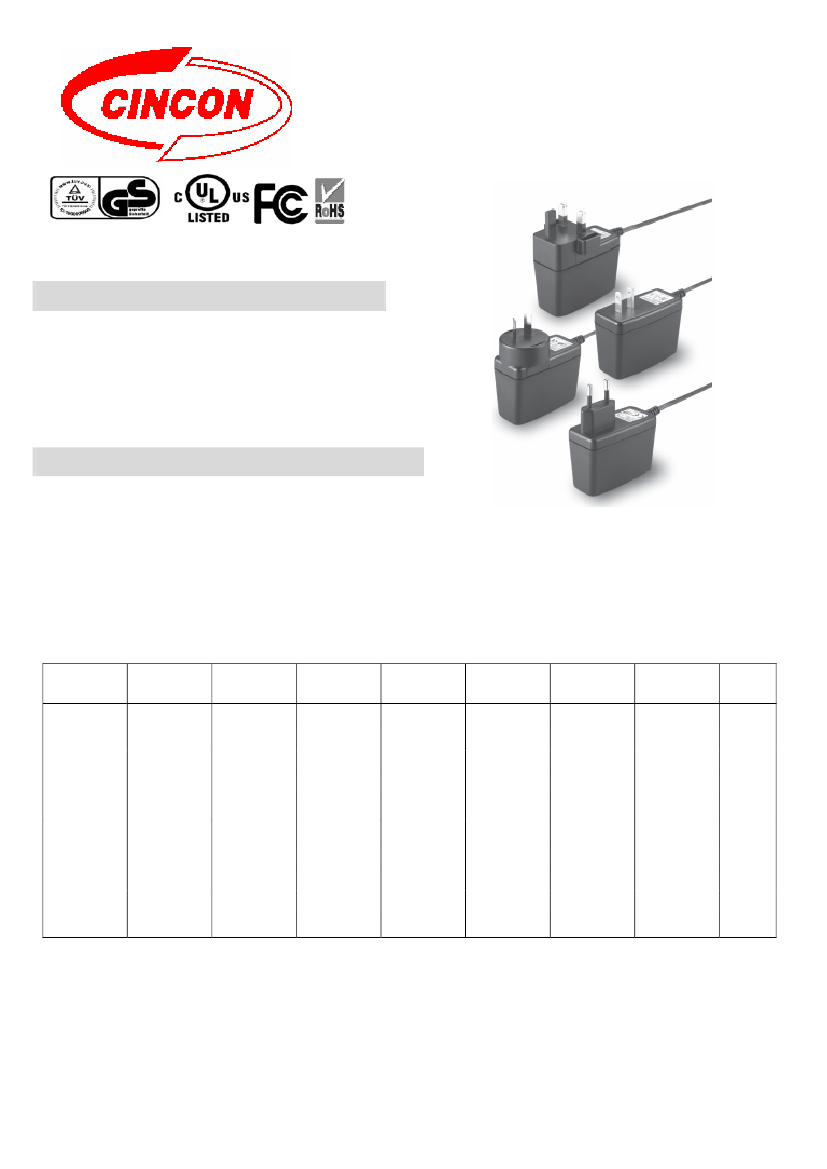

TR500 SERIES
6W SWITCHING
ADAPTER
Features
* Universal Input Range 90-264VAC
* Meets EN55022 Class B and
CISPR/FCC Class B
* Continuous Short Circuit Protection
* Over Current Protection
Ordering information
TR5XX
Model No.
-
X
AC Plug Type
A: USA 2 Pin
E: Europe 2 Pin
U: British 3 Pin
S: Australia 2 Pin
- XX
DC Plug Type
* Please see
Page 213 for
more detailed
descriptions
X
XX
DC Cable Length and Type
A: Without OVP Option 01: 720mm
02: 1200mm
03: 1800mm
11: 720mm with Ferrite Core
12: 1200mm with Ferrite Core
13: 1800mm with Ferrite Core
* 20AWG / UL2468
MODEL
TR501
TR502
TR503
TR506
TR507
TR508
TR510
TR511-1
TR513-1
TR514
OUTPUT
VOLTAGE
12V
10V
9V
8V
7.5V
7.0V
6.5V
6.0V
5.0V
4.2V
MAX.
LOAD
500mA
600mA
650mA
650mA
650mA
650mA
650mA
1000mA
1200mA
1000mA
MIN.
LOAD
0A
0A
0A
0A
0A
0A
0A
0A
0A
0A
RIPPLE &
NOISE
1%
1%
1%
1%
1%
1%
1%
1%
1%
1%
VOLTAGE
SETPOINT
±3%
±3%
±3%
±3%
±3%
±3%
±3%
±3%
±3%
±3%
LINE
REGULATION
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
±1%
LOAD
REGULATION
±2%
±2%
±2%
±3%
±3%
±3%
±3%
±4%
±4%
±4%
% EFF.
(Typ.)
67%.
67%
67%
67%
68%
68%
67%
67%
67%
65%
1
Specifications
INPUT SPECIFICATIONS:
Voltage …....………........…......................................................... 90~264Vac
Frequency ………………………………………….……………..... 50 to 60Hz
Input Current ………………….……………..................................... 0.5A
Inrush Current ………………….………….................... 30A max. @264Vac
Leakage Current …………………………………....………….… 0.25mA max.
TR500 Series Derating Curve
100%
Rated Load(%)
80%
60%
40%
20%
0%
0
10
20
30
40
o
Ambient Temperature( C)
50
60
20LFM(Natural Convection)
OUTPUT SPECIFICATIONS:
Holdup Time …………………………………………… 10mS typ. @115Vac
Short Circuit Protection ……………….……… Continuous(Auto Recovery)
Over Current Protection ………………................... Constant Current Type
Temperature Coefficient ……………………............................… ±0.05%/℃
GENERAL SPECIFICATIONS:
Isolation ………………………………………….. Input to output = 4,242VDC
Operating Temperature .............................. 0 ~ 60℃ (see derating curve)
Storage Temperature ……………………………...….......…........ -20 ~ 85℃
Humidity …………………...….......……....... 93% RH max. Non condensing
Cooling ………………………………..…………………… Natural Convection
Switching Frequency ……………………………..…………… 30 ~ 200KHz
MTBF ……… MIL-HDBK-217F, GB, at 25℃/115VAC ………. 200K hrs min.
Altitude …………………………………………………………………… 2000m
Dimensions …….…….. 2.835x2.047x1.378inches (72.00x52.00x35.00mm)
Weight ……………………………………………..…….. 135g (0.30 Pounds)
NOTE:
1. Voltage setpoint at 60% full Load
2. Add a 0.1uF ceramic capacitor and a 10uF E.L. capacitor to output for
Ripple & Noise measurement @20MHz BW.
3. Line regulation measured from 100Vac to 240Vac, full load.
4. Load regulation measured from 60% to full load and from 60% to
20% load (60% +/- 40% load)
SAFETY AND EMC:
Emission and lmmunity ……….… EN55022 Class B, FCC Part 15 Class B
EN61000-6-3,EN61000-3-2,EN61000-3-3
EN55024, EN61204-3, EN61000-6-1
Safety ………………………………… IEC60950-1, EN60950-1, UL60950-1
Mechanical Specification
All Dimensions are in inches(mm)
Tolerance:Inches:X.XXX±0.02
Millimeters:X.XX±0.5
FIG.A
FIG.E
0.539[13.70]±0.027[0.70]
0.748[19.00]±0.011[0.30]
2.047[52.00]
2.835[72.00]
2.713[68.91]
2.047[52.00]
2.835[72.00]
70.866[1800.00]±1.969[50.00]
70.866[1800.00]±1.969[50.00]
0.500[12.70]±0.011[0.30]
0.669[17.00]±0.031[0.80]
3.529[89.65]
1.378[35.00]
0.688[17.50]±0.019[0.50]
1.378[35.00]
FIG.S
2.047[52.00]
FIG.U
2.047[52.00]
2.835[72.00]
3.307[84.00]
2.835[72.00]
70.866[1800.00]±1.969[50.00]
3.396[86.26]
70.866[1800.00]±1.969[50.00]
0.342[8.68]±0.019[0.50]
0.669[17.00]±0.011[0.30]
1.378[35.00]
1.378[35.00]
Typical at 25˚C, nominal line and 75% load, unless otherwise Specified
2
0.692[17.60]±0.023[0.60]
MAX0.372[9.45]
