851852: DescriptionSAW Filter, 1 Function(s), 70MHz,; CategoryAnalog mixed-signal IC filter; File Size26KB，1 Pages; ManufacturerQorvo; Websitehttps://www.qorvo.com

Download Datasheet Parametric Compare View All

851852 Overview

SAW Filter, 1 Function(s), 70MHz,

851852 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Qorvo
Reach Compliance Code	compliant
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	5.33 mm
input resistance	50 OHM
Maximum insertion loss	27.5 dB
JESD-609 code	e0
length	22.1 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
width	12.65 mm
Base Number Matches	1

Preview

Download Datasheet

View All

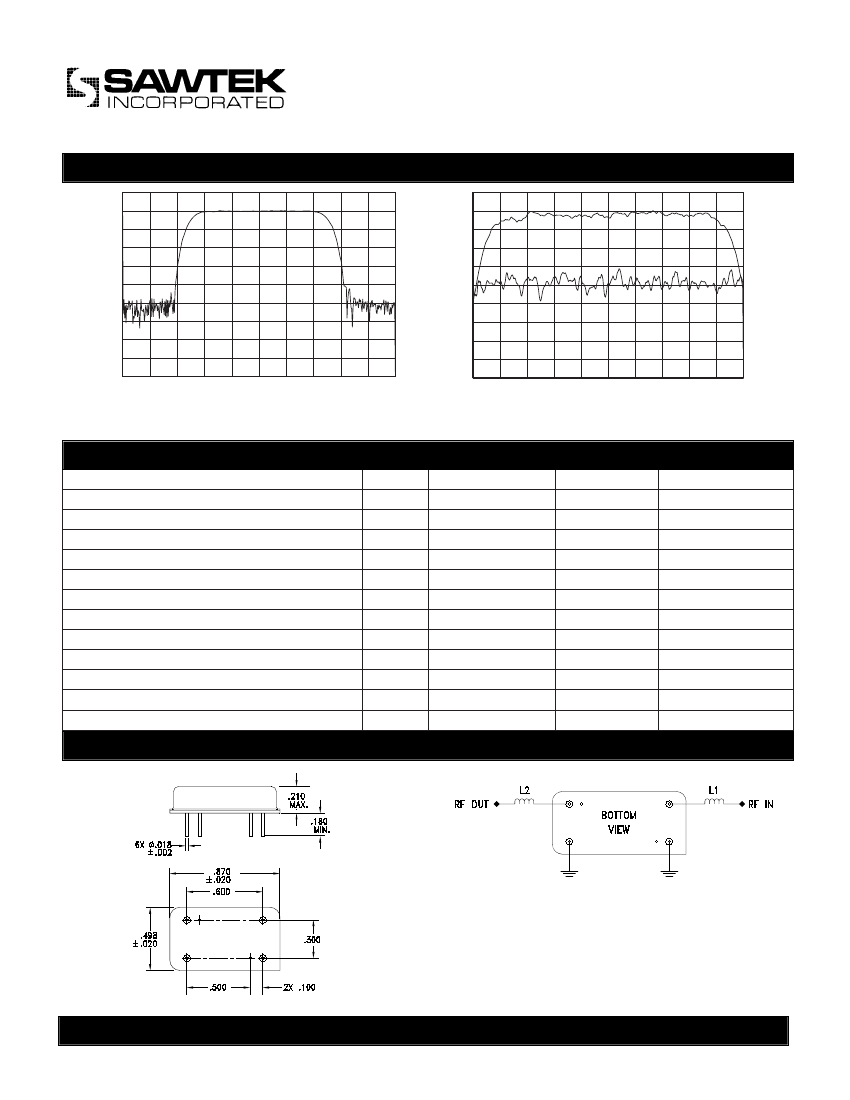

70 MHz Bandpass Filter

Data Sheet

Typical Performance

10

0

-10

-20

-30

-40

-50

-60

-70

-80

-90

Horizontal:

76 82

40 46 52 58 64 70

6 MHz/Div

88 94 100

Vertical: 10 dB/Div

1

75

0

60

-1

45

-2

30

-3

15

-4

0

-5

-15

-6

-30

-7

-45

-8

-60

-9

-75

55 58 61

Horizontal: 3 MHz/Div

79 82 85

64 67 70 73 76

Vertical: 1 dB/Div

Vertical: 15 nsec/Div

28 MHz Bandwidth

Part Number 851852

Parameter

Center Frequency

Insertion Loss at f

o

1 dB Bandwidth

3 dB Bandwidth

40 dB Bandwidth

Passband Variation

Phase Linearity

Group Delay Variation

Absolute Delay

Ultimate Rejection

Substrate Material

Ambient Temperature

Specifications

Unit

Minimum

MHz

dB

MHz

dB

deg

nsec

µsec

dB

-

°C

69.8

-

25.6

28

-

50

-

Typical

70

26.4

26.24

28.74

37

0.67

3.9

20

1

55

128 LiNbO

3

25

Maximum

70.2

27.5

-

37.7

1

6

40

-

Package Outline

Matching Configuration

L1= 330 nH , L2= 280 nH

Nominal Source/Load Impedance = 50Ω

Package Style I

11/17/99

Sawtek Inc.

Telephone: (407) 886-8860

Fax: (407) 886-7061

851852 Related Products

	851852
Description	SAW Filter, 1 Function(s), 70MHz,
Is it Rohs certified?	incompatible
Maker	Qorvo
Reach Compliance Code	compliant
Center frequency or cutoff frequency (fo/fc)	70 MHz
filter type	SAW FILTER
high	5.33 mm
input resistance	50 OHM
Maximum insertion loss	27.5 dB
JESD-609 code	e0
length	22.1 mm
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	50 OHM Ω
physical size	L22.1XB12.65XH5.33 (mm)/L0.87XB0.498XH0.21 (inch)
Terminal surface	Tin/Lead (Sn/Pb)
width	12.65 mm
Base Number Matches	1
