A Tallysman
Accutenna™
TW2410/TW2412 Magnetic Mount GPS/GLONASS Antenna
The TW2410/TW2412 employs Tallysman’s
unique
Accutenna™
technology covering the GPS
L1, GLONASS L1 and SBAS (WAAS, EGNOS &
MSAS) frequency bands (1574 to 1606 MHz). It
is especially designed for precision industrial,
agricultural and military OEM applications. It
provides truly circular response over its entire
bandwidth
thereby
producing
superior
multipath signal rejection.
The TW2410/TW2412 features a dual-feed
wideband patch element, with a two stage Low
Noise Amplifier, comprised of one input LNA per
feed, a mid section SAW to filter the combined
output, and a final output gain stage. This
configuration provides excellent axial ratio that
is constant across the full frequency band. An
optional tight pre-filter is available with part
number TW2412 to protect against saturation
by high level sub-harmonics and L-Band signals.

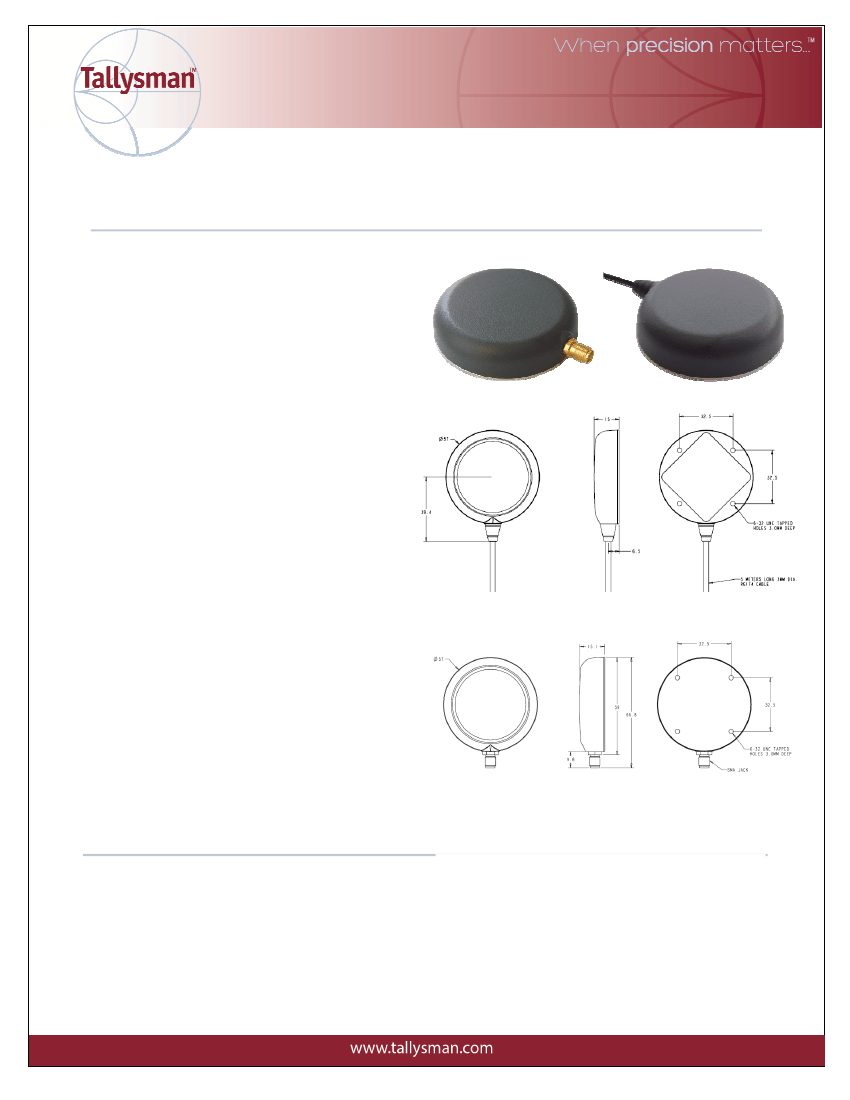

Dimensions (mm)
Dimensions (mm)
The TW2410/ TW2412 is housed in a compact,
industrial-grade weather-proof, magnet mount
enclosure, and is available with a variety of
connectors.
Applications
•
•
•
•
•
•
High Accuracy & Mission Critical GNSS
Precision Agriculture, Mining & Construction
Military & Security
Avionics
Law Enforcement & Public Safety
Fleet Management & Asset Tracking
Features
•
•
•
•
•
•
Great axial ratio: 1 typ., 3 dB max
Low noise LNA: ≤1 dB
High rejection SAW filter
LNA gain: 28 dB typ.
Low current: 15 mA typ.
Wide voltage input range: 2.5 to 16 VDC
IP67 weather proof housing
Benefits
•
•
•
•
•
•
Excellent multipath rejection
Increased system accuracy
Excellent signal to noise ratio
Great out of band signal rejection
Ideal for harsh environments
RoHS compliant
•
TW2410/TW2412 Magnet Mount GPS/GLONASS Antenna
Specifications
Vcc = 3V, over full bandwidth, T=25°C
Antenna
Architecture
1 dB Bandwidth
Antenna Gain (with 100mm ground plane)
Axial Ratio over Bandwidth (over full bandwidth)
Dual, Quadrature Feeds
30 MHz
4.25 dBic
1 dB typ,
≤
3 dB max
Electrical
Architecture
Filtered LNA Frequency Bandwidth
Polarization
LNA Gain
Gain flatness
Out-of-Band Rejection
<1500 MHz
<1550 MHz
>1640 MHz
VSWR (at LNA output)
Noise Figure
Supply Voltage Range (over coaxial cable)
Supply Current
ESD Circuit Protection
One LNA per feed line, mid section SAW filter
1574 to 1606 MHz
RHCP
28 dB min., 1575.42 to 1606 MHz
+/- 2 dB, 1575 to 1605 MHz
>32 dB (TW2410)
>50dB (TW2412)
>25 dB (TW2410)
>50 dB (TW2412)
>35 dB (TW2410)
>70 dB (TW2412)
<1.5:1
≤1 dB typ.
+2.5 to 16 VDC nominal (12VDC recommended maximum)
15 mA typ, 25mA Q max (85°C).
15 KV air discharge
Mechanicals & Environmental
Mechanical Size
Cable
Operating Temp. Range
Enclosure
Weight
Attachment Method
Environmental
Shock
Vibration
57 mm dia. x 15 mm H
RG174 / 5 metres, other lengths optional
-40 to +85 °C
Radome: ASA Plastic, Base: Zamak white metal
110 g
Magnet or permanent (pre-tapped 4 x 6-32 UNC)
IP67 and RoHS compliant
Vertical axis: 50 G, other axes: 30 G
3 axis, sweep = 15 min, 10 to 200 Hz sweep: 3 G
Ordering Information
Legacy Part Numbers:
TW2410 – GPS/Glonass Antenna, 5 metre cable, SMA Male
32-2410-0
TW2410 – GPS/Glonass Antenna, SMA female on housing
32-2410-7
* As a result of a growing product portfolio, Tallysman has rationalized its part number system. No changes have
been made to the mechanical or electrical properties of these products. Where administratively possible, please use
the following Part Numbers:
TW2410: 33-2410-xx-yyyy-zz
TW2412: 33-2412-xx-yyyy-zz
Where xx = connector type and yyyy = cable length in mm
Please refer to the Ordering Guide
(http://www.tallysman.com/orderingguide.php)
for the current and complete list
of available connectors.
Tallysman Wireless Inc
106 Schneider Road, Unit 3
Ottawa ON K2K 1Y2 Canada
Tel 613 591 3131
Fax 613 591 3121
sales@tallysman.com
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be regarded as a
guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. © 2011 Tallysman Wireless
Inc. All rights reserved.
Rev 4.0
